Frigidaire FAC102M1A1 Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES VOLTS BTU-COOLING

FAC102M1A1 FAC102M1A Compact 115 10000BTU

MARKET

Frigidaire

Publication No.

5995386215

030220

-EN/SERVICE /KC

345

ROOM AIR CONDITIONER

Model No.

FAC102M1A1

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107703

OWNER’S GUIDE - # 309000823

ENERGY GUIDE - # 309369938

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

02/03 2

Publication No. FAC102M1A1

5995386215

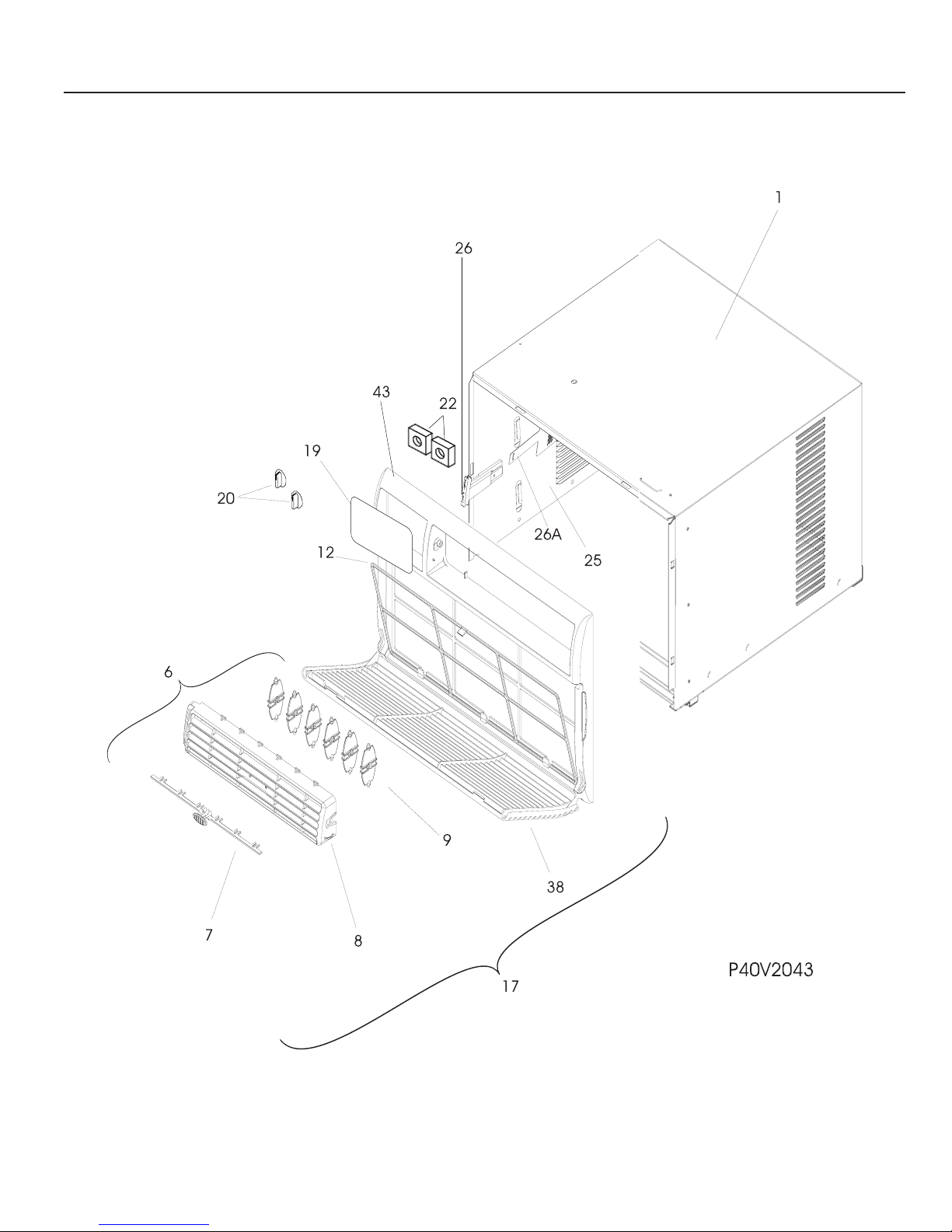

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 02/03

* = Non-Illustrated Parts

FAC102M1A1 Publication No.

5995386215

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309643602 Cabinet,wrapper

* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

6 309640206 Louver Assy,includes 7,8,9

7 309638002 · Link,vertical louver ,with handle

8 309639302 · Louver,horizontal

9 309342001 · Louver,vertical ,(6)

12 309343501 Filter,air ,7.12 x 17.31 ,no frame

17 309640104 Front Assembly,cabinet ,w/8,9,12,38,43

* 3015312 Screw,8-18AB x 0.500

19 309342909 Dial Plate

20 309364102 Knob,rotary control

22 5303001775 Spacer,dial plate

25 309328603 Door,fresh air vent

26 309638201 Handle,vent door

26A 309330201 Detent,vent

38 309646301 Panel,cabinet front

43 309646401 Frame,cabinet front

* 309369938 Energy Guide,FAC102M1A

02/03 4

Publication No. FAC102M1A1

5995386215

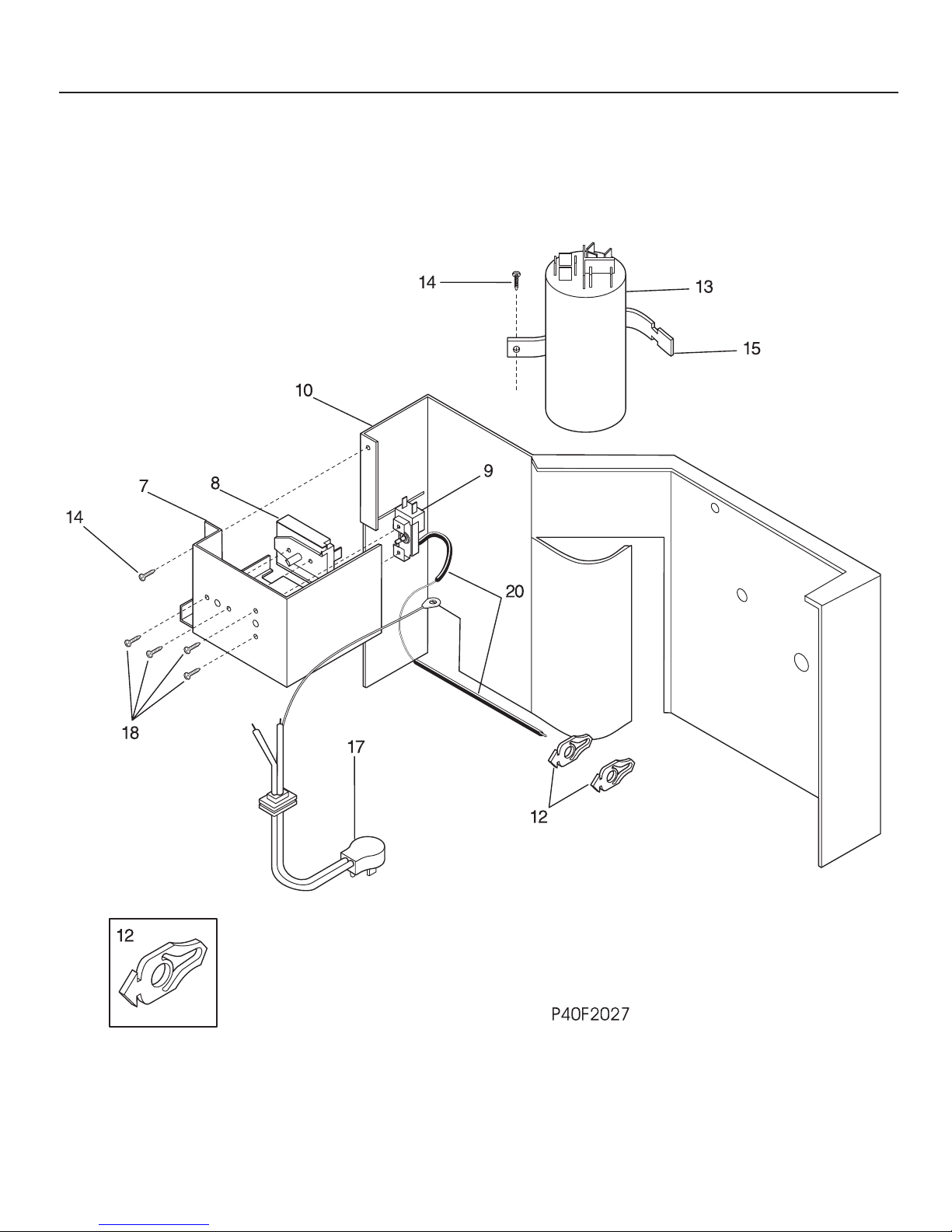

CONTROLS

# = Fast-moving Parts 5 02/03

* = Non-Illustrated Parts

FAC102M1A1 Publication No.

5995386215

CONTROLS

POS. NO PART NO DESCRIPTION

7 309643802 Control Box

8 # 5303323284 Switch,selector ,7 posn,3 speed

9 # 5303302852 Control,air temperature

10 309643702 Bulkhead

10* 309111201 Grommet,wire protector

12 309101202 Clip,retainer ,temp sensor ,(2)

13 # 5304426337 Capacitor,250 V ,50+10 mfd

14 3015312 Screw,8-18AB x 0.500

15 309351901 Strap,capacitor mtg.

17 # 309343123 Cord-electric power,16 AWG ,115 V ,w/ground clip

* 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

18 5303007754 Screw,6-32 x 0.188

20 5304417582 Sleeve,temp sensor ,6 in.

02/03 6

Publication No. FAC102M1A1

5995386215

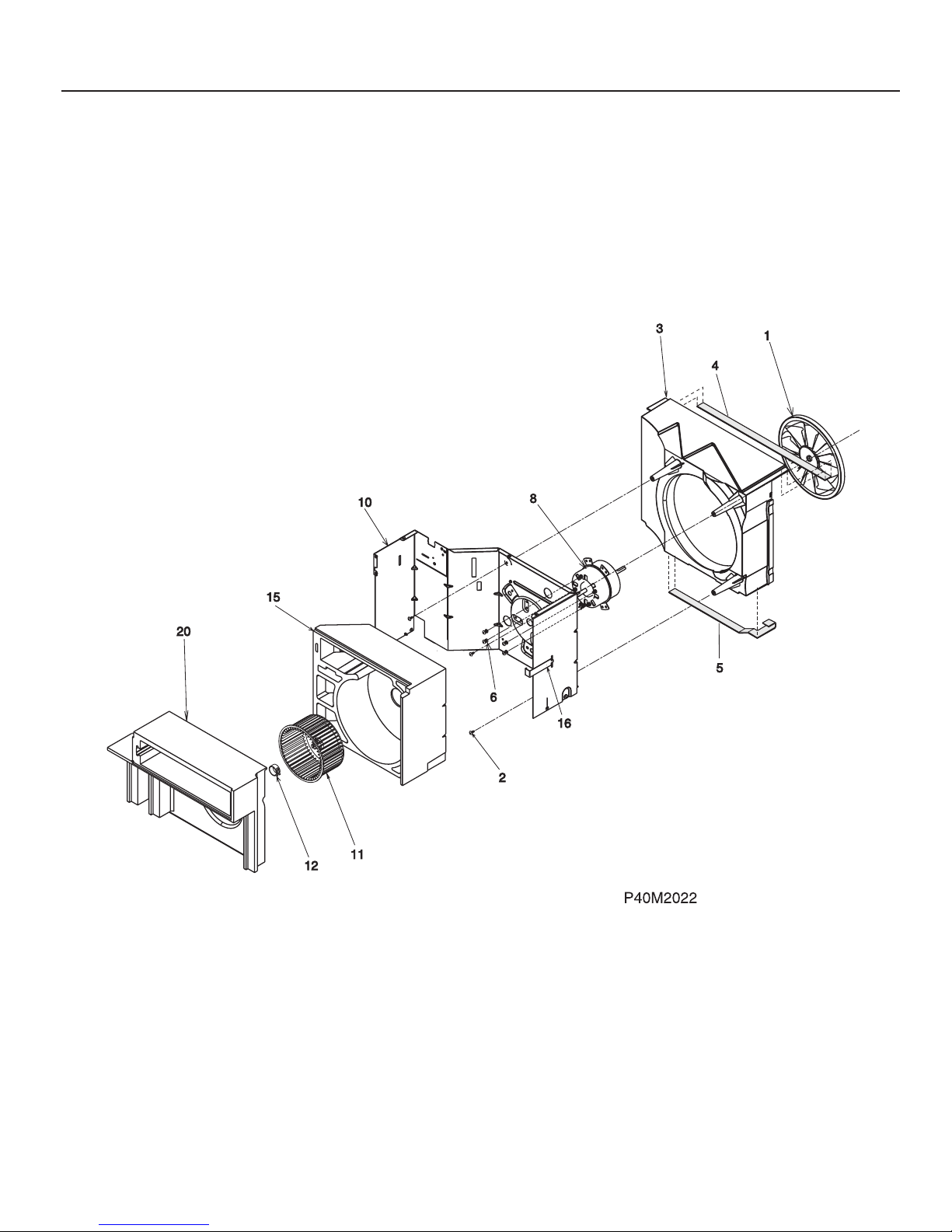

AIR HANDLING PARTS

# = Fast-moving Parts 7 02/03

* = Non-Illustrated Parts

FAC102M1A1 Publication No.

5995386215

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 309645702 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309643901 Housing,fan shroud

4 5304421913 Seal,top

5 5303303759 Seal,bottom

6 08007481 Nut,Keps ,motor mtg ,(4)

8 # 309644302 Motor,fan

10 309643702 Bulkhead

11 # 309643301 Blower Wheel

12 309112101 Clamp,blower wheel mt ,compression

15 309642901 Housing,blower scroll ,Extended

16 309100201 Clip,evap/bulkhead

20 309643002 Plate,scroll cover

02/03 8

Publication No. FAC102M1A1

5995386215

COMPRESSOR PARTS

# = Fast-moving Parts 9 02/03

* = Non-Illustrated Parts

FAC102M1A1 Publication No.

5995386215

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309603116 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303291330 Gasket,terminal cover

7 5304416126 Cover,elec terminal ,compressor

8 # 5304430489 Overload Protector

9 5303294292 Nut,terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309619319 Evaporator

12 # 309645405 Condenser

13 # 309642801 Tray,evap drip

14 309644001 Base,compressor mt. ,with studs

16 # 5304403237 Capillary Tube,50 inch long

17 # 5300265301 Drier-filter,service kit

19 309112501 Washer,metallic

21 5303293809 Washer,terminal cover

02/03 10

Publication No. FAC102M1A1

5995386215

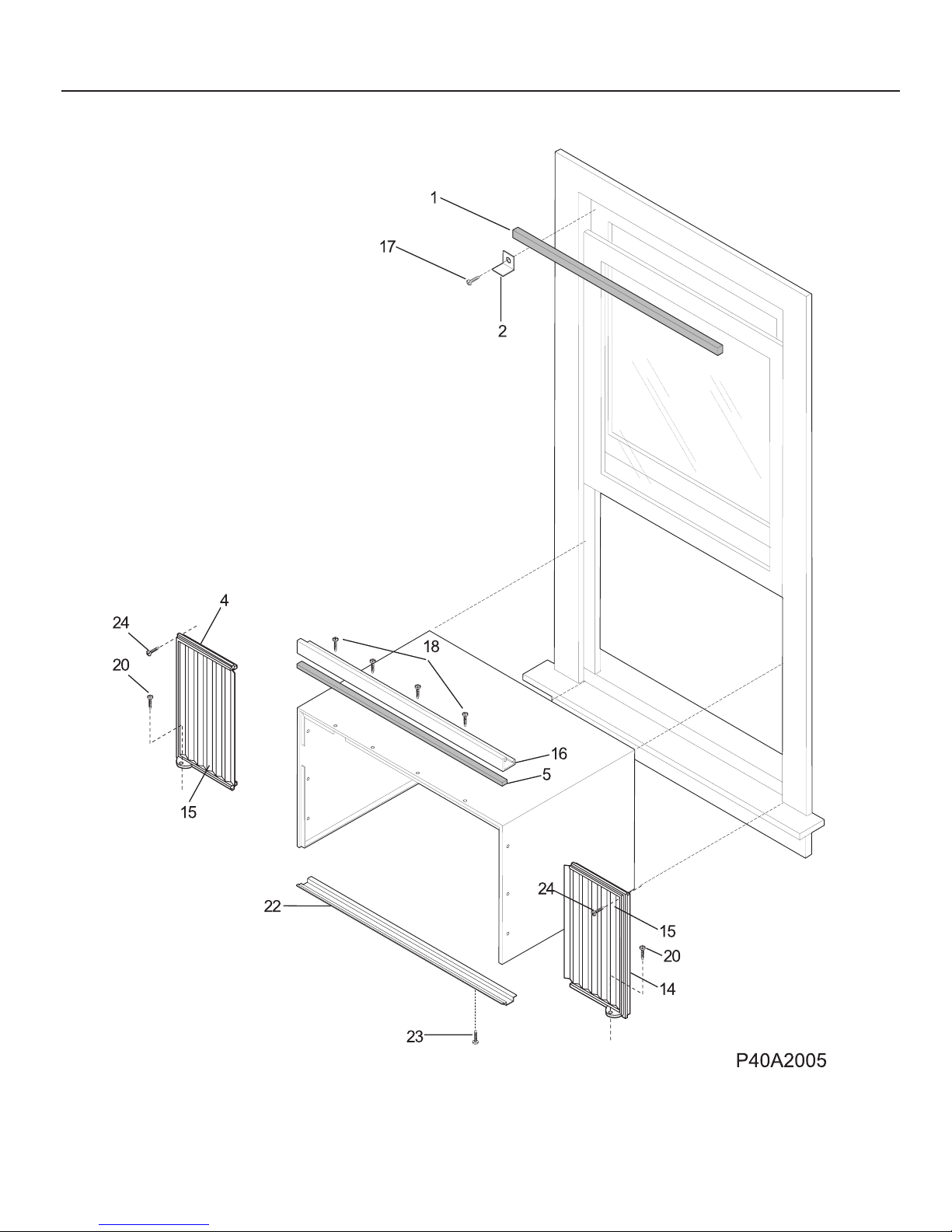

WINDOW MOUNTING PARTS
