Frigidaire FAC103K1A1 Manuale utente

PRODUCT NO. BASE MODEL NO. VOLTS MARKET BTU-COOLING

FAC103K1A1 FAC103K1A 115 USA 9950BTU

Publication No.

5995351748

010328

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAC103K1A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107703

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

06/01 2

Publication No. FAC103K1A

5995351748

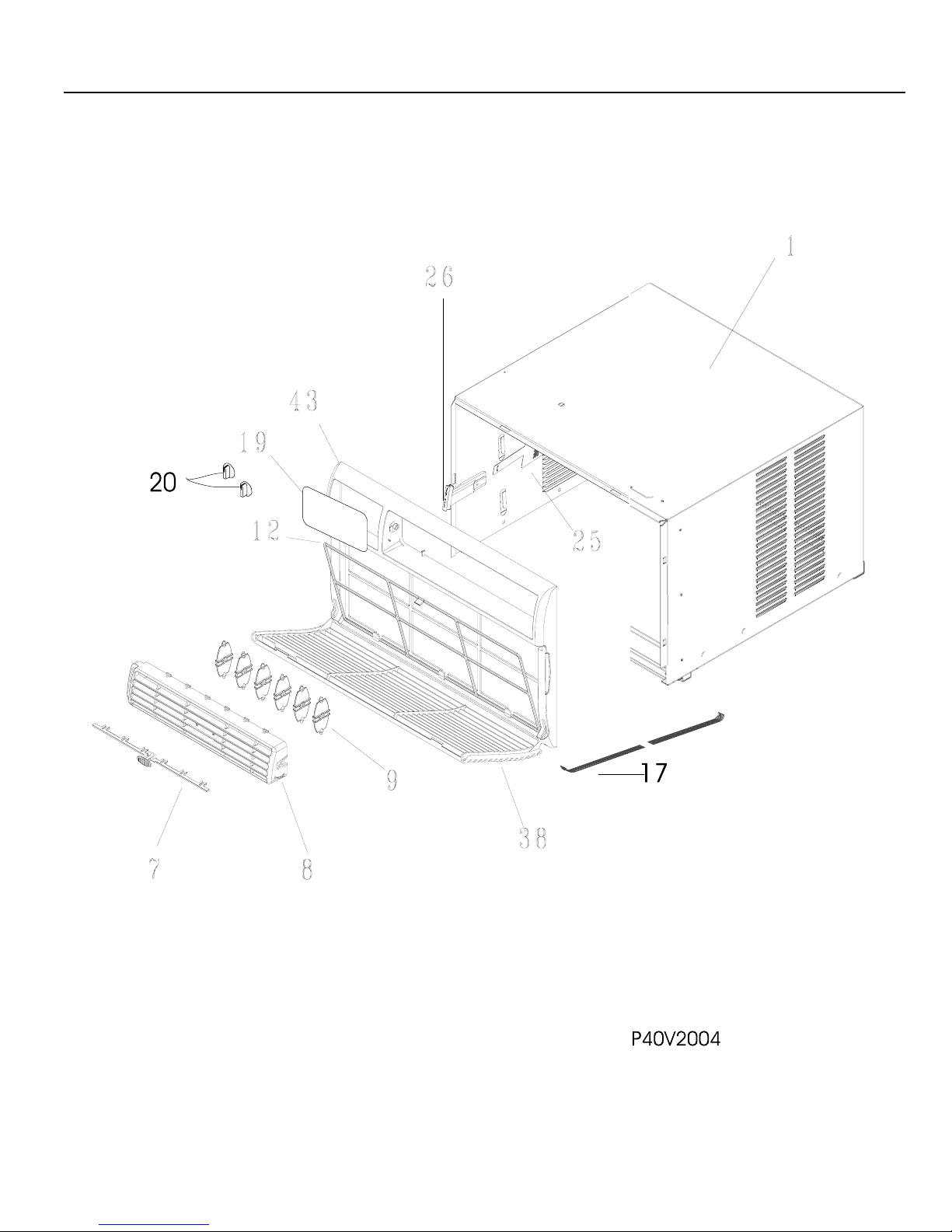

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

FAC103K1A Publication No.

5995351748

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309643602 Cabinet

7 309638001 Link,vertical louver ,with handle

8 309639301 Louver,horizontal

8* 309640202 Louver Assy,horizontal ,Incl-7,8,9

9 309342001 Louver,vertical ,(6)

12 309343501 Filter-air,7.12 x 17.31 ,no frame

17 309640102 Front-cabinet,4 way ,complete assy

19 309342903 Dial Plate

20 309306811 Knob-control,rotary

25 309328601 Door-vent,fresh air

26 309638201 Handle vent door

26* 309330201 Detent-vent

38 309639201 Panel,cabinet front

43 309639101 Frame,cabinet front

06/01 4

Publication No. FAC103K1A

5995351748

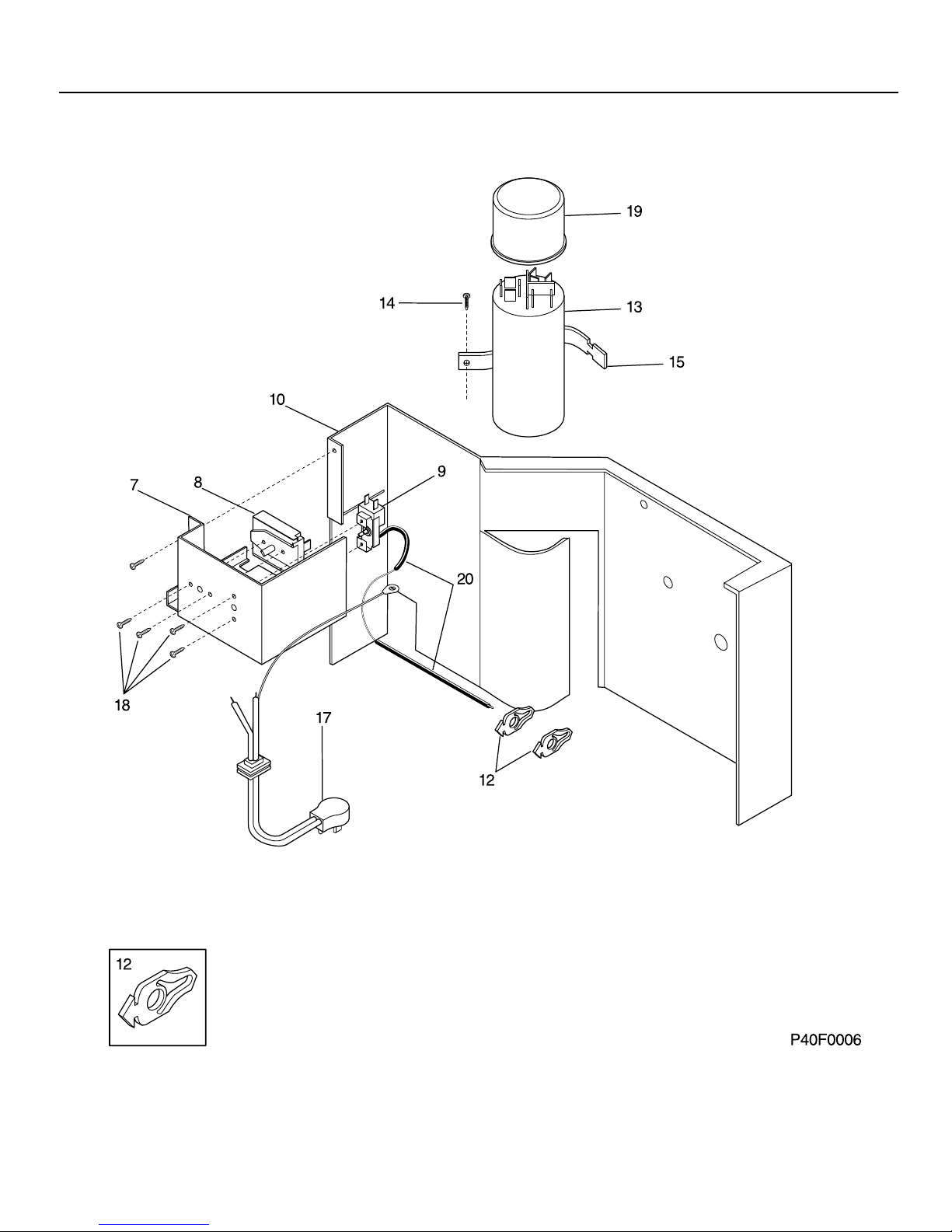

CONTROLS

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

FAC103K1A Publication No.

5995351748

CONTROLS

POS. NO PART NO DESCRIPTION

7 309643802 Box-control

8 # 5303323284 Switch-selector

9 # 5303302852 Control-temperature

10 309643701 Bulkhead

12 309101202 Clip-control bulb,(2)

13 # 5304421859 Capacitor,40+10/250 vac

14 5303303691 Screw,truss head ,8-18AB x 0.375, w/nibs

15 309351901 Strap-capacitor

17# 309343102 Cord-service

18 5303007754 Screw,6-32 x 0.188

19 5303302855 Cover,capacitor

20 5303002600 Sleeve,control

06/01 6

Publication No. FAC103K1A

5995351748

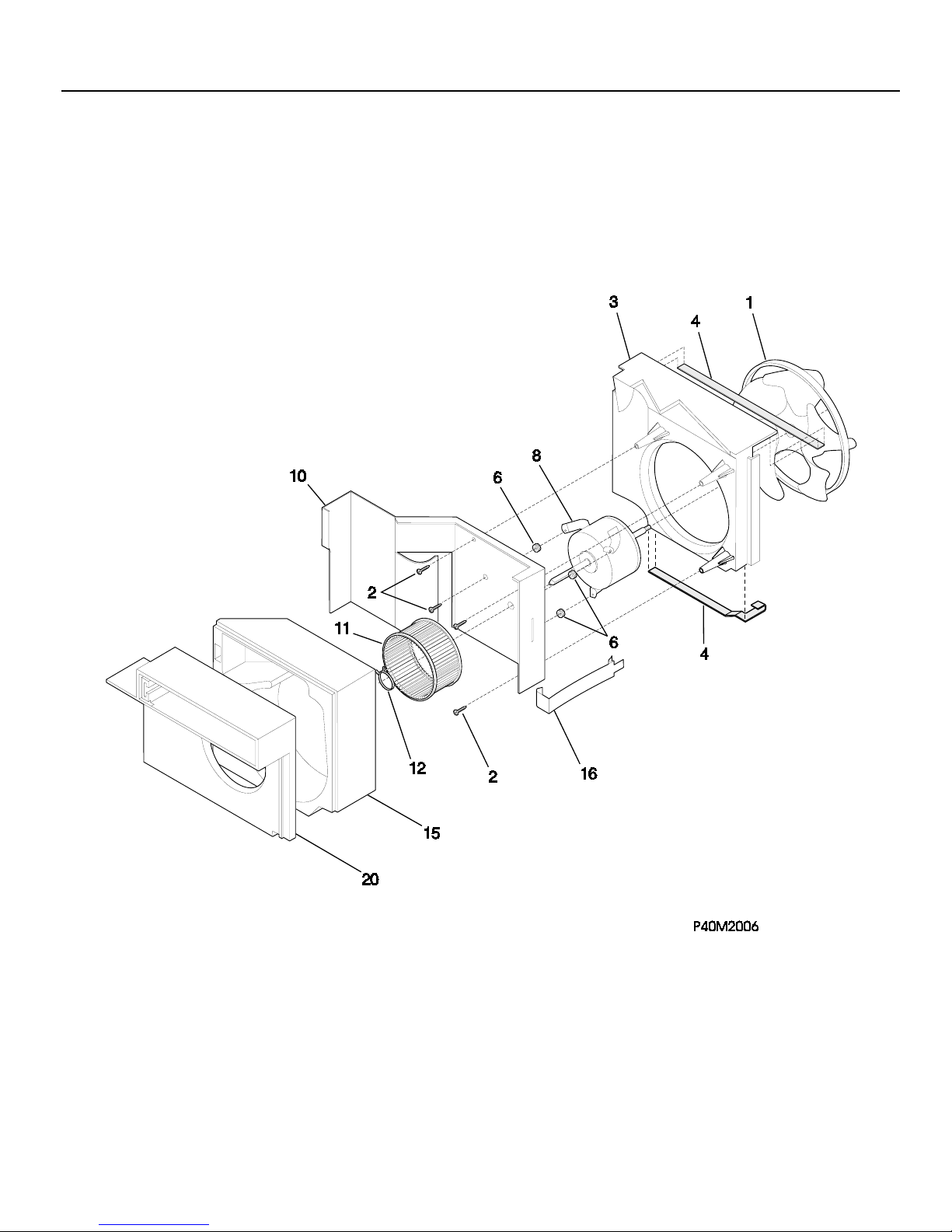

AIR HANDLING PARTS

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

FAC103K1A Publication No.

5995351748

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 309645702 Fan blade- aasy

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309624201 Housing-fan

4 5303270043 Seal, condenser

6 5300105402 Grommet,motor

8 # 309642404 Motor-fan,4PLGEHI

10 309643701 Bulkhead

11 309643301 Blower Wheel,5"Hub

12 309112101 Clamp-blower

12* 5303012110 Clamp-blower

15 5304407653 Housing-blower

16 309100201 Clip

20 309643002 Plate-scroll

06/01 8

Publication No. FAC103K1A

5995351748

COMPRESSOR PARTS

# = Fast-moving Parts 9 06/01

* = Non-Illustrated Parts

FAC103K1A Publication No.

5995351748

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5304419112 Compressor-sanyo,806-014-42

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 3200282 Gasket-cover

7 3200281 Cover-terminal

8 # 5303295567 Overload Protector

9 5303211017 Nut-terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 309619309 Evaporator

12 # 309645401 Condenser

13 # 5304421859 Capacitor,40+10/250 vac

14 309644002 Base/compressor-stud assy

16 5308017120 Capillary Tube,45 inch long ,cut to length

17 5304413933 Tube-process,condenser

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

06/01 10

Publication No. FAC103K1A

5995351748

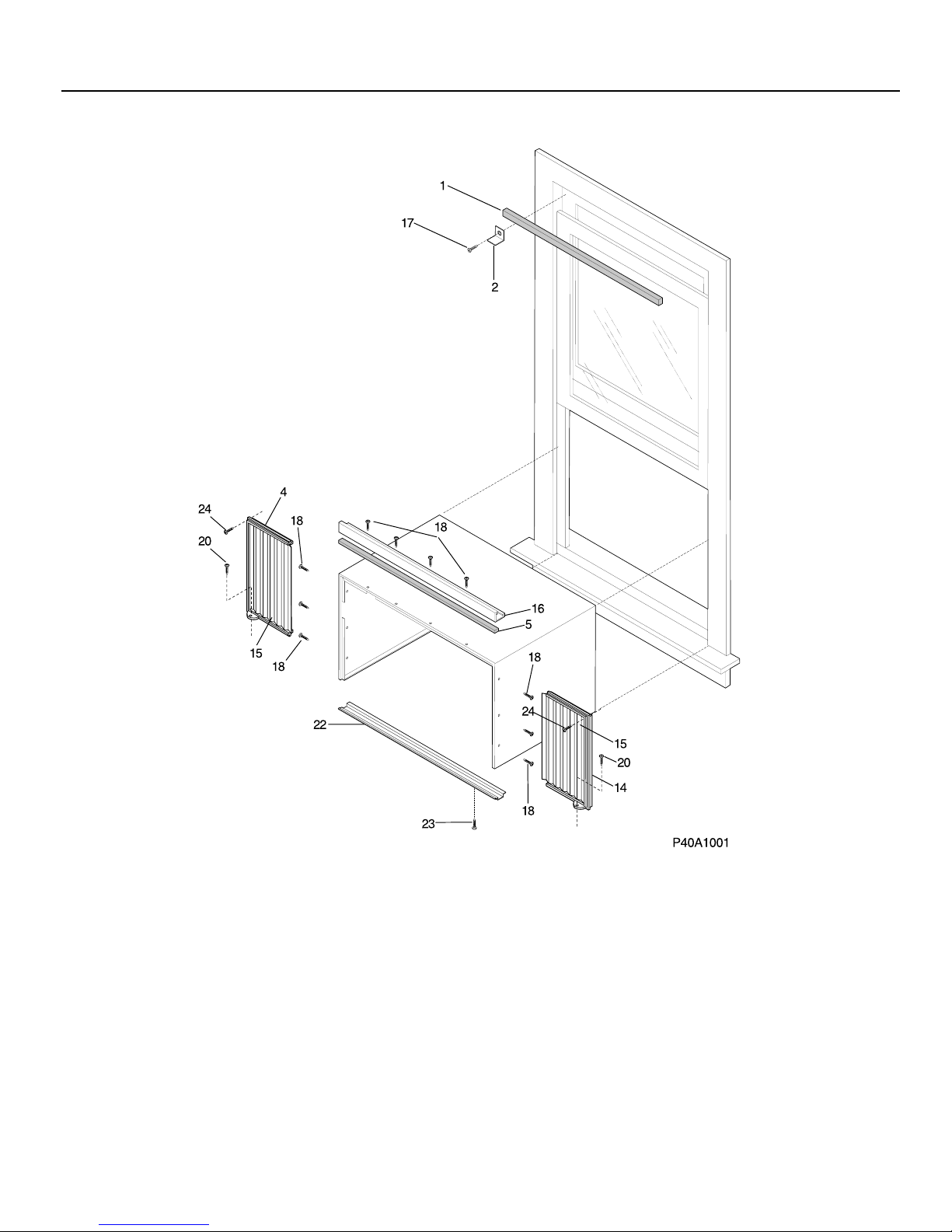

WINDOW MOUNTING PARTS
