Frigidaire FAC106N1A Manuale utente

Product No. FAC106N1A1

Series Compact II

Volts 115

BTU-Cooling 10000

Owner's Guide 2202039823

Market North America

M40L0002.eps M40C0002.eps M40M0002.eps Remote Control wiring diagram.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995406039

04/03/30

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAC106N1A

Publication No: 5995406039 FAC106N1A1

03/04 2

CABINET, FRONT, CONTROLS

FAC106N1A1 Publication No: 5995406039

# Functional Parts 3 03/04

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

POS. NO PART NO. DESCRIPTION

1 5304436521 Base, unit chassis

2 5304436523 Rail, shutter track, bottom

3 5304436544 Frame, shutter panel, LH

4 5304436545 Retainer, shutter lock

5 5304436546 Shutter, accordion panel

6 5304436547 Retainer, shutter mount, cabinet sides

7 5304436548 Cabinet, wrapper/sleeve

8 5304436549 Rail, shutter track, top

9 5304436550 Frame, shutter panel, RH

10 5304436600 Front Assembly, complete panel, includes

11 5304436551 Panel, front grille, tilt-out

12 5304436552 Filter, air, plastic frame

13 5304436553 Frame, front assembly

14 5304436554 Louver, horizontal

15 5304436555 Louver, vertical

17 5304436536 Enclosure, control, pcb display

17 5304436538 Control Panel, display, electronic

18 # 5304436535 PC Board, display/input

19 5304436533 Panel, ctrl mtg board

20 # 5304436532 PC Board, control/power

21 # 5304436543 Sensor, ambient temp

22 # 5304436542 Sensor, evap temp, defrost

23 5304436530 Strap, capacitor mtg.

24 # 5304436525 Capacitor

25 5304436524 Control Box

26 # 5304436596 Remote Control, transmitter

27 # 5304436529 Ionizer

Publication No: 5995406039 FAC106N1A1

03/04 4

COOLING & AIR FLOW SYSTEMS

FAC106N1A1 Publication No: 5995406039

# Functional Parts 5 03/04

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

POS. NO PART NO. DESCRIPTION

1 5304436556 Scroll, blower housing, bottom, w/drain tray

2 # 5304436557 Blower Wheel, centrifugal fan

3 5304436559 Scroll, blower housing, top

4 5304436558 Door, fresh air vent, with lever

5 5304436564 Guide, vent door/lever

6 5304436565 Cover, blower scroll, top

7 # 5304436563 Fan Blade, propeller, axial flow

8 # 5304436562 Shroud, fan housing

9 # 5304436561 Motor, fan

10 5304436560 Seal, fan motor, rubber ring, water proof

11 # 5304436566 Evaporator

12 # 5304436582 Capillary Tube, assy w/strainer

13 # 5304436574 Discharge Tube

14 # 5304437082 Compressor Assy, Note: includes overload, wiring cover, and mounting grommets

15 # 5304436571 Condenser

16 # 5304436569 Suction Tube

Publication No: 5995406039 FAC106N1A1

03/04 6

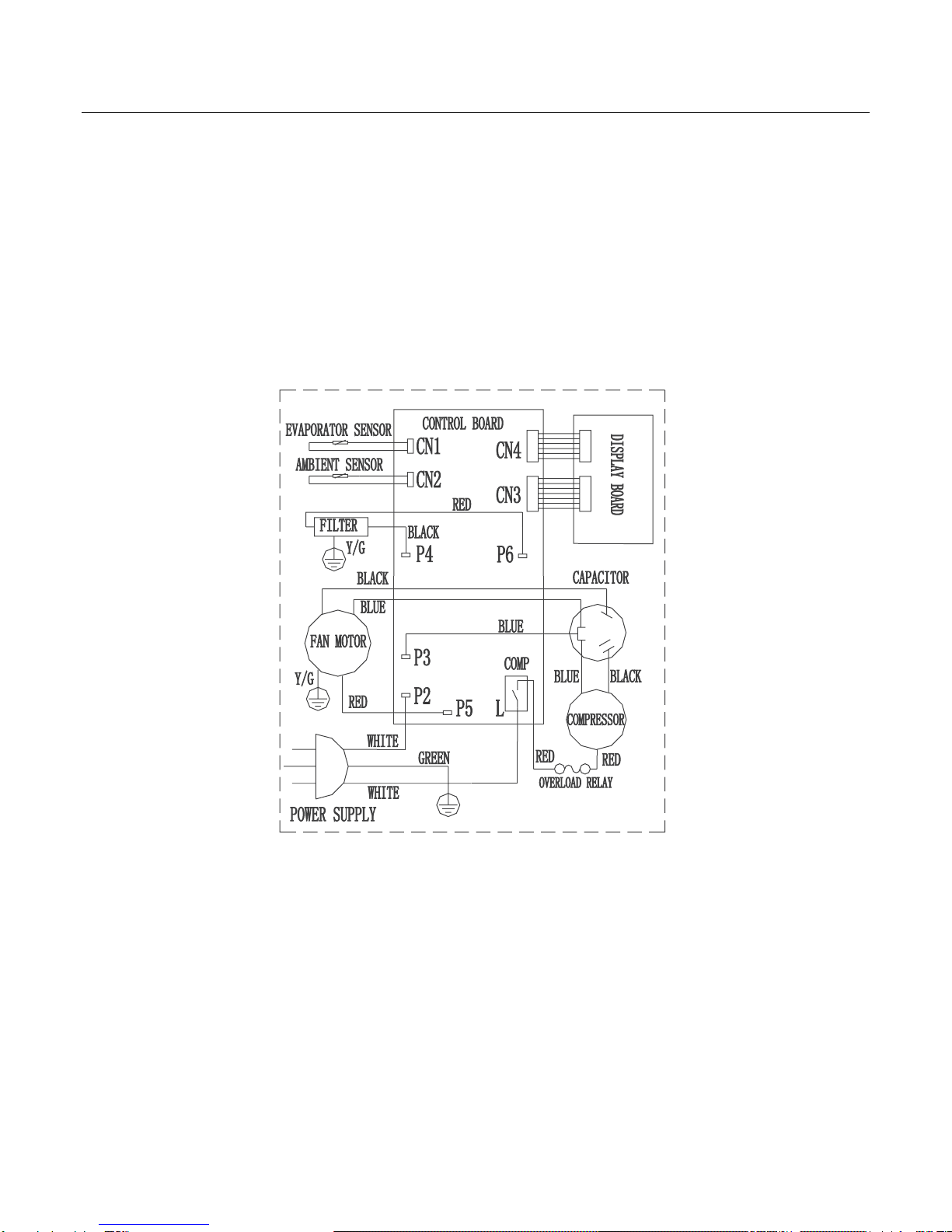

WIRING DIAGRAM
