Frigidaire FAC125P1 Manuale utente

M40L0002.eps M40C0002.eps M40M0002.eps 2202049158.eps

Product No. FAC125P1A1 FAC125P1A2 FAC125P1A3

Series ROOM AIR ROOM AIR ROOM AIR

Color white white white

Volts 115 115 115

BTU-Cooling 12,000BTU 12,000BTU 12,000BTU

Owner's Guide 220201d011 220201d011 220201d011

Installation Instructions COMINSTALLEN COMINSTALLEN COMINSTALLEN

Market North America North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995437133

05/05/19

(EN/SERVICE/WC)

099

ROOM AIR

CONDITIONER

Model No.

FAC125P1

Publication No: 5995437133 FAC125P1

05/05 2

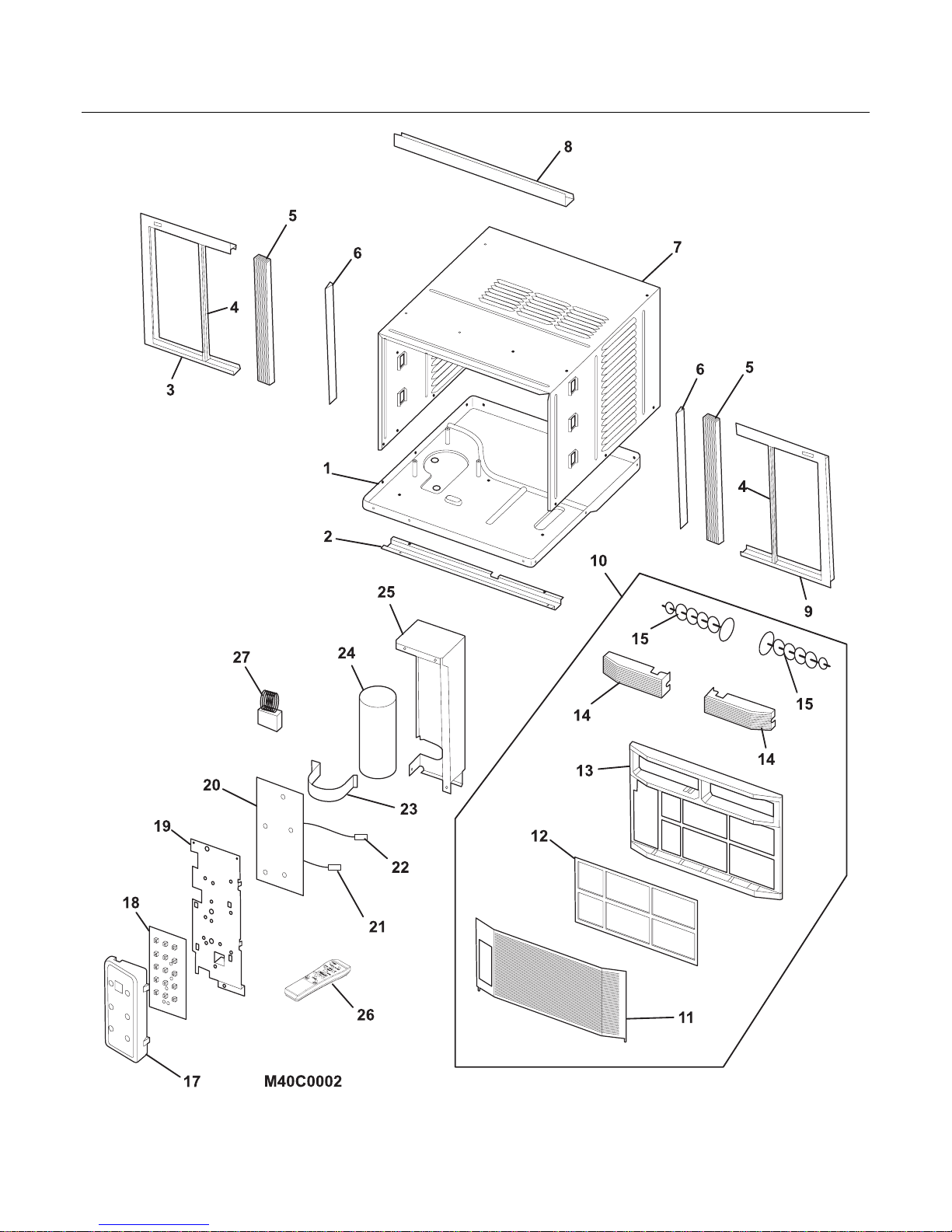

CABINET, FRONT, CONTROLS

FAC125P1 Publication No: 5995437133

# Functional Parts 3 05/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAC125P1A (FAC125P1A1)

BFAC125P1A (FAC125P1A2)

CFAC125P1A (FAC125P1A3)

POS. NO PART NO. DESCRIPTION

1 5304436521 A B C Base, unit chassis

2 5304436523 A B C Rail, shutter track, bottom

3 5304436544 A B C Frame, shutter panel, LH

4 5304436545 A B C Retainer, shutter lock

5 5304436546 A B C Shutter, accordion panel

6 5304436547 A B C Retainer, shutter mount, cabinet sides

7 5304446442 A B C Cabinet, wrapper/sleeve

8 5304436549 A B C Rail, shutter track, top

9 5304436550 A B C Frame, shutter panel, RH

10 5304436600 A B C Front Assembly, complete panel, includes

11 5304436551 A B C Panel, front grille, tilt-out

12 5304436552 A B C Filter, air, plastic frame

13 5304436553 A B C Frame, front assembly

14 5304436554 A B C Louver, horizontal

15 5304446443 A B C Louver, vertical

17 5304436536 A B C Enclosure, control, pcb display

17* 5304436541 A B C Control Panel, display, electronic

18 # 5304436535 A B C PC Board, display/input

19 5304446441 A B C Panel, control mounting board

20 # 5304436532 A B C PC Board, control/power

21 # 5304436543 A B C Sensor, ambient temp

22 # 5304436542 A B C Sensor, evap temp, defrost

23 5304436530 A B C Strap, capacitor mtg.

24 # 5304436525 A B C Capacitor

25 5304436524 A B C Control Box

26 # 5304436595 A B C Remote Control, transmitter

27 # 5304436529 A B C Ionizer

* 5304458023 A B C D E F Hardware Kit, installation

Publication No: 5995437133 FAC125P1

05/05 4

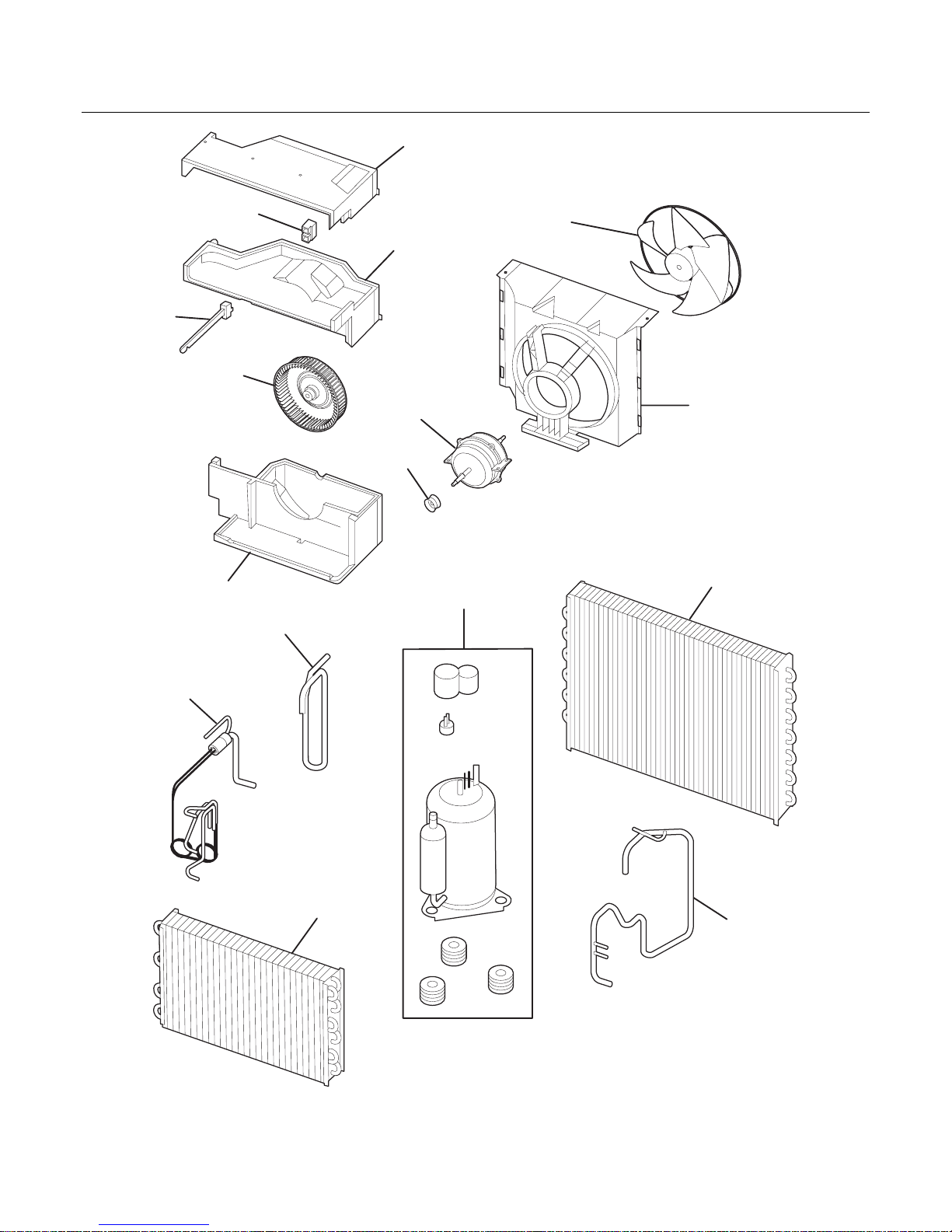

COOLING & AIR FLOW SYSTEMS

M40M0002

FAC125P1 Publication No: 5995437133

# Functional Parts 5 05/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAC125P1A (FAC125P1A1)

BFAC125P1A (FAC125P1A2)

CFAC125P1A (FAC125P1A3)

POS. NO PART NO. DESCRIPTION

1 5304436556 A B C Scroll, blower housing, bottom, w/drain tray

2 # 5304436557 A B C Blower Wheel, centrifugal fan

3 5304436559 A B C Scroll, blower housing, top

4 5304436558 A B C Door, fresh air vent, with lever

5 5304436564 A B C Guide, vent door/lever

6 5304436565 A B C Cover, blower scroll, top

7 # 5304436563 A B C Fan Blade, propeller, axial flow

8 # 5304436562 A B C Shroud, fan housing

9 # 5304441406 A - - Motor, fan

9 5304446455 - B - Motor, fan

9 # 5304441405 - - C Motor, fan

10 5304436560 A B C Seal, fan motor, rubber ring, water proof

11 # 5304436566 A B C Evaporator

12 # 5304436580 A B C Capillary Tube, assy w/strainer

13 # 5304436575 A B C Discharge Tube

14 # 5304437080 A B C CompressorAssy

15 5304446452 A B C Condenser

16 # 5304436569 A B C Suction Tube

* # 5304446449 A B C D E F Power Cord, electric, 115 V

Publication No: 5995437133 FAC125P1

05/05 6

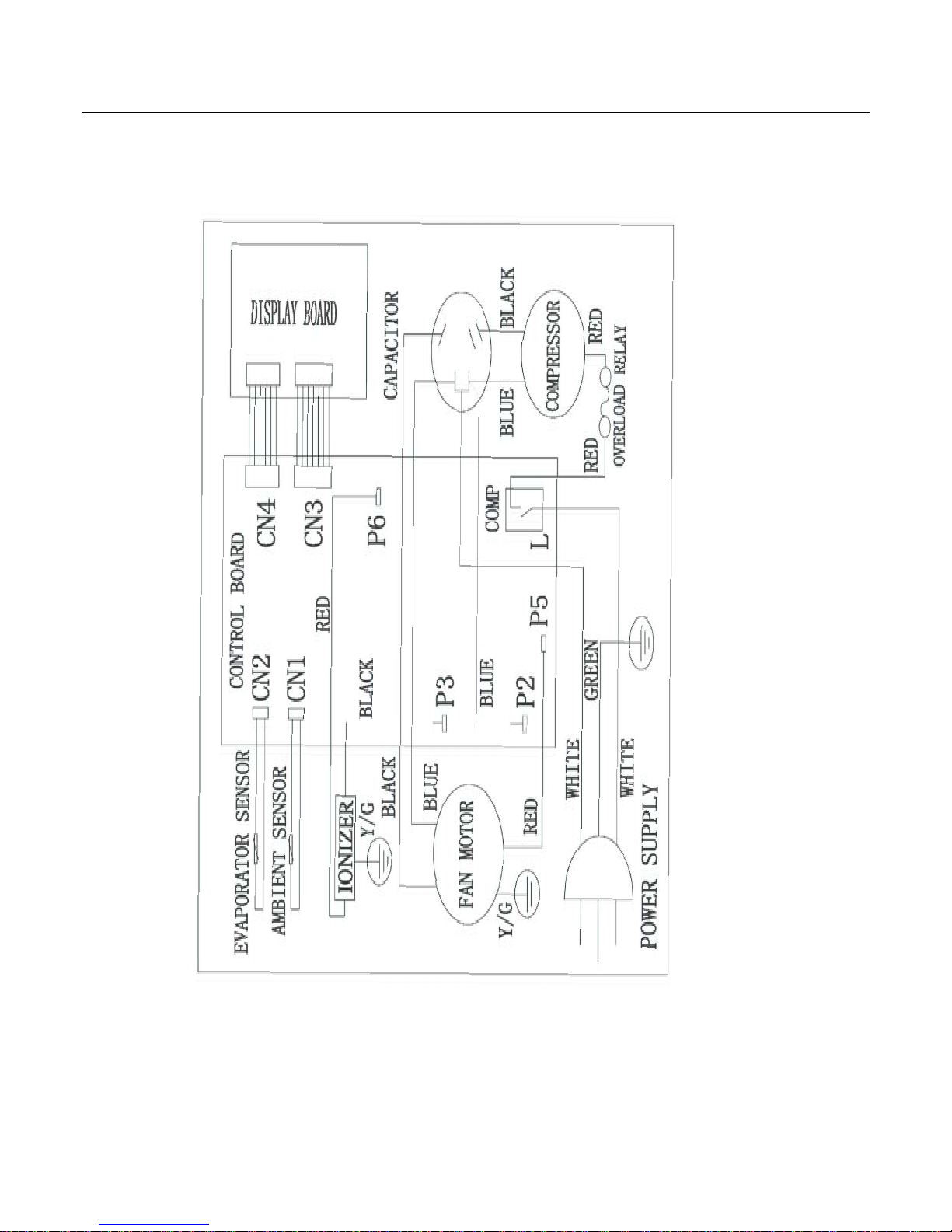

WIRING DIAGRAM

2202019158
