Frigidaire FAK104P1V Manuale utente

Product No. FAK104P1V1

Series Slider/Casement

Volts 115

BTU-Cooling 10000

Wiring Diagram 81902357

Owner's Guide 819042059en

Installation Instructions 819042237en

Market North America

M40L0006.eps M40C0012.eps M40M0012.eps 81902357.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995438263

05/06/02

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAK104P1V

Publication No: 5995438263 FAK104P1V1

06/05 2

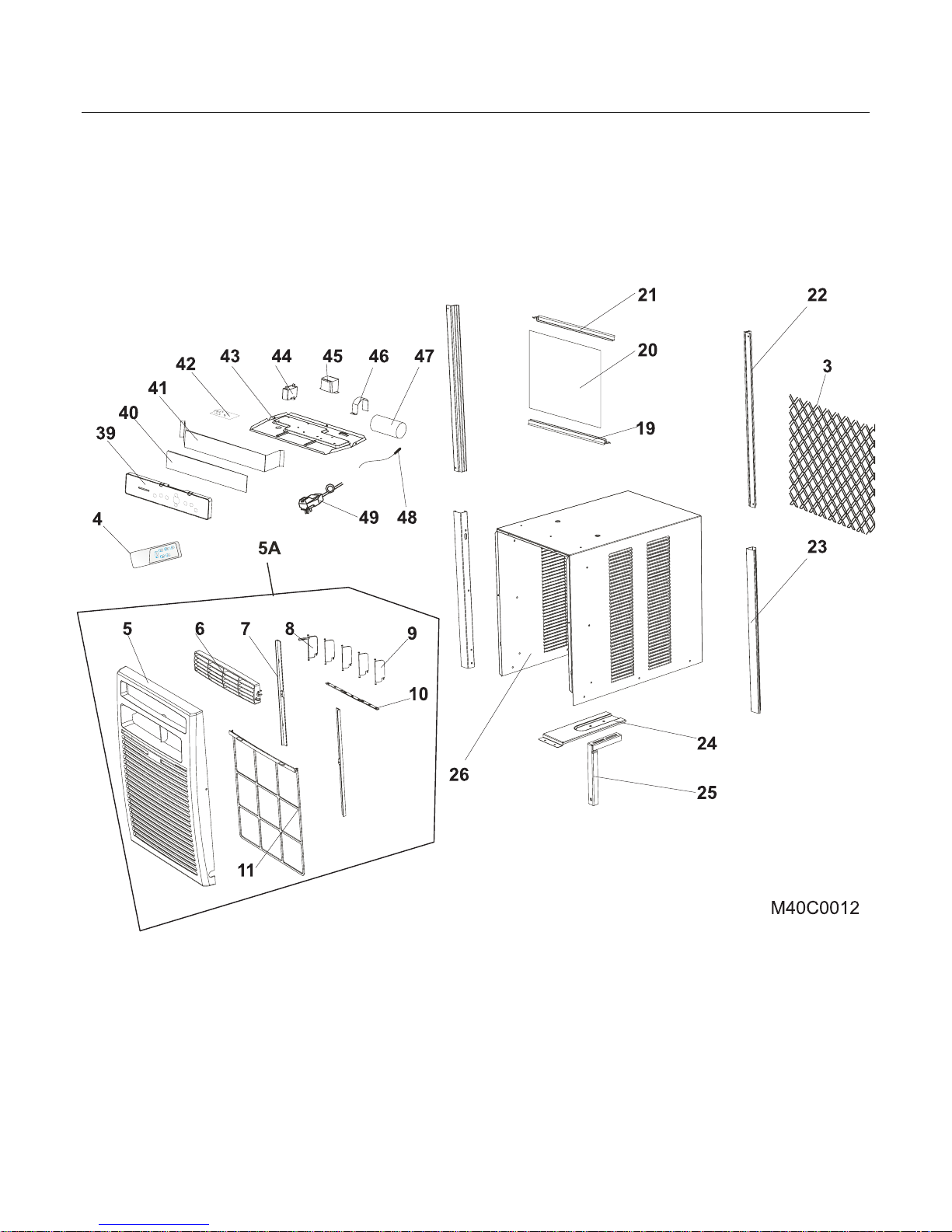

CABINET, FRONT, CONTROLS

FAK104P1V1 Publication No: 5995438263

# Functional Parts 3 06/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

POS. NO PART NO. DESCRIPTION

3 5304448083 Screen, grille, plastic mesh, rear

4 # 5304447993 Remote Control, transmitter

5A 5304448487 Front Assembly, complete panel, includes 5,6,7,8,9,10,11

5 5304448084 •Panel, grille, front

6 5304448085 •Louver, horizontal

7 5304448086 •Bracket, filter mounting

8 5304448087 •Louver, vertical, with handle

9 5304448088 •Louver, vertical

10 5304448089 •Link, vertical louver

11 5304448090 •Filter, air, plastic frame

19 5304448097 Retainer, window panel, lower

20 5304448098 Panel, window filler, plastic

21 5304448099 Retainer, window panel, top

22 5304448100 Slider, window panel

23 5304448101 Channel, slide, side mount

24 5304448102 Platform, unit support

25 5304448103 Bracket, angle, cab support

26 5304448104 Cabinet, wrapper/sleeve

39 5304448117 Console, control cover

40 # 5304448118 PC Board, display/input

41 5304448119 Cover, control box, front plate

42 # 5304448120 PC Board, control/power

43 5304448121 Control Box

44 # 5304448122 Capacitor, fan motor

45 # 5304447810 Transformer

46 5304448133 Strap, capacitor clamp

47 # 5304448011 Capacitor, run

48 # 5304448125 Sensor, indoor temp

49 # 5304448126 Power Cord, LCDI, with test/reset

Publication No: 5995438263 FAK104P1V1

06/05 4

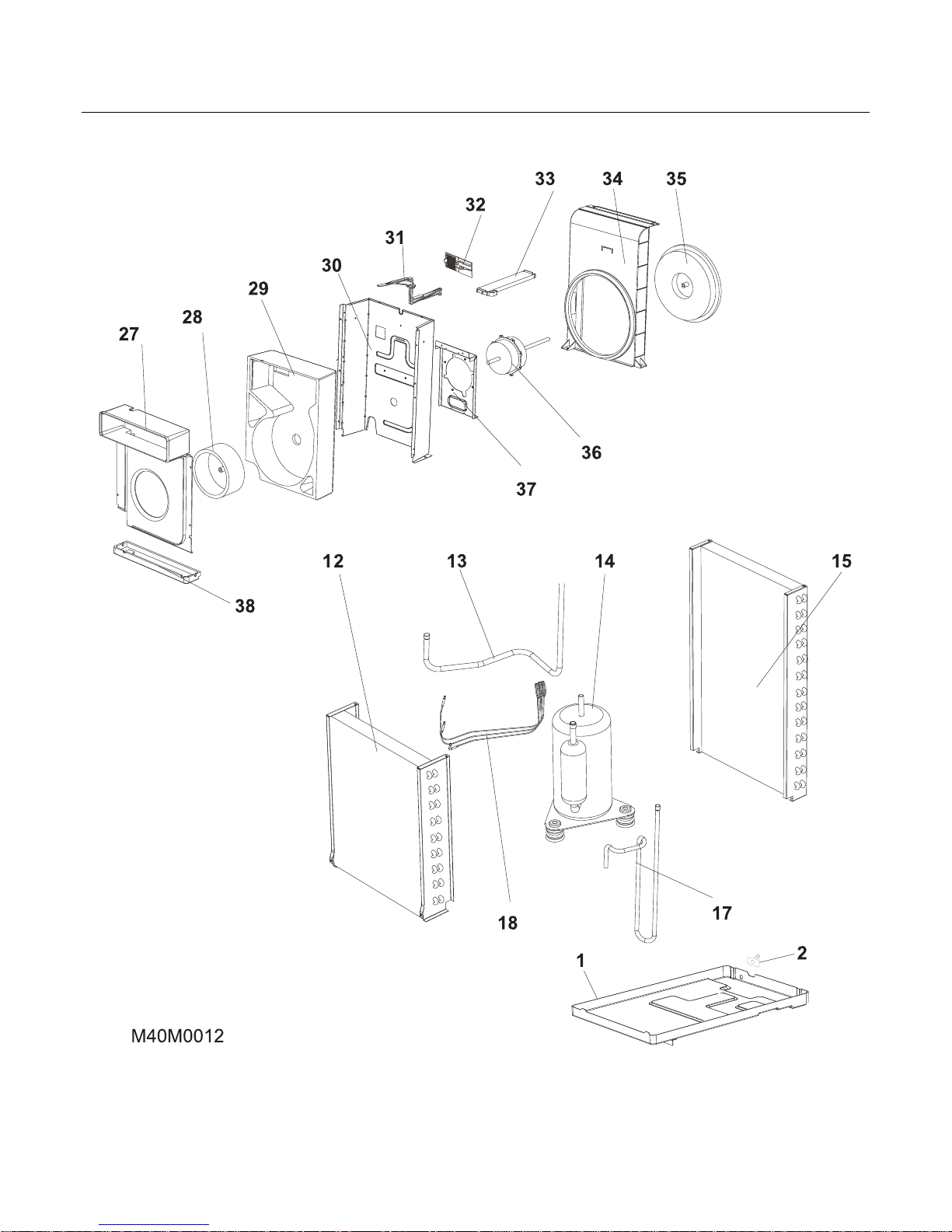

COOLING & AIR FLOW SYSTEMS

FAK104P1V1 Publication No: 5995438263

# Functional Parts 5 06/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

POS. NO PART NO. DESCRIPTION

1 5304448080 Base, unit chassis

2 5304448082 Plug, drain

12 # 5304448091 Evaporator

13 # 5304448127 Suction Tube

14 # 5304448068 Compressor Assembly, w/electricals, drier, grommets

15 # 5304448094 Condenser

17 # 5304448128 Discharge Tube

18 # 5304448129 Capillary Tube

27 5304448130 Adapter, scroll/housing, front, air intake

28 # 5304448131 Blower Wheel, centrifugal fan

29 5304448107 Scroll, blower housing

30 5304448108 Bulkhead, partition

31 5304448109 Lever, vent opener

32 5304448110 Door, air vent cover

33 5304448111 Link, lever/vent door

34 # 5304448112 Shroud, fan housing

35 # 5304448113 Fan Blade, axial flow

36 # 5304448132 Motor, fan

37 5304448115 Bracket, fan motor mount

38 5304448116 Tray, drain pan

Publication No: 5995438263 FAK104P1V1

06/05 6

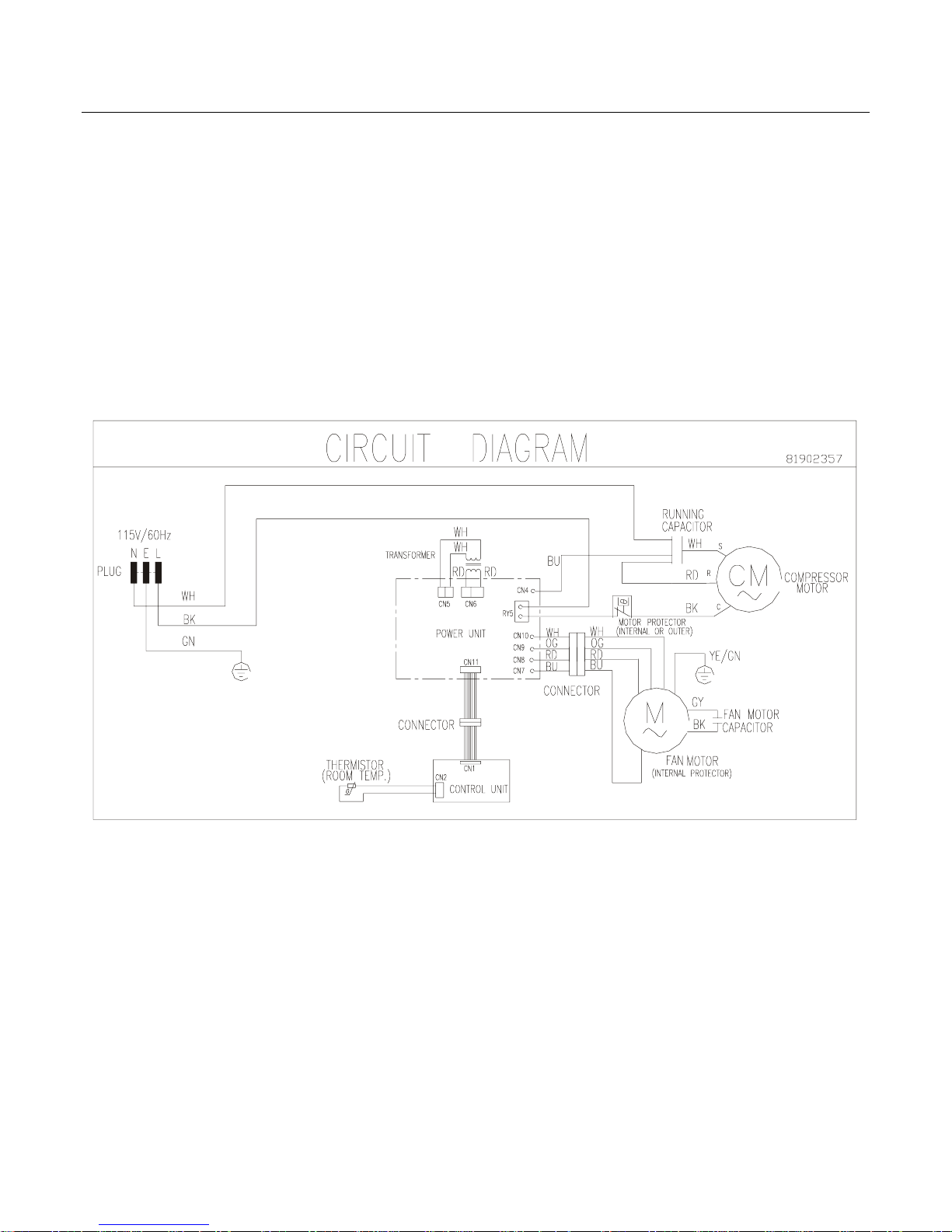

WIRING DIAGRAM

81902357
