Frigidaire FAS18EP2A Manuale utente

Product No. FAS18EP2A1

Series heavy duty

Color N/A

Volts 230/208

BTU-Cooling 18000/17800 BTU

BTU-Heating 16000/13000 BTU

Wiring Diagram 81902547

Owner's Guide frig819042060en

Installation Instructions 819042102en

Market North America

M40L0004.eps M40C0010.eps M40M0008.eps 81902547.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995437695

05/05/25

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAS18EP2A

Publication No: 5995437695 FAS18EP2A1

05/05 2

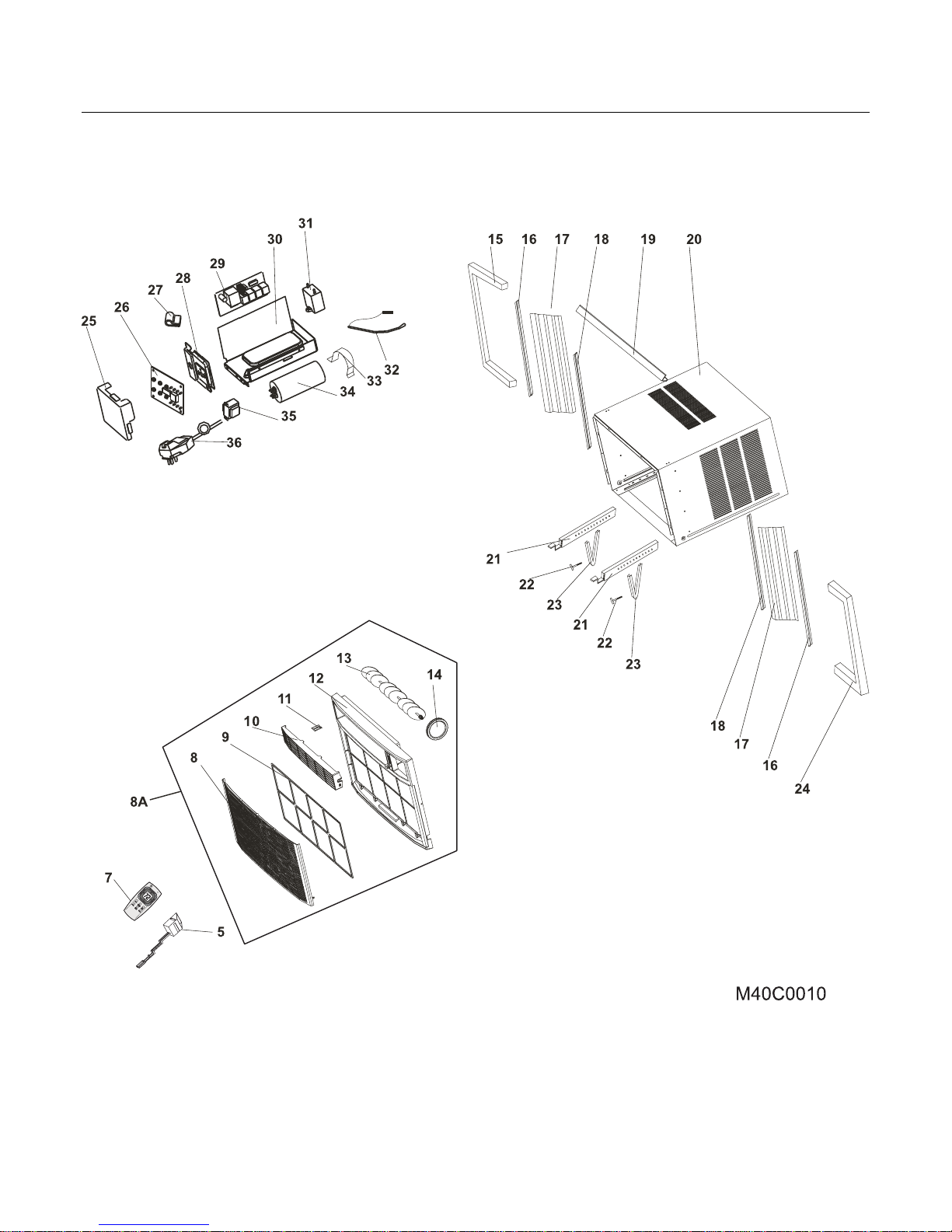

CABINET, FRONT, CONTROLS

FAS18EP2A1 Publication No: 5995437695

# Functional Parts 3 05/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

POS. NO PART NO. DESCRIPTION

5 5304447944 Vent, fresh air, with lever

7 # 5304447947 Remote Control, transmitter

8A 5304448484 Front Assembly, complete panel, includes 8, 9, 10, 11, 12, 13, 14

8 5304447783 •Panel, front grille

9 5304447784 •Filter, air, plastic frame

10 5304447785 •Louver, horizontal

11 5304447786 •Clip, air vent

12 5304447787 •Frame, front assembly

13 5304447788 •Louver, vertical

14 5304447789 •Dial, louver adjuster

15 5304447790 Frame, shutter panel, LH

16 5304447792 Retainer, shutter lock

17 5304447793 Shutter, accordion panel, RH/LH

18 5304447794 Retainer, shutter mount, cabinet sides

19 5304447795 Rail, shutter track, top

20 5304447796 Cabinet, wrapper/sleeve

21 5304447797 Bracket, cab mounting

22 5304447798 Screw, cab leveling

23 5304447799 Bracket, angle, cab support

24 5304447791 Frame, shutter panel, RH

25 5304447800 Console, control cover

26 # 5304447948 PC Board, display/input

27 5304447949 Clip, cable clamp

28 5304447803 Cover, front plate, control box

29 # 5304447950 PC Board, control/power

30 5304447805 Control Box

31 # 5304447924 Capacitor, fan motor

32 # 5304447807 Sensor, temperature, evap/indoor

33 5304447808 Strap, capacitor mtg.

34 # 5304447925 Capacitor, run

35 # 5304447937 Transformer

36 # 5304447951 Power Cord, LCDI, with test/reset

Publication No: 5995437695 FAS18EP2A1

05/05 4

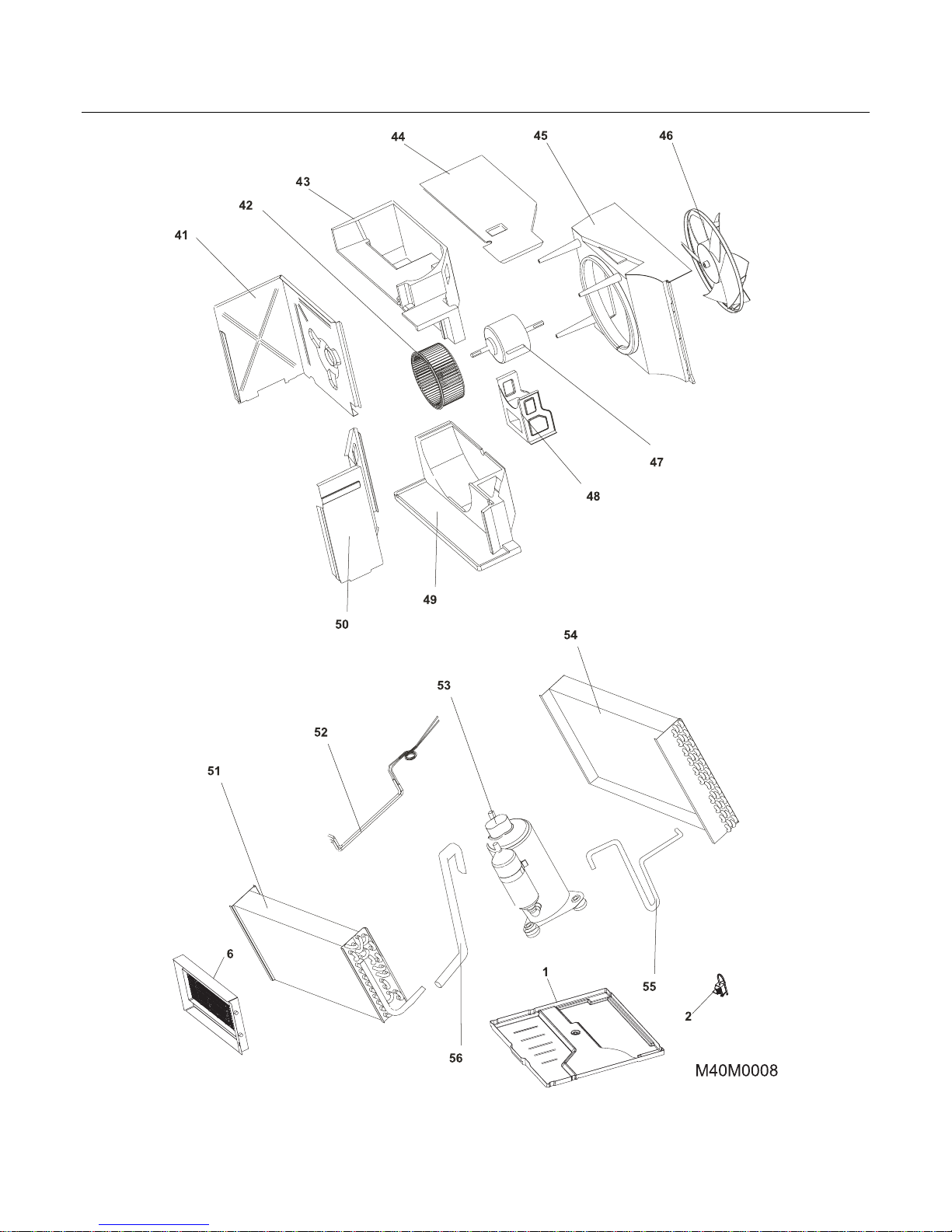

COOLING & AIR FLOW SYSTEMS

FAS18EP2A1 Publication No: 5995437695

# Functional Parts 5 05/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

POS. NO PART NO. DESCRIPTION

1 5304447942 Base, unit chassis

2 # 5304447943 Valve, water drain, temp sensor

6 # 5304447945 Heater

6 5304447946 Frame, heater cover, steel

41 5304447813 Bulkhead, panel, left side

42 # 5304447814 Blower Wheel, centrifugal fan

43 5304447952 Scroll, blower housing, top

44 5304447816 Cover, blower scroll, top plate

45 # 5304447817 Shroud, fan housing

46 # 5304447818 Fan Blade, axial flow

47 # 5304447938 Motor, fan

48 5304447820 Bracket, fan motor mount

49 5304447953 Scroll, blower housing, bottom

50 5304447954 Bulkhead, panel, right side

51 # 5304447941 Evaporator

52 # 5304447931 Capillary Tube

53 # 5304447932 Compressor Assembly, w/electricals, drier, grommets

54 # 5304447826 Condenser

55 # 5304447934 Discharge Tube

56 # 5304447935 Suction Tube

Publication No: 5995437695 FAS18EP2A1

05/05 6

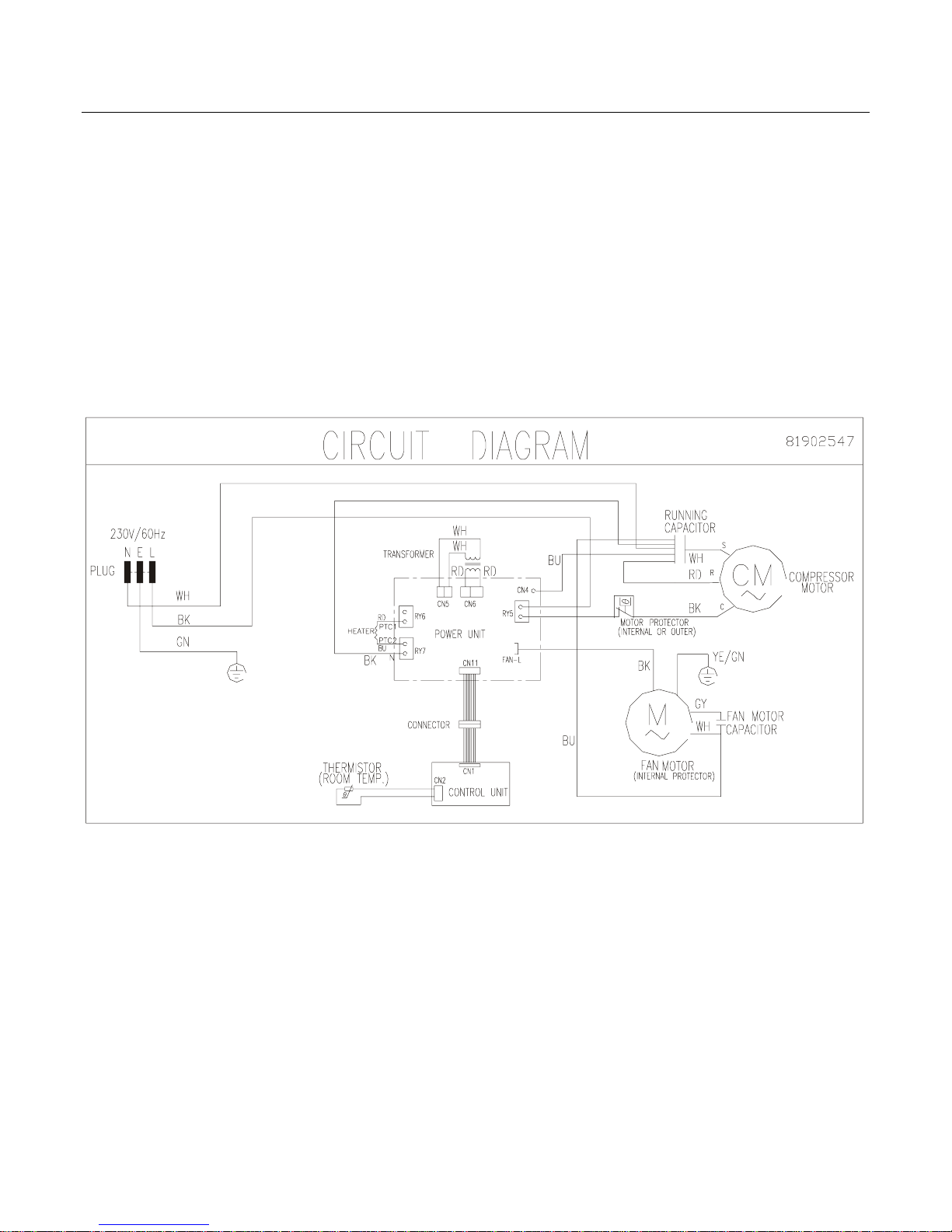

WIRING DIAGRAM

81902547
