Frigidaire FAS254J2A1 Manuale utente

PRODUCT NO.

BASE MODEL NO.

VOLTS

BTU-COOLING

FAS254J2A1 FAS254J2A 230 25000

P.O. Box 212378

Augusta, GA 30917

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

Model No.

FA254J2A1

WIRING DIAGRAM # - 309107701

OWNERS GUIDE # - 309000823

Publication No.

000409

-EN/SERVICE /REP

345

5995339982

FAS254J2A1

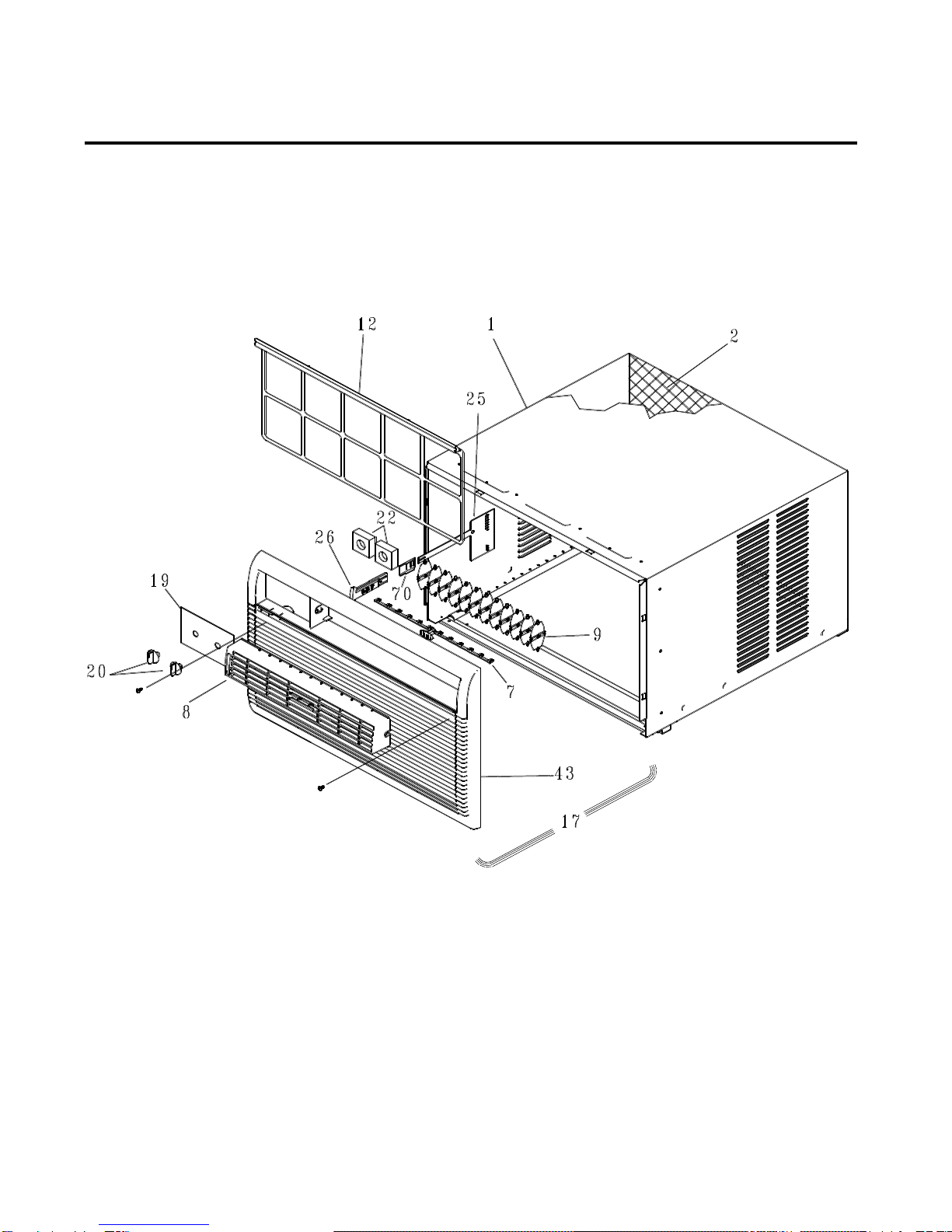

CABINET FRONT AND WRAPPER

4/00 1

FAS254J2A1

1 309632704 Sleeve-Seal Assy Domestic

2 309632804 Grill & RR Rail ASM HDTC

7 309631104 Link-Vertical Louvers

8 309630804 Louver-Horizontal

9 309631004 Louver-Vertical HDTC

12 309631404 Filter-Molded BRCLN

17 309633205 FrontT ASM- HDTC

19 309633506 Plate-Dial

20 309307013 Knob-control

22 5303001775 Spacer,plate

25 309321401 Door-Vent Actuator HDTC

26 309330404 Handle-Vent Barcelona

29 3015312 Screw-front / chassis

43 309630904 Frame-Front HDTC

70 309330202 Vent-Detent HDTC

*309633305 Louver assy-includes 7, 8 & 9

# = Functional Parts

* = Non-illustrated Parts

CABINET FRONT AND WRAPPER

POS. NO. PART NO. DESCRIPTION

4/00 2

FAS254J2A1

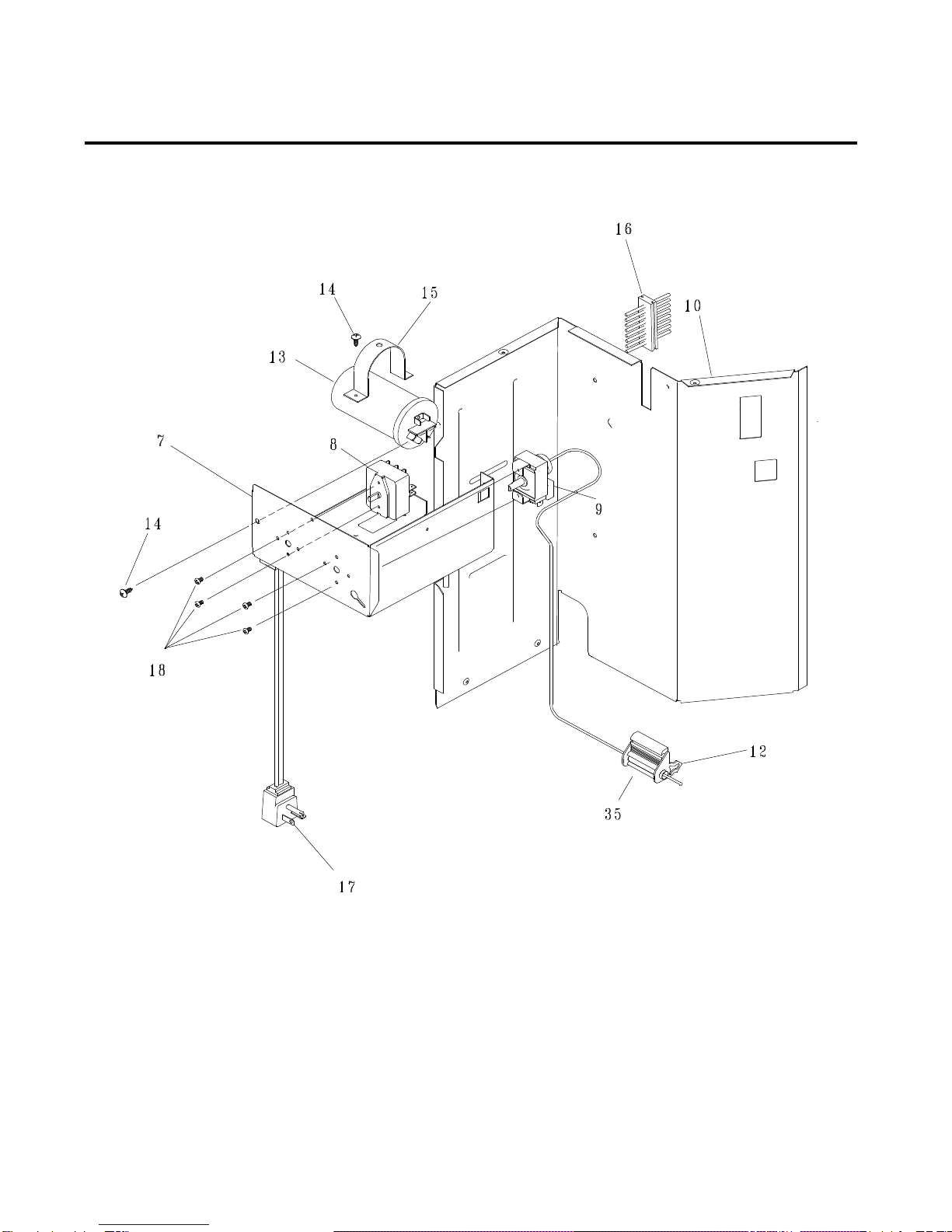

CONTROL PARTS

4/00 3

FAS254J2A1

7 309630401 Box-Control HDTA/TC

8# 5304410883 Switch-selector

9# 5304410884 Control-Air Temp 23AMP Rating

10 309623601 Bulkhead-Control Side HDTA/TC

12 309331801 Retaining Clip-Sens Bulb 1"CL

13# 5303316594 Capacitor, 370V, 35+7.5

14 5303015427 Screw, truss head, 8-18AB x 0.47

15 5303303077 Strap-capacitor

16# 5304408753 Harness-3S;HDTC; Bristol/12AWG

17# 309343114 Cord-Srv Type-D 12AWG

18 5303007754 Screw, .138-32 x 0.188

35 3200761 Spacer-control bulb

POS. NO. PART NO. DESCRIPTION

CONTROL PARTS

# = Functional Parts

* = Non-illustrated Parts

4/00 4

FAS254J2A1

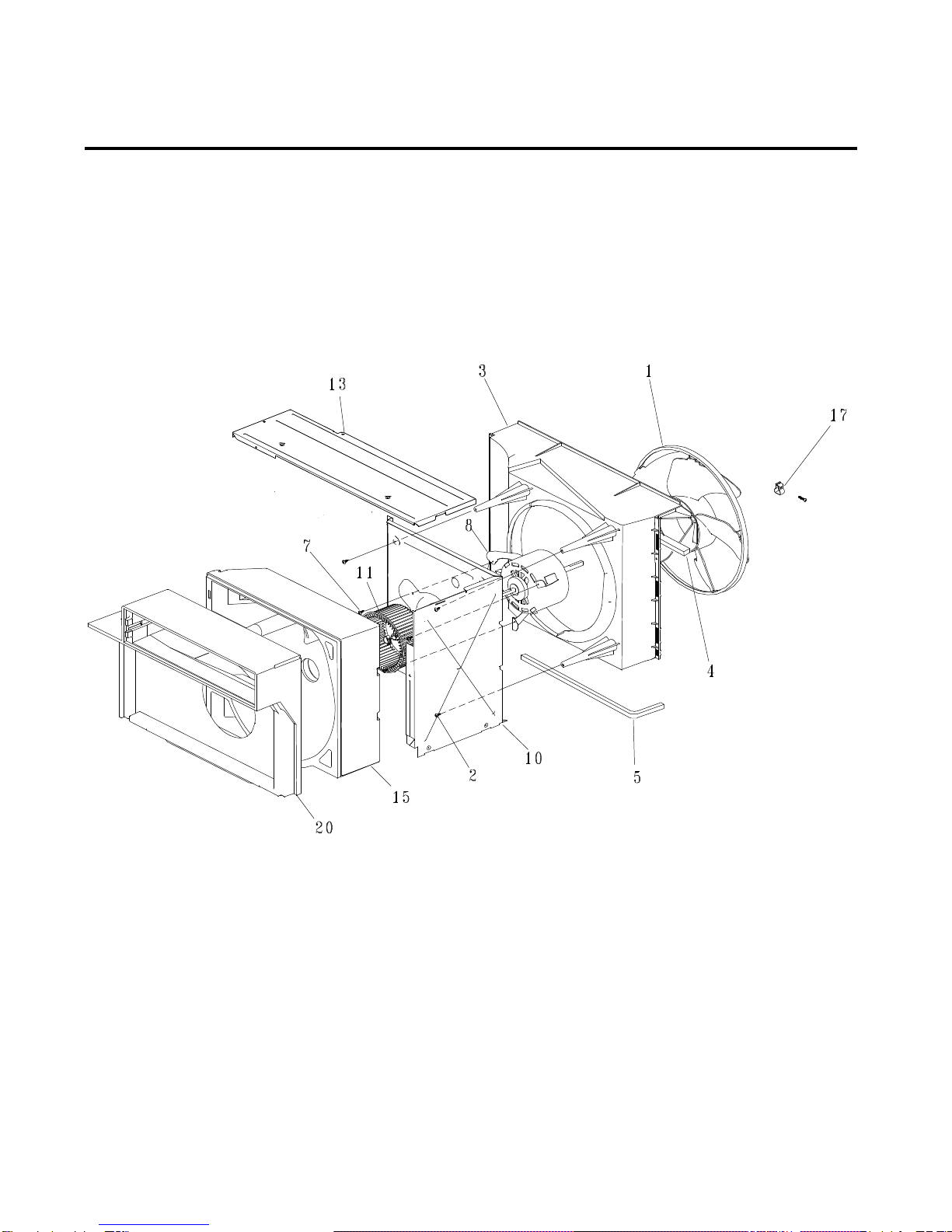

AIR HANDLING PARTS

4/00 5

FAS254J2A1

1# 5303321440 Fan Blade, with clamp

2 3202975 Screw,10-16 x 0.72 square drive

3 5303015305 Condenser shroud, 1pc

5 5303015311 Seal, housing-fan, lower

7 5303015427 Screw, truss head, 8-18AB x 0.47

8# 5304408298 Motor-Fan GE 3SP 230/60 48Fr

10 309623401 Bulkhead-Aire Side HDTA/TC

11 309633001 Blower Whl & Clamp Assy - Plastic

13 309630301 Cover-Top HDTA/TC

15 309630101 Scroll-Evap Cool Only HDTA/TC

18 5303007754 Screw,.138-32 x .188

20 309630201 Plate-Scroll HDTA/TC

# = Functional Parts

* = Non-illustrated Parts

AIR HANDLING PARTS

POS. NO. PART NO. DESCRIPTION

4/00 6

FAS254J2A1

COMPRESSOR PARTS

4/00 7

FAS254J2A1

1# 5304408299 Compressor

2 5303286606 Grommet-compressor,3

3 5308006948 Nut, compressor, 3

5 5303002069 Clamp-cover

6 5303002068 Gasket-cover

7 5303002067 Cover,terminal

11# 309634201 Evap-Assy 3Row 17FPI

12# 5303306719 Condenser

13 309623501 Tray-Evap

14 309632906 Base/Compressor-Stud Assy

19 5303002664 Washer,compressor

# = Functional Parts

* = Non-illustrated Parts

COMPRESSOR PARTS

POS. NO. PART NO. DESCRIPTION

4/00 8

FAS254J2A1

1 5304407729 Seal-window

2 5303211056 Bracket

4 5304414928 Frame,LH

5 5304409250 Seal-top rail

6 5304414933 Retainer,accordian

7 5304414931 Support,RH

8 3001815 Bracket-support

9 3007756 Screw

10 3007759 Nut-bracket

11 5304414932 Support,LH

12 3017023 Nut, hex, 10-32, 2

13 5303281649 Screw,support

14 5304414929 Frame,RH

15 5304414930 Accordian

16 5304414116 Rail,top

17 3002803 Screw-wood

18 8012680 Screw

21 5303212504 Seal,bottom

24 3002801 Screw

*309313303 Kit-Mounting-HDSO

*5304409248 Hardware

*5304409249 Seal-shipping screw holes

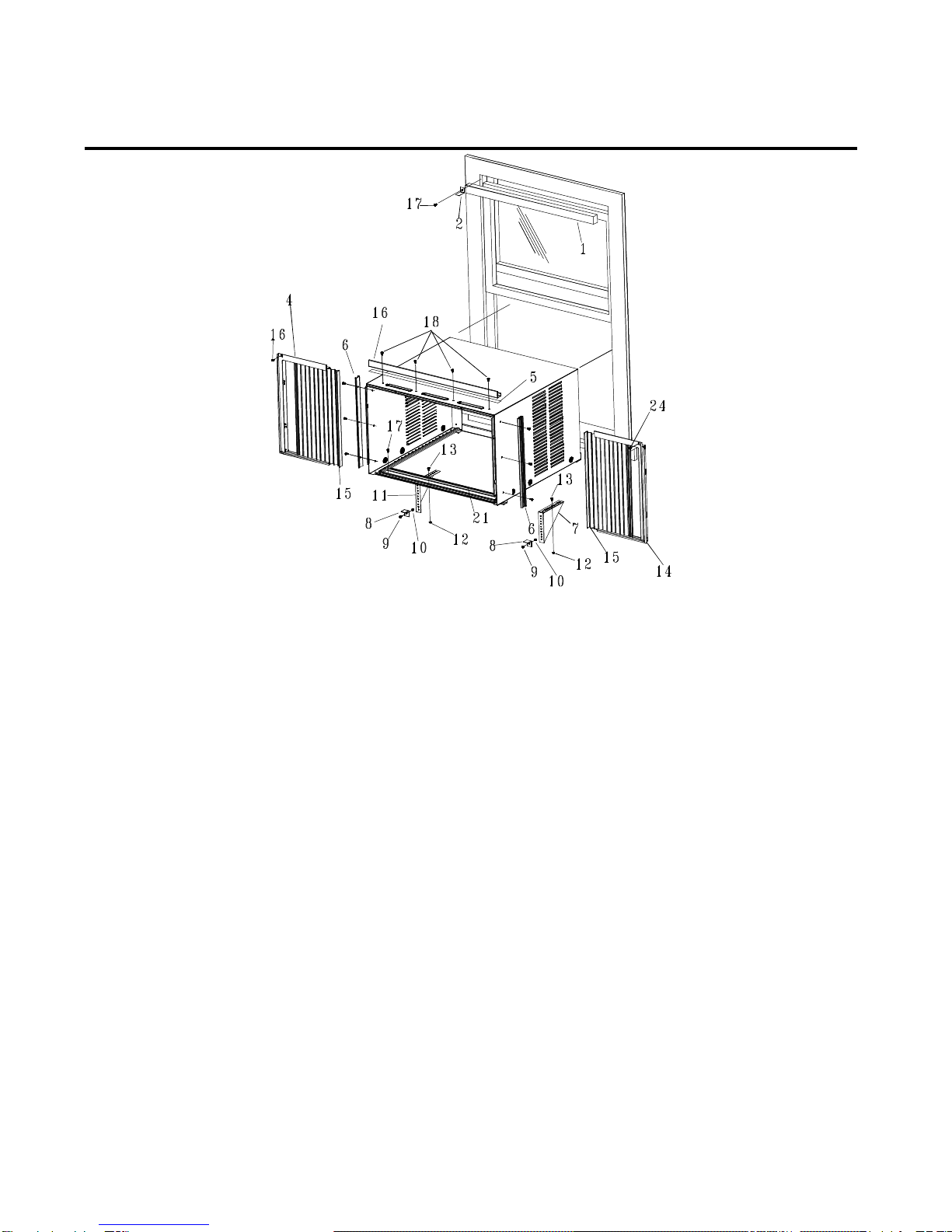

WINDOW MOUNTING PARTS

POS. NO. PART NO. DESCRIPTION

# = Functional Parts

* = Non-illustrated Parts

4/00 9
