Frigidaire FAS256N2A Manuale utente

Product No. FAS256N2A

Series heavy duty

Volts 230/208

BTU-Cooling 25000 BTU

Owner's Guide 309000855

Market North America

P40L2006.eps FAS256N2A.eps Heavy Duty FAS Wiring Diagram.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995407177

04/04/14

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAS256N2

Publication No: 5995407177 FAS256N2A

04/04 2

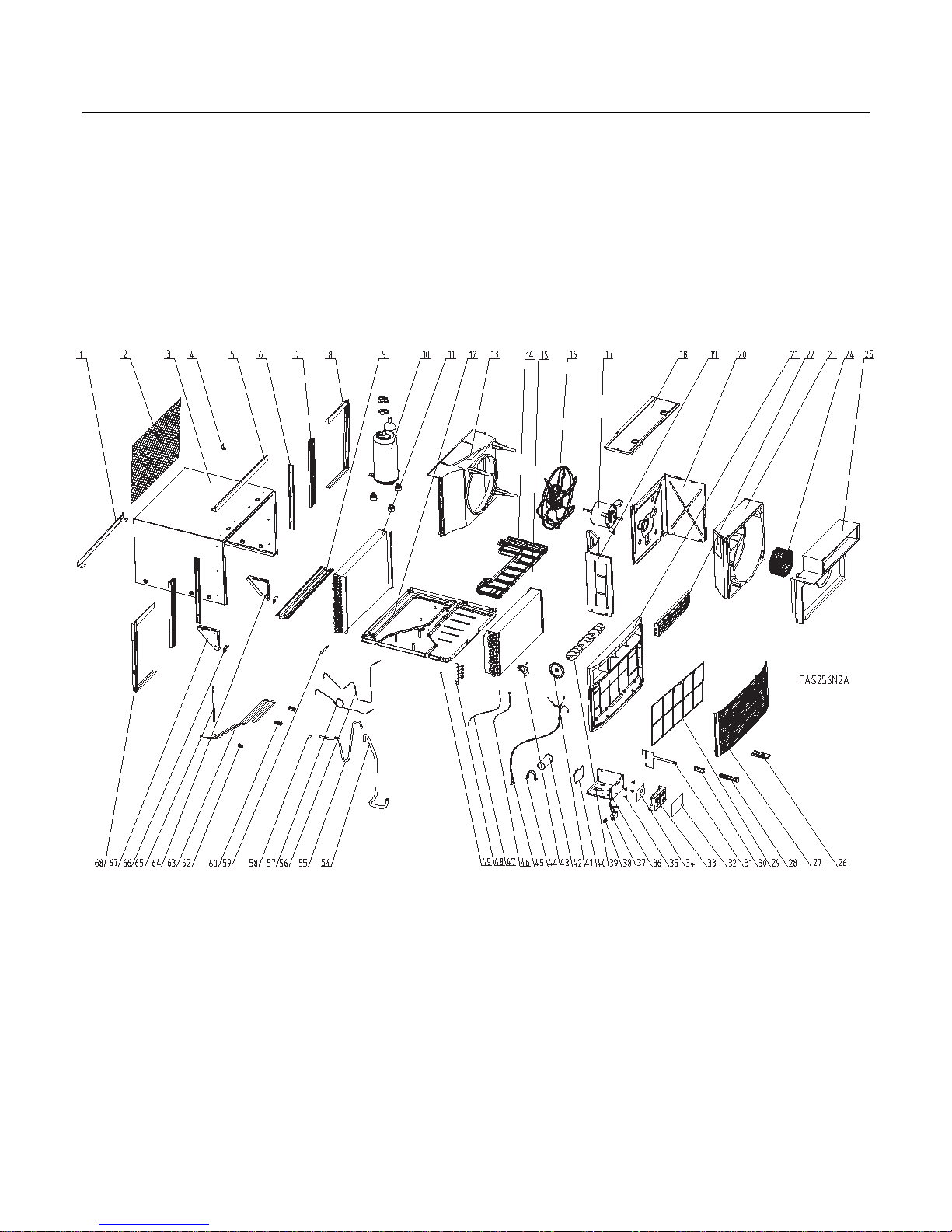

RECOMMENDED SPARE PARTS

FAS256N2A Publication No: 5995407177

# Functional Parts 3 04/04

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

POS. NO PART NO. DESCRIPTION

1 5304414097 Rail, cabinet bottom, rear

2 5304408741 Grille, rear panel, aluminum

3 309623906 Cabinet, wrapper/sleeve

4 5303211056 Bracket, sash lock

5 5304414116 Rail, cabinet top, front

6 5304414933 Retainer, shutter mount, cabinet side

7 309645602 Shutter, accordion panel, RH/LH, window closure

8 5304414929 Frame, shutter, gray, RH, extension

9 5304416310 Rail, cabinet bottom, front

10 # 309904001 Compressor Assembly, w/electricals, & mtg grommets

11 # 5303306719 Condenser

12 309632916 Base, compressor mtg, with studs

13 309623201 Shroud, cond fan motor

14 309623501 Tray, evap drip

15 # 309634203 Evaporator

16 # 5304422465 Fan Blade, with clamp

17 # 309630616 Motor, fan

18 309630302 Cover, blower wheel, top

19 309623602 Bulkhead, control system

20 309623401 Bulkhead, air system

21 309900101 Frame, cabinet front

22 309900301 Louver, horizontal

23 309630102 Housing, blower scroll

24 # 309633001 Blower Wheel, plastic, with clamp

25 309630203 Plate, scroll cover

26 # 309902201 Remote Control, transmitter, with lcd

27 309900201 Panel, front grille

28 309900601 Handle, vent opener

29 309639001 Filter, micro-biologic, framed

30 309902801 Detent, vent handle

31 309321402 Door, vent, with actuator

32 309901701 Overlay, control display

33 309900501 Enclosure, input pcb, control panel

34 # 309901601 PC Board, input/display

35 5304413781 Hardware, PCB support

36 309630404 Control Box

37 # 309900701 Ionizer

38 309111201 Grommet, wire protector

39 309904601 Louver, vertical

40 # 309901501 PC Board, power, variable speed, 230 V

41 309900401 Wheel, louver adjuster

42 # 5304426869 Capacitor, 450 VAC, 40+7.5 mfd

43 5304414108 Holder, thermistor clip, 5/16"

44 5303303077 Strap, capacitor mtg.

45 # 309343114 Power Cord, electric, 12 AWG, 230 V

46 # 309201602 Sensor, thermistor, ambient temp

47 # 309201603 Sensor, thermistor, evap defrost

48 # 309330504 Manifold Assembly, with rings

49 5303302254 Nut, expansion type

54 # 309370901 Tube, suction, copper

55 # 309903001 Tube, discharge, copper

Publication No: 5995407177 FAS256N2A

04/04 4

RECOMMENDED SPARE PARTS

FAS256N2A Publication No: 5995407177

# Functional Parts 5 04/04

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

POS. NO PART NO. DESCRIPTION

56 # 309364601 Tube, capillary, copper, top, formed

57 # 309364701 Tube, capillary, copper, bottom, formed

58 # 309111003 Fitting, reducer, .127/.130 ID, copper tube

59 # 5303290357 Strainer

60 309903101 Grommet, cooling tube

62 309904201 Seal, rubber, w/double holes

63 # 309903201 Tube, super cooling

64 5304414105 Bracket, cab support, RH

65 # 5304438656 Tube, process, copper

66 3001815 Support, angle bracket, window sill mt.

67 5304414106 Bracket, cab support, LH

68 5304414928 Frame, shutter, gray, LH, extension

Publication No: 5995407177 FAS256N2A

04/04 6

WIRING DIAGRAM

BK=Black(Noir)

BL=Blue(Bleu)

BR=Brown(Brun)

G=Green(Vert)

R=Red(Rouge)

W=White(Blanc)

Y=Yellow(Jaune)

Alternate Internal Overload

Compressor

(Autre Surcharge

Interne Du Compresseur)

Ion.

J3210

309902101/01

Fan(Ventilateur)

Room

Sensor

(Sonde D'

Ambiance)

Evap

Sensor (Sonde

Anti Givre)

Compressor

(Compresseur)

Fan motor

(Moteur Du

Ventilateur)

Compressor

capacitor

(Condensateur Du

Compresseur)

Fan motor capacitor

(Condensateur Du

Ventilateur)

Connector (Connecteur)

Compressor Overload

(Surcharge Du

Compresseur)

(Vert)

GND

Compressor Relay (Relais Du

Compresseur)

Ionizer(Ion)

(Optional)

(Facultatif)

(Vert)

GND

Ribbed

(Blue)

Raye(Bleu)

Plain

(Brown)

Ordinaire(Brun)

WOR Y

(OU)
