Frigidaire FEC26C2H Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FEC26C2HSA 3805411159011 WHITE U.S.A.

FEC26C2HTA 3805411159031 ALMOND U.S.A

FEC26C2HCA 38054111590C1 CHROME U.S.A.

ELECTRIC - COOKTOP

Model No.

FEC26C2H

Inc.

FACTORY PARTS CATALOG

ELECTRIC COOKTOP

WIRING DIAGRAM # - 318046901

OWNER’S GUIDE # - 318200602

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995323945

990527

-EN/SERVICE

377

LEFT REAR

RIGHT FR ONT

LEFT FR ONT

RIGHT REAR

Publication No. FEC26C2H

5995323945

05/99 2

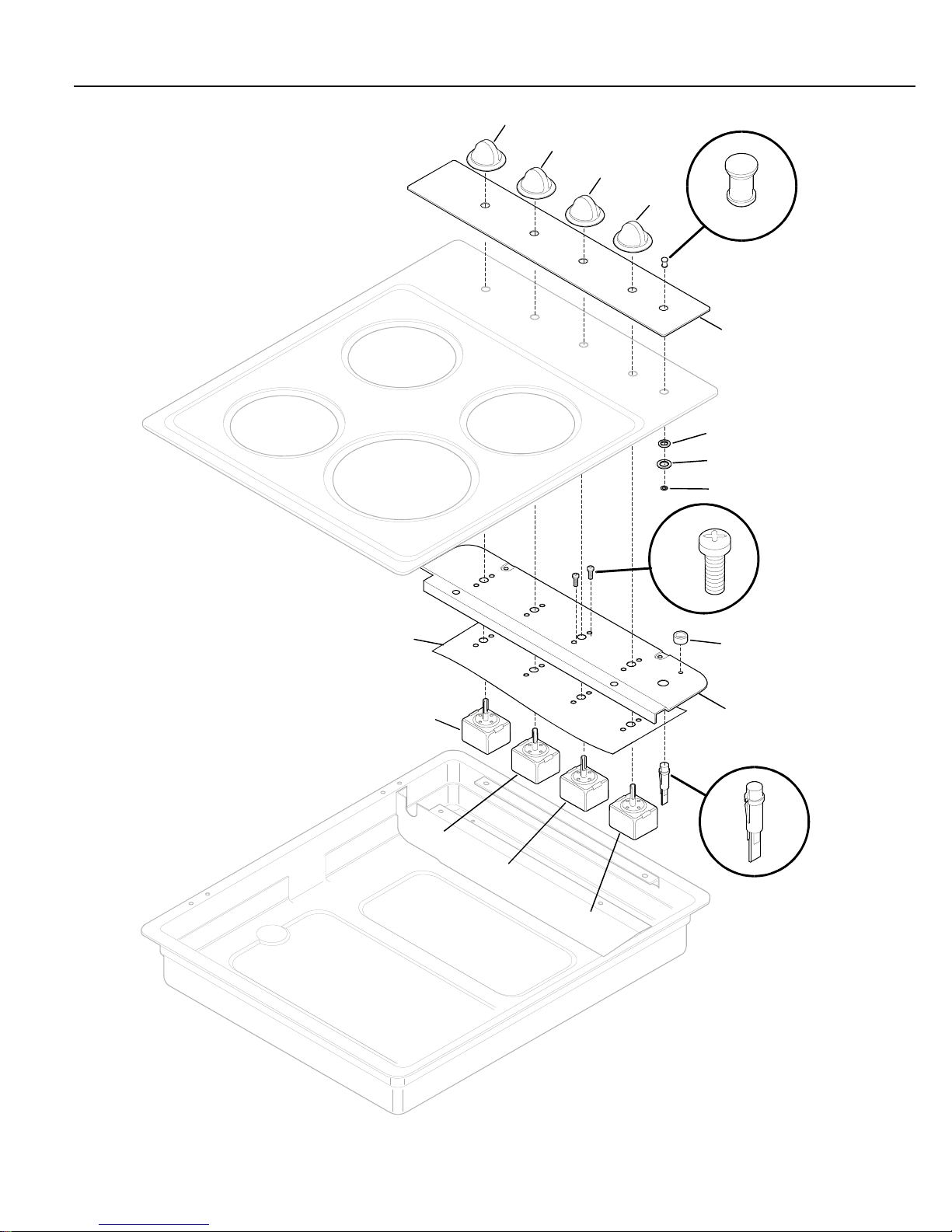

CONTROL PANEL

36 36

109

110

111

LA9923G37

95 163

FEC26C2H Publication No.

5995323945

# = Functional Part 305/99

* = Non-Illustrated Part

POS. NO PART NO DESCRIPTION

14 5303325854 AB C Light/Lamp,indicator

16 5303291992 AB C Plate,instrument mtg

19 318020802 AOverlay Panel

19 318020803 BOverlay Panel

19 318020804 C Overlay Panel

36 318016300 AKnob-surface unit,white

36 318016304 BKnob-surface, unit almond

36 318016308 C Knob-surface unit, black

46 5303297274 AB C Lens-light/lamp,indicator

54 # 318120509 AB C Switch-surface unit

69 5303323134 AB C Screw, 8-32 X 3/16

95 5303270887 AB C Seal plate mtg.

109 5303320845 AB C Washer-light

110 3201899 AB C Washer

111 5303272289 AB C Seal-light

163 318014100 AB C Spacer

*3051070 AB C Screw, 10-24 X 7/16

*5303323140 AB C Screw ground

*5304410665 AB C Screw, 10-32 X 5/8

*5303311306 AB C Screw, 8-18 X 0.375

CONTROL PANEL

A= FEC26C2H (FEC26C2HSA)

B= FEC26C2H (FEC26C2HTA)

C= FEC26C2H (FEC26C2HCA)

Publication No. FEC26C2H

5995323945

05/99 4

MAINTOP/SURFACE UNITS

183

LA9923V38

19A

15A 15A

15A

FEC26C2H Publication No.

5995323945

# = Functional Part 505/99

* = Non-Illustrated Part

POS. NO PART NO DESCRIPTION

15 5303311320 AB C Element-surface,Large

15A 5303325933 AB C Element-surface,Small

16 318159005 AMain Top, white

16 318159006 BMain top, almond

16 318159002 C Main top, chrome

17 3051554 AB C Rod main top

18 318074310 AB C Hinge main top

19 318067020 AB C Pan-surface element, Large

19A 318067021 AB C Pan-surface element Small

27 # 5303323704 AB C Terminal Block

28 5303309002 AB C Medallion, Surface element

46 318077312 AB C Burner Box & support assy.

63 5303291326 AB C Plate-grounding

93 5303304731 AB C Bracket terminal block

183 5304410665 AB C Shoulder screw

*08067961 AB C Fastener clip

*08016432 AB C Screw, 8-18 X 3/8

*5303300195 AB C Screw, 10-32 X 3/8

*5303311321 AB C Box & wires assy.

MAINTOP/SURFACE UNITS

A= FEC26C2H (FEC26C2HSA)

B= FEC26C2H (FEC26C2HTA)

C= FEC26C2H (FEC26C2HCA)

Publication No. FEC26C2H

5995323945

05/99 6

WIRING DIAGRAM
