Frigidaire FEC30S7E Manuale utente

FEC30S7E.eps CFEC30S7ESA.eps MFEC30S7ESA.eps 318046807-1.eps

318046807-2.eps

HotSurface

Right

Rear

Left

Rear

Left

Front

Right

Front

OFF

Product No. FEC30S7EBA FEC30S7ECA FEC30S7ESA

3805422365061 38054223650S1 3805423365011

Series 30" elec 30" elec 30" elec

Color black stainless white

Market North America North America North America

Wiring Diagram 318046807 318046807 318046807

Owner's Guide 318200628 318200628 318200628

Installation Instructions 318201426 318201426 318201426

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995451407

05/10/14

(EN/SERVICE/ECL)

377

ELECTRIC COOK-TOP

RANGE

Model No.

FEC30S7E

Publication No: 5995451407 FEC30S7E

10/05 2

CONTROL PANEL

FEC30S7E Publication No: 5995451407

# Functional Parts 3 10/05

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFEC30S7E (FEC30S7ESA)

BFEC30S7E (FEC30S7EBA)

CFEC30S7E (FEC30S7ECA)

POS. NO PART NO. DESCRIPTION

16 318096327 A B C Box, instrument mtg

36 318196633 A - - Knob, control, white

36 318196634 - B C Knob, control, black

36A 318196630 A - - Knob, dual control, white

36A 318196631 - B C Knob, dual control, black

51 # 318044820 A - - Light, indicator, red

51 # 318044822 - B C Light, indicator, clear

54 # 318220071 A B C Switch, surface unit, small

54A# 318293817 A B C Switch, surface element, 3000W

54B# 318191000 A B C Switch, infinite, dual

69 5303323134 A B C Screw, 8-32 x 0.188

74 318148900 A B C Bushing, switch

* 318163602 - - C Cleaner, stainless steel

* 5303323140 A B C Screw, ground, 10-32 x 0.375

Publication No: 5995451407 FEC30S7E

10/05 4

MAIN TOP/SURFACE UNITS

FEC30S7E Publication No: 5995451407

# Functional Parts 5 10/05

* Non-Illustrated Parts

MAIN TOP/SURFACE UNITS

Model Index: AFEC30S7E (FEC30S7ESA)

BFEC30S7E (FEC30S7EBA)

CFEC30S7E (FEC30S7ECA)

POS. NO PART NO. DESCRIPTION

15 # 318198817 A B C Element, surface, 6", 1200 W, (2)

15A# 318198823 A B C Element, surface, 9", large, 2700 W

15B# 318198925 A B C Element, surface, 6/9, 1200/2500W, dual radiant

16 318079422 A - - Main Top, white

16 318079423 - B - Main Top, black

16 318079424 - - C Main Top, black/stainless, w/front trim

20 318121902 A B C Bracket, retainer

23 318194703 A B C Panel, service, black

46 318077232 A B C Burner Box

52 318122006 A B C Spring, element mtg, small

52A 318122007 A B C Spring, element mtg, large

52B 318122010 A B C Spring, element mtg, 1000W/2500W

159 318125113 A B C Deflector

162 318161401 A B C Deflector

163 318014110 A B C Spacer, (6)

170 318124911 A B C Screen, thermal

171 318124912 A B C Screen, thermal, (9)

* # 318078529 A B C Box & wires assy

* 318199429 A B C Harness, wiring

* 5303323129 A B C Screw, 8 X 0.750

* 5303323140 A B C Screw, ground, 10-32 x 0.375

Publication No: 5995451407 FEC30S7E

10/05 6

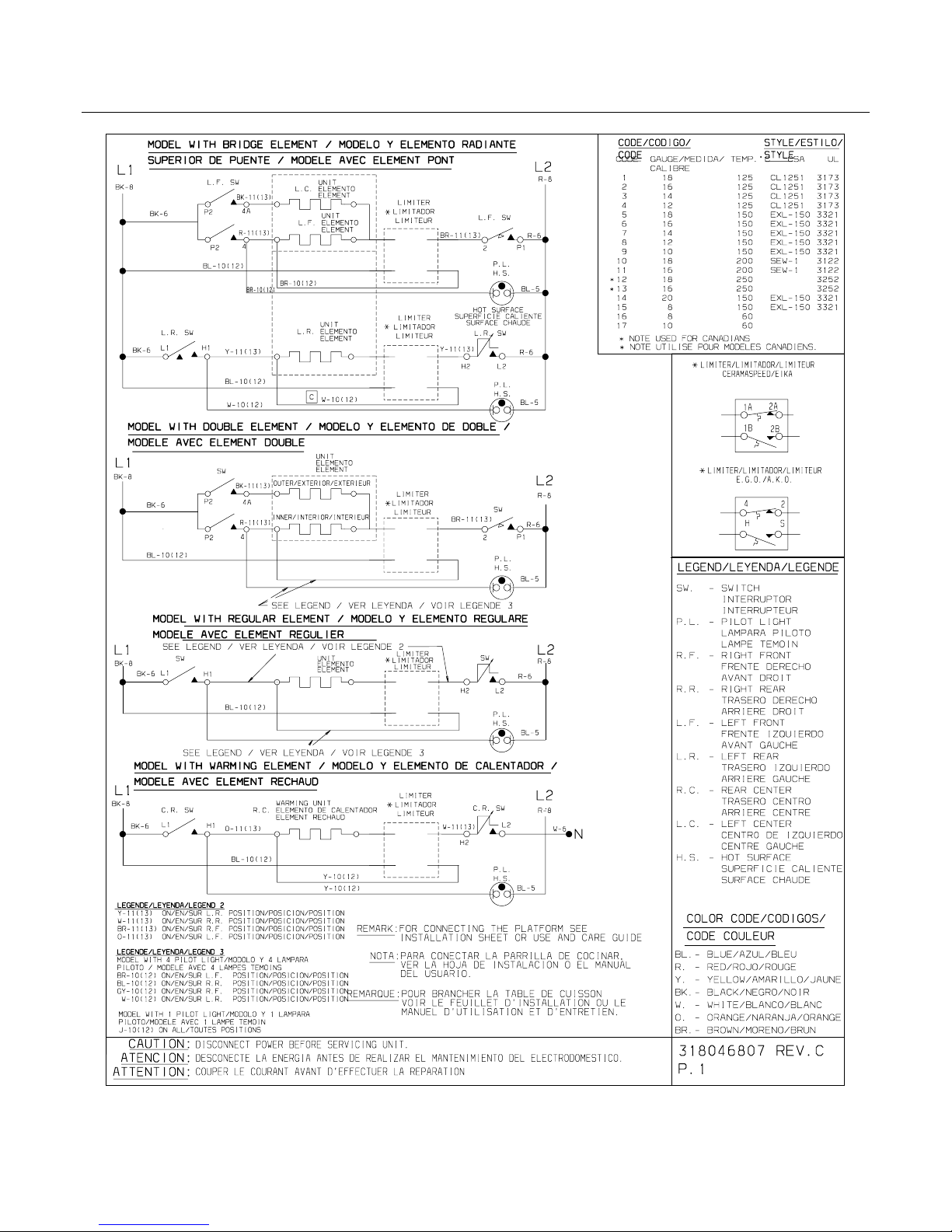

WIRING DIAGRAM

FEC30S7E Publication No: 5995451407

# Functional Parts 7 10/05

* Non-Illustrated Parts

WIRING DIAGRAM
