Frigidaire FEC36S7E Manuale utente

FEC36S7E.eps CFEC36S7E.eps TFEC36S7E.eps 318046807-1.eps 318046807-2.eps

OFF

Product No. FEC36S7EBA FEC36S7ECA FEC36S7ESA

3805442365461 38054423654S1 3805443365411

Series 36" elec 36" elec 36" elec

Color black stainless white

Market North America North America North America

Wiring Diagram 318046807 318046807 318046807

Owner's Guide 318200628 318200628 318200628

Installation Instructions 318201426 318201426 318201426

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995450847

05/10/07

(EN/SERVICE/ECL)

377

ELECTRIC COOK-TOP

RANGE

Model No.

FEC36S7E

Publication No: 5995450847 FEC36S7E

10/05 2

CONTROL PANEL

FEC36S7E Publication No: 5995450847

# Functional Parts 3 10/05

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFEC36S7E (FEC36S7ESA)

BFEC36S7E (FEC36S7EBA)

CFEC36S7E (FEC36S7ECA)

POS. NO PART NO. DESCRIPTION

16 318096332 A B C Box, instrument mtg

36 318196633 A - - Knob, control, white

36 318196634 - B C Knob, control, black

36A 318196630 A - - Knob, dual control, white

36A 318196631 - B C Knob, dual control, black

36C 318196636 A - - Knob, warmer, white

36C 318196637 - B C Knob, warmer, black

51 # 318044820 A - - Light, indicator, red

51 # 318044822 - B C Light, indicator, clear

54 # 318220071 A B C Switch, surface unit, small

54A# 318191000 A B C Switch, infinite, dual

54B# 318293817 A B C Switch, surface element, 3000W

54C# 318078801 A B C Switch, element, 6", warmer

69 5303323134 A B C Screw, 8-32 x 0.188

74 318148900 A B C Bushing, switch

* 318163602 - - C Cleaner, stainless steel

* 5303300265 A B C Screw, 8-18 X 1/2, (2)

* 5303323140 A B C Screw, ground, 10-32 x 0.375

Publication No: 5995450847 FEC36S7E

10/05 4

MAIN TOP/SURFACE UNITS

FEC36S7E Publication No: 5995450847

# Functional Parts 5 10/05

* Non-Illustrated Parts

MAIN TOP/SURFACE UNITS

Model Index: AFEC36S7E (FEC36S7ESA)

BFEC36S7E (FEC36S7EBA)

CFEC36S7E (FEC36S7ECA)

POS. NO PART NO. DESCRIPTION

15 # 318198817 A B C Element, surface, 6", 1200 W, (2)

15A# 318198823 A B C Element, surface, 9", large, 2700 W

15B# 318198925 A B C Element, surface, 6/9, 1200/2500W, dual radiant

15C# 318198825 A B C Element, surface, warmer, 100 W

16 318079427 A - - Main Top, white

16 318079428 - B - Main Top, black

16 318079429 - - C Main Top, black/stainless, w/front trim

20 318121902 A B C Bracket, retainer

23 5303297401 A B C Panel, service

46 318077227 A B C Burner Box

52 318122006 A B C Spring, element mtg, small

52A 318122010 A B C Spring, element mtg, 1000W/2500W

159 318125122 A B C Deflector

162 318125211 A B C Deflector

163 318014110 A B C Spacer, (6)

164 318125302 A B C Plate, connection

170 318124910 A B C Screen, thermal, (4)

* # 318078531 A B C Box & wires assy

* 318199426 A B C Harness, wiring, main

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303300265 A B C Screw, 8-18 X 1/2, (2)

* 5303323129 A B C Screw, 8 X 0.750

* 5303323140 A B C Screw, ground, 10-32 x 0.375

Publication No: 5995450847 FEC36S7E

10/05 6

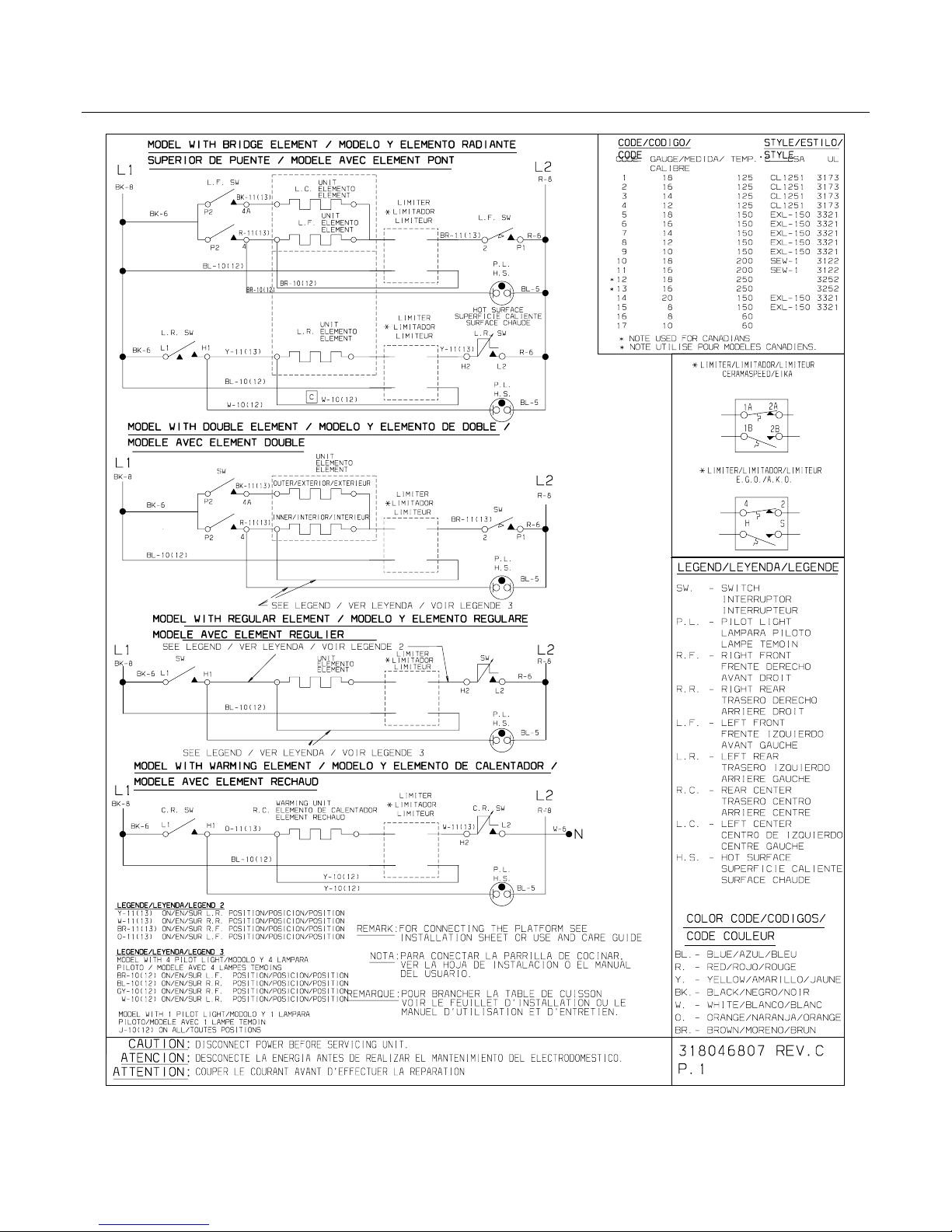

WIRING DIAGRAM

FEC36S7E Publication No: 5995450847

# Functional Parts 7 10/05

* Non-Illustrated Parts

WIRING DIAGRAM
