Frigidaire FGC30C3H Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FGC30C3HWB 3775421130012 WHITE U.S.A.

FGC30C3HDB 3775421130032 ALMOND U.S.A.

GAS COOKTOP

Model No.

FGC30C3H

Inc.

FACTORY PARTS CATALOG

GAS COOKTOP

WIRING DIAGRAM # - 318047105

OWNER’S GUIDE # - 318068140

INSTALLATION INSTR. # - 318201452

ELECTROLUX HOME PRODUCTS NORTH AMERICA

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200

Publication No.

5995344834

001012

-EN/SERVICE

377

Publication No. FGC30C3H

5995344834

10/00 2

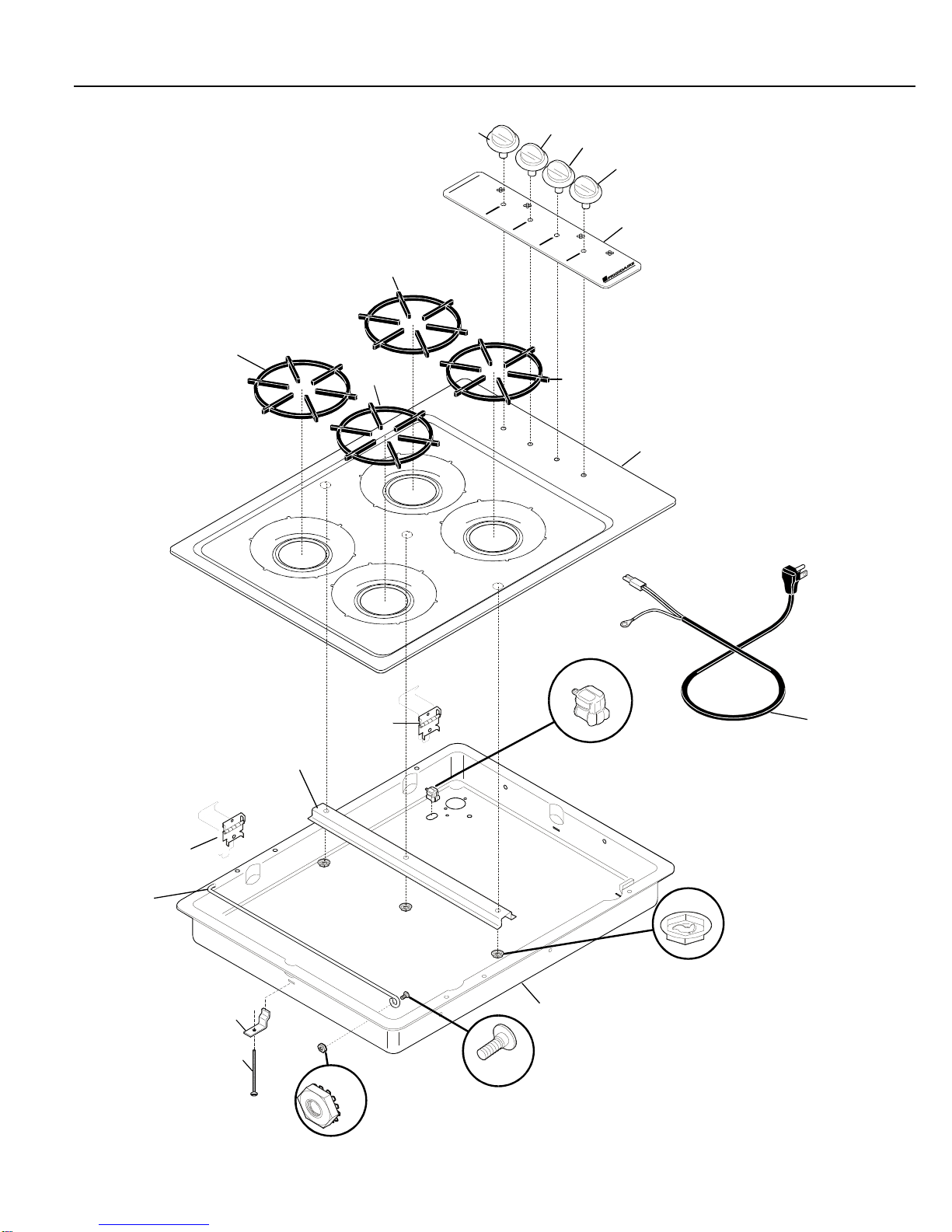

COOKTOP

45A

LA00CT77211-1

136

137

183

100

FGC30C3H Publication No.

5995344834

# = Functional Part 310/00

* = Non-Illustrated Part

COOKTOP

POS. NO. PART NO. DESCRIPTION

35303305547 A B Channel-top stiffener

16 318159116 AMain Top white

16 318159115 BMain Top almond

17 3016817 A B Rod-maintop support

18 318074310 A B Hinge-maintop (2)

20 316040807 A B Grate

23 318021600 A B Panel-control assy

43 318164706 A B Knob-control black

45A 3201437 A B Strain relief

46 318077411 A B Burner Box

47# 5303303991 A B Cord,electric

99 5303324192 A B Nut

100 5303325982 A B Nut, 10-32

136 5303935029 A B Support

137 5303323138 A B Screw, 10-24 X1/2

183 5304410665 A B Shoulder screw, 10-32 X 5/8

*5303311306 A B Screw, 8-18 X 3/8

*5303311333 A B Screw, 8-32 X 3/8

*5303323140 A B Screw, ground

*5303311532 A B Screw, 6-32 X 1/4

*5303324191 A B Washer

*5304403070 A B Screw, 6-32 X 5/16

*5303311333 A B Screw, 8-32 X 3/8

A= FGC30C3H (FGC30C3HWB)

B= FGC30C3H (FGC30C3HDB)

FGC30C3H Publication No.

5995344834

10/00 4

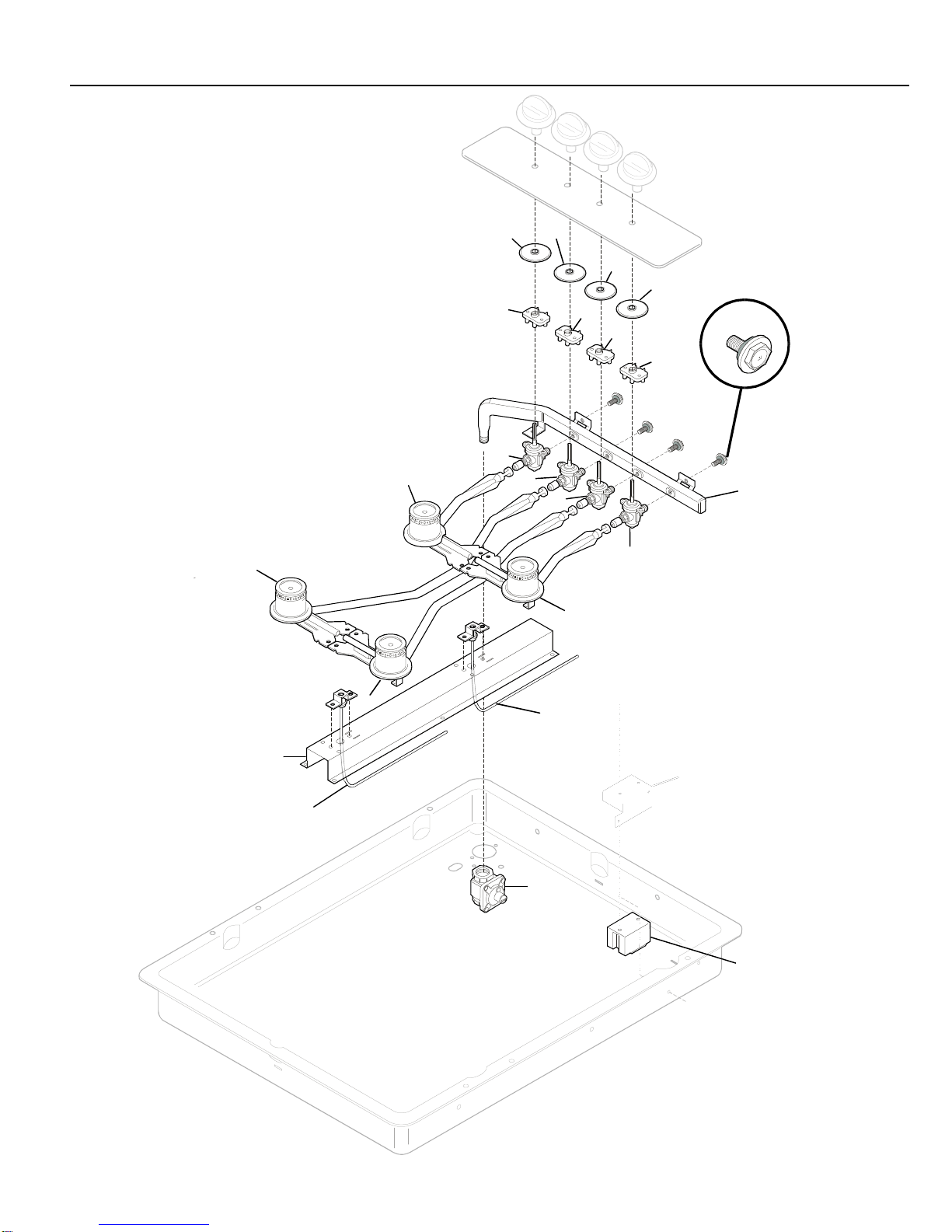

BURNER

10C

10A

11A

10B

35 35

LA00BR77211-1

FGC30C3H Publication No.

5995344834

# = Functional Part 510/00

* = Non-Illustrated Part

BURNER

POS. NO PART NO DESCRIPTION

1 # 318177001 A B Manifold Pipe

2 # 318087010 A B Valve-top burner

3 # 316032002 A B Switch-igniter

8 # 316135700 A B Spark Module

10 # 3201432 A B Burner-top, LF

10A # 3201433 A B Burner-top, LR

10B # 3201434 A B Burner-top, RF

10C # 3201435 A B Burner-top, RR

11# 318148602 A B Ignitor-top burner, assy, 7.25”

11A# 318148603 A B Ignitor-top burner, assy, 16.25”

14 # 5308007974 A B Regulator-pressure

33 3201449 A B Bracket-burner mtg.

35 318146300 A B Bushing-insulation

72 5303323141 A B Screw, valve, 1/4-20 X 5/16

*08016432 A B Screw, 8-18 X 3/8

*5303311306 A B Screw, 8-18 X3/8

*5303311532 A B Screw, 6-32 X1/4

*08011129 A B Nut, 6-32

*08011955 A B Screw, 10-24 X 3/8

A= FGC30C3H (FGC30C3HWB)

B= FGC30C3H (FGC30C3HDB)

FGC30C3H Publication No.

5995344834

10/00 6

WIRING DIAGRAM
