Frigidaire FGC30S4A Manuale utente

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET

FGC30S4AQB FGC30S4A 3775421261042 bisque North America

FGC30S4ASB FGC30S4A 3775421261012 white North America

Publication No.

5995365896

020214

-EN/SERVICE /ECL

377

GAS

COOKTOP

Model No.

FGC30S4A

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318047105

OWNER’S GUIDE - # 318200657

INSTALLATION INSTRUCTIONS - # 318201451

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

02/02 2

Publication No. FGC30S4A

5995365896

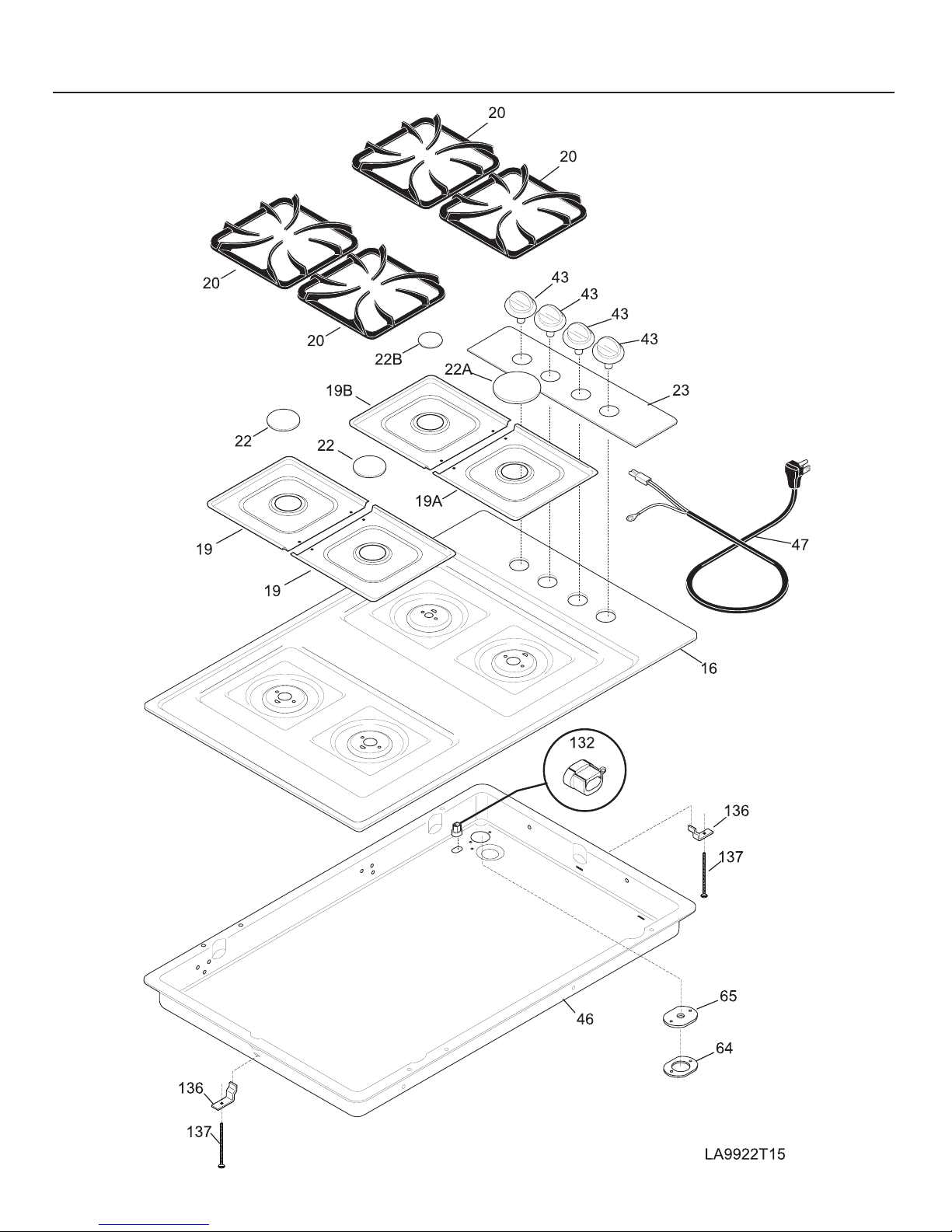

COOK TOP

# = Functional Parts 3 02/02

* = Non-Illustrated Parts

FGC30S4A Publication No.

5995365896

COOK TOP

A = FGC30S4A (FGC30S4ASB)

B = FGC30S4A (FGC30S4AQB)

POS. NO PART NO DESCRIPTION

16 318159142 A - Panel,main top ,white

16 318159145 - B Panel,main top ,bisque

19 318167906 A - Pan,burner ,white ,medium

19 318167909 - B Pan,burner ,bisque ,medium

19A 318167907 A - Pan,burner ,white ,large

19A 318167910 - B Pan,burner ,bisque ,large

19B 318167908 A - Pan,burner ,white ,small

19B 318167911 - B Pan,burner ,bisque ,small

20 # 318179511 A - Grate,grey ,(4)

20 # 318179513 - B Grate,brown ,(4)

22 318076411 A - Cap,burner ,grey ,medium LF & LR

22 318076414 - B Cap,burner ,brown ,medium LF & LR

22A 318076421 A - Cap,burner ,grey ,large RF

22A 318076424 - B Cap,burner ,brown ,large RF

22B 318076401 A - Cap,burner ,grey ,small RR

22B 318076404 - B Cap,burner ,brown ,small RR

23 318021614 A - Panel,overlay ,white

23 318021615 - B Panel,overlay ,bisque

43 318196140 A - Knob,control ,white

43 318196142 - B Knob,control ,bisque

46 318156000 A B Burner Box

47 # 5303303991 A B Cord,electric power

64 5303304033 A B Bracket,retainer

65 5303304032 A B Seal,rubber

132 3201437 A B Strain relief

136 5303935029 A B Support

137 5303323138 A B Screw,10-24x1/2

* 5303323140 A B Screw,ground ,10-32 x 0.375

02/02 4

Publication No. FGC30S4A

5995365896

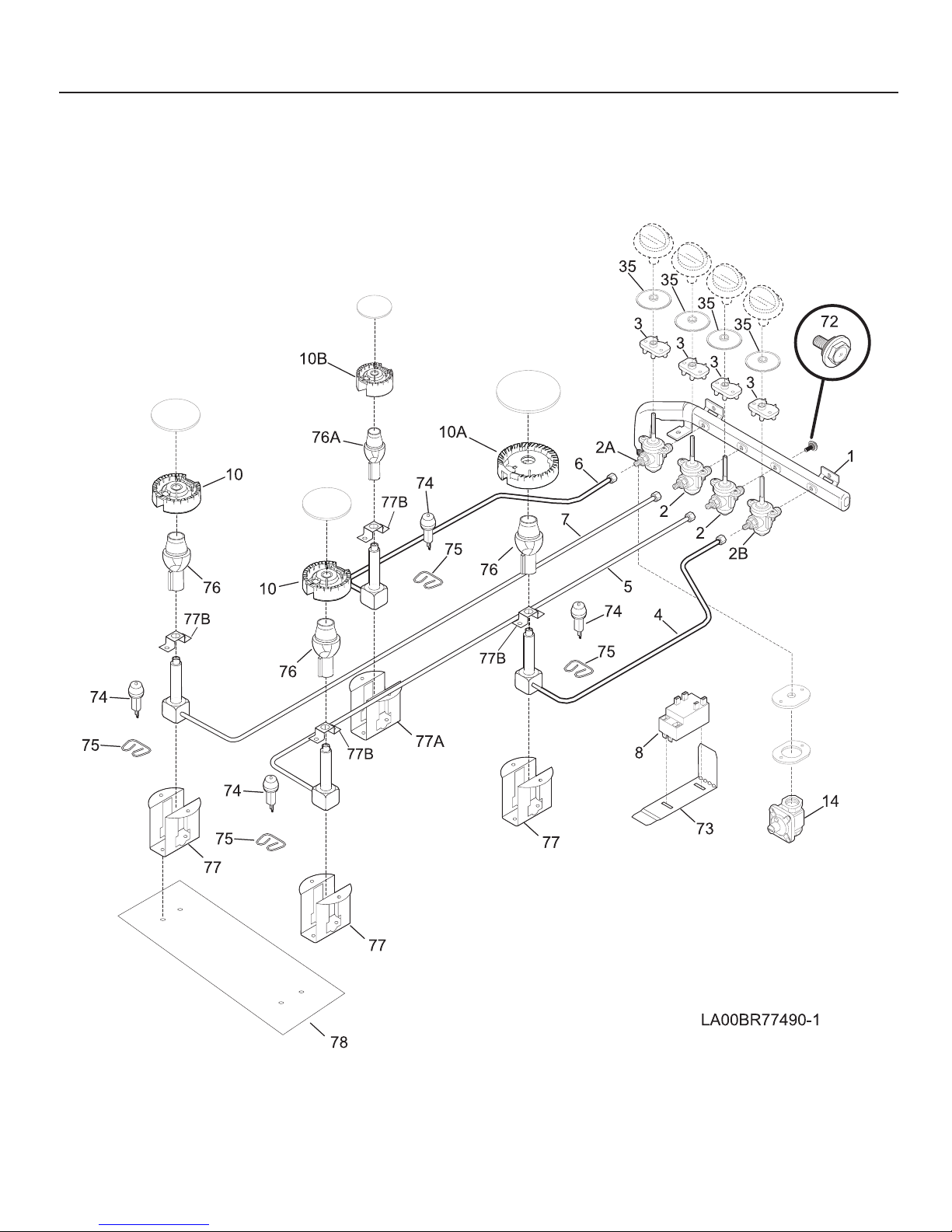

BURNER

# = Functional Parts 5 02/02

* = Non-Illustrated Parts

FGC30S4A Publication No.

5995365896

BURNER

A = FGC30S4A (FGC30S4ASB)

B = FGC30S4A (FGC30S4AQB)

POS. NO PART NO DESCRIPTION

1 318177003 A B Manifold Pipe

2 # 5303935042 A B Valve,top burner ,2-position ,9100 BTU

2A # 318087001 A B Valve,top burner ,5000 BTU

2B # 318087040 A B Valve,top burner ,13000 BTU

3 # 316032002 A B Switch,ignitor

4 # 318167714 A B Tube,burner ,RF

5 # 318167700 A B Tube,burner ,LF

6 # 318167702 A B Tube,burner ,RR

7 # 318167701 A B Tube,burner ,LR

8 # 316135701 A B Module,spark

10 # 318148001 A B Burner,top ,9100 BTU ,medium LF & LR

10A# 318148002 A B Burner,top ,13000 BTU ,large RF

10B# 318148000 A B Burner,top ,5000 BTU ,small RR

14 # 5308007974 A B Regulator,pressure

35 318146300 A B Bushing

72 5303323141 A B Screw,valve mtg ,1/4-20 x 5/16

73 318024201 A B Bracket,spark module

74 # 318148700 A B Ignitor,top burner

75 318148800 A B Clip,electrode

76 # 318167801 A B Tube,mixing ,medium & large

76A# 318167800 A B Tube,mixing ,small

77 318112010 A B Bracket,burner mtg ,medium & large

77A 318112000 A B Bracket,burner mtg ,small

77B 318180900 A B Bracket,burner tube

78 318160900 A B Deflector

* # 318127407 A B LP Conversion Kit

* 08011955 A B Screw,10-24 x 0.375 ,square drive

* 5303307980 A B Screw,8-32 x 0.437

* 5304403558 A B Screw,10-16 x 0.250

02/02 6

Publication No. FGC30S4A

5995365896

WIRING DIAGRAM
