Frigidaire FGC3X8XG Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FGC3X8XGSA 3775622378011 WHITE U.S.A.

FGC3X8XGBA 3775622378061 BLACK U.S.A.

FGC3X8XGTA 3775622378031 ALMOND U.S.A.

GAS COOKTOP

Model No.

FGC3X8XG

Inc.

FACTORY PARTS CATALOG

GAS COOKTOP

WIRING DIAGRAM # - 318047102

OWNER’S GUIDE # - 318200651

INSTALLATION INSTR. # - 318063914

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995323515

990521

-EN/SERVICE

377

Publication No. FGC3X8XG

5995323515

05/99 2

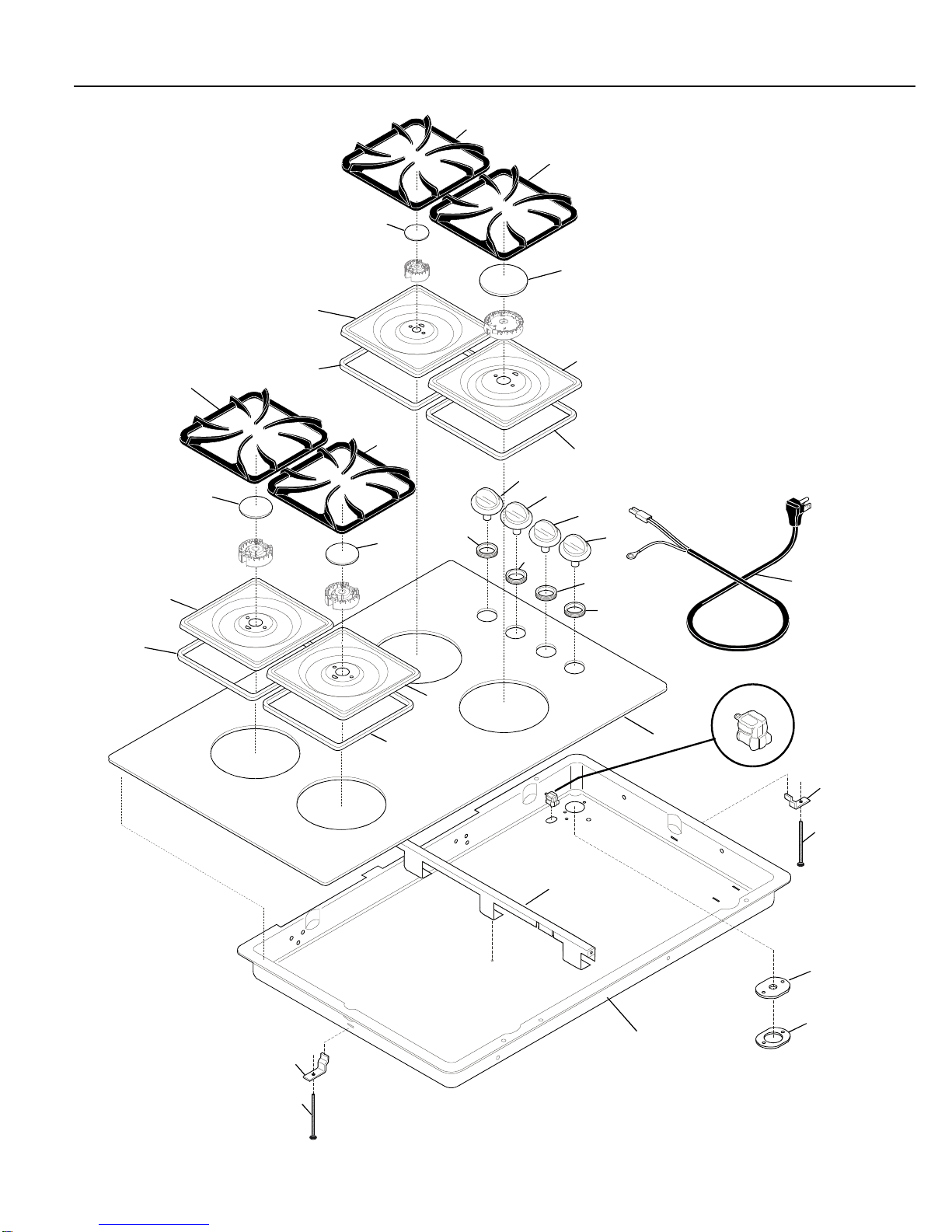

COOKTOP

136

137

22B

22A

19B

19A

43 43 43 43

132

LA9922T01

FGC3X8XG Publication No.

5995323515

# = Functional Part 305/99

* = Non-Illustrated Part

COOKTOP

A=FGC3X8XG (FGC3X8XGSA)

B=FGC3X8XG (FGC3X8XGBA)

C=FGC3X8XG (FGC3X8XGTA)

POS. NO PART NO DESCRIPTION

3318171400 AB C Glass support

16 318018513 AGlass Main top white

16 318018514 BGlass Main top black

16 318018515 C Glass Main top almond

19 318168116 APan-burner medium white

19 318168114 BPan-burner medium black

19 318168115 C Pan-burner medium almond

19A 318168126 APan-burner large white

19A 318168124 BPan-burner large black

19A 318168125 C Pan-burner large almond

19B 318168106 APan-burner small white

19B 318168104 BPan-burner small black

19B 318168105 C Pan-burner small white

20 318120106 AC Grate

20 318120105 BGrate

22 318076411 AC Cap-bunrer white mid

22 318076410 BCap-burner black mid

22A 318076421 AC Cap-burner white large

22A 318076420 BCap-burner black large

22B 318076401 AC Cap-burner white small

22B 318076400 BCap-burner black small

31 318053900 AB C Gasket-vent

43 318016500 AKnob-top valve

43 318016501 BKnob-top valve

43 318016502 C Knob-top valve

45 318146200 AB C Bushing

46 5303307897 AB C Burner Box

47 5303303991 AB C Cord-electric power

64 5303304033 AB C Retainer bracket

65 5303304032 AB C Seal rubber

132 3201437 AB C Strain relief

136 5303935029 AB C Fixation support

137 5303323138 AB C Screw, 10-24 X 2 ½

*5304403558 AB C Screw, 10-16 X ¼

*318052107 AB C Wire harness

*5303300265 AB C Screw, 8-18 X ½ chrome

*5303211311 AB C Screw, #8 X ½

*5303323140 AB C Screw ground

*5303311532 AB C Screw, 6-32 X ¼

*5303307980 AB C Screw, 8-32 X 7/16

FGC3X8XG Publication No.

5995323515

05/99 4

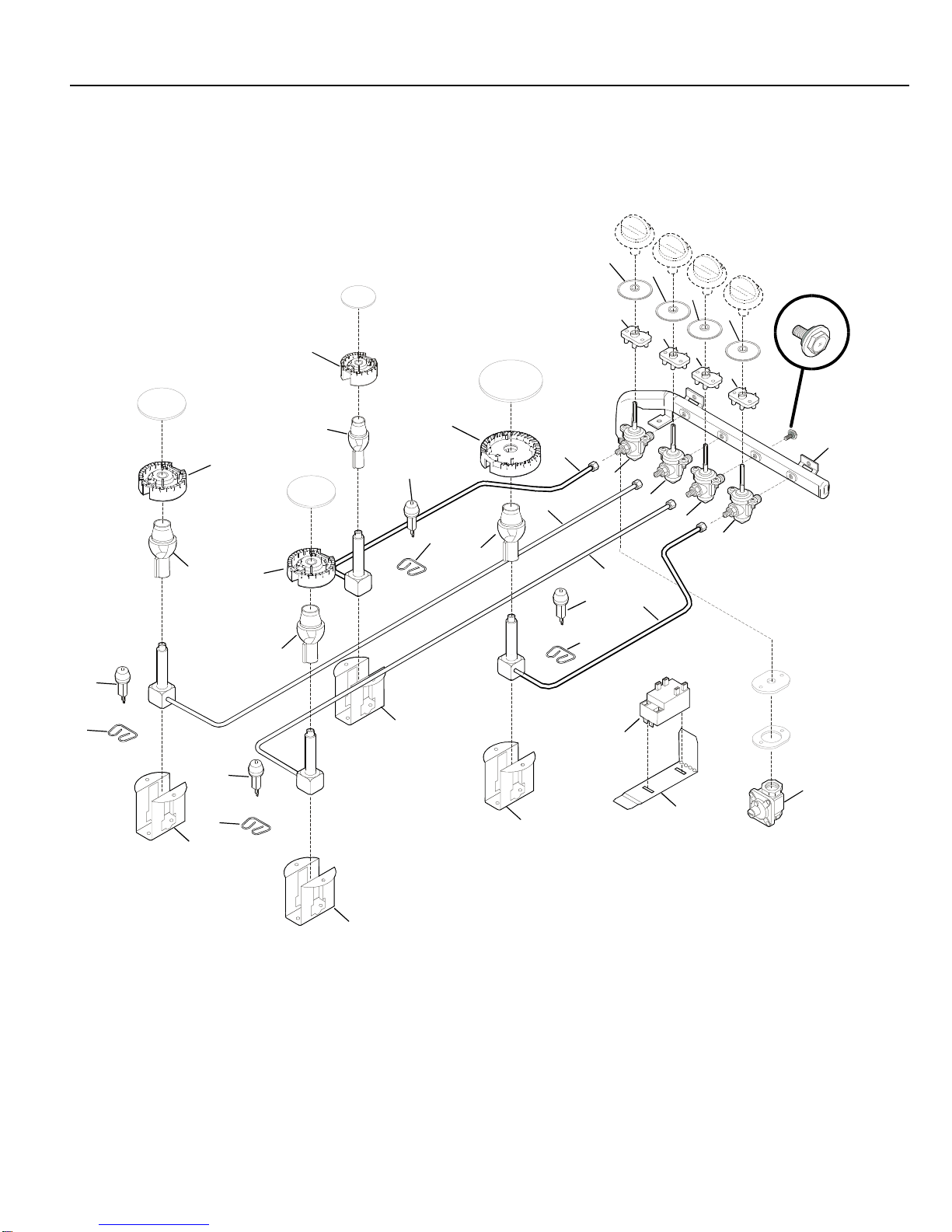

BURNER

10B

10A

222A

75 76

76A

77A

333

LA9922B02

FGC3X8XG Publication No.

5995323515

# = Functional Part 505/99

* = Non-Illustrated Part

BURNER

A=FGC3X8XG (FGC3X8XGSA)

B=FGC3X8XG (FGC3X8XGBA)

C=FGC3X8XG (FGC3X8XGTA)

POS. NO PART NO DESCRIPTION

1 318177003 AB C Manifold Pipe

2 # 5303935042 AB C Valve-top burner

2A 318087001 AB C Valve-top burner

3 # 316032002 AB C Switch-ignitor

4 # 318167703 AB C Tube-burner

5 # 318167700 AB C Tube-burner

6 # 318167702 AB C Tube-burner

7 # 318167701 AB C Tube-burner

8 # 5303280394 AB C Spark Module

10 # 318148001 AB C Burner-top mid

10A 318148002 AB C Burner top large

10B 318148000 AB C Burner-top small

14 # 5308007974 AB C Regulator-pressure

35 5303307978 AB C Bushing-insulation

72 5303323141 AB C Screw valve 1/4-20 X 5/16

73 318024200 AB C Bracket, spark module

74# 318148700 AB C Ignitor gourmet assy

75 318148800 AB C Clip electrode

76# 318167801 AB C Mid & large mixing tube

76A 318167800 AB C Small mixing tube

77 318112010 AB C Bracket-burner mtg

77A 318112000 AB C Bracket-burner mtg

*318127407 AB C Lp kit

* 08011955 AB C Screw 10-24 X 3/8

*5304403558 AB C Screw, 10-16 X ¼

FGC3X8XG Publication No.

5995323515

05/99 6

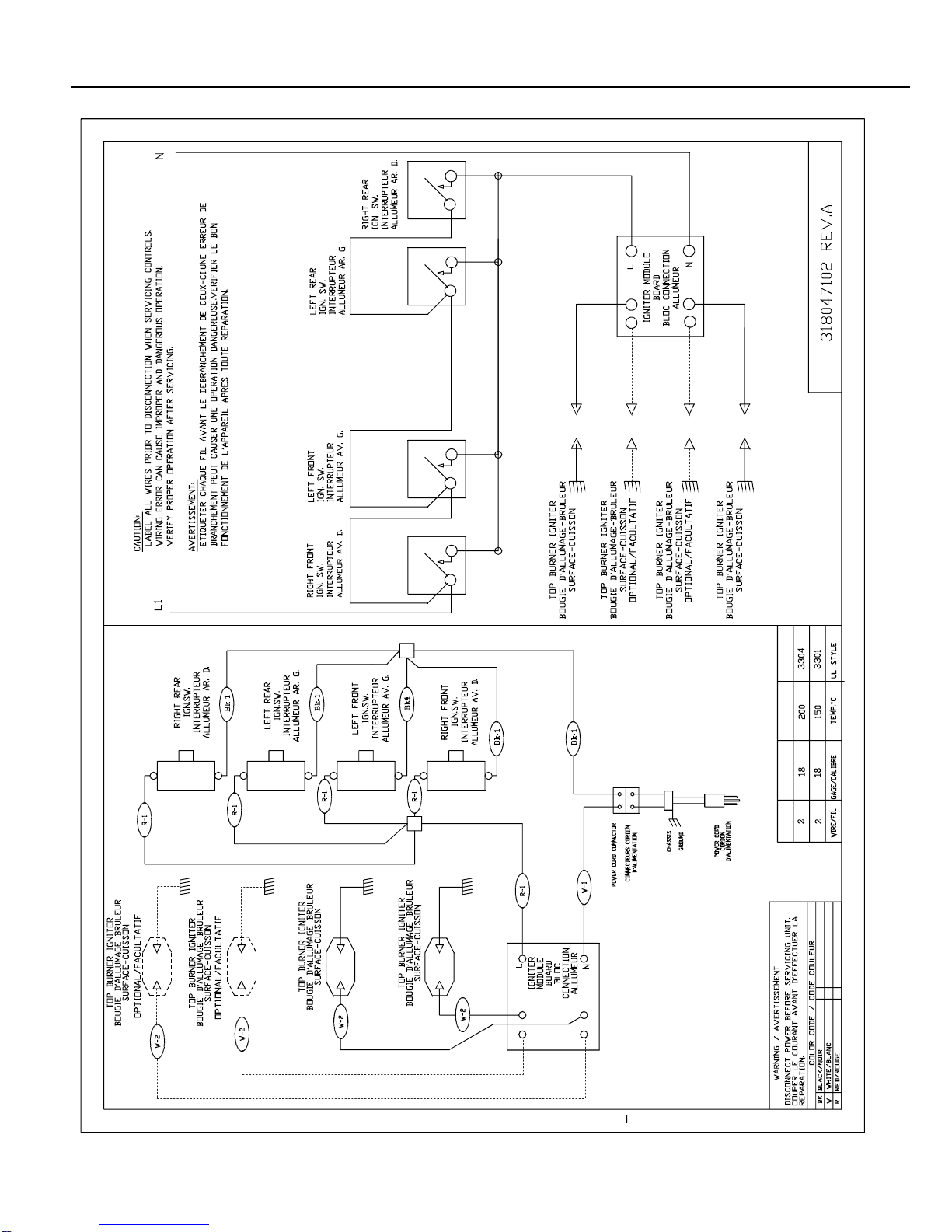

WIRING DIAGRAM
