ROOM DEHUMIDIFIER

Model No.

FDK45P / FDL45P

Publication No: 5995470209 FDK45P / FDL45P

07/06 2

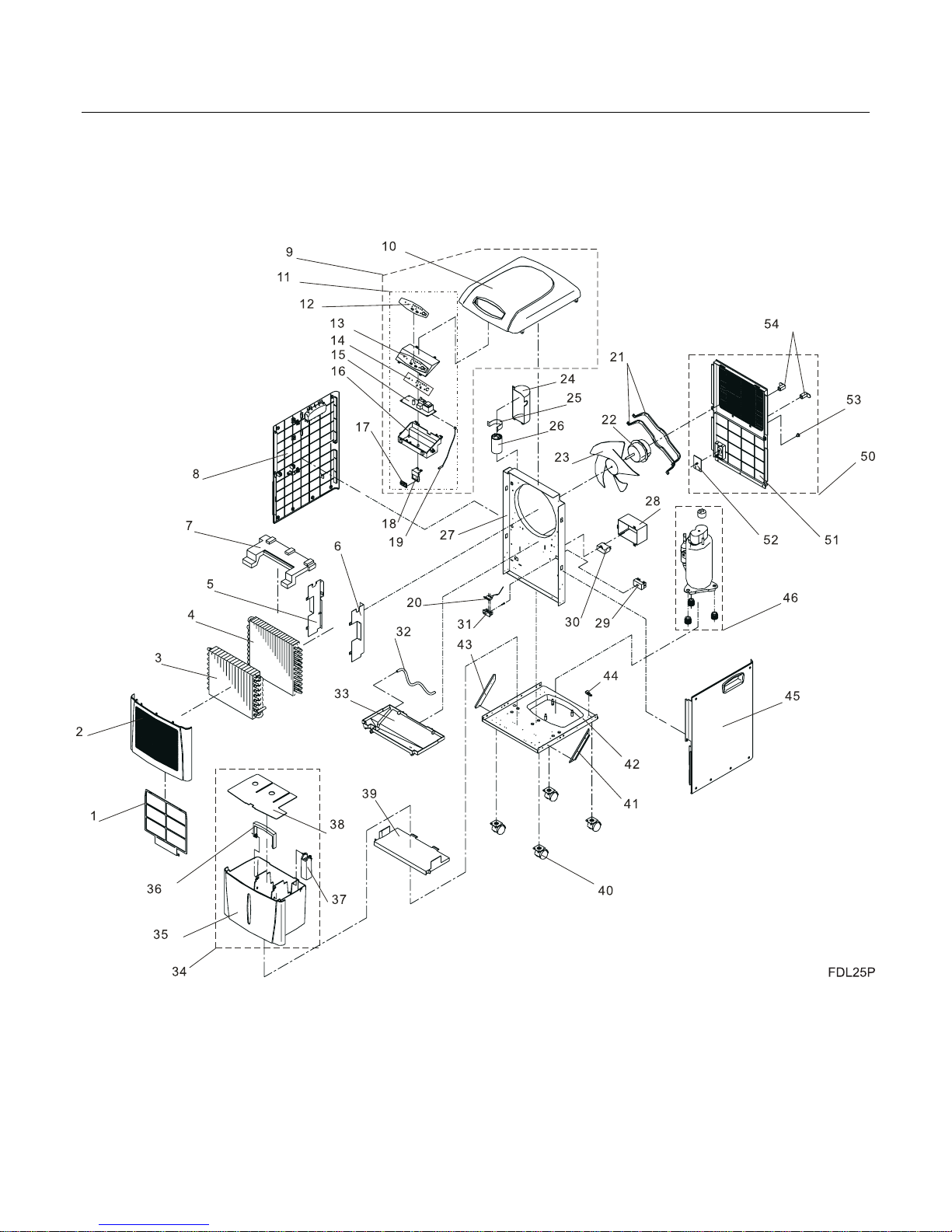

RECOMMENDED SPARE PARTS

FDK45P / FDL45P Publication No: 5995470209

# Functional Parts 3 07/06

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

Model Index: AFDK45P (FDK45P13)

BFDK45P (FDK45P14)

CFDL456 (FDL45P13)

DFDL45P (FDL45P14)

POS. NO PART NO. DESCRIPTION

1 # 5304447105 A B C D Filter, air

2 5304447106 A B C D FRONT PANEL ASSEMBLY

3 5304447279 A B C D Evaporator

4 5304447280 A B C D CONDENSER-AIR COOL, REC.

5 5304447109 A B C D LEFT CONNECTION BOARD

6 5304447110 A B C D RIGHT CONNECTION BOARD

7 5304447111 A B C D SEAL, COND/EVAP COIL, FOAM

8 5304447237 A B C D Panel-left side

9 5304447238 A B C D COVER/TOP CAP ASSEMBLY

10 5304447239 A B C D COVER/TOP CAP

11 5304447240 A B C D MAIN CONTROL ASSEMBLY

12 5304447241 A B C D Overlay-control

13 5304447242 A B C D COVER-CONTROL BOX, E-PART BOX

14 # 5304447243 A B C D PC Board, display/input

15 5304447244 A B C D MAIN CONTROL BOARD

16 5304447245 A B C D CONTROL BOX, E-PART BOX COVER

17 5304447246 A B C D HUMIDITY SENSOR

18 5304447247 A B C D BRACKET, HUMIDITY SENSOR

19 5304447248 A B C D EVAPORATOR PIPE TEMP SENSOR

20 5304447249 A B C D WATER DEPTH SWITCH, OVERFLOW

21 5304447250 A B C D Bracket-fan motor

22 5304447251 A - C - Fan Motor

22 5304447278 - B - D Fan Motor

23 5304447252 A B C D Blade-fan

24 5304447281 A B C D COVER, COMPRESSOR CAPACITOR BOX

25 5304447282 A B C D Strap, capacitor mtg.

26 5304447283 A B C D Capacitor

27 5304447253 A B C D Shroud-condenser

28 5304447254 A B C D FAN MOTOR CAPACITOR BOX

29 # 5304447255 A B C D Terminal, electric

30 5304447284 A B C D FAN MOTOR CAPACITOR

31 5304447257 A B C D WATER DEPTH SWITCH BRACKET

32 5304447258 A B C D Drain Tube

33 5304447259 A B C D TRAY-DRIP, WATER COLLECTOR

34 5304447260 A B C D WATER TANK ASSEMBLY

35 5304447261 A B C D Water Tank

36 5304447262 A B C D TANK HANDLE

37 5304447263 A B C D FLOAT, WATER DEPTH SWITCH PIN

38 5304447264 A B C D WATER TANK COVER

39 5304447265 A B C D WATER TANK BASE

40 5304447266 A B C D Caster

41 5304447267 A B C D SUPPORTING BAR 1

42 5304447285 A B C D Base

43 5304447269 A B C D SUPPORTING BAR II

44 5304447270 A B C D POWER CORD CLAMP

45 5304447271 A B C D Panel-side

46 5304447351 A B C D Compressor Assembly

50 5304447273 A B C D REAR PANEL ASSEMBLY

51 5304447274 A B C D REAR PANEL

52 5304447275 A B C D WATER DRAIN BRACKET

53 5304447276 A B C D Drain Plug

54 5304447277 A B C D HOLDER, POWER CORD BOBBIN

54* 5304448416 A B C D Power Cord

Publication No: 5995470209 FDK45P / FDL45P

07/06 4

WIRING DIAGRAM
