Frigidaire FDB102SD Manuale utente

P30L0044.eps P30C0127.eps P30B0032.eps P30U0018.eps P30M0034.eps P30F0022.eps

P30R0045.eps

Product No. FDB102SDW0

Series 24" Built-in

Color black/white

Owner's Guide 154428101

Service Data Sheet 154441201

Energy Guide 154485201

Installation Instructions 154416401

Market North America

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995414199

04/08/03

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB102SD

Publication No: 5995414199 FDB102SDW0

08/04 2

CONTROL PANEL

FDB102SDW0 Publication No: 5995414199

# Functional Parts 3 08/04

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 154443703 Panel, control, black

2 154401903 Insert, control panel, black

3 # 154437801 Timer

3* 154131204 Shield, timer

3* 154095701 Screw, thread rolling, (2), timer

8 # 154240403 Switch, rocker/selector, black

13 154338303 Knob, timer, black

20 154433001 Vent assy, static dry

20* 154436201 Screw, dry duct, (3)

* 154474901 Wiring Harness, main

* 154485201 Energy Guide

Publication No: 5995414199 FDB102SDW0

08/04 4

DOOR

FDB102SDW0 Publication No: 5995414199

# Functional Parts 5 08/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 154430501 Spring, door, (2)

1A 154325201 Linkage, door spring, (2)

2 154093301 Screw, armassy, (4)

3 154325304 Arm Assy, LH

3A 154325303 Arm Assy, RH

* 154400601 Pin, arm assy

5 154079601 Nut, arm assy, and handle mtg.

7 154299004 Door, inner assy

9 154230103 Dispenser, det/rinse aid, includes #22

9* 154294701 Screw, #7 plas .375, (6), disp. assy.

10 154103702 Screw, latch mtg, (2)

12 # 154475203 Latch assy, black

20 154359105 Door, white

20* 5304428306 Screw, door mtg., (2)

22 154388801 Cap, Rinse aid

49 154297603 Gasket, door, bottom

50 154211401 Support, door hinge

51 154320301 Clamp, drip loop, wire

* 154200601 Screw, #10-16 x 3/8

Publication No: 5995414199 FDB102SDW0

08/04 6

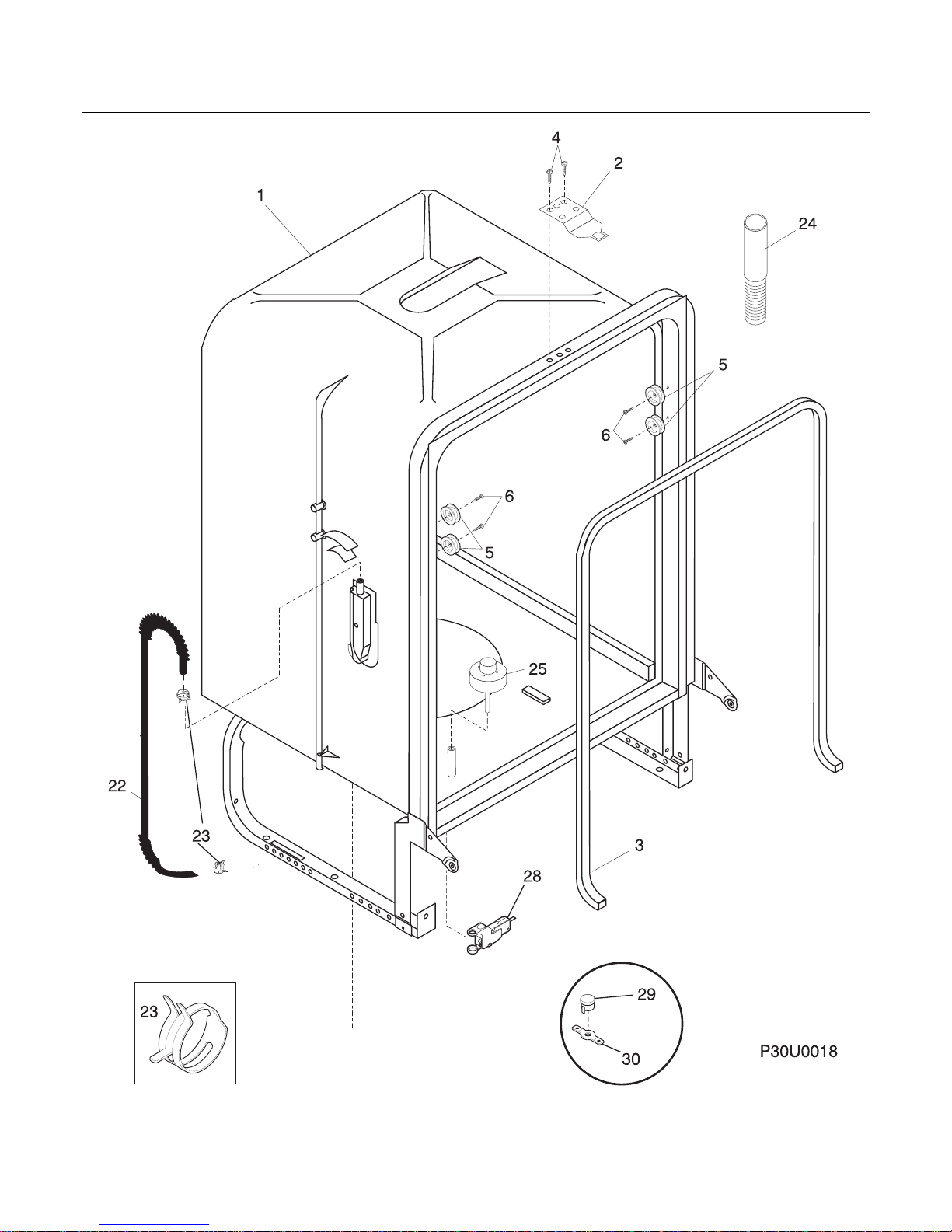

TUB

FDB102SDW0 Publication No: 5995414199

# Functional Parts 7 08/04

* Non-Illustrated Parts

TUB

POS. NO PART NO. DESCRIPTION

1 # 154209204 Tub, plastic

2 154429101 Strike, door

3 # 154211801 Gasket, tub

4 154200602 Screw, 10-16 x 3/8, hex

5 154333902 Roller, tub

6 5303943103 Screw, w/washer, (8)

22 154239801 Tubing, water inlet

23 5303318539 Clamp, tubing, (2)

24 # 154411003 Hose, drain

25 # 154209701 Float

28 154408701 Switch assy, float

29 # 154290204 Thermostat, re-settable

30 154241101 Retainer, thermostat

30* 154297701 Screw, retainer-thermo

* 154041001 Screw, plask #1, 10-10 x 9/16

* 5300807270 Screw, (2), countertop mtg.

Publication No: 5995414199 FDB102SDW0

08/04 8

MOTOR & PUMP

FDB102SDW0 Publication No: 5995414199

# Functional Parts 9 08/04

* Non-Illustrated Parts

MOTOR & PUMP

POS. NO PART NO. DESCRIPTION

1 # 154247601 Heater

1* 154106201 Nut, heater, (2)

1* 154289801 Shield, heater terminal

2 154479601 Bracket, heater, (2)

10 154335301 Cover, volute

13 154246801 Gasket, sump

14 154365903 Housing, sump

16 154246502 Retainer, sump

24 154496902 Spray arm, lower, w/heat shield

24A 154335201 Nut, spray arm

40 154348401 Clamp, red, pump

40 154348502 Clamp, red, pump

40* 154106801 Clamp, hose, (2)

40* 154380601 Clamp, hose, (1)

54 154234401 Hose, connector

55 154362301 Bracket, motor, askoll

55* 5303316032 Screw, truss ss, 8 .625

59 154246901 O-ring, rear

59A 154247001 O-ring, front

60 154474101 Drain Pump Assy

60* 154426201 Bracket, motor, drain

63 154252201 Base, soil director

64 154332602 Filter, soil director

65 154252401 Filter, polypro

70 # 154474001 Motor assembly, circulation, w/o o'rings

* 154200601 Screw, #10-16 x 3/8

Publication No: 5995414199 FDB102SDW0

08/04 10

FRAME
