Frigidaire FDB1250RE Manuale utente

P30L0070.eps P30C0150.eps P30B0037.eps P30U0021.eps P30M0037.eps P30F0022.eps

P30R0088.eps

Product No. FDB1250REB0 FDB1250REC0 FDB1250REQ0 FDB1250RES0

Series 24" Built-in 24" Built-in Built-in 24" Built-in 24"

Color black stainless bisque white

Owner's Guide English 154538901 154538901 154538901 154538901

Owner's Guide Spanish 154539101 154539101 154539101 154539101

Owner's Guide French 154539001 154539001 154539001 154539001

Service Data Sheet 154547801 154547801 154547801 154547801

Energy Guide 154540028 154540028 154540028 154540028

Installation Instructions 154427301 154427301 154427301 154427301

Market North America North America North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995437190

05/05/20

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB1250RE

Publication No: 5995437190 FDB1250RE

05/05 2

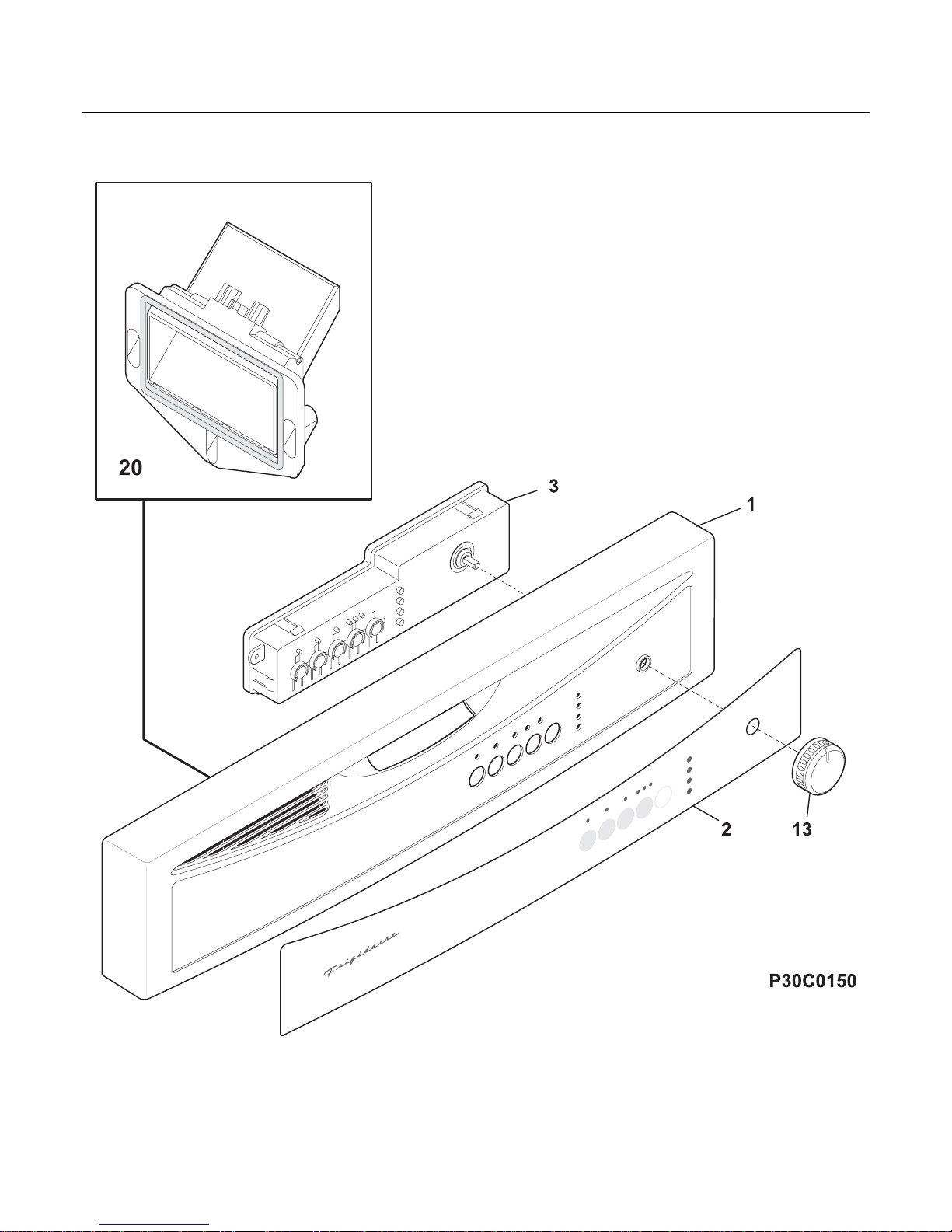

CONTROL PANEL

FDB1250RE Publication No: 5995437190

# Functional Parts 3 05/05

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDB1250RE (FDB1250REB0)

BFDB1250RE (FDB1250REC0)

CFDB1250RE (FDB1250REQ0)

DFDB1250RE (FDB1250RES0)

POS. NO PART NO. DESCRIPTION

1 154534803 A B - - Panel, control, black

1 154534804 - - C - Panel, control, bisque

1 154534801 - - - D Panel, control, white

2 154535103 A B - - Insert, control panel, black, 5 button

2 154535104 - - C - Insert, control panel, bisque, 5 button

2 154535101 - - - D Insert, control panel, white, 5 button

3 # 154547601 A B C D Control Module, 5 button, w/selector

13 154535903 A B - - Knob, control, black

13 154535904 - - C - Knob, control, bisque

13 154535901 - - - D Knob, control, white

20 154433001 A B C D Vent assy, static dry

20* 154436201 A B C D Screw, dry duct, (3)

* # 154553301 A B C D Wiring Harness, main

* 154227501 A B C D Thermistor

* 154540028 A B C D Energy guide label

* 154282901 A B C D Screw, phillips, 8-10 x .7

* 154409401 A B C D Screw, #8-18 x .375

* 5303322387 A B C D Screw, truss head, #8, 1.5", stainless steel

Publication No: 5995437190 FDB1250RE

05/05 4

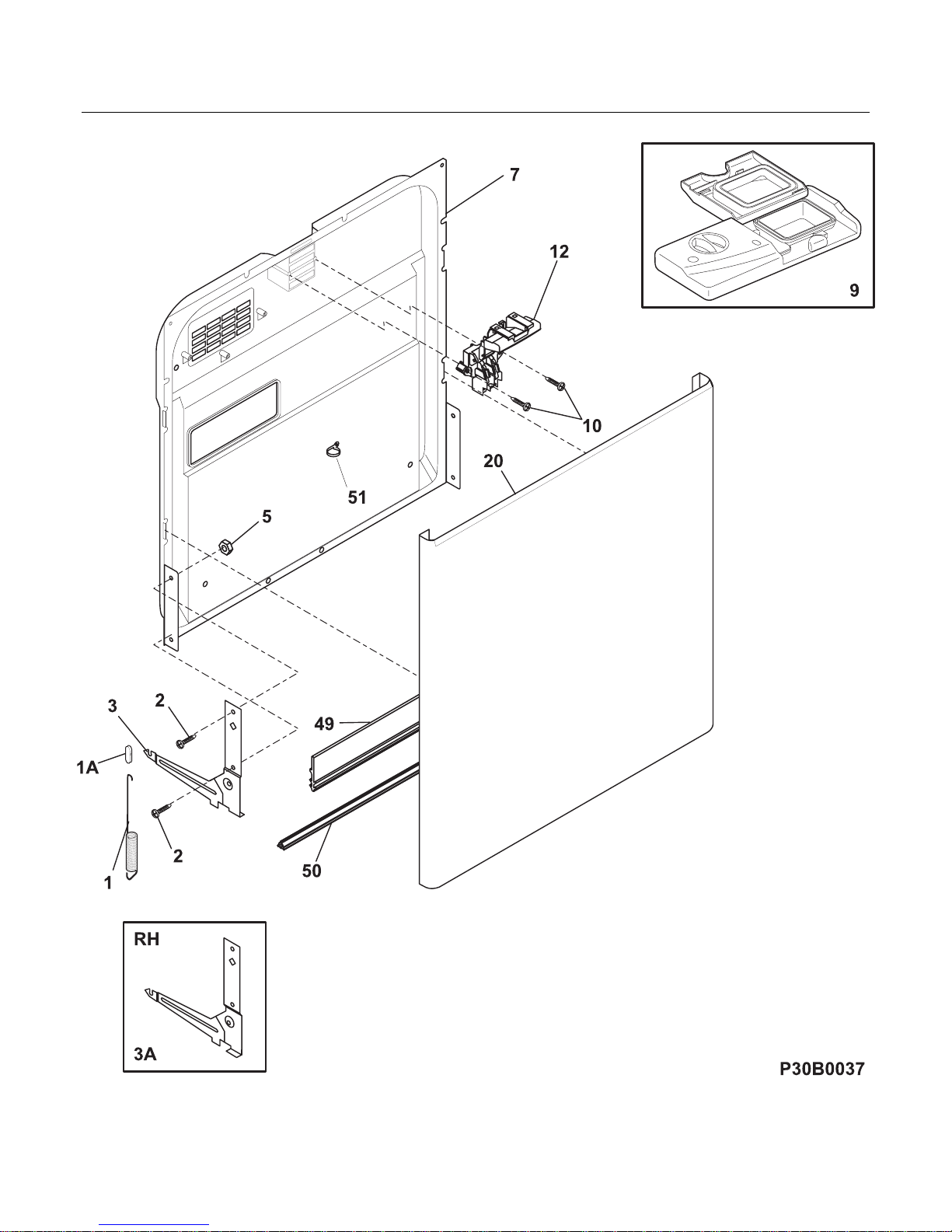

DOOR

FDB1250RE Publication No: 5995437190

# Functional Parts 5 05/05

* Non-Illustrated Parts

DOOR

Model Index: AFDB1250RE (FDB1250REB0)

BFDB1250RE (FDB1250REC0)

CFDB1250RE (FDB1250REQ0)

DFDB1250RE (FDB1250RES0)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C D Spring, door, (2)

1A 154325201 A B C D Linkage, door spring, (2)

2 154093301 A B C D Screw, arm assy, (4)

3 154325302 A B C D Arm Assy, LH

3A 154325301 A B C D Arm Assy, RH

* 154529101 A B C D Pin, arm assy

5 154079601 A B C D Nut, arm assy, and handle mtg.

7 154494601 A B C D Liner, door assy.

9 154452703 A B C D Dispenser, det/rinse aid, w/o reed

9* 154294701 A B C D Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C D Screw, latch mtg, (2)

12 # 154535503 A B - - Latch assy, black

12 # 154535504 - - C - Latch assy, bisque

12 # 154535501 - - - D Latch assy, white

20 154538303 A - - - Door, black

20 154538305 - B - - Door, stainless

20 154538304 - - C - Door, bisque

20 154538301 - - - D Door, white

20* 5304428306 A B C D Screw, door mtg., (2)

49 154297603 A B C D Gasket, door, bottom

50 154211401 A B C D Support, door hinge

51 154320301 A B C D Clamp, drip loop, wire

* 154409401 A B C D Screw, #8-18 x .375

Publication No: 5995437190 FDB1250RE

05/05 6

TUB

FDB1250RE Publication No: 5995437190

# Functional Parts 7 05/05

* Non-Illustrated Parts

TUB

Model Index: AFDB1250RE (FDB1250REB0)

BFDB1250RE (FDB1250REC0)

CFDB1250RE (FDB1250REQ0)

DFDB1250RE (FDB1250RES0)

POS. NO PART NO. DESCRIPTION

1 # 154534701 A B C D Tub assy, w/frame parts

2 154429101 A B C D Strike, door

3 # 154211801 A B C D Gasket, tub

4 154200602 A B C D Screw, 10-16 x 3/8, hex

5 154333902 A B C D Roller, tub

6 5303943103 A B C D Screw, w/washer, (8)

22 154446002 A B C D Tubing, water inlet

23 5303318539 A B C D Clamp, tubing, (2)

24 # 154525301 A B C D Hose,drain

25 # 154209701 A B C D Float

28 154408701 A B C D Switch Assy, float

29 # 154290204 A B C D Thermostat, re-settable

30 154241101 A B C D Retainer, thermostat

30* 154297701 A B C D Screw, retainer-thermo

* 154447102 A B C D Insulation, blanket

* 154041001 A B C D Screw, plask #1, 10-10 x 9/16

* 5300807270 A B C D Screw, (2), countertop mtg.

Publication No: 5995437190 FDB1250RE

05/05 8

MOTOR & PUMP

FDB1250RE Publication No: 5995437190

# Functional Parts 9 05/05

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDB1250RE (FDB1250REB0)

BFDB1250RE (FDB1250REC0)

CFDB1250RE (FDB1250REQ0)

DFDB1250RE (FDB1250RES0)

POS. NO PART NO. DESCRIPTION

1 # 154482901 A B C D Heater, round

1* 154106201 A B C D Nut, heater, (2)

1* 154289801 A B C D Shield, heater terminal

2 154465101 A B C D Bracket, heater, (2)

10 154245501 A B C D Cover, volute

13 154246801 A B C D Gasket, sump

14 154461901 A B C D Housing, sump

16 154246502 A B C D Retainer, sump

16* 5304404947 A B C D Screw, retainer

24 154414102 A B C D Spray arm, lower, w/heat shield

24A 154468502 A B C D Spray arm, grey, center

24B 154520601 A B C D Nozzle, shower, assembly

32 154464101 A B C D Tube, delivery

32* 154491101 A B C D Screw, delivery tube

32A 154406401 A B C D Gasket, delivery tube

40 154348401 A B C D Clamp, red, pump

40 154348502 A B C D Clamp, red, pump

40* 154106801 A B C D Clamp, hose, (2)

40* 154380601 A B C D Clamp, hose, (1)

54 154234401 A B C D Hose, connector

55 154362301 A B C D Bracket, motor, askoll

55* 5303316032 A B C D Screw, truss ss, 8 .625

58 154246402 A B C D Check ball

59 154246901 A B C D O-ring, rear

59A 154247001 A B C D O-ring, front

60 154491301 A B C D Pump, drain

60* 5303318719 A B C D Screw, mtg.

61 154463402 A B C D Grommet, delivery tube

62 154294102 A B C D Support, spray arm, grey, lower

63 154252201 A B C D Base, soil director

64 154252301 A B C D Filter, soil director, white

65 154252401 A B C D Filter, polypro

66 154252702 A B C D Trap, glass, grey

70 # 154520501 A B C D Motor assembly, circulation, w/o o'rings

* 154200601 A B C D Screw, #10-16 x 3/8

* 154297701 A B C D Screw, retainer-thermo

Publication No: 5995437190 FDB1250RE

05/05 10

FRAME
