PRODUCT NO. BASE MODEL NO. COLOR MARKET

FDB421RFR6 FDB421RF reversible North America

24" Built-In

DISHWASHER

Model No.

FDB421RFR6

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154405901

OWNER’S GUIDE # - 154255502

INSTALLATION INSTRUCTIONS # - 154329601

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995359907

011016

-EN/SERVICE /MLR

821

10/01 2

Publication No. FDB421RFR6

5995359907

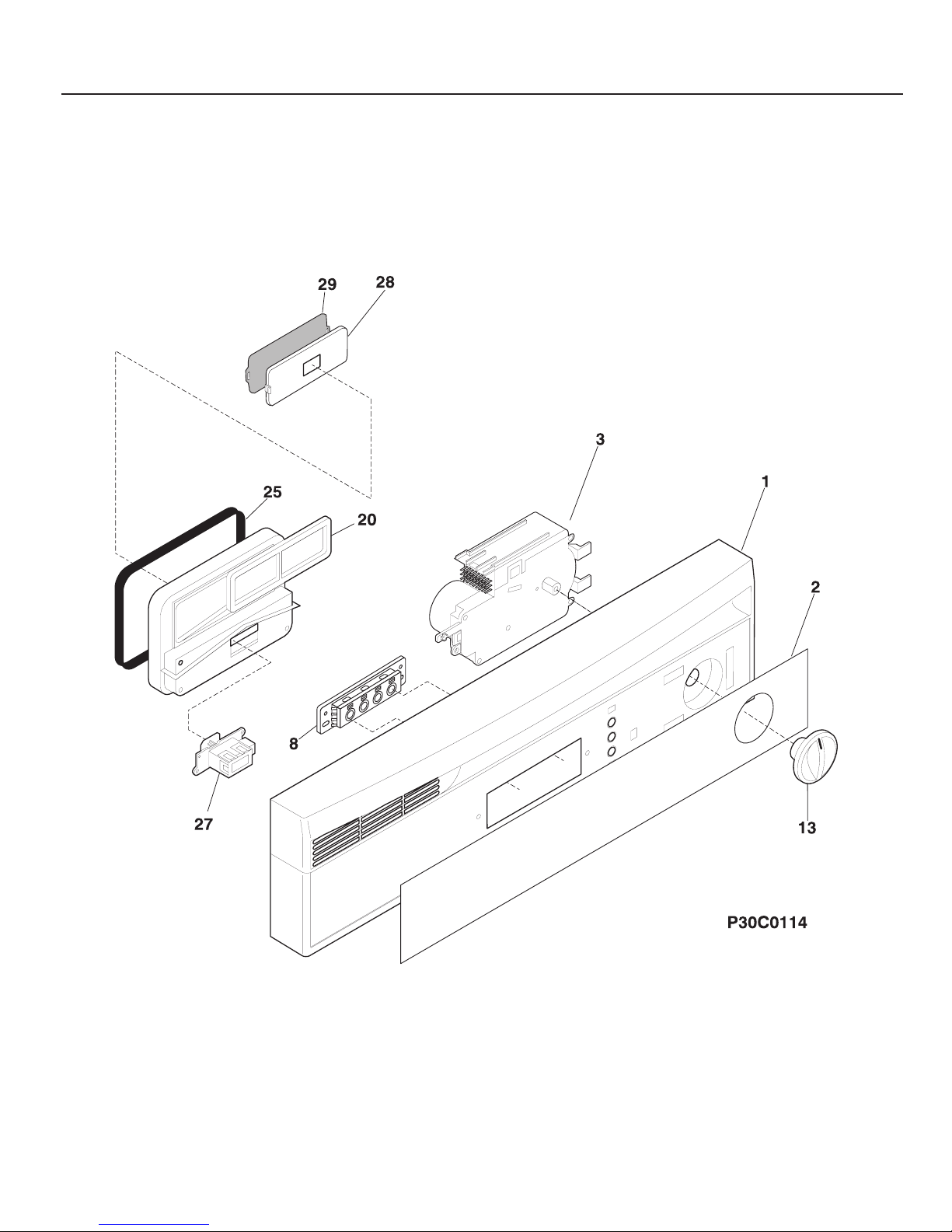

CONTROL PANEL

# = Fast Moving Part 3 10/01

* = Non-Illustrated Part

FDB421RFR6 Publication No.

5995359907

CONTROL PANEL

POS. NO PART NO DESCRIPTION

1 154368203 Panel,control ,black

2 154235103 Insert-control pnl,black

3 # 154351102 Timer

8 # 154215101 Switch,selector ,4 pad

8* 154248601 Shield,switch

8* 5303318719 Screw,mtg.

13 154239503 Knob-timer,black

20 154345101 Vapor Chamber Assy,w/ vent gasket

25 154229201 Seal,chamber

27 154226701 Actuator,wax

28 154226901 Valve,vent

29 154226403 Gasket,valve

* # 154394601 Harness,wiring

* 154283901 Screw,#8-10 ,3/8 phillips

10/01 4

Publication No. FDB421RFR6

5995359907

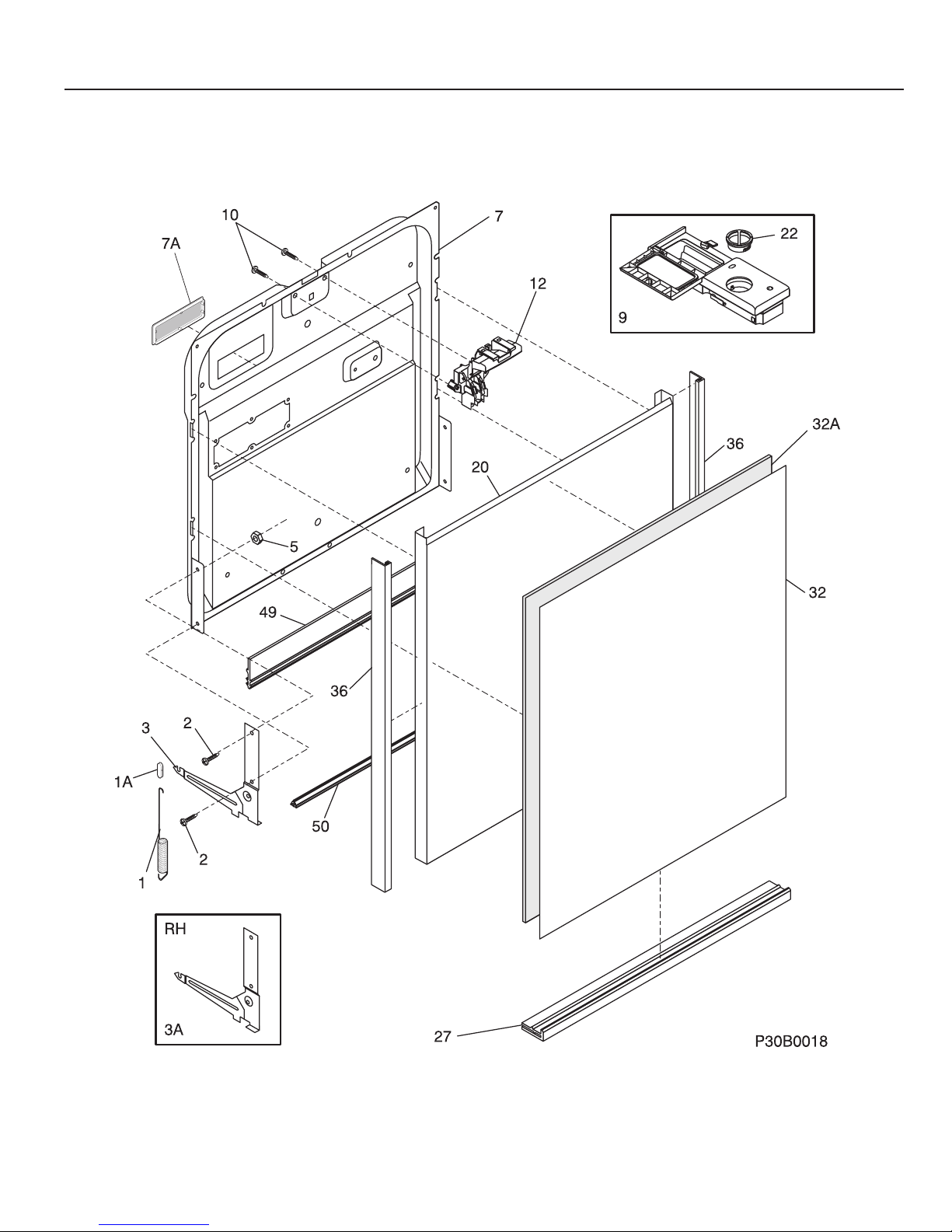

DOOR

# = Fast Moving Part 5 10/01

* = Non-Illustrated Part

FDB421RFR6 Publication No.

5995359907

POS. NO PART NO DESCRIPTION

1 154345902 Spring,door ,(2)

1A 154325201 Linkage,door spring ,(2)

2 154093301 Screw,arm assy ,(4)

3 154325304 Arm Assy,LH

3A 154325303 Arm Assy,RH

* 154400601 Pin,arm assy

5 154079601 Nut,arm assy ,(4)

7 154299002 Door,inner assy

7A 154226601 Grate,liner

9 154230101 Dispenser,det/rinse aid ,includes #22

9* 154294701 Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 Screw,latch mtg ,(2)

12 # 154361203 Latch assy,black

20 154327701 Mid Door Assy

22 154388801 Cap,Rinse aid

27 154257603 Trim-door,black ,bottom

32 5303943148 Insert-door kit,wht/alm&blk/wht

32A 154229001 Spacer-insert,door

36 154254203 Trim-door,side

49 154297602 Gasket,door ,bottom

50 154211401 Support,door hinge

* # 154227808 Thermostat,temp boost

* 154200601 Screw,#10-16 x 3/8

* 154320301 Clamp,drip loop ,wire

DOOR

10/01 6

Publication No. FDB421RFR6

5995359907

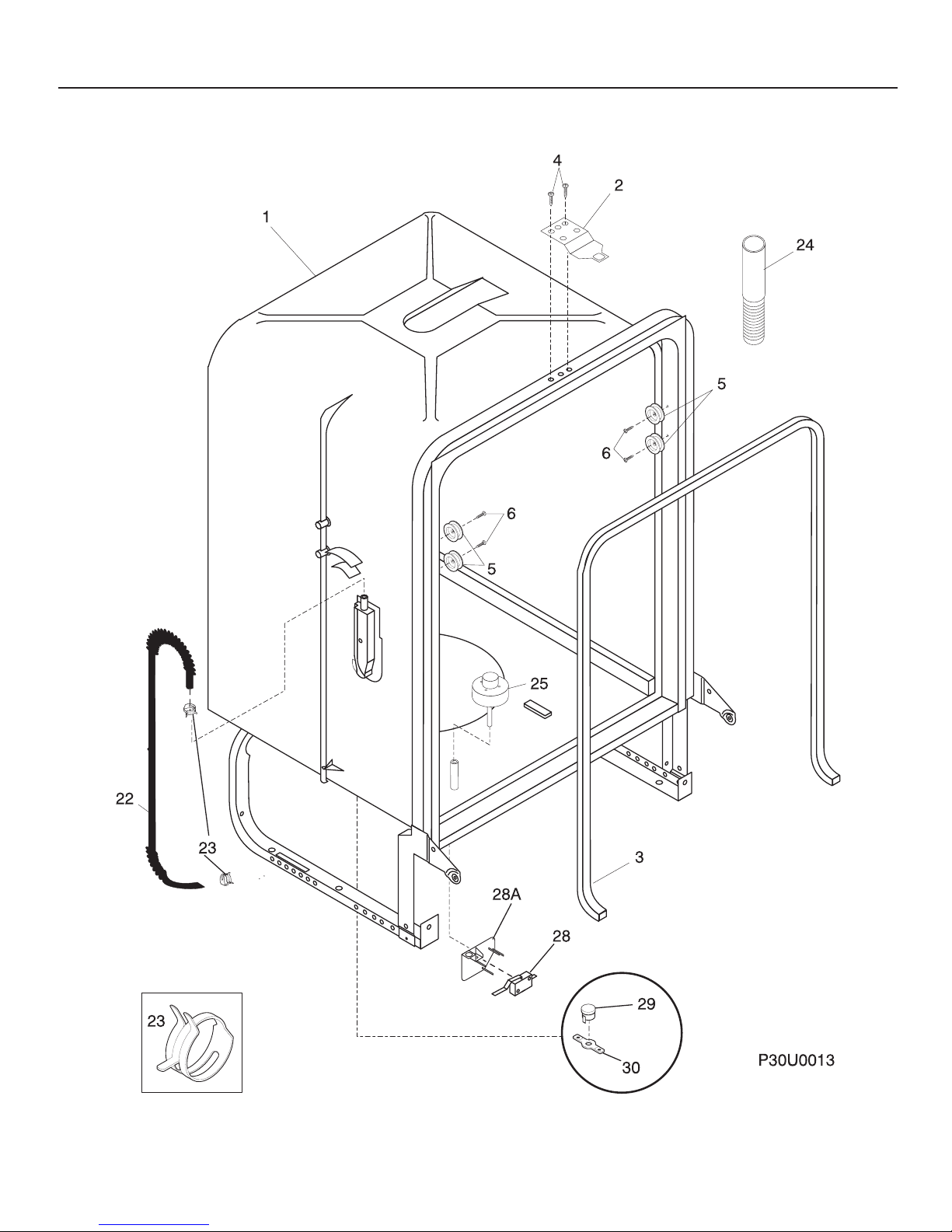

TUB

# = Fast Moving Part 7 10/01

* = Non-Illustrated Part

FDB421RFR6 Publication No.

5995359907

POS. NO PART NO DESCRIPTION

1 # 154209301 Tub assy,w/frame parts

2 154211601 Strike,door

3 # 154211801 Gasket,tub

4 154041001 Screw,plask #1 ,10-10 x 9/16

5 154333901 Roller,tub

6 5303943103 Screw,w/washer ,(8)

22 154239801 Tubing,water inlet

23 5303318539 Clamp,tubing ,(2)

24 # 154225602 Hose,drain

25 # 154209701 Float

28 # 154225501 Switch,float

28A 154386601 Bracket,float switch

28A* 154333301 Screw,bracket mtg ,ph truss head

29 # 154290204 Thermostat,re-settable

30 154241101 Retainer,thermostat

30* 154297701 Screw,retainer-thermo

* 154238304 Insulation,tub

* 154200602 Screw,10-16 x 3/8 ,hex

TUB

10/01 8

Publication No. FDB421RFR6

5995359907

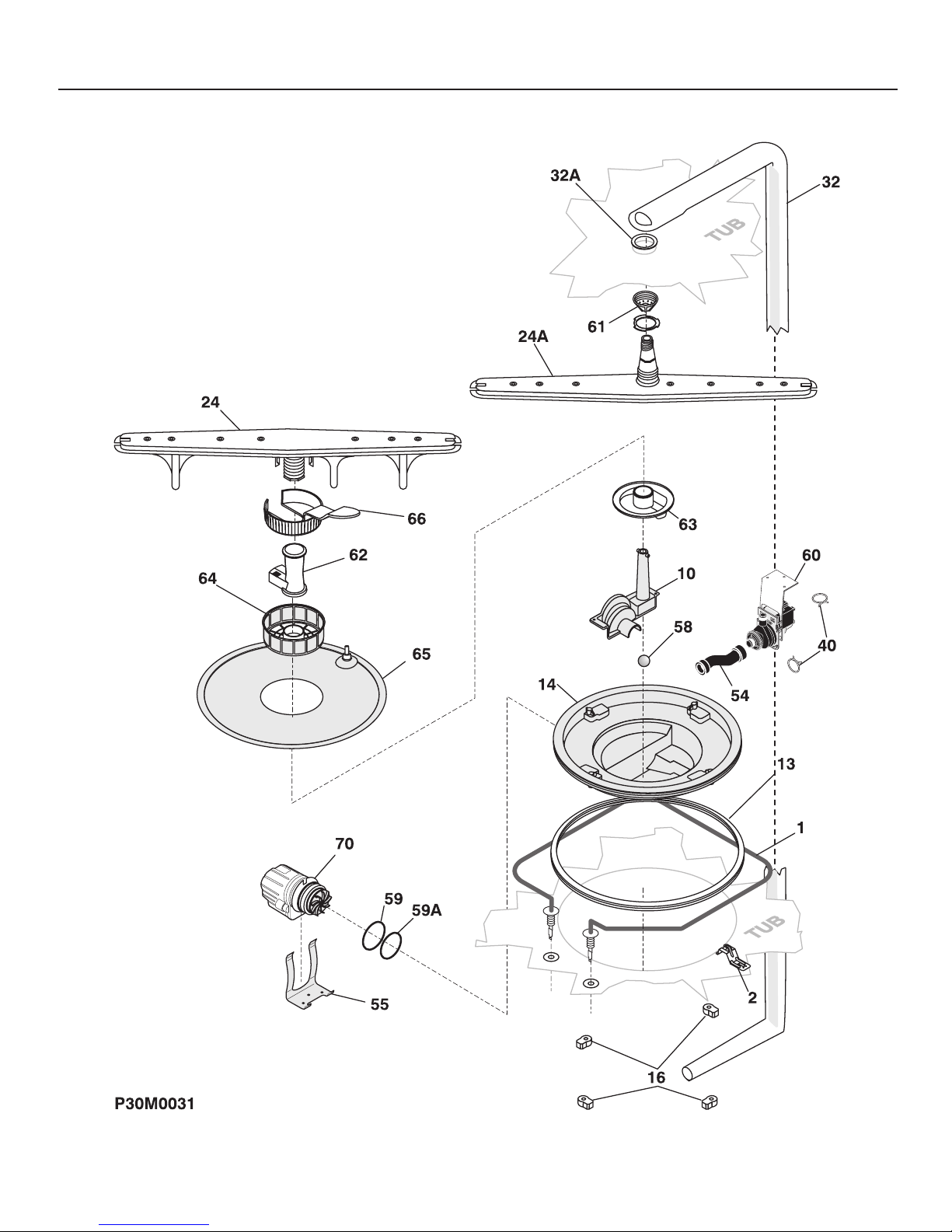

MOTOR & PUMP

# = Fast Moving Part 9 10/01

* = Non-Illustrated Part

FDB421RFR6 Publication No.

5995359907

POS. NO PART NO DESCRIPTION

1 # 154247601 Heater

1* 154106201 Nut,heater ,(2)

1* 154289801 Shield,heater terminal

2 154359701 Bracket,heater ,(2)

10 154245501 Cover,volute

13 154246801 Gasket,sump

14 154365902 Housing,sump

16 154246502 Retainer,sump

24 154250801 Spray arm,lower

24A 154313601 Spray arm,center

24A* 154252001 Nut,spray arm ,center

32 154406601 Tube,delivery

32A 154406401 Gasket,delivery tube

40 154348401 Clamp,red ,pump

40 154348501 Clamp,silver ,pump

40* 154106801 Clamp,hose ,(2)

54 154234401 Hose,connector

55 154362301 Bracket,motor ,askoll

55* 5303316032 Screw,truss ss ,8 .625

58 154246402 Check ball

59 154246901 O-ring,rear

59A 154247001 O-ring,front

60 154247502 Drain Pump Assy

60* 154234501 Bracket,motor ,drain

61 154406701 Nozzle,2nd level ,spray arm

62 154294101 Support,spray arm ,lower

63 154252201 Base,soil director

64 154252301 Filter,soil director

65 154252401 Filter-polypro

66 154252701 Trap,glass

70 # 154395402 Motor assembly,circulation ,w/o o’rings

* 154200601 Screw,#10-16 x 3/8

* 154338601 Clamp-P,nylon

MOTOR & PUMP

10/01 10

Publication No. FDB421RFR6

5995359907

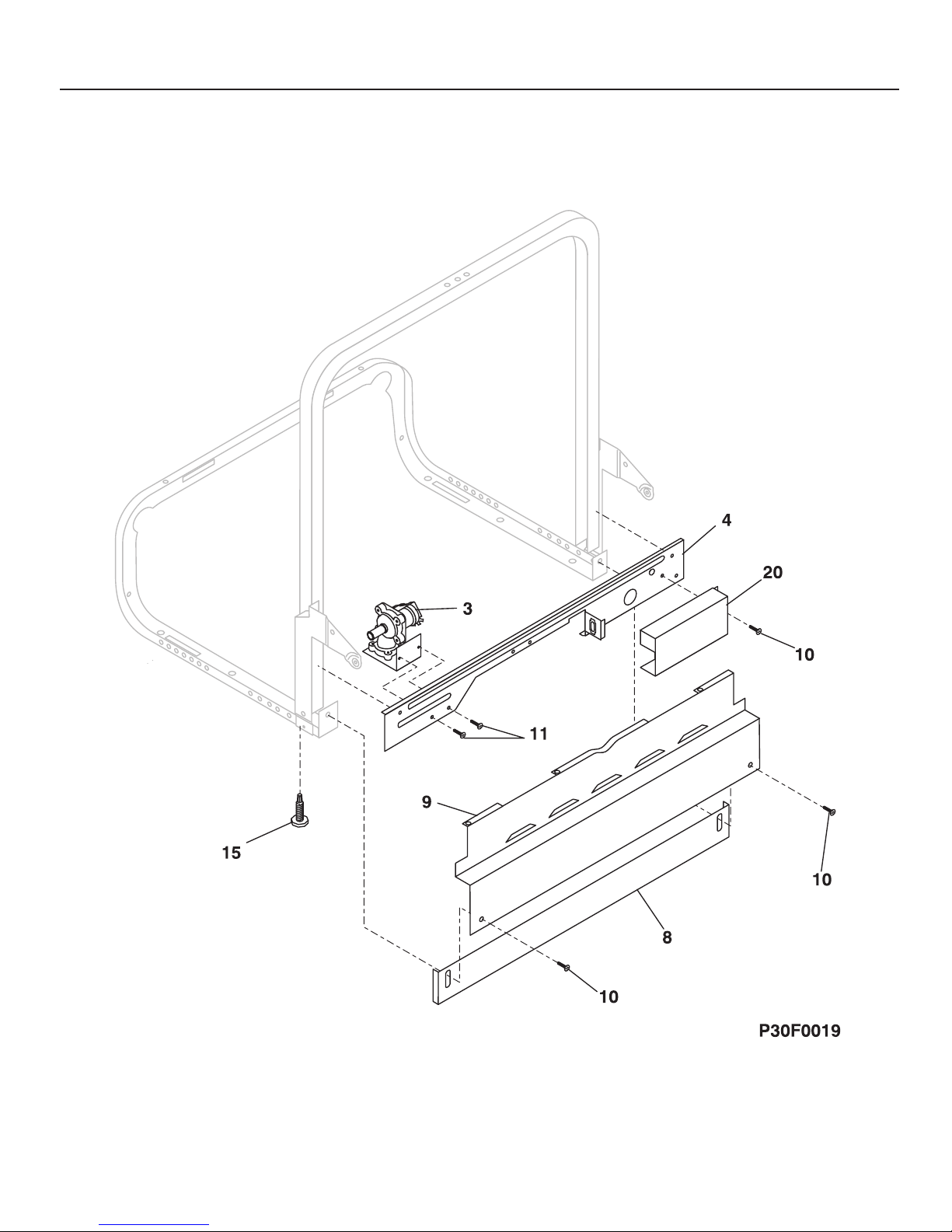

FRAME
