Frigidaire FDB634CF Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR

FDB634CFS1 FDB634CF 24" buikt-in white

MARKET

North America

Publication No.

5995347027

001205

-EN/SERVICE /ECL

821

24" BUILT IN

DISHWASHER

Model No.

FDB634CF

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154296902

OWNER’S GUIDE # - 154255602

WIRING DIAGRAM # - 154296902

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

12/00 2

Publication No. FDB634CFS1

5995347027

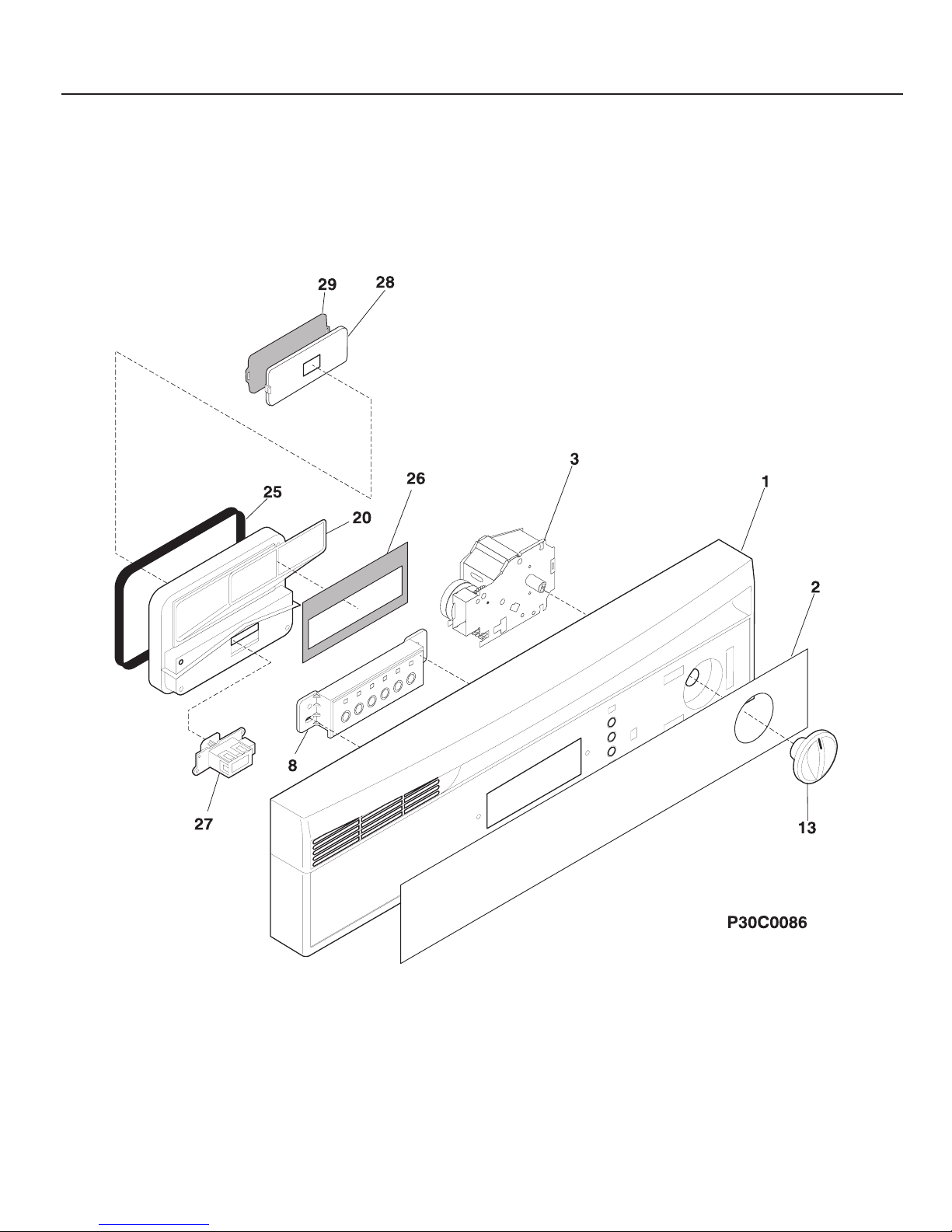

CONTROL PANEL

# = Fast Moving Part 3 12/00

* = Non-Illustrated Part

FDB634CFS1 Publication No.

5995347027

CONTROL PANEL

POS. NO PART NO DESCRIPTION

1 154222701 Panel-control,white

2 154311101 Insert-control pnl

3 # 154295701 Timer

3* 154095701 Screw-timer,thread rolling ,(2)

3* 154131203 Shield-timer

8 # 154214701 Switch-selector,6 button

8* 154248601 Shield-switch

8* 5303318719 Screw,mtg.

13 154239501 Knob-timer,white

20 154283701 Vapor Weldment Assy

25 154229201 Seal-chamber

26 154303901 Gasket-vent

27 154226701 Actuator-wax

28 154226901 Valve-vent

29 154226401 Gasket-valve

* 154298301 Lens-light

* # 154296103 Wiring Harness

* 154283901 Screw,#8-10 ,3/8 phillips

12/00 4

Publication No. FDB634CFS1

5995347027

DOOR

# = Fast Moving Part 5 12/00

* = Non-Illustrated Part

FDB634CFS1 Publication No.

5995347027

POS. NO PART NO DESCRIPTION

1 154226002 Spring-door,(2)

1A 154325201 Spring linkage,(2)

2 154093301 Screw-arm assy,(4)

3 154325304 Arm Assy,LH

3A 154325303 Arm Assy,RH

* 154211501 Pin-arm

5 154079601 Nut-arm assy,(4)

7 154299002 Door-inner assy

7A 154226601 Liner grate

9 154230101 Dispenser-det/rinse aid,includes #22

9* 154294701 Screw,#7 plas .375 ,(6) ,disp. assy.

10 154304301 Screw-latch mtg,(2)

12 # 154308101 Latch assy,white

20 154327701 Mid Door Assy

22 154388801 Cap-rinse aid

27 154257601 Trim-door,white ,bottom

32 5303943148 Insert-door kit,wht/alm&blk/wht

32A 154229001 Spacer-insert,door

36 154254201 Trim-door,white ,side

49 154297602 Gasket-door,bottom

50 154211401 Support-door hinge

51 154320301 Clamp-wire,drip loop

* # 154227805 Thermostat-temp assure

* # 154227806 Thermostat-temp boost

* 5300808749 Screw,C.R. truss ,#8 .625

* 154200601 Screw-#10-16 x 3/8

DOOR

12/00 6

Publication No. FDB634CFS1

5995347027

TUB

# = Fast Moving Part 7 12/00

* = Non-Illustrated Part

FDB634CFS1 Publication No.

5995347027

POS. NO PART NO DESCRIPTION

1 # 154209301 Tub assy,w/frame parts

2 154211601 Strike-door

3 # 154211801 Gasket-tub

4 154041001 Screw,plask #1 ,10-10 x 9/16

5 154213401 Roller-tub

6 5303943103 Screw w/washer,(8)

22 154239801 Tubing-water inlet

23 5303318539 Clamp-tubing,(2)

24 # 154225602 Hose-drain

25 # 154209701 Float

28 # 154225501 Switch-float

28A 154209801 Bracket-float switch

28A* 154200701 Screw-#10-32 x 3/8

29 # 154290204 Thermostat,re-settable

30 154241101 Retainer-thermostat

30* 154297701 Screw,retainer-thermo

* 154238306 Insulation,1/2" ,tub

* 154329201 Insulation,tub back

TUB

12/00 8

Publication No. FDB634CFS1

5995347027

MOTOR & PUMP

# = Fast Moving Part 9 12/00

* = Non-Illustrated Part

FDB634CFS1 Publication No.

5995347027

POS. NO PART NO DESCRIPTION

1 # 154247601 Heater

1* 154289801 Shield-heater terminal

1* 154106201 Nut-heater,(2)

2 154322501 Bracket-heater,(2)

7 154245901 Macerator

10 154245501 Cover-volute

12 154245801 Impeller

12* 154282701 Screw,ss impeller

13 154246801 Gasket-sump

14 154335403 Housing-sump

15 154246701 Check valve

16 154246502 Retainer,sump

24 154250901 Spray arm-lower,w/cover

24A 154313601 Spray arm-center

24A* 154252001 Nut-spray arm

32 154251701 Tube-delivery

32A 154251601 Gasket-delivery tube

34 154064901 Washer-insulating

40 154106801 Clamp-hose,(2)

40* 154247301 Clamp,drain pump

54 154234401 Hose-connector

55 154325701 Bracket-motor

55* 5303316032 Screw,truss ss ,8 .625

55A 154246201 Bracket-motor,front

57 154246001 Barrel,front

57* 154246101 Barrel,rear

58 154246402 Check ball

59 154246901 O-ring,rear

59A 154247001 O-ring,front

60 154247502 Drain Pump Assy

60* 154234501 Bracket-motor,drain

61 154250201 Nozzle,3rd level ,spray arm

62 154294101 Support-spray arm

63 154252201 Base-soil director

64 154252301 Filter-soil director

65 154252401 Filter-polypro

66 154252701 Trap-glass

67 154246601 Hose-drain,shunt

70 # 154291504 Motor & Pump Assy,includes#7,#12 ,

#55A,#57,#59,,#59A

70* 154287201 Screw,motor mounting

* 154329001 Cover-fan

* 154200601 Screw-#10-16 x 3/8

* 154247101 Clamp,drain side

* 154247201 Clamp,intake

* 154247401 Clamp,connector pump

MOTOR & PUMP

12/00 10

Publication No. FDB634CFS1

5995347027

FRAME
