Frigidaire FDB954SD Manuale di istruzioni

P30L0032.EPS P30C0137.eps P30B0032.eps P30U0018.eps P30M0033.eps

P30F0022.eps P30R0066.eps

Product No. FDB954SDB0 FDB954SDC0 FDB954SDQ0 FDB954SDS0

Series Built-in 24" Built-in 24" Built-in 24" Built-in 24"

Color black stainless bisque white

Owner's Guide 154448401 154448401 154448401 154448401

Service Data Sheet 154459001 154459001 154459001 154459001

Energy Guide 154485214 154485214 154485214 154485214

Installation Instructions 154427301 154427301 154427301 154427301

Market North America North America North America North America

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995414181

04/08/03

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB954SD

Publication No: 5995414181 FDB954SD

08/04 2

CONTROL PANEL

FDB954SD Publication No: 5995414181

# Functional Parts 3 08/04

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDB954SD (FDB954SDB0)

BFDB954SD (FDB954SDC0)

CFDB954SD (FDB954SDQ0)

DFDB954SD (FDB954SDS0)

POS. NO PART NO. DESCRIPTION

1 154370303 A B - - Panel, control, black

1 154370304 - - C - Panel, control, bisque

1 154370301 - - - D Panel, control, white

2 154445003 A B - - Insert, control panel, black

2 154445004 - - C - Insert, control panel, bisque

2 154445001 - - - D Insert, control panel, white

3 # 154445801 A B C D Control, electronic

3* 154200401 A B C D Screw, 6-10 x 3/8, pan plask

4 154287901 A B C D Cover, control

18 154422303 A B - - Nameplate, black

18 154422304 - - C - Nameplate, bisque

18 154422301 - - - D Nameplate, white

20 154433001 A B C D Vent assy, static dry

20* 154436201 A B C D Screw, dry duct, (3)

34 # 154442101 A B C D Keypad, 9pad

* # 154460001 A B C D Wiring Harness, main

* 154227501 A B C D Thermistor

* 154485214 A B C D Energy Guide

Publication No: 5995414181 FDB954SD

08/04 4

DOOR

FDB954SD Publication No: 5995414181

# Functional Parts 5 08/04

* Non-Illustrated Parts

DOOR

Model Index: AFDB954SD (FDB954SDB0)

BFDB954SD (FDB954SDC0)

CFDB954SD (FDB954SDQ0)

DFDB954SD (FDB954SDS0)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C D Spring, door, (2)

1A 154325201 A B C D Linkage, door spring, (2)

2 154093301 A B C D Screw, arm assy, (4)

3 154325304 A B C D Arm Assy, LH

3A 154325303 A B C D Arm Assy, RH

* 154400601 A B C D Pin, arm assy

5 154079601 A B C D Nut, arm assy, and handle mtg.

7 154299004 A B C D Door, inner assy

9 154230103 A B C D Dispenser, det/rinse aid, includes #22

9* 154294701 A B C D Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C D Screw, latch mtg, (2)

12 # 154475203 A B - - Latch assy, black

12 # 154475204 - - C - Latch assy, bisque

12 # 154475201 - - - D Latch assy, white

20 154359007 A - - - Door, black

20 154481103 - B - - Door, stainless

20 154359008 - - C - Door, bisque

20 154359006 - - - D Door, white

20* 5304428306 A B C D Screw, door mtg., (2)

22 154388801 A B C D Cap, Rinse aid

49 154297603 A B C D Gasket, door, bottom

50 154211401 A B C D Support, door hinge

51 154320301 A B C D Clamp, drip loop, wire

* 154200601 A B C D Screw, #10-16 x 3/8

* 316279700 - B - - Cleaner, stainless steel

Publication No: 5995414181 FDB954SD

08/04 6

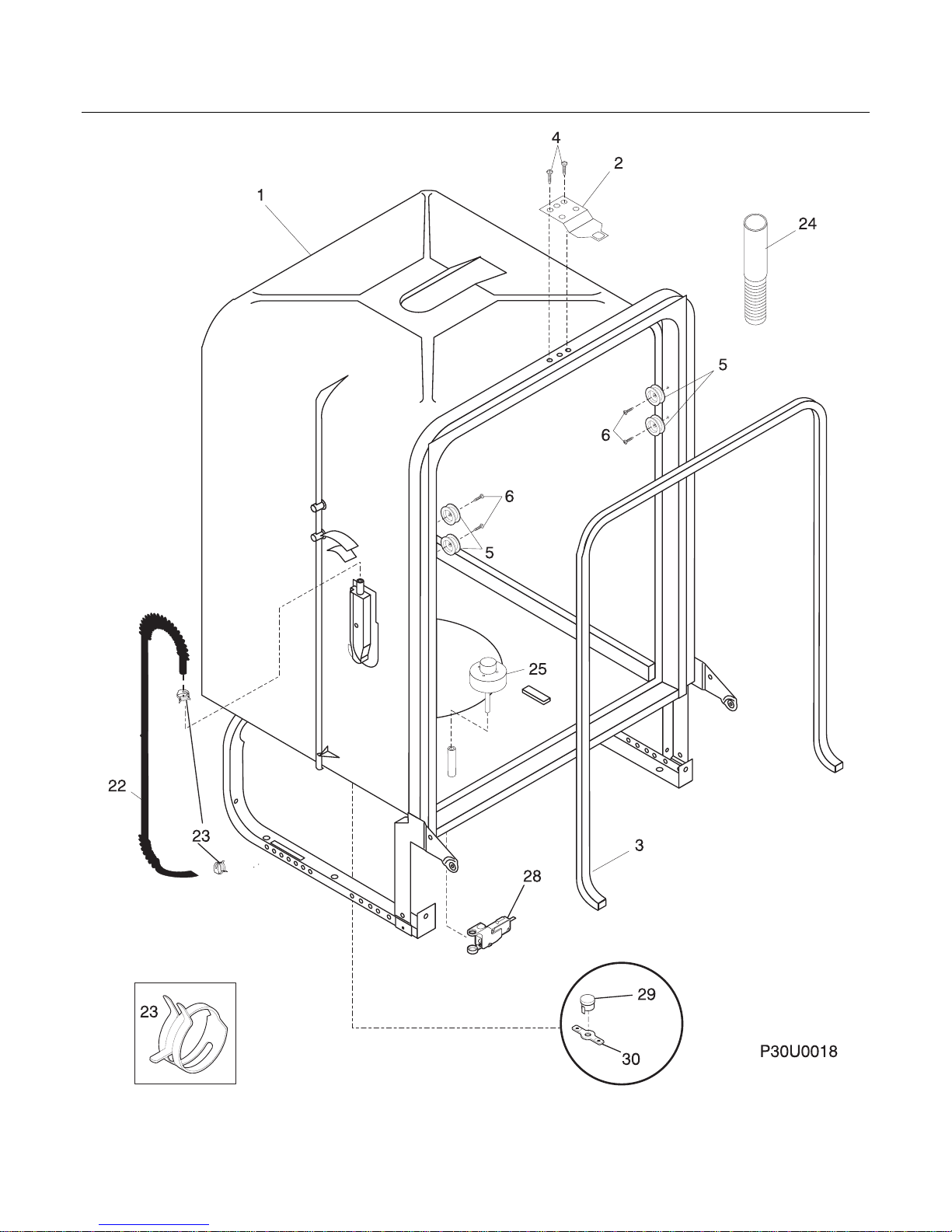

TUB

FDB954SD Publication No: 5995414181

# Functional Parts 7 08/04

* Non-Illustrated Parts

TUB

Model Index: AFDB954SD (FDB954SDB0)

BFDB954SD (FDB954SDC0)

CFDB954SD (FDB954SDQ0)

DFDB954SD (FDB954SDS0)

POS. NO PART NO. DESCRIPTION

1 # 154209301 A B C D Tub assy, w/frame parts

2 154429101 A B C D Strike, door

3 # 154211801 A B C D Gasket, tub

4 154200602 A B C D Screw, 10-16 x 3/8, hex

5 154333902 A B C D Roller, tub

6 5303943103 A B C D Screw, w/washer, (8)

22 154239801 A B C D Tubing, water inlet

23 5303318539 A B C D Clamp, tubing, (2)

24 # 154411003 A B C D Hose, drain

25 # 154209701 A B C D Float

28 154408701 A B C D Switchassy, float

29 # 154290204 A B C D Thermostat, re-settable

30 154241101 A B C D Retainer, thermostat

30* 154297701 A B C D Screw, retainer-thermo

* 154447102 A B C D Insulation,blanket

* 154041001 A B C D Screw, plask #1, 10-10 x 9/16

* 5300807270 A B C D Screw, (2), countertop mtg.

Publication No: 5995414181 FDB954SD

08/04 8

MOTOR & PUMP

FDB954SD Publication No: 5995414181

# Functional Parts 9 08/04

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDB954SD (FDB954SDB0)

BFDB954SD (FDB954SDC0)

CFDB954SD (FDB954SDQ0)

DFDB954SD (FDB954SDS0)

POS. NO PART NO. DESCRIPTION

1 # 154247601 A B C D Heater

1* 154106201 A B C D Nut, heater, (2)

1* 154289801 A B C D Shield, heater terminal

2 154479601 A B C D Bracket, heater, (2)

10 154245501 A B C D Cover, volute

13 154246801 A B C D Gasket, sump

14 154365902 A B C D Housing, sump

16 154246502 A B C D Retainer, sump

24 154414101 A B C D Spray arm, lower, w/heat shield

24A 154313601 A B C D Spray arm, center

24A* 154252001 A B C D Nut, spray arm, center

32 154406601 A B C D Tube, delivery

32A 154406401 A B C D Gasket, delivery tube

40 154348401 A B C D Clamp, red, pump

40 154348502 A B C D Clamp, red, pump

40* 154106801 A B C D Clamp, hose, (2)

40* 154380601 A B C D Clamp, hose, (1)

54 154234401 A B C D Hose, connector

55 154362301 A B C D Bracket, motor, askoll

55* 5303316032 A B C D Screw, truss ss, 8 .625

58 154246402 A B C D Check ball

59 154246901 A B C D O-ring, rear

59A 154247001 A B C D O-ring, front

60 154474101 A B C D Drain Pump Assy

60* 154426201 A B C D Bracket, motor, drain

61 154406501 A B C D Nozzle, 3rd level, spray arm

62 154294101 A B C D Support, spray arm, lower

63 154252201 A B C D Base, soil director

64 154252301 A B C D Filter, soil director

65 154252401 A B C D Filter, polypro

66 154252701 A B C D Trap, glass

70 # 154488001 A B C D Motor assembly, circulation, w/o o'rings

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995414181 FDB954SD

08/04 10

FRAME
