Frigidaire FDBB2040F Manuale utente

P30L0065.eps P30C0149.eps P30B0037.eps P30U0021.eps P30M0040.eps P30F0022.eps

P30R0098.eps

Product No. FDBB2040FB0 FDBB2040FC0 FDBB2040FQ0 FDBB2040FS0

Series Built-in 24" Built-in 24" Built-in 24" Built-in 24"

Color black stainless bisque white

Owner's Guide English 154577801 154577801 154577801 154577801

Owner's Guide Spanish 154577803 154577803 154577803 154577803

Owner's Guide French 154577802 154577802 154577802 154577802

Service Data Sheet 154526501 154526501 154526501 154526501

Energy Guide 154540024 154540024 154540024 154540024

Installation Instructions 154427301 154427301 154427301 154427301

Market North America North America North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995463386

06/03/16

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDBB2040F

Publication No: 5995463386 FDBB2040F

03/06 2

CONTROL PANEL

FDBB2040F Publication No: 5995463386

# Functional Parts 3 03/06

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDBB2040F (FDBB2040FB0)

BFDBB2040F (FDBB2040FC0)

CFDBB2040F (FDBB2040FQ0)

DFDBB2040F (FDBB2040FS0)

POS. NO PART NO. DESCRIPTION

1 154486003 A B - - Panel, control, black

1 154486004 - - C - Panel, control, bisque

1 154486001 - - - D Panel, control, white

2 154577303 A B - - Insert, control panel, 9 pad, black

2 154577304 - - C - Insert, control panel, 9 pad, bisque

2 154577301 - - - D Insert, control panel, 9 pad, white

3 154555001 A B C D Board, control

3* 154200401 A B C D Screw, 6-10 x 3/8, pan plask

4 154554601 A B C D Cover, control

4* 154478901 A B C D Gasket, cover

8 # 154474701 A B C D Switch, selector, 9 pad

8* 5303318719 A B C D Screw, mtg.

8A 154486201 A B C D Shield, tactile switch

20 154423601 A B C D Vent assy, active dry, w/actuator

20* 154436201 A B C D Screw, dry duct, (3)

27 154433501 A B C D Actuator, active dry vent

28 154474401 A B C D Adapter, vent

* # 154547001 A B C D Wiring Harness

* 154227501 A B C D Thermistor

* 154540024 A B C D Energy guide label

Publication No: 5995463386 FDBB2040F

03/06 4

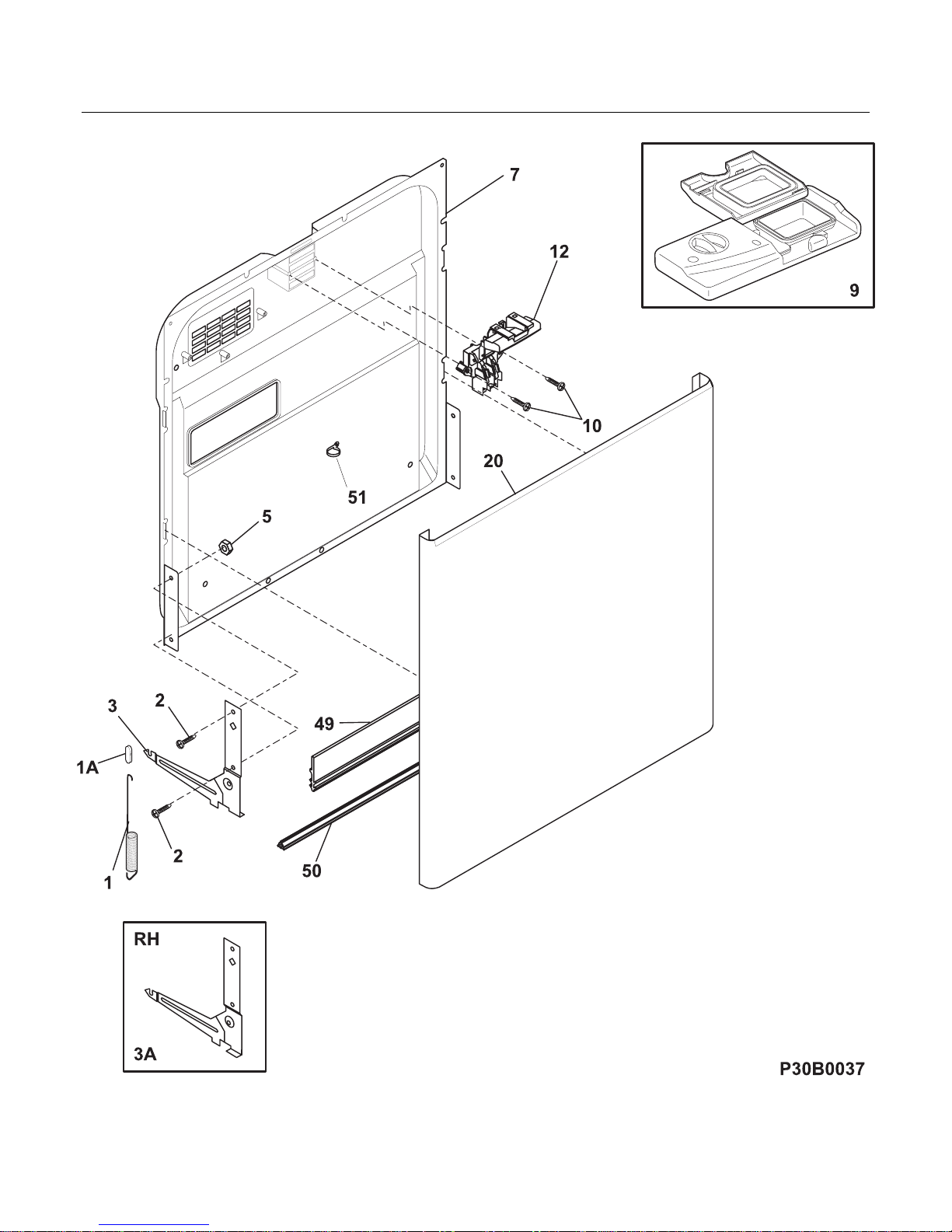

DOOR

FDBB2040F Publication No: 5995463386

# Functional Parts 5 03/06

* Non-Illustrated Parts

DOOR

Model Index: AFDBB2040F (FDBB2040FB0)

BFDBB2040F (FDBB2040FC0)

CFDBB2040F (FDBB2040FQ0)

DFDBB2040F (FDBB2040FS0)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C D Spring, door, (2)

1A 154325201 A B C D Linkage, door spring, (2)

2 154093301 A B C D Screw, arm assy, (4)

3 154558103 A B C D Arm Assy, LH

3A 154558503 A B C D Arm Assy, RH

* 154529101 A B C D Pin, arm assy

5 154079601 A B C D Nut, arm assy, and handle mtg.

7 154494601 A B C D Liner, door assy.

9 154542103 A B C D Dispenser, det/rinse aid, w/o reed

9* 154294701 A B C D Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C D Screw, latch mtg, (2)

12 154529403 A B - - Latch assy, black

12 # 154529404 - - C - Latchassy,bisque

12 154529401 - - - D Latch assy, white

20 154524903 A - - - Door Assy, black, outer

20 154533401 - B - - Door, stainless

20 154436804 - - C - Door Assy, bisque, outer

20 154524901 - - - D Door Assy, white, outer

20* 154253201 A B C D Insulation, door

20* 5304428306 A B C D Screw, door mtg., (2)

49 154297603 A B C D Gasket, door, bottom

50 154211401 A B C D Support, door hinge

51 154320301 A B C D Clamp, drip loop, wire

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995463386 FDBB2040F

03/06 6

TUB

FDBB2040F Publication No: 5995463386

# Functional Parts 7 03/06

* Non-Illustrated Parts

TUB

Model Index: AFDBB2040F (FDBB2040FB0)

BFDBB2040F (FDBB2040FC0)

CFDBB2040F (FDBB2040FQ0)

DFDBB2040F (FDBB2040FS0)

POS. NO PART NO. DESCRIPTION

1 # 154534701 A B C D Tub assy, w/frame parts

2 154429101 A B C D Strike, door

3 # 154561001 A B C D Gasket, tub

4 154200602 A B C D Screw, 10-16 x 3/8, hex

5 154333902 A B C D Roller, tub

6 5303943103 A B C D Screw, w/washer, (8)

22 154446002 A B C D Tubing, water inlet

23 5303318539 A B C D Clamp, tubing, (2)

24 # 154525301 A B C D Hose, drain

25 # 154209701 A B C D Float

28 154408701 A B C D Switch Assy, float

29 # 154290204 A B C D Thermostat, re-settable

30 154241101 A B C D Retainer, thermostat

30* 154297701 A B C D Screw, retainer-thermo

* 154447102 A B C D Insulation,blanket

* 154041001 A B C D Screw, plask #1, 10-10 x 9/16

* 5300807270 A B C D Screw, (2), countertop mtg.

Publication No: 5995463386 FDBB2040F

03/06 8

MOTOR & PUMP

FDBB2040F Publication No: 5995463386

# Functional Parts 9 03/06

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDBB2040F (FDBB2040FB0)

BFDBB2040F (FDBB2040FC0)

CFDBB2040F (FDBB2040FQ0)

DFDBB2040F (FDBB2040FS0)

POS. NO PART NO. DESCRIPTION

1 # 154482901 A B C D Heater, round

1* 154106201 A B C D Nut, heater, (2)

1* 154289801 A B C D Shield, heater terminal

2 154465101 A B C D Bracket, heater, (2)

10 154245501 A B C D Cover, volute

13 154246801 A B C D Gasket, sump

14 154461901 A B C D Housing, sump

16 154246502 A B C D Retainer, sump

24 154414102 A B C D Spray arm, lower, w/heat shield

24A 154468502 A B C D Spray arm, grey, center

24B 154478201 A B C D Spray arm, 3rd level

32 154464101 A B C D Tube, delivery

32* 154491101 A B C D Screw, delivery tube

32A 154406401 A B C D Gasket, delivery tube

40 154348401 A B C D Clamp, red, pump

40 154348502 A B C D Clamp, red, pump

40* 154106801 A B C D Clamp, hose, worm/drain

40* 154380601 A B C D Clamp, hose, worm/gear

54 154234401 A B C D Hose, connector

55 154362301 A B C D Bracket, motor

55* 5303316032 A B C D Screw, truss ss, 8 .625

58 154246402 A B C D Check ball

59 154246901 A B C D O-ring, rear

59A 154247001 A B C D O-ring, front

60 154491301 A B C D Pump, drain

60* 5303318719 A B C D Screw, mtg.

61 154463402 A B C D Grommet, delivery tube

62 154294101 A B C D Support, spray arm, lower

63 154252201 A B C D Base, soil director

64 154252301 A B C D Filter, soil director, white

65 154252401 A B C D Filter, polypro

66 154252701 A B C D Trap, glass

70 # 154520501 A B C D Motor Assembly, circulation, w/o o'rings

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995463386 FDBB2040F

03/06 10

FRAME
