Product No. FDBB240FB0 FDBB240FS0

Series Built-in 24" Built-in 24"

Color black white

Owner's Guide English 154575101 154575101

Owner's Guide Spanish 154575203 154575203

Owner's Guide French 154575202 154575202

Service Data Sheet 154585401 154585401

Energy Guide 154540032 154540032

Installation Instructions 154427301 154427301

Market North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995466017

06/05/08

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDBB240F

Publication No: 5995466017 FDBB240F

05/06 2

CONTROL PANEL

FDBB240F Publication No: 5995466017

# Functional Parts 3 05/06

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDBB240F (FDBB240FS0)

BFDBB240F (FDBB240FB0)

POS. NO PART NO. DESCRIPTION

1 154454201 A - Panel, control, white

1 154454203 - B Panel, control, black

2 154583001 A - Insert, control panel, 4 pad, white

2 154583003 - B Insert, control panel, 4 pad, black

3 # 154495901 A B Timer

3* 154131204 A B Shield, timer

3* 154095701 A B Screw, thread rolling, (2), timer

8 # 154466001 A B Switch, selector, 4 button

8* 154248601 A B Shield, switch

8* 5303318719 A B Screw, mtg.

13 154426901 A - Knob, timer, white

13 154426903 - B Knob, timer, black

20 154433001 A B Vent assy, static dry

20* 154436201 A B Screw, dry duct, (3)

* # 154491801 A B Wiring Harness

* 154540032 A B Energy guide label

Publication No: 5995466017 FDBB240F

05/06 4

DOOR

FDBB240F Publication No: 5995466017

# Functional Parts 5 05/06

* Non-Illustrated Parts

DOOR

Model Index: AFDBB240F (FDBB240FS0)

BFDBB240F (FDBB240FB0)

POS. NO PART NO. DESCRIPTION

1 154430501 A B Spring, door, (2)

1A 154325201 A B Linkage, door spring, (2)

2 154093301 A B Screw, arm assy, (4)

3 154558102 A B Arm Assy, LH

3A 154558502 A B Arm Assy, RH

* 154529101 A B Pin, arm assy

5 154079601 A B Nut, arm assy, and handle mtg.

7 154299004 A B Door, inner assy

9 154230103 A B Dispenser, det/rinse aid, includes #22

9* 154294701 A B Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B Screw, latch mtg, (2)

12 # 154537301 A - Latch assy, white

12 # 154537303 - B Latch assy, black

20 154359105 A - Door, white

20 154359107 - B Door, black

20* 5304428306 A B Screw, door mtg., (2)

22 154388801 A B Cap, Rinse aid

49 154297603 A B Gasket, door, bottom

50 154211401 A B Support, door hinge

51 154320301 A B Clamp, drip loop, wire

* # 154227806 A B Thermostat, temp boost, hi temp rinse

Publication No: 5995466017 FDBB240F

05/06 6

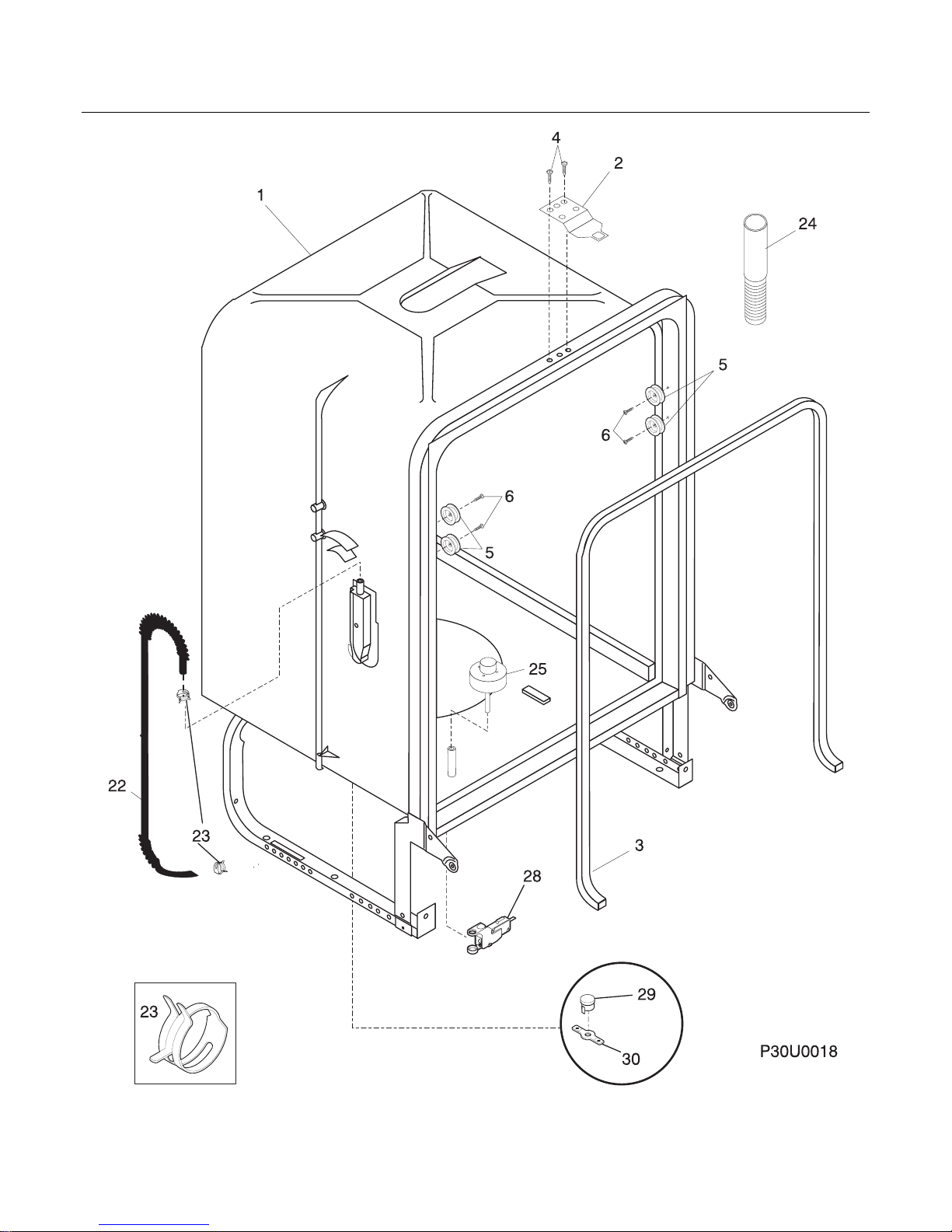

TUB

FDBB240F Publication No: 5995466017

# Functional Parts 7 05/06

* Non-Illustrated Parts

TUB

Model Index: AFDBB240F (FDBB240FS0)

BFDBB240F (FDBB240FB0)

POS. NO PART NO. DESCRIPTION

1 # 154357301 A B Tub assy, w/frame parts

2 154429101 A B Strike, door

3 # 154561001 A B Gasket, tub

4 154200602 A B Screw, 10-16 x 3/8, hex

5 154333902 A B Roller, tub

6 5303943103 A B Screw, w/washer, (8)

22 154446001 A B Tubing, water inlet

23 5303318539 A B Clamp, tubing, (2)

24 # 154525301 A B Hose, drain

25 # 154209701 A B Float

28 154408701 A B Switch Assy, float

29 # 154290204 A B Thermostat, re-settable

30 154241101 A B Retainer, thermostat

30* 154297701 A B Screw, retainer-thermo

* 154041001 A B Screw, plask #1, 10-10 x 9/16

* 5300807270 A B Screw, (2), countertop mtg.

* 154200601 A B Screw, #10-16 x 3/8

Publication No: 5995466017 FDBB240F

05/06 8

MOTOR & PUMP

FDBB240F Publication No: 5995466017

# Functional Parts 9 05/06

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDBB240F (FDBB240FS0)

BFDBB240F (FDBB240FB0)

POS. NO PART NO. DESCRIPTION

1 154247601 A B Heater

1* 154106201 A B Nut, heater, (2)

1* 154289801 A B Shield, heater terminal

2 154479601 A B Bracket, heater, (2)

10 154335301 A B Cover, volute

13 154246801 A B Gasket, sump

14 154365903 A B Housing, sump

16 154246502 A B Retainer, sump

24 154550002 A B Spray arm, lower, w/heat shield

24A 154335201 A B Nut, spray arm

40 154348401 A B Clamp, red, pump

40 154348502 A B Clamp, red, pump

40* 154380601 A B Clamp, hose, worm/gear

54 154234401 A B Hose, connector

55 154362301 A B Bracket, motor

55* 5303316032 A B Screw, truss ss, 8 .625

59 154246901 A B O-ring, rear

59A 154247001 A B O-ring, front

60 154474101 A B Drain Pump Assy

60* 154426201 A B Bracket, motor, drain

63 154252201 A B Base, soil director

64 154332602 A B Filter, soil director

65 154252401 A B Filter, polypro

70 # 154474001 A B Motor Assembly, circulation, w/o o'rings

* 154200601 A B Screw, #10-16 x 3/8

Publication No: 5995466017 FDBB240F

05/06 10

FRAME
