Frigidaire FDS251RJ Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR

FDS251RJR0 FDR251RJ 18" Portable black

MARKET

North America

Publication No.

5995344628

001011

-EN/SERVICE /ECL

821

18" PORTABLE

DISHWASHER

Model No.

FDS251RJ

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154384501

OWNER’S GUIDE # - 154381201

WIRING DIAGRAM # - 154384501

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

12/00 2

Publication No. FDS251RJR0

5995344628

CONTROL PANEL

# = Fast Moving Part 3 12/00

* = Non-Illustrated Part

FDS251RJR0 Publication No.

5995344628

CONTROL PANEL

POS. NO PART NO DESCRIPTION

1 154357601 Panel-control,black

2 154381103 Insert-control pnl,black

3 # 154376202 Timer

8 # 154220401 Switch-selector,5 button

8* 154242201 Shield-switch

8* 5303318719 Screw,mtg.

11 5300809036 Lens-light

12 154236501 Pushbutton,black

13 154239503 Knob-timer,black

* 5300809144 Shield-wire

* # 154377601 Harness-wiring

12/00 4

Publication No. FDS251RJR0

5995344628

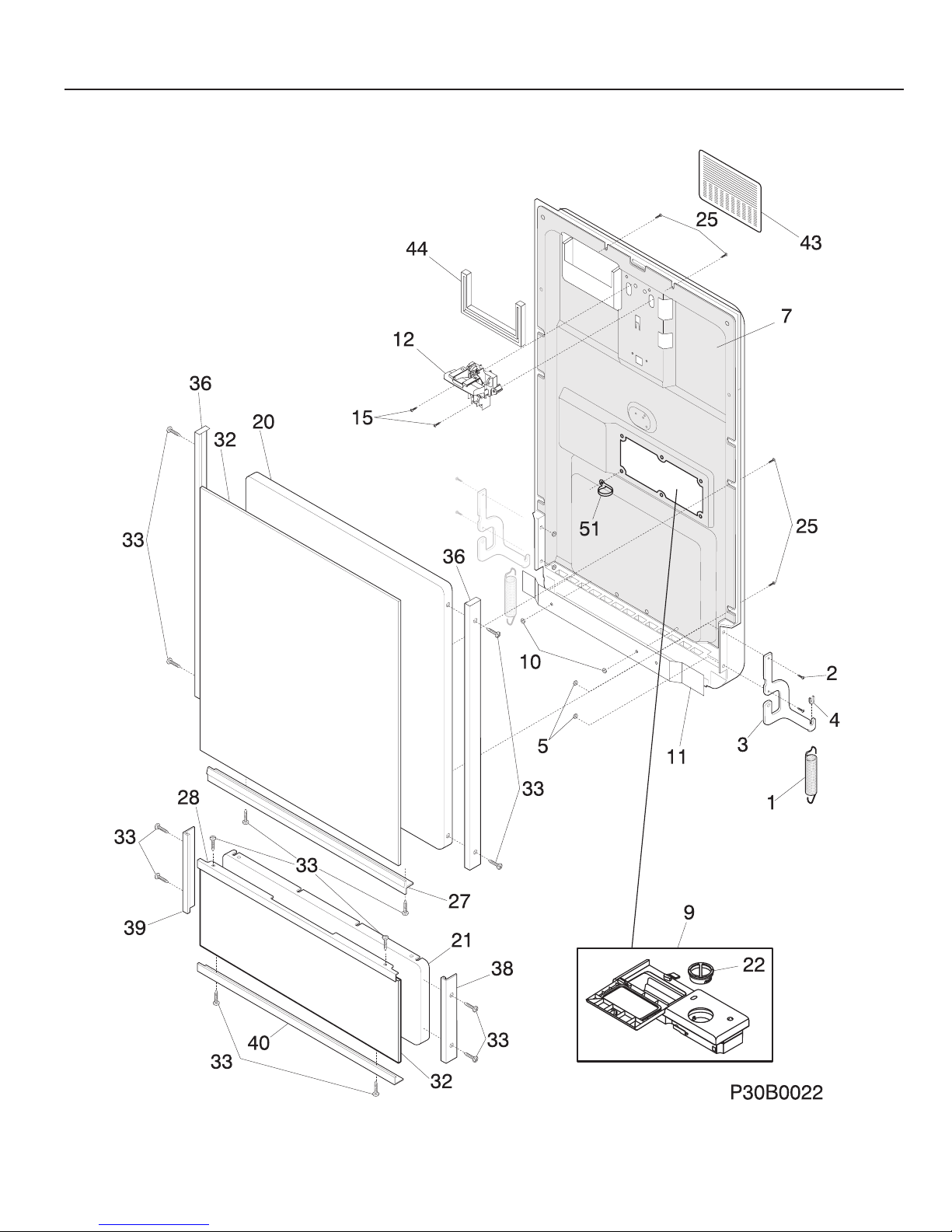

DOOR

# = Fast Moving Part 5 12/00

* = Non-Illustrated Part

FDS251RJR0 Publication No.

5995344628

POS. NO PART NO DESCRIPTION

1 154237401 Spring-door,(2)

2 154093301 Screw-arm assy,(4)

3 5303270031 Arm Assy,RH & LH

3* 154221401 Cover-arm

3* 5303298513 Pin-arm

4 5300805884 Pad-spring

5 154079601 Nut-arm assy,(4)

7 154352201 Door-inner assy

9 154230101 Dispenser-det/rinse aid,includes #22

9* 154294701 Screw,#7 plas .375 ,(6) ,disp. assy.

10 154026601 Speednut-baffle

11 # 154221101 Baffle seal

12 # 154361203 Latch assy,black

15 154103702 Screw-latch mtg,(2)

20 5303308615 Panel-door,galv

21 5303318023 Panel-access,galv

22 154388801 Cap-rinse aid

25 5300809055 Screw,cr truss s.s. ,8 .438

27 5303303652 Trim-door,chrome ,bottom

28 5300808471 Trim-access top,chrome

32 5300808756 Insert-door/access,alm/blk

32 5303318022 Insert-door,wht/clr

32 5303318024 Insert-access,wht/clr

33 5303318540 Screw-door trim,phillips ,8-18

36 5303943080 Trim-door,chrome ,RH & LH

38 5303272124 Trim-access panel,chrome ,RH

39 5303272125 Trim-access panel,chrome ,LH

40 154043802 Trim-access,chrome ,bottom

43 154229301 Cover-vent

43* 154229401 Screw-vent cover,(2)

44 154221001 Gasket,vent cover

51 154320301 Clamp-wire,drip loop

* 154227808 Thermostat-temp boost

DOOR

12/00 6

Publication No. FDS251RJR0

5995344628

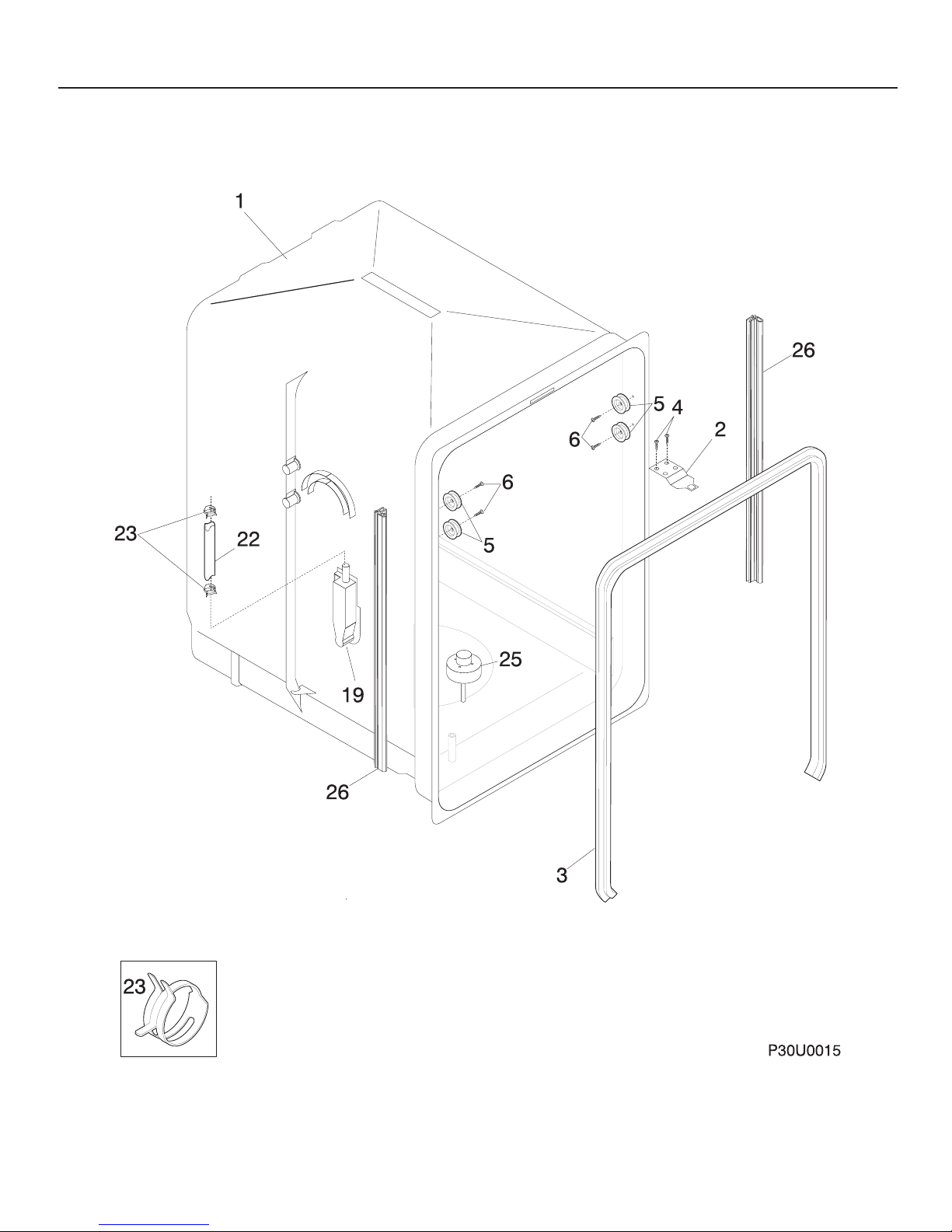

TUB

# = Fast Moving Part 7 12/00

* = Non-Illustrated Part

FDS251RJR0 Publication No.

5995344628

POS. NO PART NO DESCRIPTION

1 # 154218701 Tub assy w/gasket

2 154211601 Strike-door

3 # 154219501 Gasket-tub

4 154200602 Screw,10-16 x 3/8 ,hex

5 154333901 Roller-tub

6 5303943103 Screw w/washer,(8)

19 5300809902 Inlet-water

22 154239801 Tubing-water inlet

23 5303318539 Clamp-tubing,(2)

25 # 154209701 Float

26 154242302 Trim-tub flange,RH

26 154242303 Trim-tub flange,LH

* 154238301 Insulation,tub

TUB

12/00 8

Publication No. FDS251RJR0

5995344628

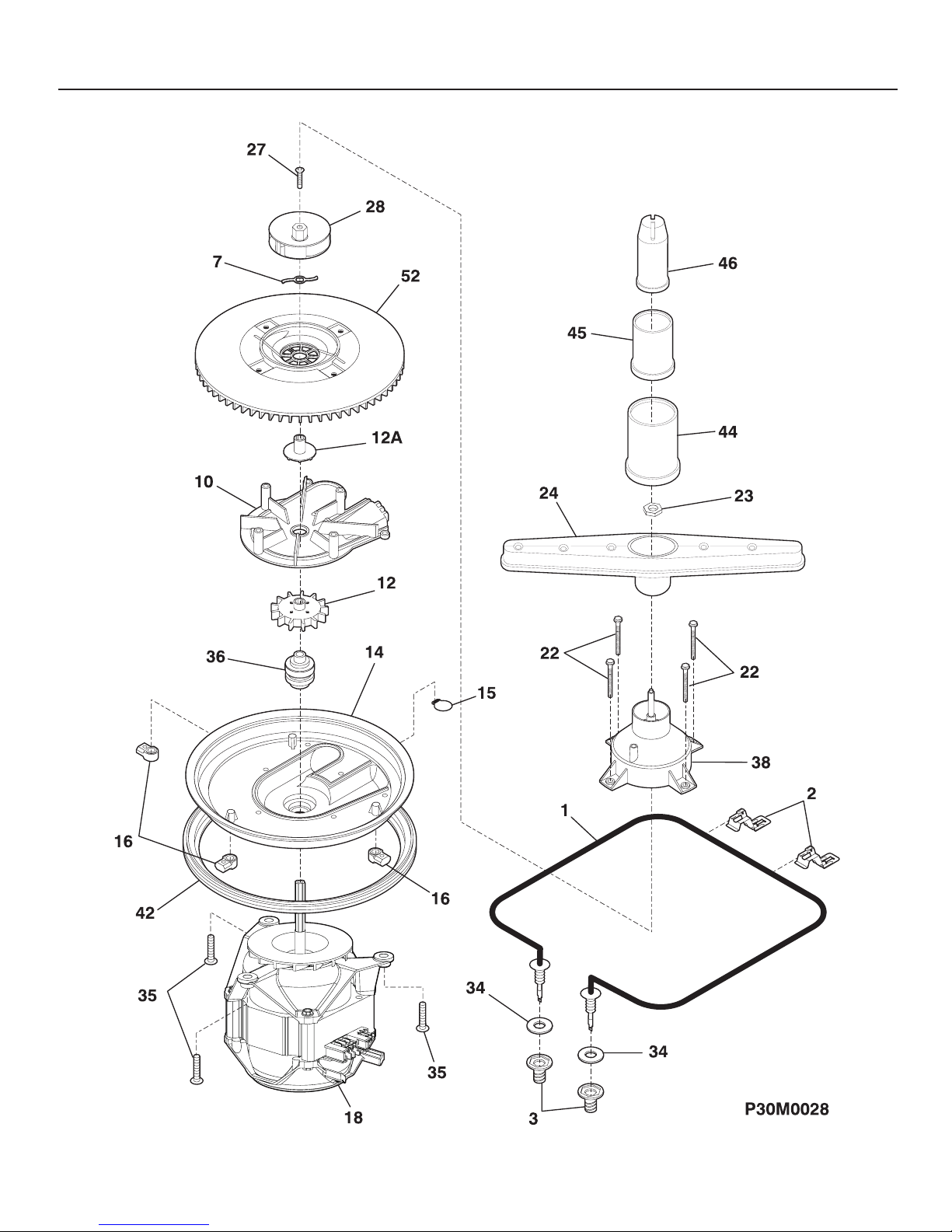

MOTOR & PUMP

# = Fast Moving Part 9 12/00

* = Non-Illustrated Part

FDS251RJR0 Publication No.

5995344628

POS. NO PART NO DESCRIPTION

1 # 154220901 Heater

1* 154289801 Shield-heater terminal

2 154359701 Bracket-heater,(2)

3 154106201 Nut-heater,(2)

7 154365101 Macerator

10 154365301 Cover-volute

12 154365401 Impeller-lower

12A 154365501 Slinger-pump

14 154364801 Housing-pump

15 # 154367701 Check valve

16 154246502 Retainer,sump

18 # 154384301 Motor

22 154200201 Screw-pump housing

23 154234301 Nut-spray arm

24 154219201 Spray arm-lower

27 154377501 Screw-upper impeller

28 154370601 Impeller-upper

34 154064901 Washer-insulating

35 154200901 Screw-motor mtg

36 154381001 Sleeve & seal assy.

38 154367402 Diffuser

42 154365601 Gasket-pump

44 154122502 Base-tower

45 154122601 Middle-tower

46 154122701 Tip-tower

52 154365201 Cover,pump housing

* 154200601 Screw-#10-16 x 3/8

* 154106801 Clamp-hose,(2)

MOTOR & PUMP

12/00 10

Publication No. FDS251RJR0

5995344628

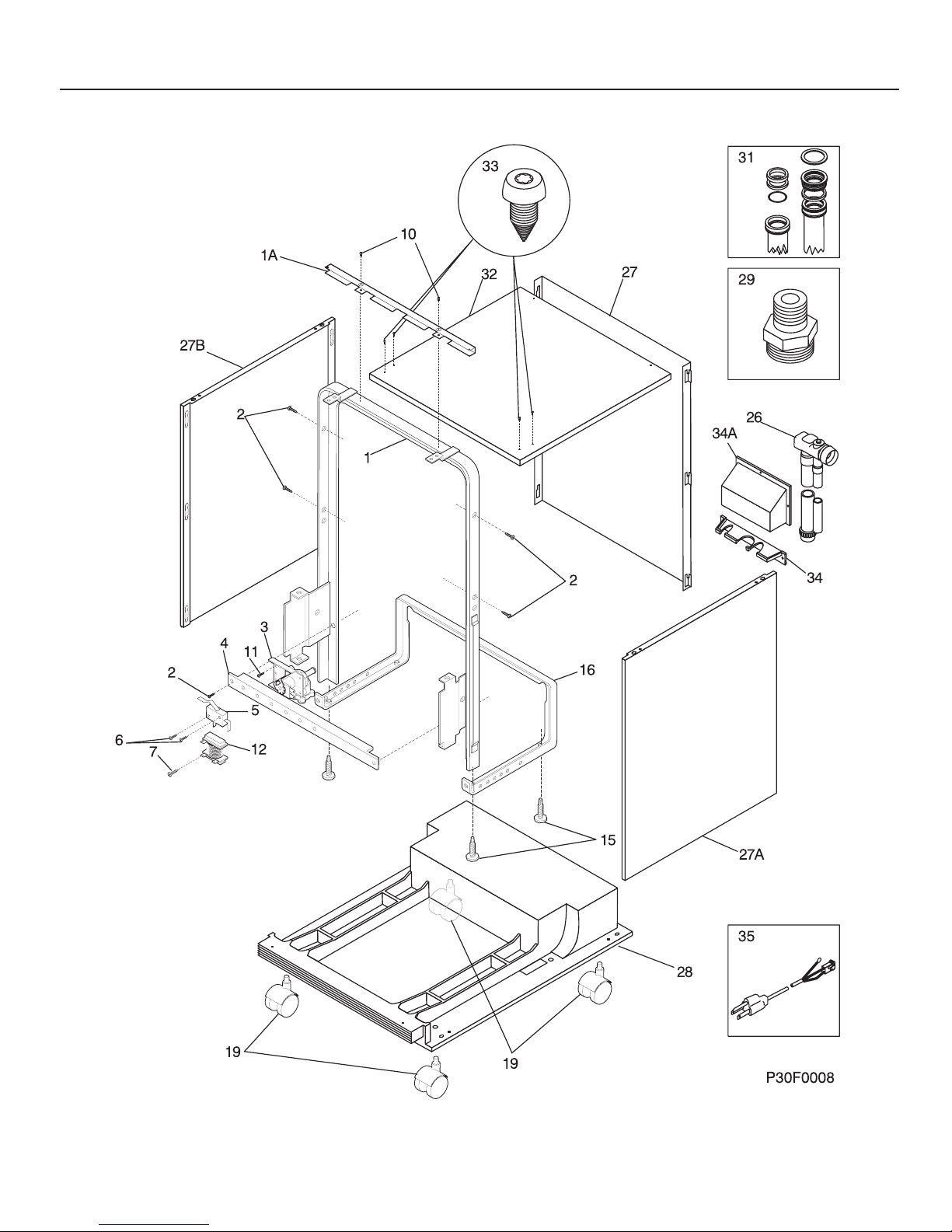

FRAME
