Frigidaire GLD2150RC Manuale utente
PRODUCT NO. BASE MODEL NO. SERIES COLOR
GLD2150RCB0 GLD2150RC 24" Built-in black
GLD2150RCC0 GLD2150RC 24" Built-in stainless
GLD2150RCQ0 GLD2150RC 24" Built-in bisque
GLD2150RCS0 GLD2150RC 24" Built-in white
MARKET
North America
Publication No.
5995393260
030728
-EN/SERVICE /ECL
821
24" Built-In
DISHWASHER
Model No.
GLD2150RC
©2003 Electrolux Home Products, Inc.
All rights reserved
FACTORY PARTS CATALOG
DISHWASHER
SERVICE DATA SHEET # - 154476001
OWNER’S GUIDE # - 154475601
INSTALLATION INSTRUCTIONS # - 154427301
ENERGY GUIDE LABEL # - 154399013
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
07/03 2
Publication No. GLD2150RC
5995393260
CONTROL PANEL
# = Fast Moving Part 3 07/03
* = Non-Illustrated Part
GLD2150RC Publication No.
5995393260
CONTROL PANEL
A = GLD2150RC (GLD2150RCS0)
B = GLD2150RC (GLD2150RCQ0)
C = GLD2150RC (GLD2150RCB0)
D = GLD2150RC (GLD2150RCC0)
POS. NO PART NO DESCRIPTION
1 154454401 A - - - Panel,control ,white
1 154454404 - B - - Panel,control ,bisque
1 154454403 - - C D Panel,control ,black
2 154459101 A - - - Insert,control panel ,white
2 154459104 - B - - Insert,control panel ,bisque
2 154459103 - - C D Insert,control panel ,black
3 # 154470602 A B C D Control
3* 154200401 A B C D Screw,6-10 x 3/8 ,pan plask
4 154460601 A B C D Cover,control
4* 154478901 A B C D Gasket,cover
8 # 154474701 A B C D Switch,selector ,9 pad
8* 5303318719 A B C D Screw,mtg.
8A 154477601 A B C D Cover,switch
20 154433001 A B C D Vent assy,static dry
20* 154436201 A B C D Screw,dry duct ,(3)
28 154474401 A B C D Adapter,vent
* # 154476401 A B C D Wiring Harness
* 154399013 A B C D Label,energy guide
* 154227501 A B C D Thermistor
07/03 4
Publication No. GLD2150RC
5995393260
DOOR
# = Fast Moving Part 5 07/03
* = Non-Illustrated Part
GLD2150RC Publication No.
5995393260
A = GLD2150RC (GLD2150RCS0)
B = GLD2150RC (GLD2150RCQ0)
C = GLD2150RC (GLD2150RCB0)
D = GLD2150RC (GLD2150RCC0)
POS. NO PART NO DESCRIPTION
1 154430601 A B C D Spring,door ,(2)
1A 154325201 A B C D Linkage,door spring ,(2)
2 154093301 A B C D Screw,arm assy ,(4)
3 154325304 A B C D Arm Assy,LH
3A 154325303 A B C D Arm Assy,RH
* 154400601 A B C D Pin,arm assy
5 154079601 A B C D Nut,arm assy ,and handle mtg.
7 154299004 A B C D Door,inner assy
9 154230103 A B C D Dispenser,det/rinse aid ,includes #22
9* 154294701 A B C D Screw,#7 plas .375 ,(6) ,disp. assy.
10 154103702 A B C D Screw,latch mtg ,(2)
12 # 154475101 A - - - Latch assy,white
12 # 154475104 - B - - Latch assy,bisque
12 # 154475103 - - C D Latch assy,black
20 154359006 A - - - Door,white
20 154359008 - B - - Door,bisque
20 154359007 - - C - Door,black
20 154359012 ---D Door,stainless
20* 5304428306 A B C D Screw,door mtg. ,(2)
22 154388801 A B C D Cap,Rinse aid
49 154297603 A B C D Gasket,door ,bottom
50 154211401 A B C D Support,door hinge
51 154320301 A B C D Clamp,drip loop ,wire
* 154200601 A B C D Screw,#10-16 x 3/8
DOOR
07/03 6
Publication No. GLD2150RC
5995393260
TUB
# = Fast Moving Part 7 07/03
* = Non-Illustrated Part
GLD2150RC Publication No.
5995393260
A = GLD2150RC (GLD2150RCS0)
B = GLD2150RC (GLD2150RCQ0)
C = GLD2150RC (GLD2150RCB0)
D = GLD2150RC (GLD2150RCC0)
POS. NO PART NO DESCRIPTION
1 # 154209301 A B C D Tub assy,w/frame parts
2 154429101 A B C D Strike,door
3 # 154211801 A B C D Gasket,tub
4 154200602 A B C D Screw,10-16 x 3/8 ,hex
5 154333902 A B C D Roller,tub
6 5303943103 A B C D Screw,w/washer ,(8)
22 154239801 A B C D Tubing,water inlet
23 5303318539 A B C D Clamp,tubing ,(2)
24 # 154411003 A B C D Hose,drain
25 # 154209701 A B C D Float
28 154408701 A B C D Switch assy,float
29 # 154290204 A B C D Thermostat,re-settable
30 154241101 A B C D Retainer,thermostat
30* 154297701 A B C D Screw,retainer-thermo
* 154447102 A B C D Insulation,blanket
* 154041001 A B C D Screw,plask #1 ,10-10 x 9/16
* 5300807270 A B C D Screw,(2) ,countertop mtg.
TUB
07/03 8
Publication No. GLD2150RC
5995393260

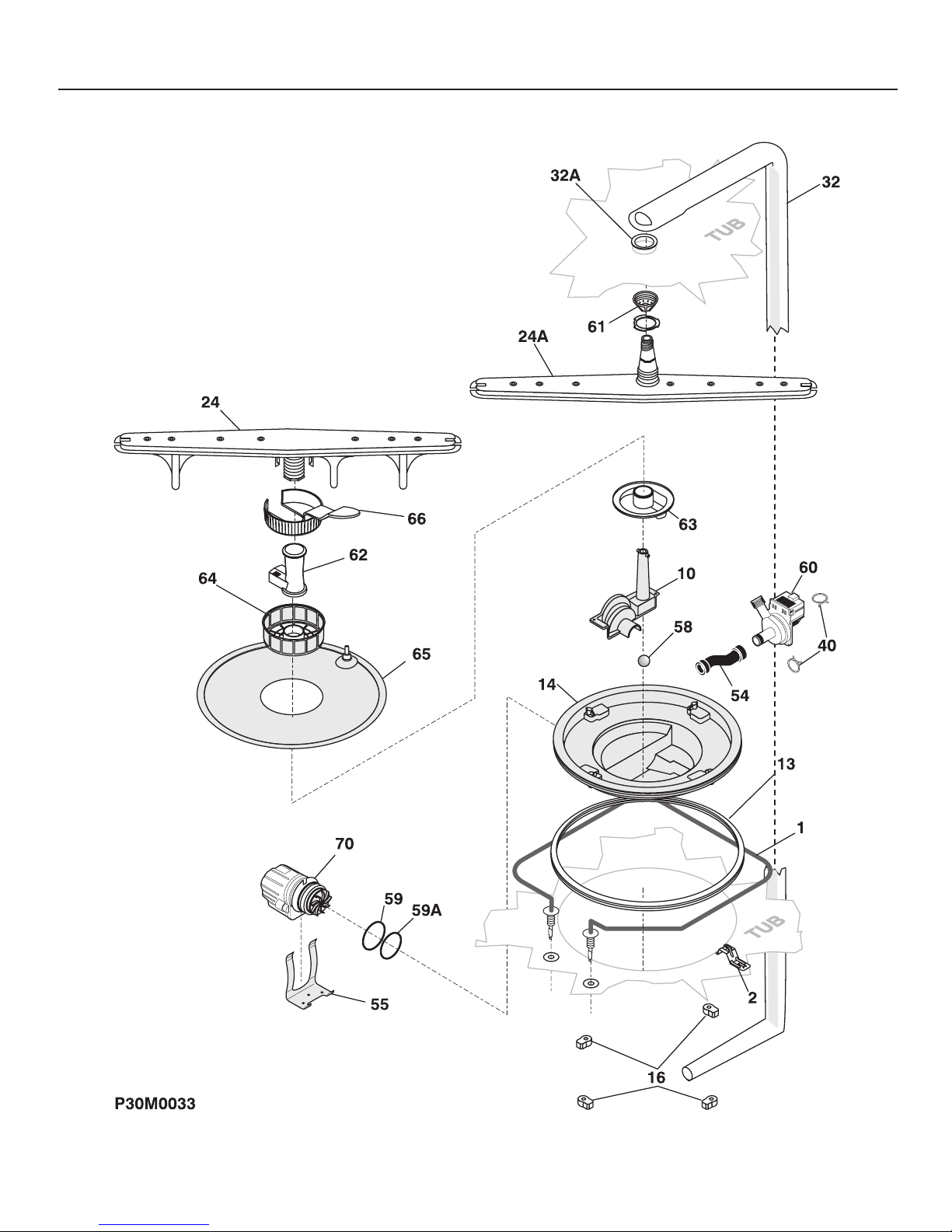

MOTOR & PUMP
# = Fast Moving Part 9 02/03
* = Non-Illustrated Part
GLD2150RC Publication No.
5995393260
A = GLD2150RC (GLD2150RCS0)
B = GLD2150RC (GLD2150RCQ0)
C = GLD2150RC (GLD2150RCB0)
D = GLD2150RC (GLD2150RCC0)
POS. NO PART NO DESCRIPTION
1 # 154247601 A B C D Heater
1* 154106201 A B C D Nut,heater ,(2)
1* 154289801 A B C D Shield,heater terminal
2 154359701 A B C D Bracket,heater ,(2)
10 154245501 A B C D Cover,volute
13 154246801 A B C D Gasket,sump
14 154365902 A B C D Housing,sump
16 154246502 A B C D Retainer,sump
24 154414101 A B C D Spray arm,lower ,w/heat shield
24A 154313601 A B C D Spray arm,center
24A* 154252001 A B C D Nut,spray arm ,center
32 154406601 A B C D Tube,delivery
32A 154406401 A B C D Gasket,delivery tube
40 154348401 A B C D Clamp,red ,pump
40 154348501 A B C D Clamp,silver ,pump
40* 154106801 A B C D Clamp,hose ,(2)
40* 154380601 A B C D Clamp,hose ,(1)
54 154234401 A B C D Hose,connector
55 154362301 A B C D Bracket,motor ,askoll
55* 5303316032 A B C D Screw,truss ss ,8 .625
58 154246402 A B C D Check ball
59 154246901 A B C D O-ring,rear
59A 154247001 A B C D O-ring,front
60 154407402 A B C D Drain Pump Assy
60* 154426201 A B C D Bracket,motor ,drain
61 154406501 A B C D Nozzle,3rd level ,spray arm
62 154294101 A B C D Support,spray arm ,lower
63 154252201 A B C D Base,soil director
64 154252301 A B C D Filter,soil director
65 154252401 A B C D Filter,polypro
66 154252701 A B C D Trap,glass
70 # 154395403 A B C D Motor assembly,circulation ,w/o o’rings
* 154200601 A B C D Screw,#10-16 x 3/8
MOTOR & PUMP
07/03 10
Publication No. GLD2150RC
5995393260
FRAME
