Frigidaire GLD2555ND Manuale utente

Product No. GLD2555NDB0 GLD2555NDQ0 GLD2555NDS0

Series Built-in 24" Built-in 24" Built-in 24"

Color black bisque white

Wiring Diagram 154459001 154476701 154476701

Owner's Guide 154482801 154482801 154482801

154483301 154483301 154483301

154484101 154484101 154484101

Service Data Sheet 154476701 154476701 154476701

Energy Guide 154485218 154485218 154485218

Installation Instructions 154427301 154427301 154427301

Market North America North America North America

P30L0060.eps P30C0144.eps P30B0032.eps P30U0018.eps P30M0035.eps P30F0022.eps

P30R0068.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995403549

04/02/09

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

GLD2555ND

Publication No: 5995403549 GLD2555ND

02/04 2

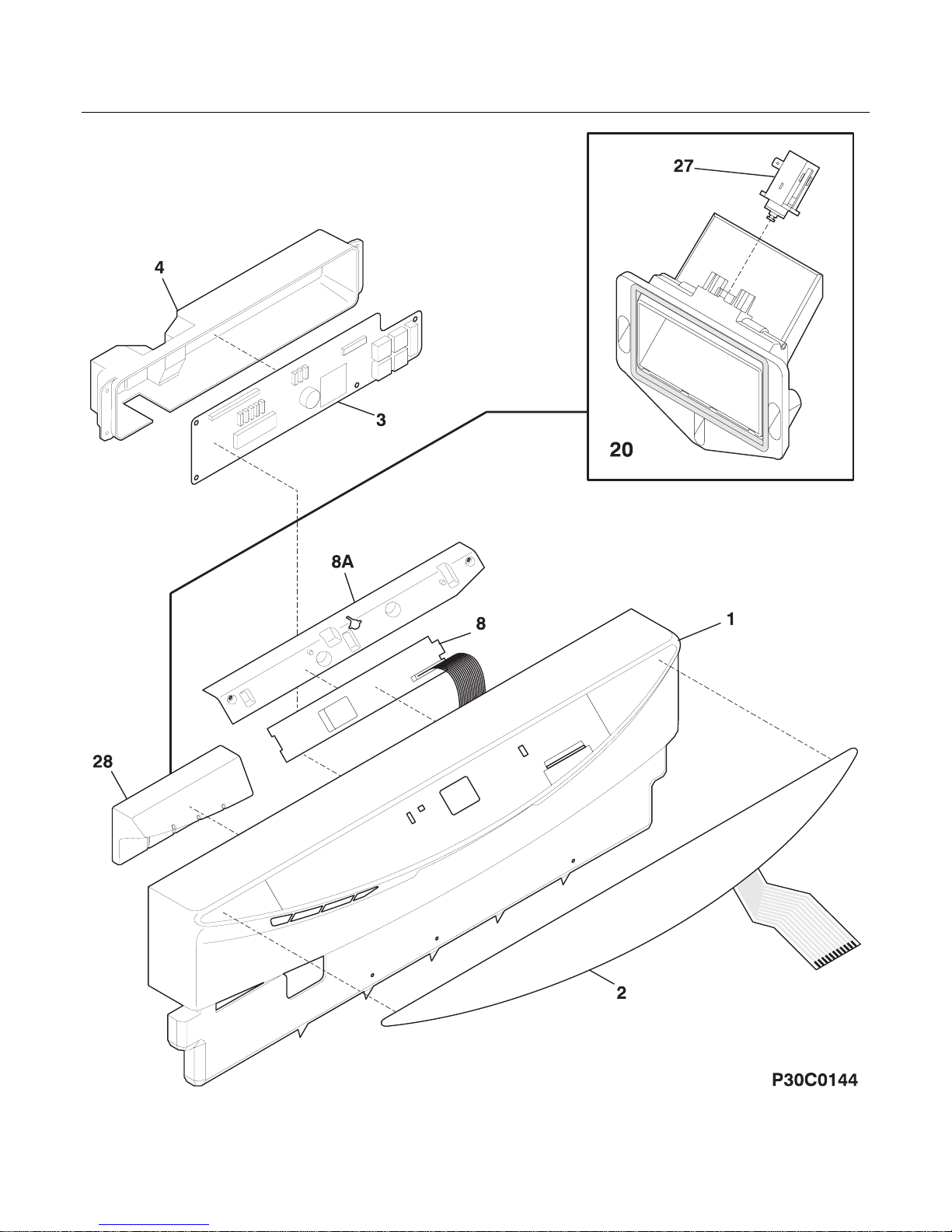

CONTROL PANEL

GLD2555ND Publication No: 5995403549

# Functional Parts 3 02/04

* Non-Ilustrated Parts

CONTROL PANEL

Model Index: AGLD2555ND (GLD2555NDS0)

BGLD2555ND (GLD2555NDB0)

CGLD2555ND (GLD2555NDQ0)

POS. NO PART NO. DESCRIPTION

1 # 154486101 A - - Panel, control, white

1 # 154486103 - B - Panel, control, black

1 # 154486104 - - C Panel, control, bisque

2 154491501 A - - Insert, control panel, white, w/12p switch

2 154491503 - B - Insert, control panel, black, w/12p switch

2 154491504 - - C Insert, control panel, bisque, w/12p switch

3 # 154470605 A B C Control, w/display

3* 154200401 A B C Screw, 6-10 x 3/8, pan plask

4 154460601 A B C Cover, control

4* 154478901 A B C Gasket, cover

8 154474801 A B C Board, segment display

8* 5303318719 A B C Screw, mtg.

8A 154486201 A B C Shield, tactile switch

20 154423601 A B C Vent assy, active dry, w/actuator

20* 154436201 A B C Screw, dry duct, (3)

27 154433501 A B C Actuator, active dry vent

28 154474401 A B C Adapter, vent

* # 154470501 A B C Wiring Harness

* 154485218 A B C Energy Guide

Publication No: 5995403549 GLD2555ND

02/04 4

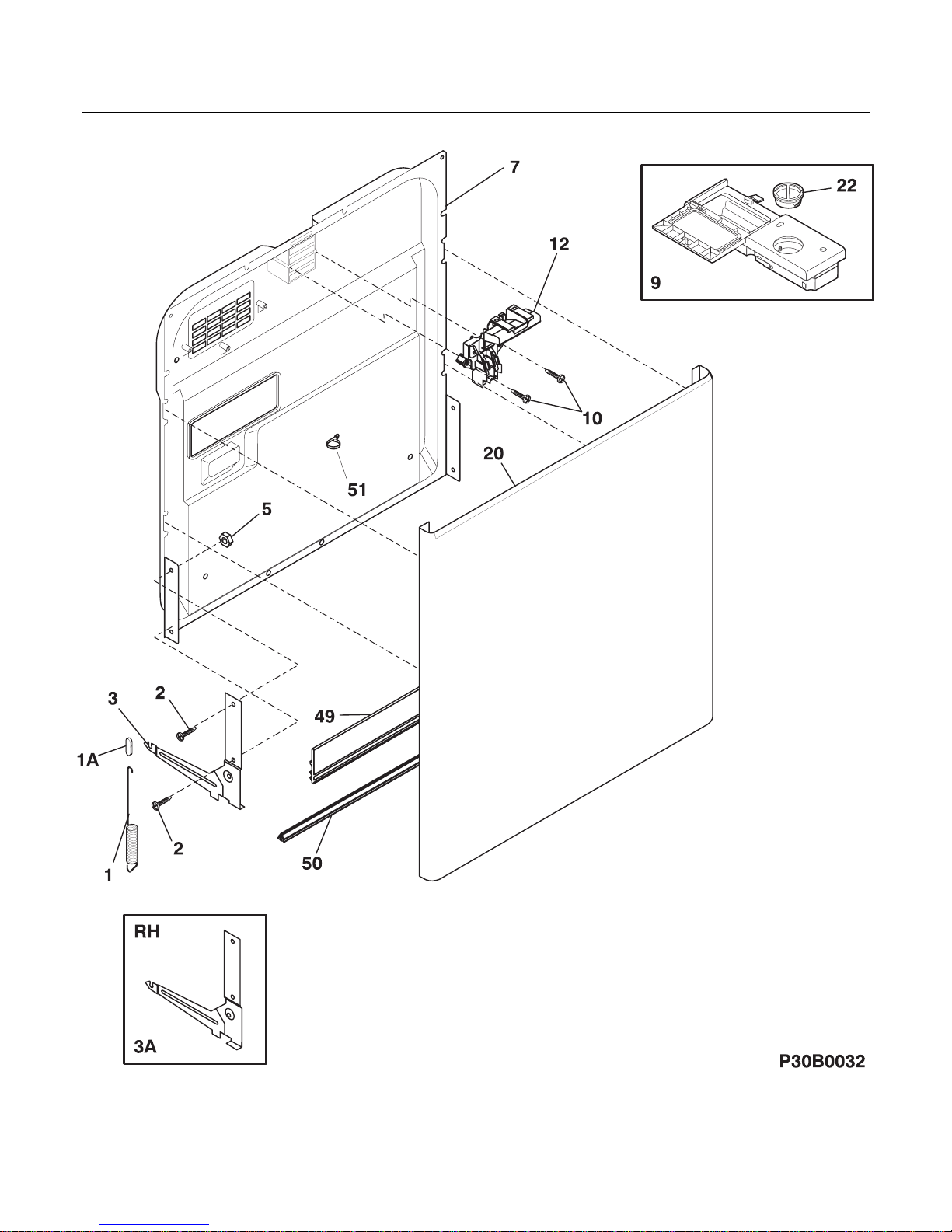

DOOR

GLD2555ND Publication No: 5995403549

# Functional Parts 5 02/04

* Non-Ilustrated Parts

DOOR

Model Index: AGLD2555ND (GLD2555NDS0)

BGLD2555ND (GLD2555NDB0)

CGLD2555ND (GLD2555NDQ0)

POS. NO PART NO. DESCRIPTION

1 154430601 A B C Spring, door, (2)

1A 154325201 A B C Linkage, door spring, (2)

2 154093301 A B C Screw, arm assy, (4)

3 154325304 A B C Arm Assy, LH

3A 154325303 A B C Arm Assy, RH

* 154400601 A B C Pin, arm assy

5 154079601 A B C Nut, arm assy, and handle mtg.

7 154299004 A B C Door, inner assy

9 154230104 A B C Dispenser, det/rinse aid, includes #22

9* 154294701 A B C Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C Screw, latch mtg, (2)

12 # 154475101 A - - Latch assy, white

12 # 154475103 - B - Latchassy, black

12 # 154475104 - - C Latch assy, bisque

20 154436801 A - - Door assy, white, outer

20 154436803 - B - Door assy, black, outer

20 154436804 - - C Door assy, bisque, outer

20* 154253201 A B C Insulation, door

20* 5304428306 A B C Screw, door mtg., (2)

22 154388801 A B C Cap, Rinse aid

49 154297603 A B C Gasket, door, bottom

50 154211401 A B C Support, door hinge

51 154320301 A B C Clamp, drip loop, wire

* 154200601 A B C Screw, #10-16 x 3/8

Publication No: 5995403549 GLD2555ND

02/04 6

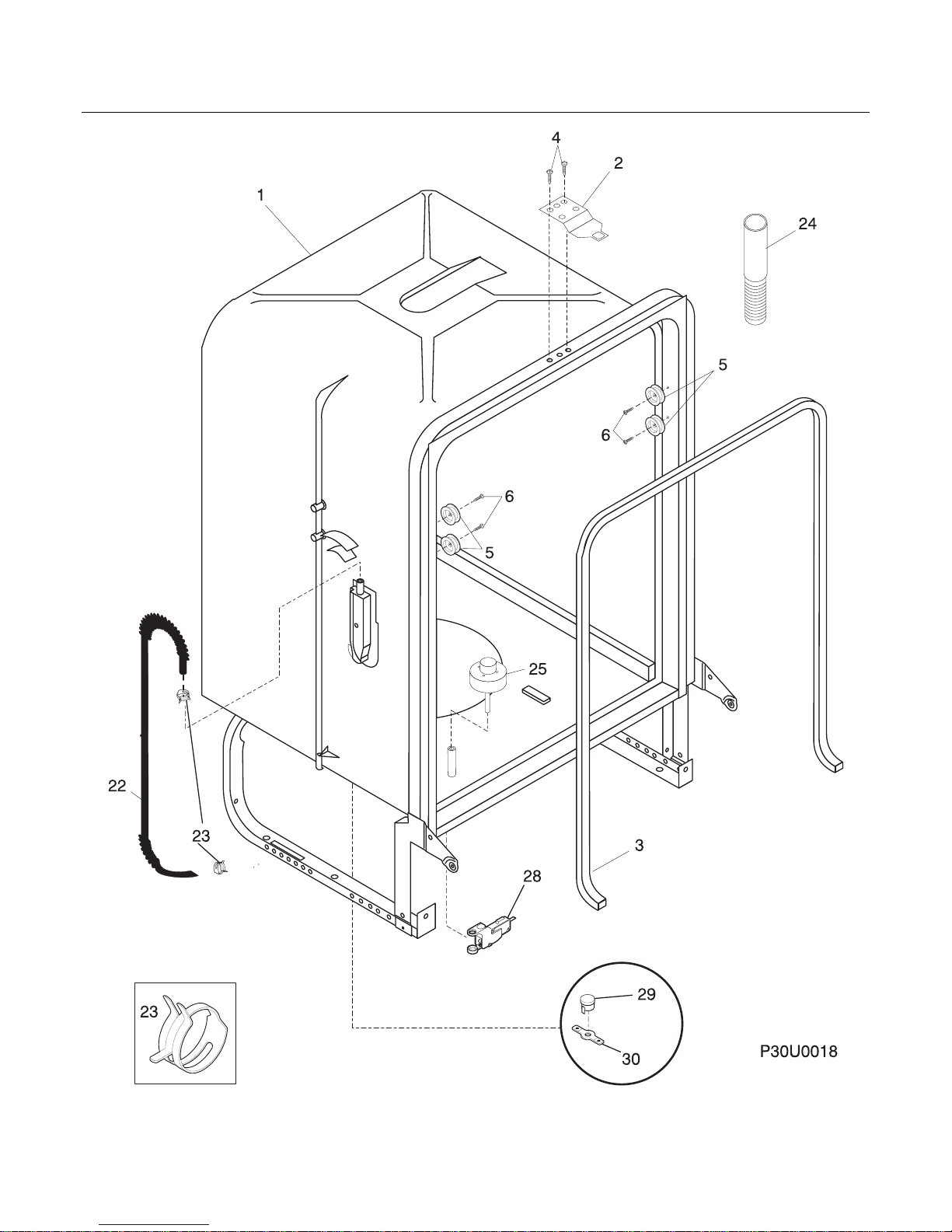

TUB

GLD2555ND Publication No: 5995403549

# Functional Parts 7 02/04

* Non-Ilustrated Parts

TUB

Model Index: AGLD2555ND (GLD2555NDS0)

BGLD2555ND (GLD2555NDB0)

CGLD2555ND (GLD2555NDQ0)

POS. NO PART NO. DESCRIPTION

1 # 154209301 A B C Tub assy, w/frame parts

2 154429101 A B C Strike, door

3 # 154211801 A B C Gasket, tub

4 154200602 A B C Screw, 10-16 x 3/8, hex

5 154333902 A B C Roller, tub

6 5303943103 A B C Screw, w/washer, (8)

22 154239801 A B C Tubing, water inlet

23 5303318539 A B C Clamp, tubing, (2)

24 # 154411003 A B C Hose, drain

25 # 154209701 A B C Float

28 154408701 A B C Switch assy,float

29 # 154290204 A B C Thermostat, re-settable

30 154241101 A B C Retainer, thermostat

30* 154297701 A B C Screw, retainer-thermo

* 154447102 A B C Insulation,blanket

* 154447301 A B C Insulation, tub back

* 154041001 A B C Screw, plask #1, 10-10 x 9/16

* 5300807270 A B C Screw, (2), countertop mtg.

Publication No: 5995403549 GLD2555ND

02/04 8

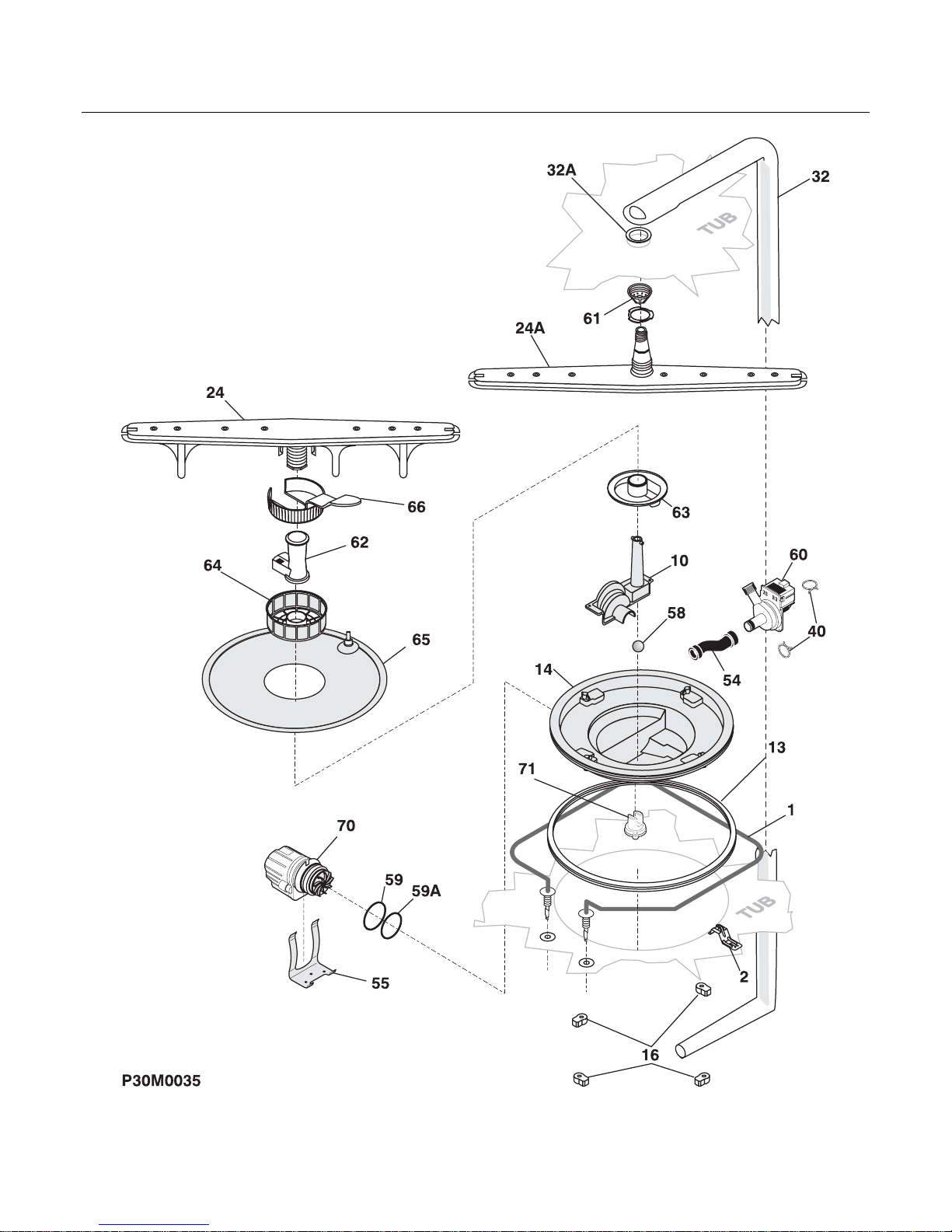

MOTOR & PUMP

GLD2555ND Publication No: 5995403549

# Functional Parts 9 02/04

* Non-Ilustrated Parts

MOTOR & PUMP

Model Index: AGLD2555ND (GLD2555NDS0)

BGLD2555ND (GLD2555NDB0)

CGLD2555ND (GLD2555NDQ0)

POS. NO PART NO. DESCRIPTION

1 # 154247601 A B C Heater

1* 154106201 A B C Nut, heater, (2)

1* 154289801 A B C Shield, heater terminal

2 154359701 A B C Bracket, heater, (2)

10 154245501 A B C Cover, volute

13 154246801 A B C Gasket, sump

14 154365901 A B C Housing, sump

16 154246502 A B C Retainer, sump

24 154414101 A B C Spray arm, lower, w/heat shield

24A 154313601 A B C Spray arm, center

24A* 154252001 A B C Nut, spray arm, center

32 154406601 A B C Tube, delivery

32A 154406401 A B C Gasket, delivery tube

40 154348401 A B C Clamp, red, pump

40 154348501 A B C Clamp, silver, pump

40* 154106801 A B C Clamp, hose, (2)

40* 154380601 A B C Clamp, hose, (1)

54 154234401 A B C Hose, connector

55 154362301 A B C Bracket, motor, askoll

55* 5303316032 A B C Screw, truss ss, 8 .625

58 154246402 A B C Check ball

59 154246901 A B C O-ring, rear

59A 154247001 A B C O-ring, front

60 154474101 A B C DrainPump Assy

60* 154426201 A B C Bracket, motor, drain

61 154406501 A B C Nozzle, 3rd level, spray arm

62 154294101 A B C Support, spray arm, lower

63 154252201 A B C Base, soil director

64 154252301 A B C Filter, soil director

65 154283004 A B C Filter Assy

66 154252701 A B C Trap, glass

70 # 154395403 A B C Motor assembly, circulation, w/o o'rings

71 # 154473901 A B C Sensor, turbidity

71* 154376001 A B C O-ring, turbidity

* 154200601 A B C Screw, #10-16 x 3/8

Publication No: 5995403549 GLD2555ND

02/04 10

FRAME
