Frigidaire PLD4460RE Manuale utente

PLD4460REC.eps CPLD4460REC.tif dpld4460rec.tif TPLD4460REC.tif

MPLD4460REC.tif WPLD4460REC.tif RPLD4460REC.tif

Product No. PLD4460REC

Series 24" Built-in

Color stainless

Wiring Diagram 15003747

Owner's Guide 6919559

Energy Guide 5995452850

Installation Instructions 6919941

Market North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995459723

06/01/27

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

PLD4460RE

Publication No: 5995459723 PLD4460REC

01/06 2

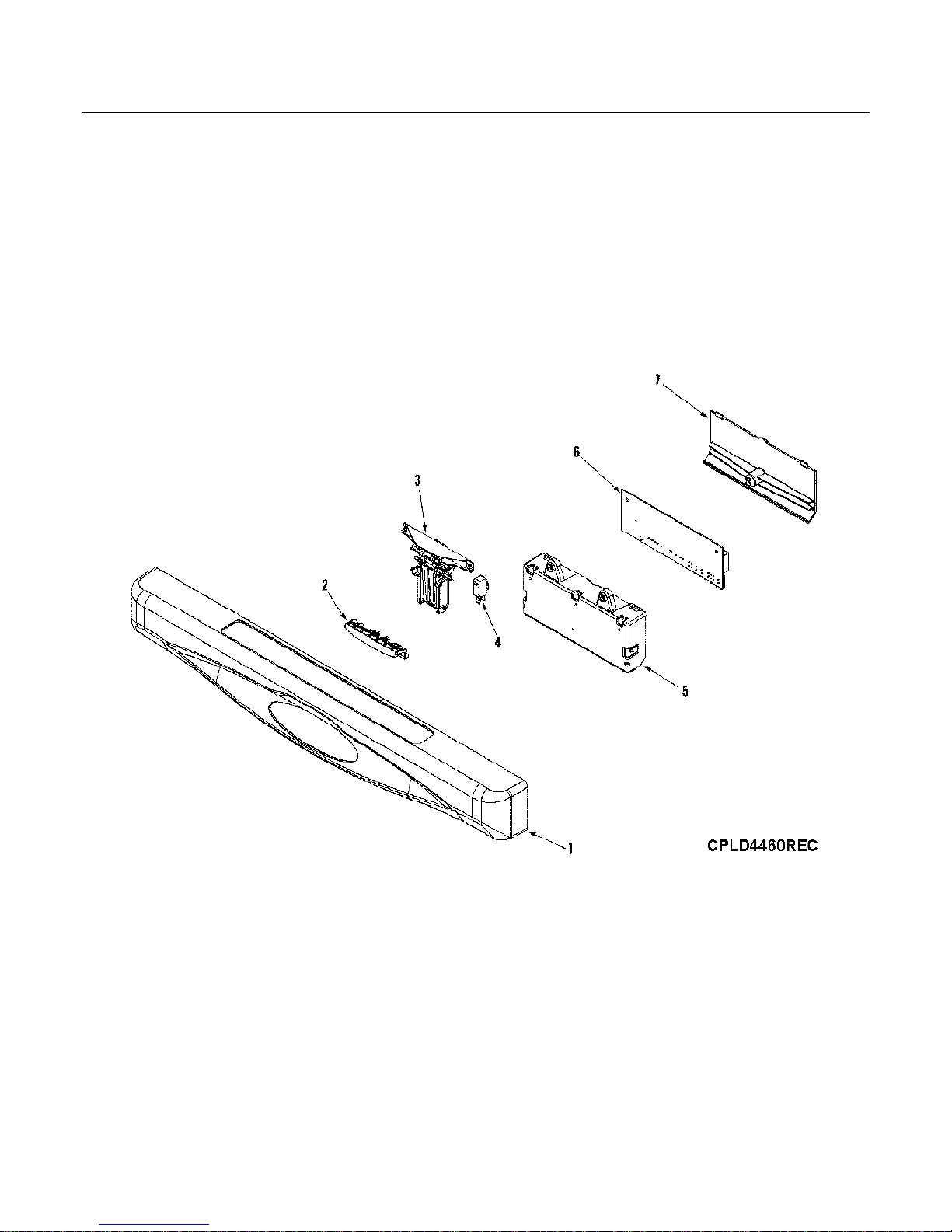

CONTROL PANEL

PLD4460REC Publication No: 5995459723

# Functional Parts 3 01/06

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 5304454279 Panel, control, black

3 5304452062 Latch Assembly

4 # 5304452043 Switch, door, (2)

5 5304452514 Housing, control board, base

6 # 5304454280 Board, control

7 5304452515 Housing, control board, top

* # 5304452586 Harness, wiring, main

* 5304454328 Energy Guide

* 5304452520 Screw, mounting, (6)

Publication No: 5995459723 PLD4460REC

01/06 4

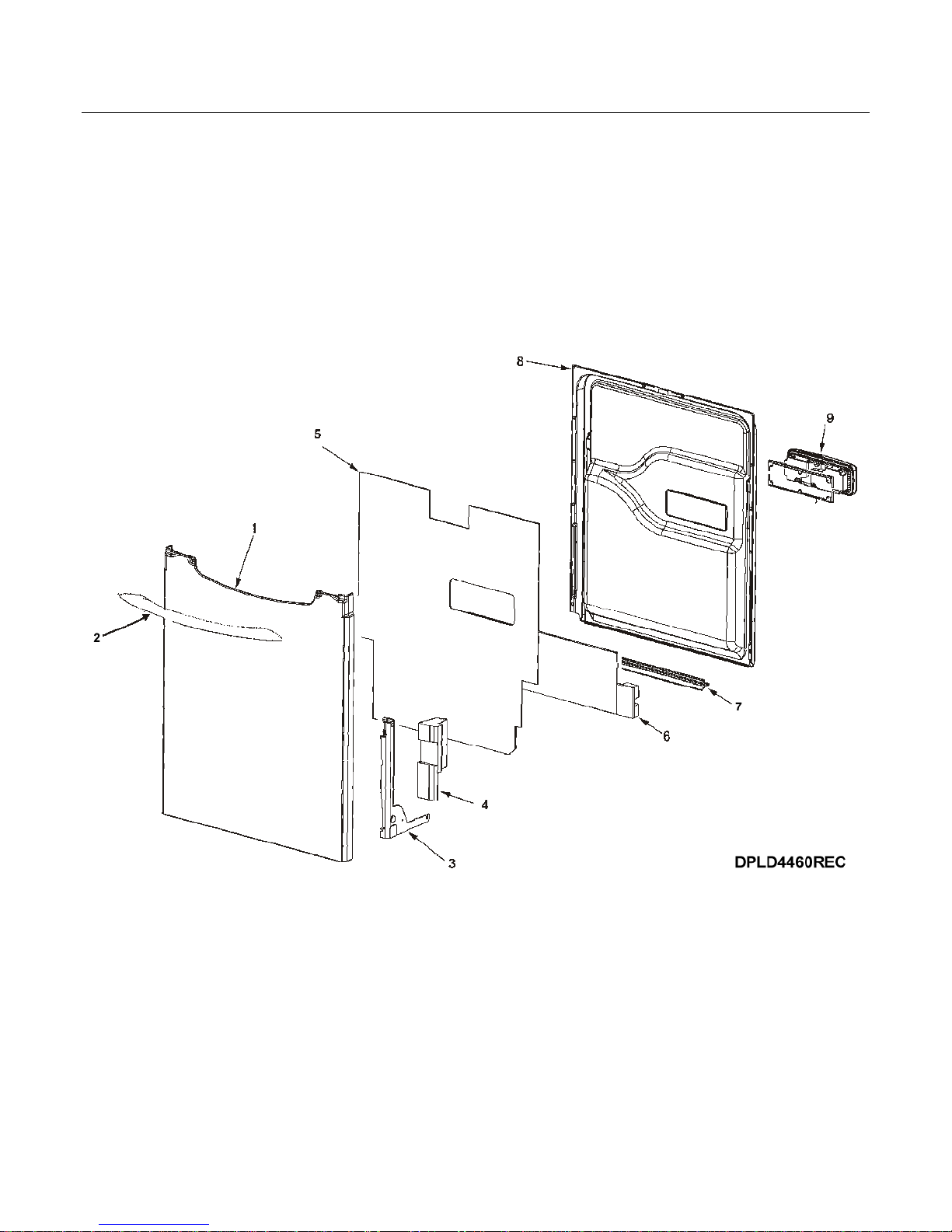

DOOR

PLD4460REC Publication No: 5995459723

# Functional Parts 5 01/06

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 5304454281 Panel, door, stainless, outer

2 5304454282 Bar, towel, stainless

2* 5304454284 Nut, w/washer, assembly

2* 5304454283 Washer, fender

3 5304452507 Bracket, hinge, LH

3 5304452508 Bracket, hinge, RH

3* 5304452512 Block, foam, LH

3* 5304452511 Block, foam, RH

3* 5304452509 Screw, hinge bracket, (4)

3* 5304452510 Wrap, foam, (2)

5 5304452516 Insulation, door

6 5304452513 Barrier, foam

7 5304452049 Seal, door, bottom

8 5304452053 Liner, door, w/damper

8* 5304452517 Screw, door liner, (10)

9 # 5304454285 Dispenser, detergent, w/rinse aid

9* 5304452519 Bracket, dispenser, (2)

* 5304452520 Screw, mounting, (6)

Publication No: 5995459723 PLD4460REC

01/06 6

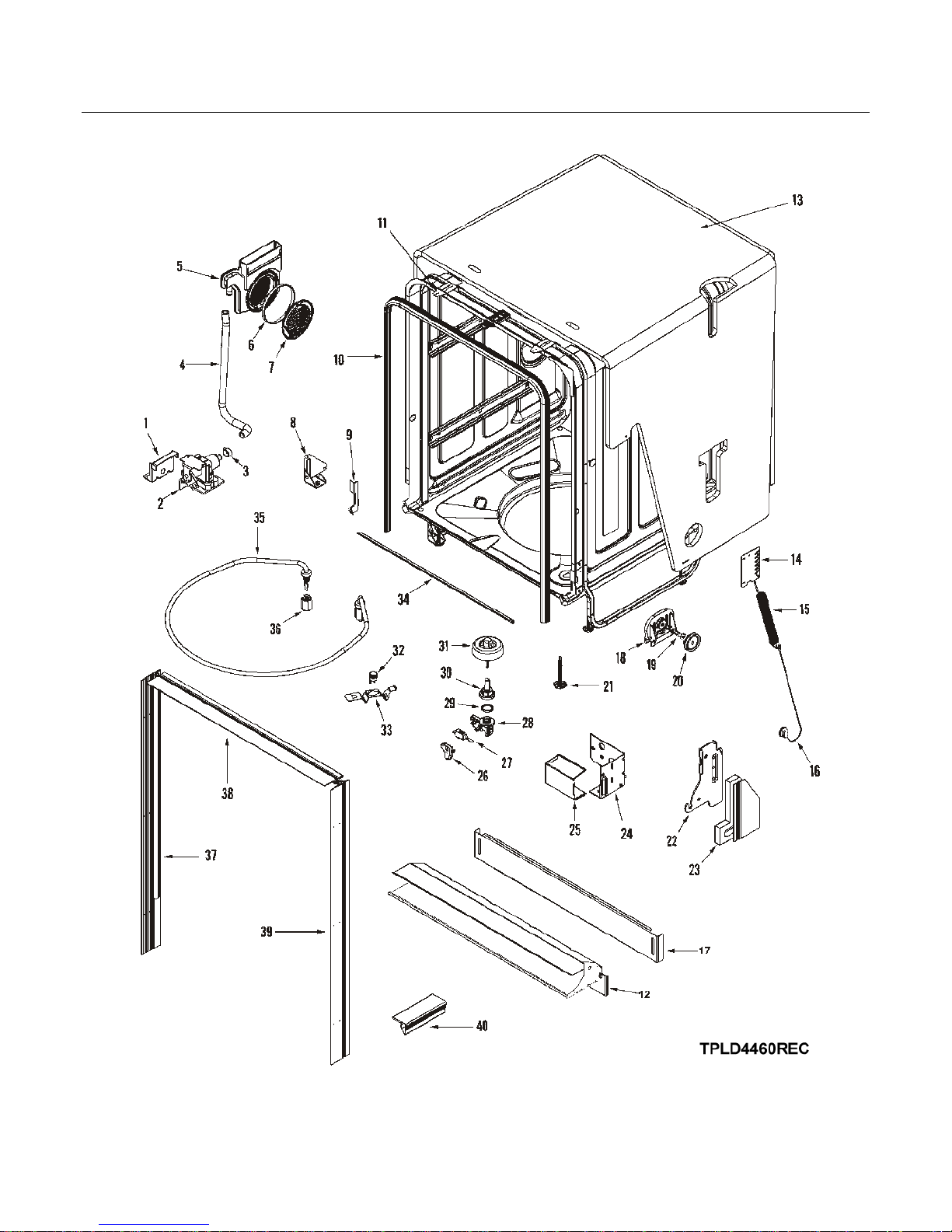

TUB

PLD4460REC Publication No: 5995459723

# Functional Parts 7 01/06

* Non-Illustrated Parts

TUB

POS. NO PART NO. DESCRIPTION

1 5304452521 Bracket, water valve

2 # 5304452045 Valve, water

2* 5304452522 Screw, water valve, (2)

3 5304452523 Clamp, SPRING

4 5304452524 Hose, injector

5 5304452525 Inlet, air/water

6 5304452526 Seal, inlet

7 5304454286 Grill, inlet

8 5304452528 Bracket, support, LH

9 5304452529 Trim, edge, LH, lower corner

9 5304452530 Trim, edge, RH, lower corner

10 5304452060 Seal, door

11 5304452531 Bracket, mounting, (2), cabinet

12 5304454287 Support, front, black, w/seals

13 5304454288 Insulation, tub

13* 5304452535 Fastener, insulation, (2)

14 5304452536 Bracket, adjustment, (2), door spring

15 5304454289 Spring, door, (2)

16 5304452064 Cable Assembly, door, (2)

17 5304452537 Panel, toe plate, black, w/damper

17* 5304452538 Seal, sound, black, toe plate

18 5304452540 Bracket, cable, (2)

19 5304452541 Bolt, shoulder, (2), cable bracket

20 5304452542 Roller, cable bracket, (2)

21 5304452543 Leg, leveling, (4)

22 5304452544 Support, hinge, RH

22 5304452545 Support, hinge, LH

23 5304454290 Bracket, hinge seal, RH

23 5304454291 Bracket, hinge seal, LH

24 5304452548 Bracket, support, junction box

25 5304452549 Cover, junction box

25* 5304452550 Screw, cover

26 5304452551 Cover, float switch

27 # 5304452030 Switch, float

28 5304452046 Holder, float switch

29 5304452048 Seal, standpipe

30 5304452047 Standpipe, float

31 5304454292 Float

32 # 5304452032 Thermostat, limiting

33 5304452552 Clip, thermostat

34 5304452553 Trim, tub edge, bottom

35 # 5304452044 Heater, w/gasket

35* 5304452554 Gasket, heater

36 5304452555 Nut, heater, (2)

37 5304454293 Strip, trim, LH

38 5304452557 Strip, trim, top

39 5304454294 Strip, trim, RH

40 5304452539 Bracket, support, rear

* 5304452560 Screw, mounting, (4)

* 5304452561 Screw, mounting, (18)

* 5304452562 Screw, mounting, (8)

Publication No: 5995459723 PLD4460REC

01/06 8

MOTOR & PUMP

PLD4460REC Publication No: 5995459723

# Functional Parts 9 01/06

* Non-Illustrated Parts

MOTOR & PUMP

POS. NO PART NO. DESCRIPTION

1 5304454295 Cap, wash arm

2 5304454296 Wash Arm, lower, w/shields

3 5304452565 Shield, radiant, (2)

4 5304454297 Guard, filter, gray

4* 5304452567 Screw, filter guard, (3)

5 5304454298 Housing Assembly, discharge, upper

5* 5304452569 Screw, housing, (6)

6 5304452037 Impeller Assembly, wash

6* 5304452570 Screw, impeller assy

7 5304454299 Filter Assembly, flowplate

7* 5304452572 Screw, filter assy, (3)

8 5304452573 Chopper

9 5304452061 Seal kit, sleeve, metal chopper

10 5304452574 Gasket, motor mount

11 5304452575 Lever, motor mount, (3)

12 5304452576 Plunger, motor mount, (3)

13 5304452577 O-ring, sensor, turbidity

14 # 5304452034 Sensor, turbidity

15 # 5304452063 Motor Assembly, wash

16 # 5304452054 Pump Assembly, drain

16* 5304452579 Screw, drain pump, (3)

16* 5304452580 Flapper, valve, drain pump

17 5304452581 Flapper, inlet, drain pump

18 5304452582 O-ring, drain pump

19 # 5304452583 Capacitor, wash motor

19* 5304452584 Shield, capacitor

19* 5304452561 Screw, mounting, (18)

20 5304452036 Hose, drain

20* 5304452585 Clamp, drain hose, 1 - 3/8"

Publication No: 5995459723 PLD4460REC

01/06 10

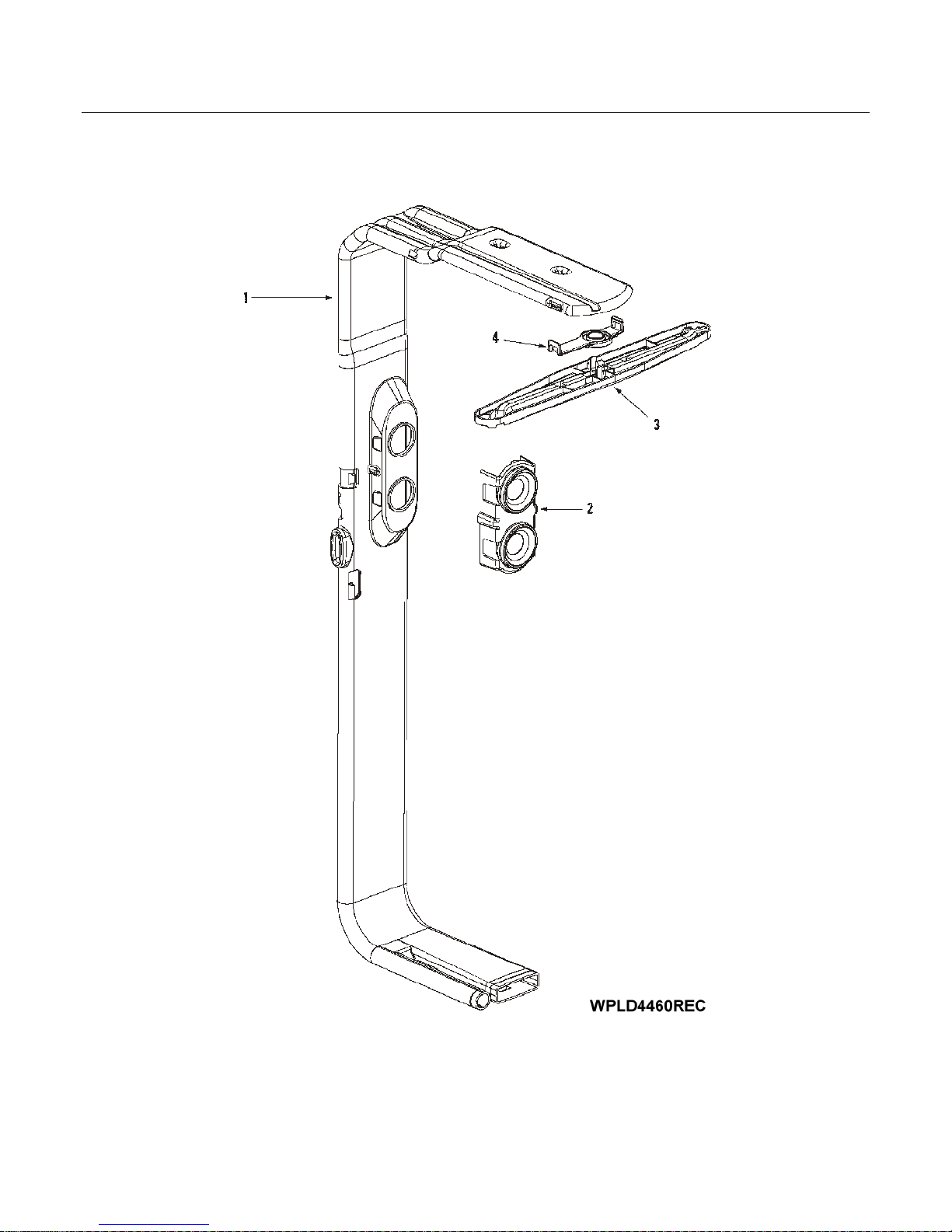

WATER DISTRIBUTION ASSEMBLY
