Frigidaire FEQ1442CE Manuale utente
Product No. FEQ1442CES0
Series Frigidaire
Market Canada
Color white
Volts 240
Wiring Diagram 134509400
Owner's Guide 134508100
Installation Instructions 134507900
Operating Instructions 134507800
Energy Guide 134507600
P16L0041.eps P16V0083.eps P16d0032.eps P16C0229.eps P16M0024.eps
134509400e.eps
ELECTROLUX MAJOR APPLIANCES
NORTH & LATIN AMERICA
6150 McLaughlin Road
Mississauga, Ontario, Canada L5R 1K6 Publication No.
5995430450
05/03/01
(EN/SERVICE/KC)
361
ELECTRIC DRYER
Model No.
FEQ1442CE
Copyright ©2005 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995430450 FEQ1442CES0
03/05 2
CABINET/DRUM
32
14
13
12
5
6
P16V0083
29
30
18
21
24
24
18
32
44
64
33
52A
51
34
12
34
9
13
34
34
42
2
2
20
15
2
25
11
25
4
2
52
36
35
17
31
FEQ1442CES0 Publication No: 5995430450
# Functional Parts 3 03/05
* Non-Illustrated Parts
CABINET/DRUM
POS. NO PART NO. DESCRIPTION
2 131168200 Screw, pan head, 8-18B x 0.31
4 131785200 Bracket, elec power cord, knock out
5 5303281019 Ball, grounding
6 5303281020 Clip, ball, steel, flat nut
9 131793200 Panel, service access, rear
11 5303211428 Cover, terminal block
12 131825900 Bearing, drum support
13 131724300 Bracket, bearing support
14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive
15 # 131553900 Heater Assy, w/housing/felt
17 3204254 Baffle, heater shield
18 131477000 Screw, 10-16AB x 0.375
20 134166500 Bracket, top panel mtg., rear
21 134122532 Drum, dryer, galvanized stl., service kit
24 131963900 Glide, drum
25 5303015671 Screw, hex washer head, 8-18 x 0 .375, cup point
29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special
30 5303201200 Vane, straight
31 # 134502300 Power Cord, electric svce, 4-wire Canada
* 5303297892 Clamp, strain relief, power cord
32 131777700 Shaft, drum support, ballhitch
32* 5303307893 Lubricant, high temp
33 # 3204267 Thermostat, safety
34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive
35 131892100 Screw, 6-20B x 0.230
36 # 134120900 Thermal Limiter
42 134154100 Screw, hex washer head, 10-32 x 0.375, ground
44 134344900 Leveling Leg, screw
51 131472100 Insulator, heater housing
52 # 134101400 Terminal Block, main
* # 134394200 Wiring Harness, main
52A# 3202786 Terminal Block, heater housing
64 134360100 Bracket, svce panel mtg.
* # 5303281153 Rear Bearing Kit, includes 5, 6, 12, 13, 14, 18, 32
* 134467300 Stacking Kit, washer/dryer
Publication No: 5995430450 FEQ1442CES0
03/05 4

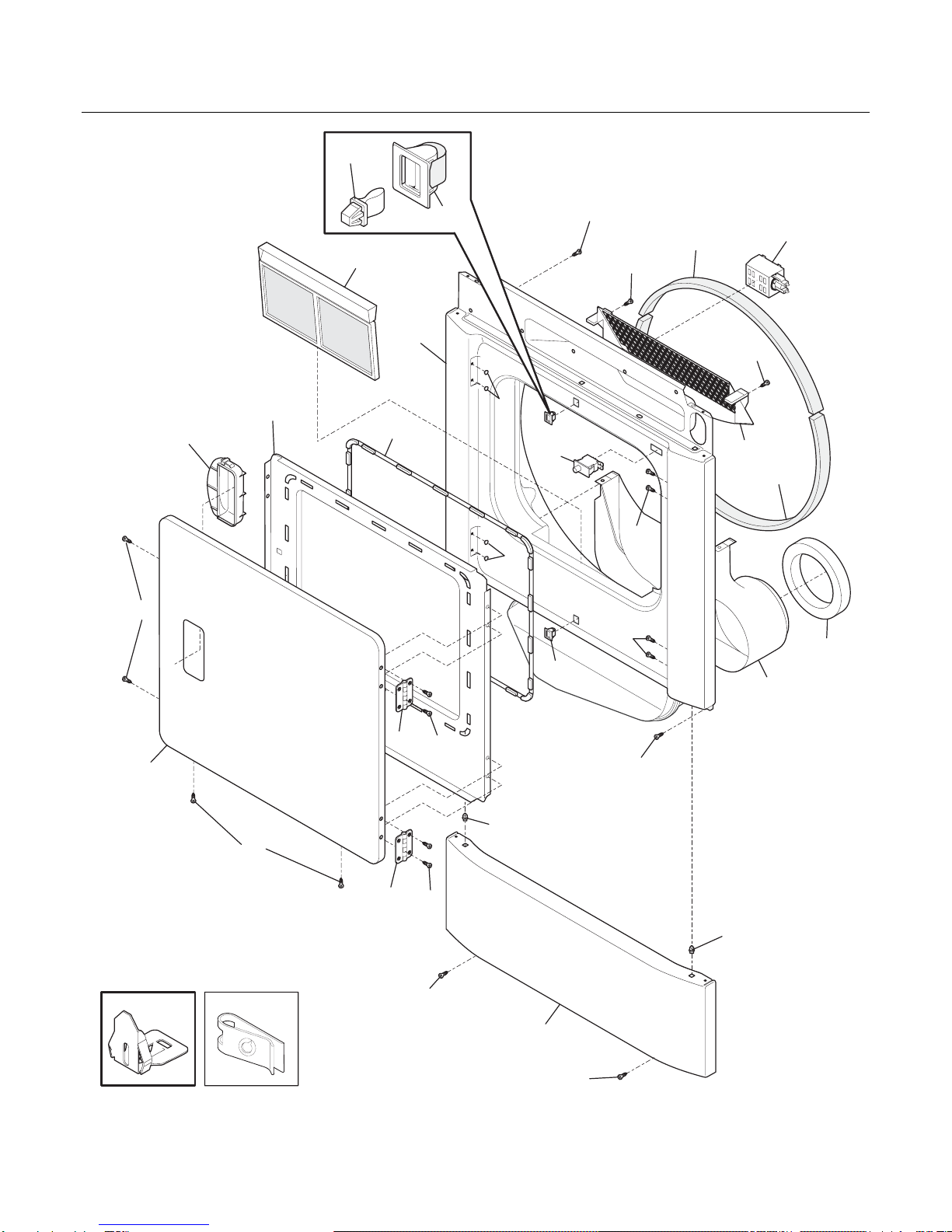

FRONT PANEL/LINT FILTER
49
25
27
39
58
50
50
8
20
21
9
9
42
26
42
25
22
6
1
44
47
46
42
42
48
41
41
42
42
17
17
18
28
P16D0032
2
2
2
16
FEQ1442CES0 Publication No: 5995430450
# Functional Parts 5 03/05
* Non-Illustrated Parts
FRONT PANEL/LINT FILTER
POS. NO PART NO. DESCRIPTION
1 134417000 Seal, air duct
2 131168200 Screw, pan head, 8-18B x 0.31
6 134382900 Duct, air
8 # 131845802 Cover, lint housing, w/moist sensor
9 131633200 Plug, white
16 131063700 Clip, wiring
17 134408700 Clip, assembly
18 134321702 Panel, front service, white
20 134440200 Seal, felt, upper
20* 5308027429 •Adhesive, high temp
21 134134700 Seal, felt, lower
22 134393502 Panel, front, white, with lamp hole
25 131658800 Door Catch
26 # 131843101 Switch, door, with drum light
27 131450300 Trap, lint blade assy
28 134440000 Clip, guide
39 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive
41 134412400 Hinge, door
42 134156200 Screw, flat head, 8-18AB x 0.44, quad drive
44 134413300 Gasket, door seal
46 134439300 Handle, door
47 134412204 Panel, inner door, white
48 134412003 Panel, outer door, white
49 5303211430 Door Strike
50 131303300 Screw, pan head, 10-16AB x 0.500, locking
58 # 131843500 Lamp Assy, drum light, w/mtg bracket
58*# 131862800 •Lamp
Publication No: 5995430450 FEQ1442CES0
03/05 6

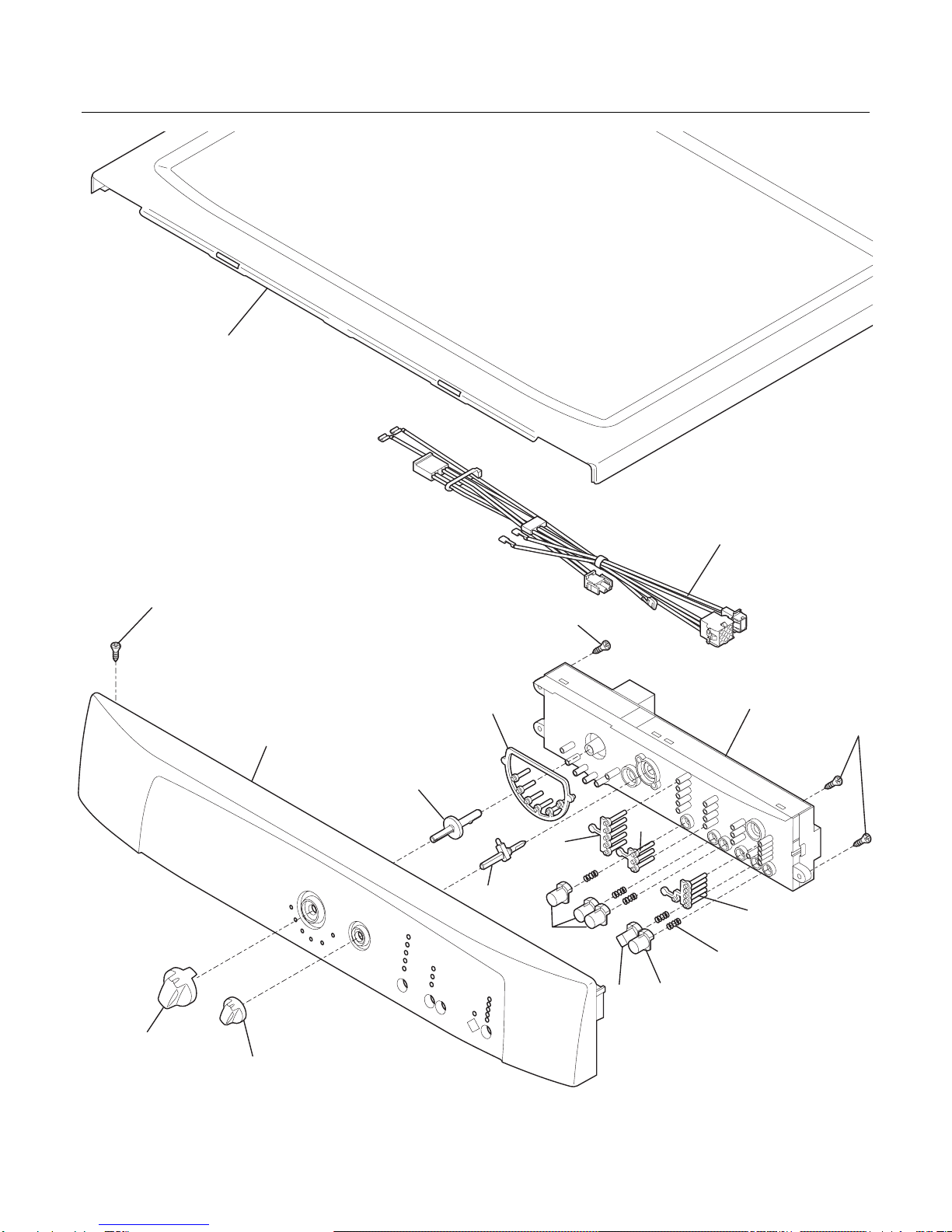

CONTROLS/TOP PANEL
53
23
P16C0229
39
19
19
2
3
29
61
4
5
10
11 12
13
9
7
8
FEQ1442CES0 Publication No: 5995430450
# Functional Parts 7 03/05
* Non-Illustrated Parts
CONTROLS/TOP PANEL
POS. NO PART NO. DESCRIPTION
1 # 134484212 Control Board, printed circuit, with housing
2 134432000 Knob, function
3 134431800 Knob, program
4 134347700 Pin, program knob
5 134347300 Pin, function knob
6 134447600 Light Pipe, array, 9 curved prgm.
7 134429100 Light Pipe, array, 1 row of 5
8 134429200 Light Pipe, array, 2 row of 4
9 134429400 Light Pipe, array, 4 start group
10 134385100 Push Button, function
11 134385201 Push Button, start
12 134385301 Push Button, pause
13 134349400 Spring, push button
19 134402900 Screw, phillips pan hd, 6-19 x 0.650, type p
23 # 134394400 Wiring Harness, controls
* # 134394200 Wiring Harness, main
29 134442400 Panel, control console
39 134178900 Screw, Quad, 8-18AB x 0.455
53 134365000 Panel, work top, white
Publication No: 5995430450 FEQ1442CES0
03/05 8
MOTOR
FEQ1442CES0 Publication No: 5995430450
# Functional Parts 9 03/05
* Non-Illustrated Parts
MOTOR
POS. NO PART NO. DESCRIPTION
4 131435200 Lock, blower housing
7 131451600 Tube, exhaust, rear, w/mtg bracket
7* 131456800 Tube, exhaust, side/bottom, Optional Kit
10 # 131775600 Blower Assy, housing, w/cover & wheel
11 131749800 Spacer, idler
15 # 134216500 Thermistor, control
20 131017900 Screw, hex head, 1/4-20T x 1.25, spacer mtg., thread cutting
22 131601000 Spring, idler arm
23 # 131863004 Idler Arm Assy, w/pulley
25 # 134163400 Belt, dryer
27 134242400 Clamp, motor mtg.
28 # 131560100 Motor & Pulley Assy
34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive
46 134203400 Bracket, motor mtg
47 131633300 Seal, exhaust tube
48 131168200 Screw, pan head, 8-18B x 0.31
52 131202300 Screw, 10-16AB x 0.625
Publication No: 5995430450 FEQ1442CES0
03/05 10

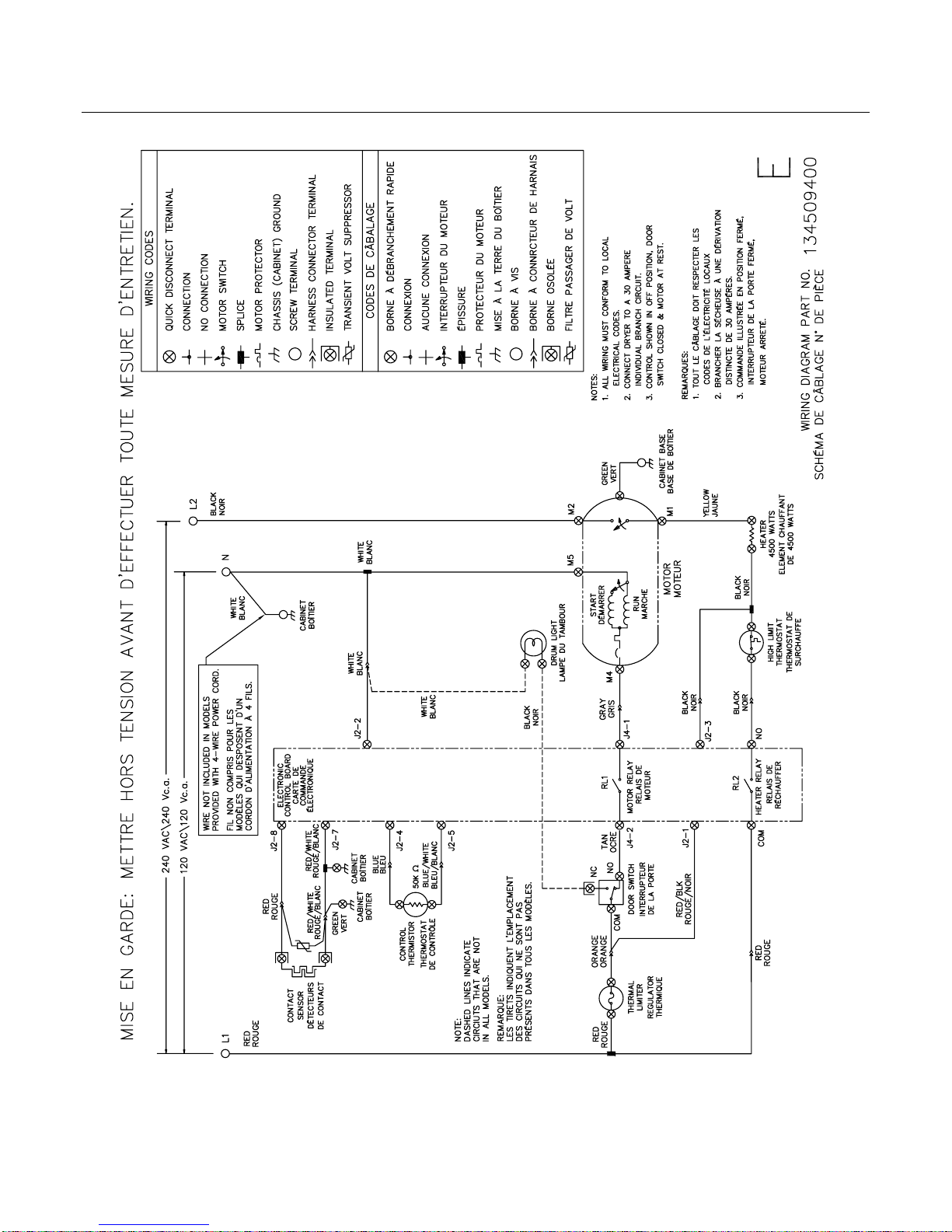

WIRING DIAGRAM
