ELECTRIC
DRYER
Model No.
GLEQ332A
©2002 Electrolux Home Products, Inc.
All rights reserved
FACTORY PARTS CATALOG
DRYER
WIRING DIAGRAM - # 134064000
OWNER’S GUIDE - # 131883500
INSTALLATION INSTRUCTIONS - # 131751700
ELECTROLUX HOME PRODUCTS, INC.
P.O. BOX 212378, Augusta, GA 30917
PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
GLEQ332AS2 GLEQ332A Gallery white 240
MARKET
North America
Publication No.
5995381679
021115
-EN/SERVICE /ECL
361
11/02 2
Publication No. GLEQ332AS2
5995381679
CABINET/DRUM
# = Fast-moving Parts 3 11/02
* = Non-Illustrated Parts
GLEQ332AS2 Publication No.
5995381679
CABINET/DRUM
POS. NO PART NO DESCRIPTION
2 131168200 Screw,pan head ,8-18B x 0.31
4 131785200 Bracket,elec power cord ,knock out
5 5303281019 Ball
6 5303281020 Clip,ball ,steel ,flat nut
9 131793201 Panel,access ,rear
11 5303211428 Cover,terminal block
12 131825900 Bearing,drum support
13 131724300 Bracket,bearing support
14 131205400 Screw,bracket mtg. ,10-16B x 1.375 ,cr/sq drive
15 # 131553900 Heater Assy,w/housing/felt
17 3204254 Baffle,heater shield
18 131477000 Screw,shaft/baffle mt ,10-16AB x 0.375 ,special
19 131205300 Screw,10-16 x 0.750
20 131469100 Bracket,hinge ,rear ,top panel mtg.
21 134122532 Drum,dryer ,galvanized stl. ,service kit
24 131963900 Glide,drum
25 5303015671 Screw,hex washer head ,8-18 x 0 .375 ,cup point
29 131382300 Screw,quadrex head ,10-14 x 1.00 ,vane mtg.,special
30 5303201200 Vane,straight
32 131777700 Shaft,drum support ,ballhitch
* 5303307893 Lubricant,high temp
33 # 3204267 Thermostat,safety
34 131243700 Screw,pan head ,8-18AB x 0.375 ,cr/sq drive
35 131892100 Screw,6-20B x 0.230
36 # 134120900 Thermal Limiter
42 134154100 Screw,hex washer head ,10-32 x 0.375 ,ground
44 134158000 Screw,leveling leg
51 131472100 Insulator,heater housing
52 134101400 Terminal Block,main
* # 134110500 Wiring Harness,main
52A 3202786 Terminal Block,heater housing
64 131704600 Clip
* 5303937141 Stacking Kit,washer/dryer
* # 5303281153 Rear Bearing Kit,includes 5,6 ,12,13,14,18,32
11/02 4
Publication No. GLEQ332AS2
5995381679
FRONT PANEL/LINT FILTER
# = Fast-moving Parts 5 11/02
* = Non-Illustrated Parts
GLEQ332AS2 Publication No.
5995381679
FRONT PANEL/LINT FILTER
POS. NO PART NO DESCRIPTION
1 134063300 Seal,air duct
2 131397000 Plug,dome ,white
6 131621900 Duct,air
8 # 131845801 Cover,lint housing ,w/moist sensor
8* # 131657500 • Wiring Harness,moisture sensor
9 131633200 Plug,white
16 131063700 Clip,wiring
20 134036400 Seal,felt ,upper
* 5308027429 Adhesive,high temp
21 134134700 Seal,felt ,lower
22 131845902 Panel,stacking ,white ,front ,with lamp hole
25 131658800 Door Catch
26 # 131843101 Switch,door ,with drum light
27 131450300 Trap,lint blade assy
28 5303281074 Clip,guide ,(3)
41 131627500 Hinge,door
42 131209600 Screw,flat head ,8-18AB x 0.44 ,cr/sq drive
44 131129900 Gasket,door seal
46 131644700 Handle,door ,white
47 131844104 Panel,inner door ,white
48 131789303 Panel,outer door ,white
49 5303211430 Door Strike
50 131303300 Screw,pan head lock ,10-16AB x 0.500
58 # 131843500 Lamp Assy,drum light ,w/mtg bracket
58*# 131862800 • Lamp
* 131474700 Insulation
11/02 6
Publication No. GLEQ332AS2
5995381679

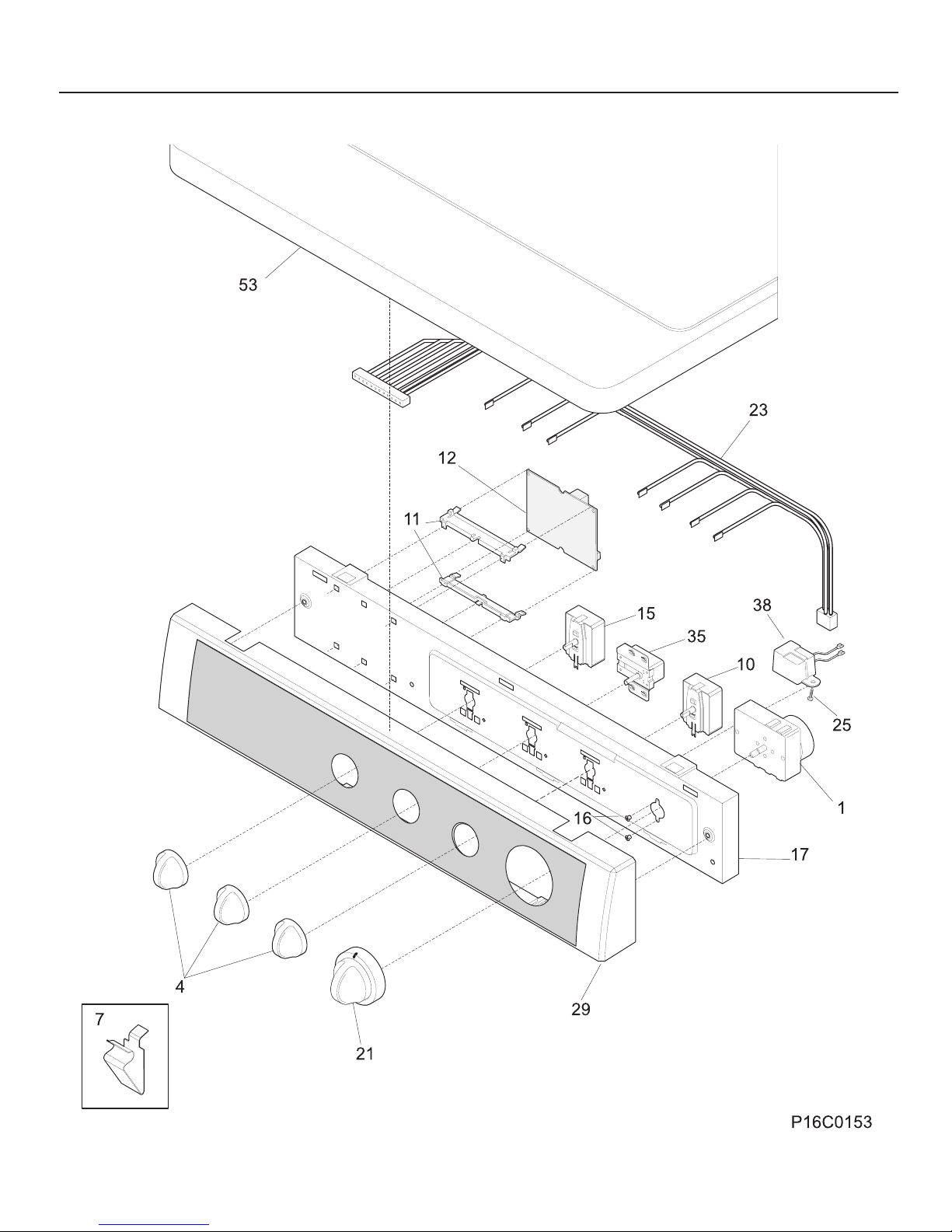

CONTROLS/TOP PANEL
# = Fast-moving Parts 7 11/02
* = Non-Illustrated Parts
GLEQ332AS2 Publication No.
5995381679
CONTROLS/TOP PANEL
POS. NO PART NO DESCRIPTION
1 # 131789200 Timer,dryer
4 134042800 Knob,rotary ,white
7 3205821 Clip,top-to-front
10 # 131447800 Switch,start ,turn type
11 131587400 Bracket,pc board mtg. ,(2)
12 # 131620200 Control Board,moisture sensor
15 # 134046800 Switch-temp 3pos rot W/MS-elec
16 134034300 Screw,pan hd phillips ,8-18B x 0.250
17 134064501 Bracket,control mtg.
21 134042600 Knob,timer ,white/gray
23 # 134063800 Wiring Harness,control
* # 134110500 Wiring Harness,main
25 5303015671 Screw,hex washer head ,8-18 x 0 .375 ,cup point
29 131666942 Console,frame ,white ,w/trim & tape
35 # 131243200 Switch,xrinse/temp/bzr ,2 position ,(2)
38 # 5303210285 Buzzer
53 134086812 Panel,dryer top ,white ,stackable
11/02 8
Publication No. GLEQ332AS2
5995381679

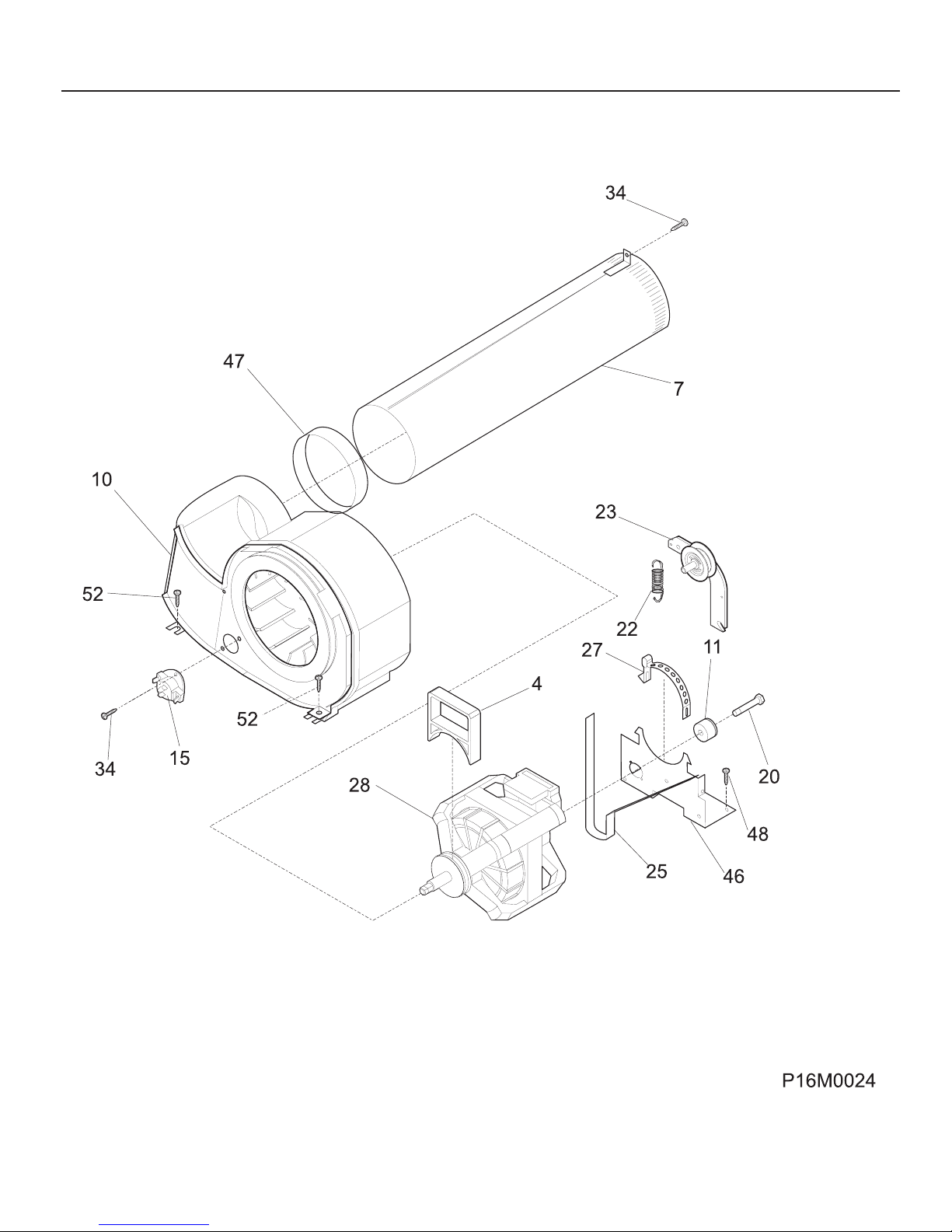

MOTOR
# = Fast-moving Parts 9 11/02
* = Non-Illustrated Parts
GLEQ332AS2 Publication No.
5995381679
MOTOR
POS. NO PART NO DESCRIPTION
4 131435200 Lock,blower housing
7 131451600 Tube,exhaust ,rear ,w/mtg bracket
7* 131456800 Tube,exhaust ,side/bottom ,Optional Kit
10 # 131775600 Housing,blower assy ,cover & wheel
11 131749800 Spacer,idler
15 # 134048800 Thermostat,control
20 131017900 Screw,hex head ,1/4-20T x 1.25 ,spacer mtg.,thread cutting
22 131601000 Spring,idler arm
23 # 131863000 Idler Arm
25 # 134163400 Belt
27 131419800 Clamp,motor mtg.
28 # 131560100 Motor,main drive ,w/pulley
34 131243700 Screw,pan head ,8-18AB x 0.375 ,cr/sq drive
46 131601100 Bracket,motor mtg.
47 131633300 Seal,exhaust tube
48 131168200 Screw,pan head ,8-18B x 0.31
52 131303100 Screw,hex washer head ,10-16AB x 0.625
11/02 10
Publication No. GLEQ332AS2
5995381679
WIRING DIAGRAM
