Frigidaire GLEQ642CA Manuale utente

ELECTRIC

DRYER

Model No.

GLEQ642CA

FACTORY PARTS CATALOG

DRYER

WIRING DIAGRAM - # 134064800

OWNER’S GUIDE - # 131679000

INSTALLATION INSTRUCTIONS - # 134198100

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

GLEQ642CAS2 GLEQ642CA Frig Canada white 240

MARKET

Canada

Publication No.

5995381463

021113

-EN/SERVICE /ECL

361

11/02 2

Publication No. GLEQ642CAS2

5995381463

CABINET/DRUM

# = Fast-moving Parts 3 11/02

* = Non-Illustrated Parts

GLEQ642CAS2 Publication No.

5995381463

CABINET/DRUM

POS. NO PART NO DESCRIPTION

2 131168200 Screw,pan head ,8-18B x 0.31

4 131785200 Bracket,elec power cord ,knock out

5 5303281019 Ball

6 5303281020 Clip,ball ,steel ,flat nut

7 134121200 Rack,drying

9 131793201 Panel,access ,rear

11 5303211428 Cover,terminal block

12 131825900 Bearing,drum support

13 131724300 Bracket,bearing support

14 131205400 Screw,bracket mtg. ,10-16B x 1.375 ,cr/sq drive

15 # 131553900 Heater Assy,w/housing/felt

17 3204254 Baffle,heater shield

18 131477000 Screw,shaft/baffle mt ,10-16AB x 0.375 ,special

19 131205300 Screw,10-16 x 0.750

20 131469100 Bracket,hinge ,rear ,top panel mtg.

21 134122532 Drum,dryer ,galvanized stl. ,service kit

24 131963900 Glide,drum

25 5303015671 Screw,hex washer head ,8-18 x 0 .375 ,cup point

29 131382300 Screw,quadrex head ,10-14 x 1.00 ,vane mtg.,special

30 5303201200 Vane,straight

31 # 5303270977 Power Cord,electric svce ,4-wire Canada

* 5303297892 Clamp,strain relief ,power cord ,power cord

32 131777700 Shaft,drum support ,ballhitch

* 5303307893 Lubricant,high temp

33 # 3204267 Thermostat,safety

34 131243700 Screw,pan head ,8-18AB x 0.375 ,cr/sq drive

35 131892100 Screw,6-20B x 0.230

36 # 134120900 Thermal Limiter

42 134154100 Screw,hex washer head ,10-32 x 0.375 ,ground

44 134158000 Screw,leveling leg

51 131472100 Insulator,heater housing

52 # 134101400 Terminal Block,main

* # 134110500 Wiring Harness,main

52A 3202786 Terminal Block,heater housing

64 131704600 Clip

* 5303937141 Stacking Kit,washer/dryer

* # 5303281153 Rear Bearing Kit,includes 5,6 ,12,13,14,18,32

11/02 4

Publication No. GLEQ642CAS2

5995381463

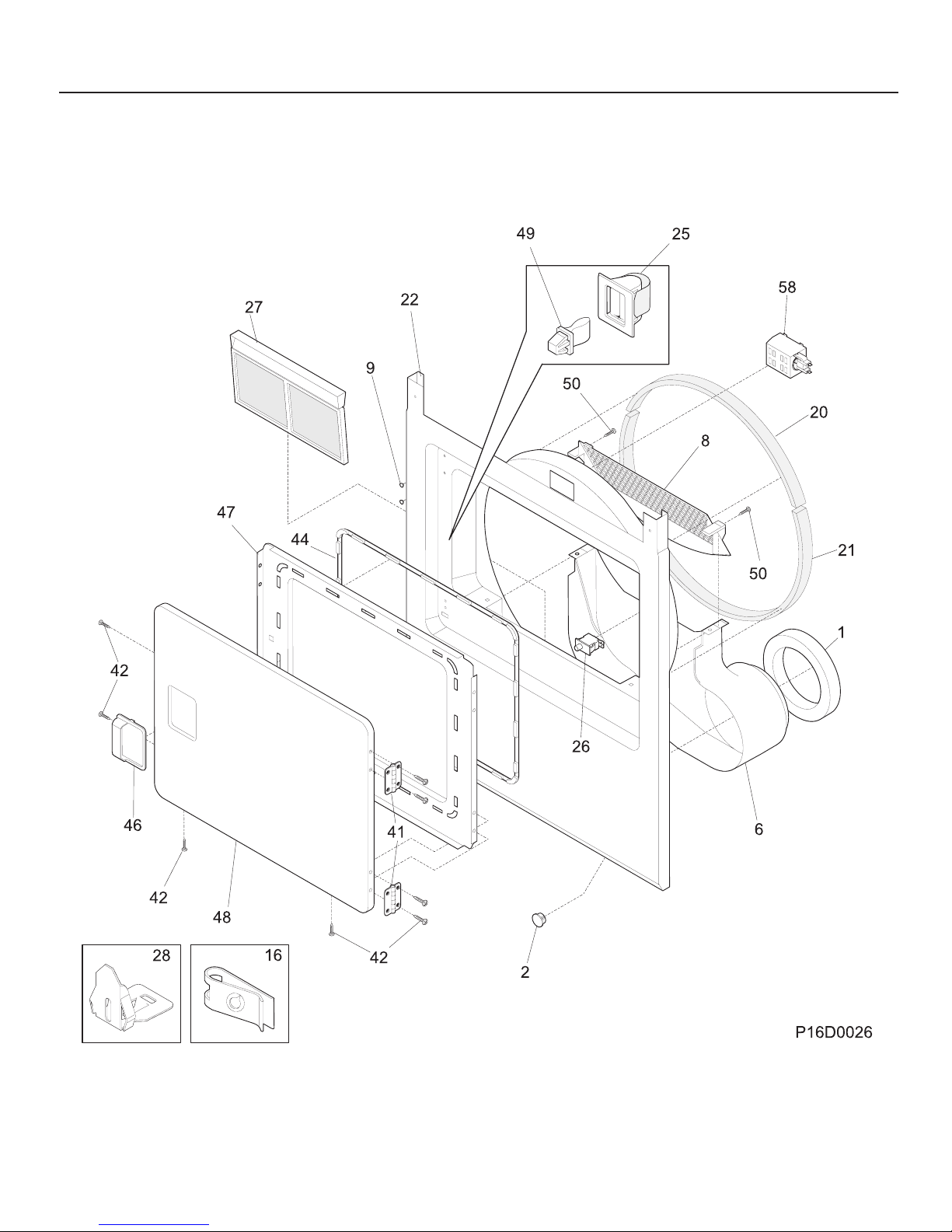

FRONT PANEL/LINT FILTER

# = Fast-moving Parts 5 11/02

* = Non-Illustrated Parts

GLEQ642CAS2 Publication No.

5995381463

FRONT PANEL/LINT FILTER

POS. NO PART NO DESCRIPTION

1 134063300 Seal,air duct

2 131397000 Plug,dome ,white

6 131621900 Duct,air

8 # 131845801 Cover,lint housing ,w/moist sensor

8* # 131657500 • Wiring Harness,moisture sensor

9 131633200 Plug,white

16 131063700 Clip,wiring

20 134036400 Seal,felt ,upper

* 5308027429 Adhesive,high temp

21 134134700 Seal,felt ,lower

22 131845902 Panel,stacking ,white ,front ,with lamp hole

25 131658800 Door Catch

26 # 131843101 Switch,door ,with drum light

27 131450300 Trap,lint blade assy

28 5303281074 Clip,guide ,(3)

41 131627500 Hinge,door

42 131209600 Screw,flat head ,8-18AB x 0.44 ,cr/sq drive

44 131129900 Gasket,door seal

46 131644700 Handle,door ,white

47 131844104 Panel,inner door ,white

48 131789303 Panel,outer door ,white

49 5303211430 Door Strike

50 131303300 Screw,pan head lock ,10-16AB x 0.500

58 # 131843500 Lamp Assy,drum light

58*# 131862800 • Lamp

* 131474700 Insulation

11/02 6

Publication No. GLEQ642CAS2

5995381463

CONTROLS/TOP PANEL

# = Fast-moving Parts 7 11/02

* = Non-Illustrated Parts

GLEQ642CAS2 Publication No.

5995381463

CONTROLS/TOP PANEL

POS. NO PART NO DESCRIPTION

1 # 131930600 Timer

4 134042800 Knob,rotary ,white

7 3205821 Clip,top-to-front

10 # 131447800 Switch,start ,turn type

11 131587400 Bracket,pc board mtg. ,(2)

12 # 131620200 Control Board,moisture sensor

15 # 131641900 Switch,temperature ,4 posn rotary

16 134034300 Screw,pan hd phillips ,8-18B x 0.250

17 134064501 Bracket,control mtg.

21 134042600 Knob,timer ,white/gray

23 # 134064600 Wiring Harness,controls

* # 134110500 Wiring Harness,main

29 131666943 Console,frame ,white ,w/trim & tape

32 # 134040800 Switch,on/off ,round

35 # 131243200 Switch,xrinse/temp/bzr ,2 position ,(2)

38 # 131959200 Beeper,continuous ,low tone

53 134086812 Panel,dryer top ,white ,stackable

11/02 8

Publication No. GLEQ642CAS2

5995381463

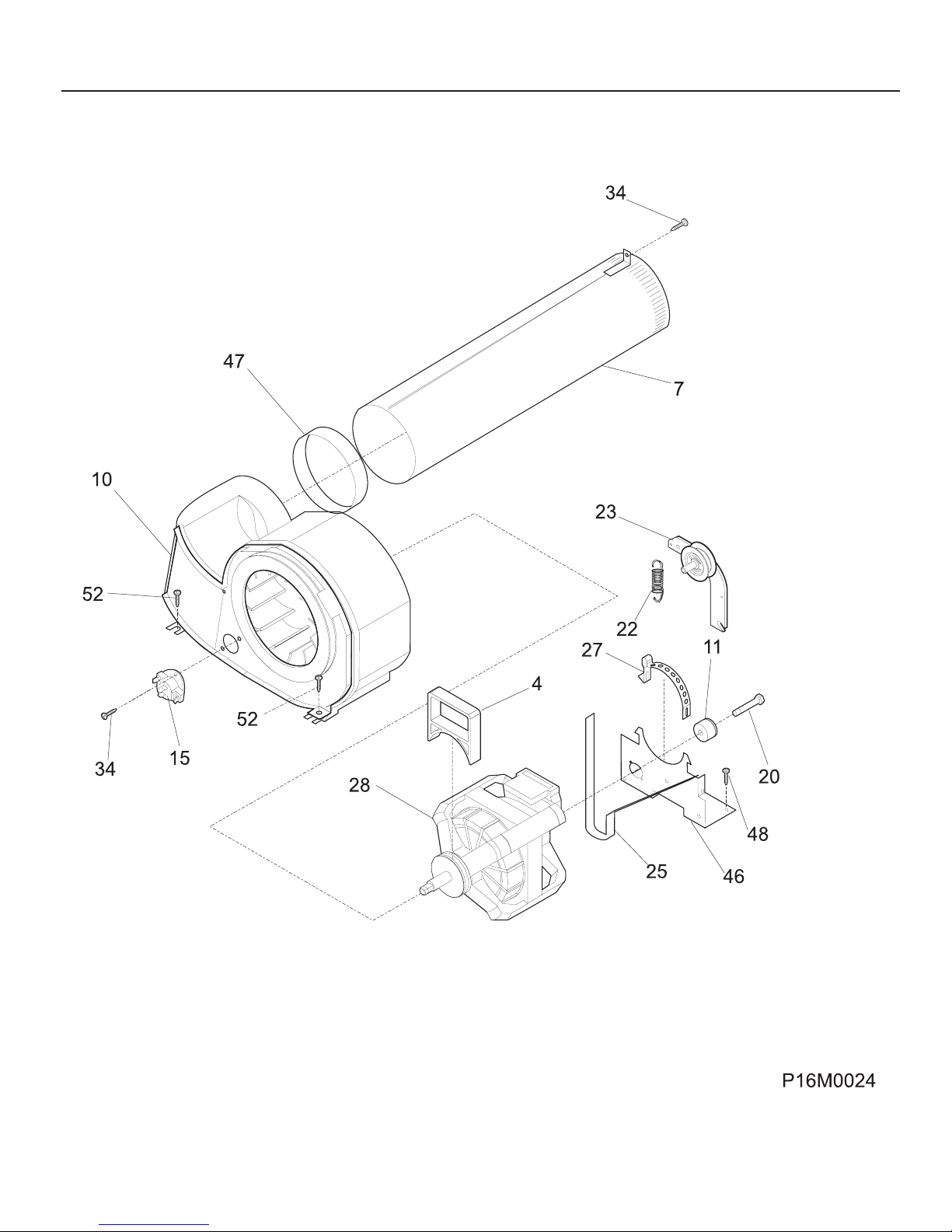

MOTOR

# = Fast-moving Parts 9 11/02

* = Non-Illustrated Parts

GLEQ642CAS2 Publication No.

5995381463

MOTOR

POS. NO PART NO DESCRIPTION

4 131435200 Lock,blower housing

7 131451600 Tube,exhaust ,rear ,w/mtg bracket

7* 131456800 Tube,exhaust ,side/bottom ,Optional Kit

10 # 131775600 Housing,blower assy ,cover & wheel

11 131749800 Spacer,idler

15 # 134048800 Thermostat,control

20 131017900 Screw,hex head ,1/4-20T x 1.25 ,spacer mtg.,thread cutting

22 131601000 Spring,idler arm

23 # 131863000 Idler Arm

25 # 134163400 Belt

27 131419800 Clamp,motor mtg.

28 # 131560100 Motor,main drive ,w/pulley

34 131243700 Screw,pan head ,8-18AB x 0.375 ,cr/sq drive

46 131601100 Bracket,motor mtg.

47 131633300 Seal,exhaust tube

48 131168200 Screw,pan head ,8-18B x 0.31

52 131303100 Screw,hex washer head ,10-16AB x 0.625

11/02 10

Publication No. GLEQ642CAS2

5995381463

WIRING DIAGRAM
