Frigidaire GLER331A Manuale utente

ELECTRIC

DRYER

Model No.

GLER331A

FACTORY PARTS CATALOG

DRYER

WIRING DIAGRAM - # 134054800

OWNER’S GUIDE - # 131883500

INSTALLATION INSTRUCTIONS - # 134198100

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

GLER331AQ2 GLER331A Frig Gallery bisque 240

GLER331AS2 GLER331A Frig Gallery white 240

MARKET

North America

Publication No.

5995381257

021111

-EN/SERVICE /KC

361

11/02 2

Publication No. GLER331A

5995381257

CABINET/DRUM

# = Fast-moving Parts 3 11/02

* = Non-Illustrated Parts

GLER331A Publication No.

5995381257

CABINET/DRUM

A = GLER331A (GLER331AQ2)

B = GLER331A (GLER331AS2)

POS. NO PART NO DESCRIPTION

2 131168200 A B Screw,pan head ,8-18B x 0.31

4 131785200 A B Bracket,elec power cord ,knock out

5 5303281019 A B Ball

6 5303281020 A B Clip,ball ,steel ,flat nut

9 131793201 A B Panel,access ,rear

11 5303211428 A B Cover,terminal block

12 131825900 A B Bearing,drum support

13 131724300 A B Bracket,bearing support

14 131205400 A B Screw,bracket mtg. ,10-16B x 1.375 ,cr/sq drive

15 # 131553900 A B Heater Assy,w/housing/felt

17 3204254 A B Baffle,heater shield

18 131477000 A B Screw,shaft/baffle mt ,10-16AB x 0.375 ,special

19 131205300 A B Screw,10-16 x 0.750

20 131469100 A B Bracket,hinge ,rear ,top panel mtg.

21 134122532 A B Drum,dryer ,galvanized stl. ,service kit

24 131963900 A B Glide,drum

25 5303015671 A B Screw,hex washer head ,8-18 x 0 .375 ,cup point

29 131382300 A B Screw,quadrex head ,10-14 x 1.00 ,vane mtg.,special

30 5303201200 A B Vane,straight

32 131777700 A B Shaft,drum support ,ballhitch

* 5303307893 A B Lubricant,high temp

33 # 3204267 A B Thermostat,safety

34 131243700 A B Screw,pan head ,8-18AB x 0.375 ,cr/sq drive

35 131892100 A B Screw,6-20B x 0.230

36 # 134120900 A B Thermal Limiter

42 131209600 A B Screw,flat head ,8-18AB x 0.44 ,cr/sq drive

44 134158000 A B Screw,leveling leg

51 131472100 A B Insulator,heater housing

52 # 134101400 A B Terminal Block,main

52A 3202786 A B Terminal Block,heater housing

64 131704600 A B Clip

* # 5303281153 A B Rear Bearing Kit,includes 5,6 ,12,13,14,18,32

11/02 4

Publication No. GLER331A

5995381257

FRONT PANEL/LINT FILTER

# = Fast-moving Parts 5 11/02

* = Non-Illustrated Parts

GLER331A Publication No.

5995381257

FRONT PANEL/LINT FILTER

A = GLER331A (GLER331AQ2)

B = GLER331A (GLER331AS2)

POS. NO PART NO DESCRIPTION

1 134063300 A B Seal,air duct

2 131397002 A - Plug,dome ,bisque

2 131397000 - B Plug,dome ,white

6 131621900 A B Duct,air

8 131622202 A B Cover,lint housing

9 131633202 A - Plug,bisque

9 131633200 - B Plug,white

16 131063700 A B Clip,wiring

20 134036400 A B Seal,felt ,upper

* 5308027429 A B Adhesive,high temp

21 134134700 A B Seal,felt ,lower

22 131845915 A - Panel,front ,bisque ,w/light hole

22 131845912 - B Panel,front ,white ,w/light hole

* 131870700 A B Plug,light hole

25 131658800 A B Door Catch

26 # 131843100 A B Switch,door ,w/o drum light

27 131450300 A B Trap,lint blade assy

28 5303281074 A B Clip,guide ,(3)

41 131627500 A B Hinge,door

42 131209600 A B Screw,flat head ,8-18AB x 0.44 ,cr/sq drive

44 131129900 A B Gasket,door seal

46 131644702 A - Handle,door ,bisque

46 131644700 - B Handle,door ,white

47 131844104 A B Panel,inner door ,white

48 131789305 A - Panel,outer door ,bisque

48 131789303 - B Panel,outer door ,white

49 5303211430 A B Door Strike

50 131303300 A B Screw,pan head lock ,10-16AB x 0.500

* 131474700 A B Insulation

11/02 6

Publication No. GLER331A

5995381257

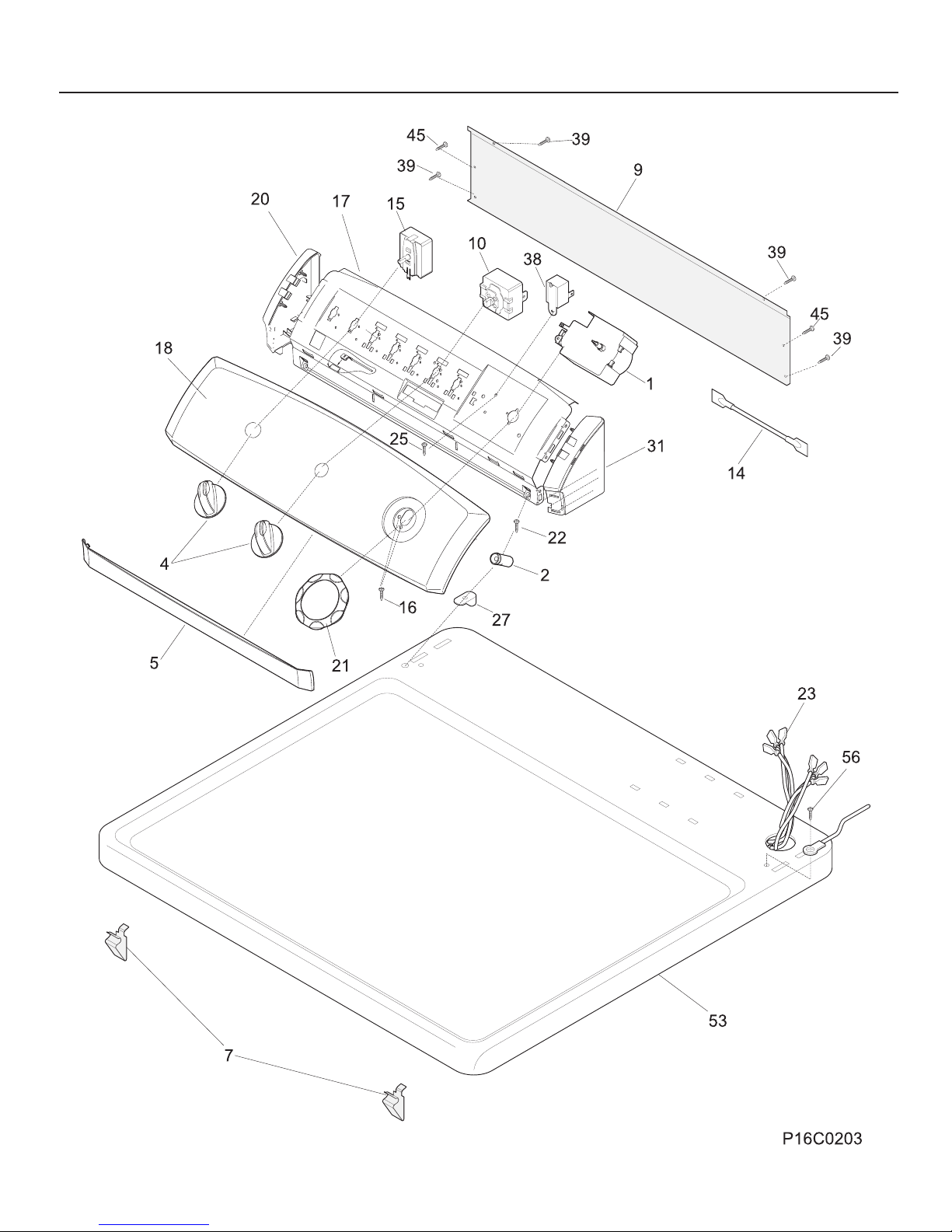

CONTROLS/TOP PANEL

# = Fast-moving Parts 7 11/02

* = Non-Illustrated Parts

GLER331A Publication No.

5995381257

CONTROLS/TOP PANEL

A = GLER331A (GLER331AQ2)

B = GLER331A (GLER331AS2)

POS. NO PART NO DESCRIPTION

1 131719100 A B Timer,dryer

2 134096100 A B Spacer,console mtg

4 134034901 A - Knob,rotary ,bisque

4 134034900 - B Knob,rotary ,white

5 134019910 A - Closure,console trim ,bisque ,front

5 134019900 - B Closure,console trim ,white ,front

7 3205821 A B Clip,top-to-front

9 131992900 A B Panel,backsheet ,console

10 # 131447800 A B Switch,start ,turn type

14 # 3205243 A B Resistor,power ,4.4 kilohm ,with terminal

15 # 131259200 A B Switch,temperature

16 134034300 A B Screw,pan hd phillips ,8-18B x 0.250

17 131993010 A B Bracket,control mtg.

18 134161800 A - Panel,trimplate ,bisque ,console front

18 134152400 - B Panel,trimplate ,white ,console front

20 134019611 A - End Cap,bisque ,LH

20 134019610 - B End Cap,white ,LH

21 134035501 A - Knob,timer ,bisque/brown

21 134035500 - B Knob,timer ,white/gray

22 131266300 A B Screw,cr oval head ,8-18AB x 1.250 ,black

23 # 134109500 A B Wiring Harness

25 5303015671 A B Screw,hex washer head ,8-18 x 0 .375 ,cup point

27 131197000 A B Clip,console mtg

31 134019601 A - End Cap,bisque ,RH

31 134019600 - B End Cap,white ,RH

38 # 5303210285 A B Buzzer

39 131168200 A B Screw,pan head ,8-18B x 0.31

45 131205100 A B Screw,#8 pan head ,10-10B x 0.500 ,cr/sq drive

53 134086804 A - Panel,dryer top ,bisque ,console mtg

53 134086802 - B Panel,dryer top ,white ,console mtg

56 131243800 A B Screw,pan hd locking ,8-32CA x 0.375 ,brkt-to-top pnl

11/02 8

Publication No. GLER331A

5995381257

MOTOR

# = Fast-moving Parts 9 11/02

* = Non-Illustrated Parts

GLER331A Publication No.

5995381257

MOTOR

A = GLER331A (GLER331AQ2)

B = GLER331A (GLER331AS2)

POS. NO PART NO DESCRIPTION

4 131435200 A B Lock,blower housing

7 131451600 A B Tube,exhaust ,rear ,w/mtg bracket

7* 131456800 A B Tube,exhaust ,side/bottom ,Optional Kit

10 # 131775600 A B Housing,blower assy ,cover & wheel

11 131749800 A B Spacer,idler

15 # 131298300 A B Thermostat,temp control

20 131017900 A B Screw,hex hd ,1/4-20T x 1.25 ,spacer mtg.,thread cutting

22 131601000 A B Spring,idler arm

23 # 131863000 A B Idler Arm

25 # 134163400 A B Belt

27 131419800 A B Clamp,motor mtg.

28 # 131560100 A B Motor,main drive ,w/pulley

34 131243700 A B Screw,pan head ,8-18AB x 0.375 ,cr/sq drive

46 131601100 A B Bracket,motor mtg.

47 131633300 A B Seal,exhaust tube

48 131168200 A B Screw,pan head ,8-18B x 0.31

52 131303100 A B Screw,hex washer head ,10-16AB x 0.625

11/02 10

Publication No. GLER331A

5995381257

WIRING DIAGRAM
