Frigidaire GLGQ642A Manuale utente
GAS
DRYER
Model No.
GLGQ642A
©2002 Electrolux Home Products, Inc.
All rights reserved
FACTORY PARTS CATALOG
DRYER
WIRING DIAGRAM - # 134064800
OWNER’S GUIDE - # 131883500
INSTALLATION INSTRUCTIONS - # 134198100
ELECTROLUX HOME PRODUCTS, INC.
P.O. BOX 212378, Augusta, GA 30917
PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
GLGQ642AS2 GLGQ642A Gallery white 120
MARKET
North America
Publication No.
5995380994
021106
-EN/SERVICE /ECL
361
11/02 2
Publication No. GLGQ642AS2
5995380994

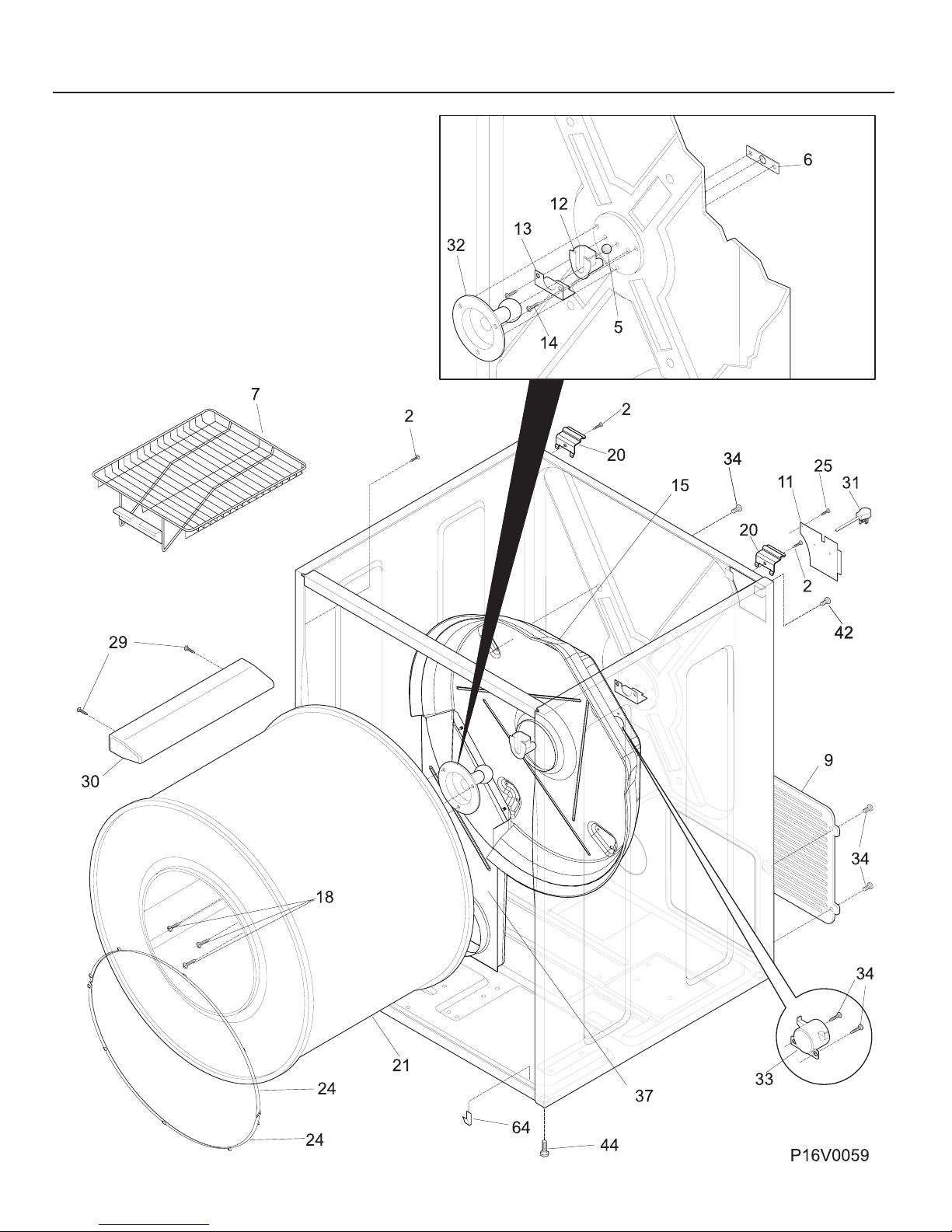

CABINET/DRUM
# = Fast-moving Parts 3 11/02
* = Non-Illustrated Parts
GLGQ642AS2 Publication No.
5995380994
CABINET/DRUM
POS. NO PART NO DESCRIPTION
2 131168200 Screw,pan head ,8-18B x 0.31
5 5303281019 Ball
6 5303281020 Clip,ball ,steel ,flat nut
7 134121200 Rack,drying
9 131793201 Panel,access ,rear
11 131363200 Cover,terminal block
12 131825900 Bearing,drum support
13 131724300 Bracket,bearing support
14 131205400 Screw,bracket mtg. ,10-16B x 1.375 ,cr/sq drive
15 # 131600500 Housing,gas heater assy ,w/seal
18 131477000 Screw,shaft/baffle mt ,10-16AB x 0.375 ,special
20 131469100 Bracket,hinge ,rear ,top panel mtg.
21 134122532 Drum,dryer ,galvanized stl. ,service kit
24 131963900 Glide,drum
25 5303015671 Screw,hex washer head ,8-18 x 0 .375 ,cup point
29 131382300 Screw,quadrex head ,10-14 x 1.00 ,vane mtg.,special
30 5303201200 Vane,straight
31 # 134102200 Power Cord,electric svce
32 131777700 Shaft,drum support ,ballhitch
32* 5303307893 Lubricant,high temp
33 # 5308015399 Thermostat,safety
34 131243700 Screw,pan head ,8-18AB x 0.375 ,cr/sq drive
37 131952100 Duct,heat
42 131209600 Screw,flat head ,8-18AB x 0.44 ,cr/sq drive
44 134158000 Screw,leveling leg
64 131704600 Clip
* 5303937141 Stacking Kit,washer/dryer
* # 5303281153 Rear Bearing Kit,includes 5,6 ,12,13,14,18,32
11/02 4
Publication No. GLGQ642AS2
5995380994

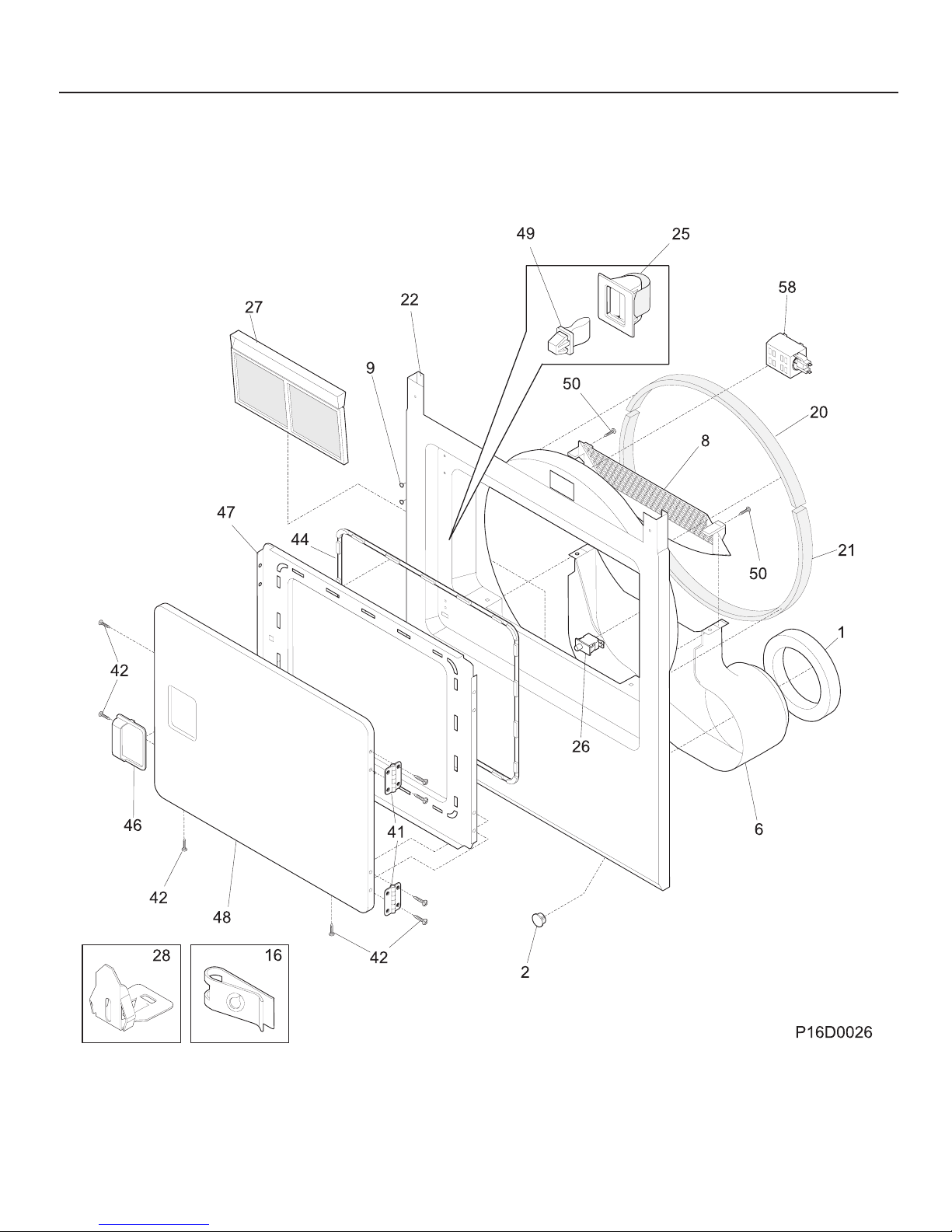

FRONT PANEL/LINT FILTER
# = Fast-moving Parts 5 11/02
* = Non-Illustrated Parts
GLGQ642AS2 Publication No.
5995380994
FRONT PANEL/LINT FILTER
POS. NO PART NO DESCRIPTION
1 134063300 Seal,air duct
2 131397000 Plug,dome ,white
6 131621900 Duct,air
8 # 131845801 Cover,lint housing ,w/moist sensor
8* # 131657500 • Wiring Harness,moisture sensor
9 131633200 Plug,white
16 131063700 Clip,wiring
20 134036400 Seal,felt ,upper
* 5308027429 Adhesive,high temp
21 134134700 Seal,felt ,lower
22 131845902 Panel,stacking ,white ,front ,with lamp hole
25 131658800 Door Catch
26 # 131843101 Switch,door ,with drum light
27 131450300 Trap,lint blade assy
28 5303281074 Clip,guide ,(3)
41 131627500 Hinge,door
42 131209600 Screw,flat head ,8-18AB x 0.44 ,cr/sq drive
44 131129900 Gasket,door seal
46 131644700 Handle,door ,white
47 131844104 Panel,inner door ,white
48 131789303 Panel,outer door ,white
49 5303211430 Door Strike
50 131303300 Screw,pan head lock ,10-16AB x 0.500
58 # 131843500 Lamp Assy,drum light
58*# 131862800 • Lamp
* 131474700 Insulation
11/02 6
Publication No. GLGQ642AS2
5995380994

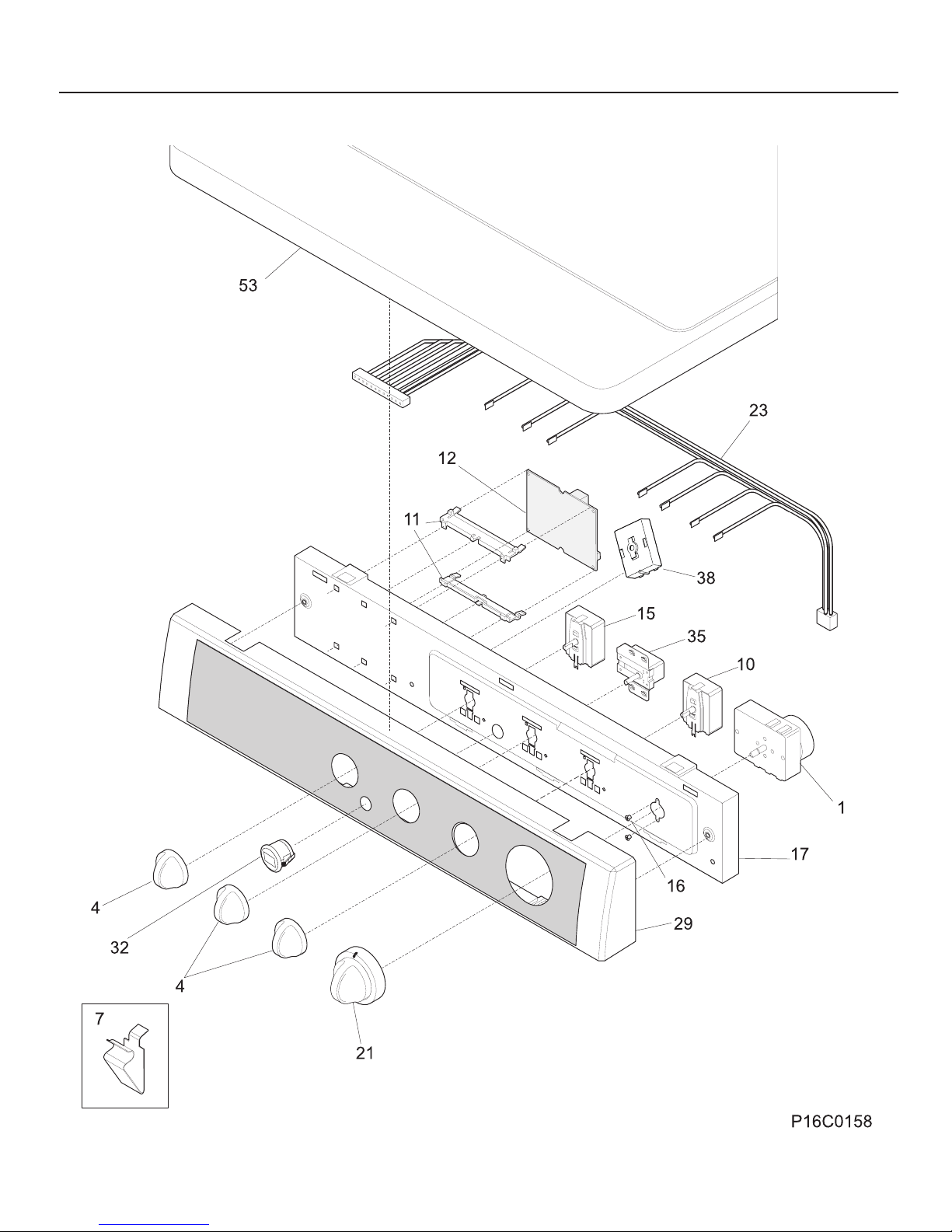

CONTROLS/TOP PANEL
# = Fast-moving Parts 7 11/02
* = Non-Illustrated Parts
GLGQ642AS2 Publication No.
5995380994
CONTROLS/TOP PANEL
POS. NO PART NO DESCRIPTION
1 # 131930600 Timer
4 134042800 Knob,rotary ,white
7 3205821 Clip,top-to-front
10 # 131447800 Switch,start ,turn type
11 131587400 Bracket,pc board mtg. ,(2)
12 # 131620200 Control Board,moisture sensor
15 # 131641900 Switch,temperature ,4 posn rotary
16 134034300 Screw,pan hd phillips ,8-18B x 0.250
17 134064501 Bracket,control mtg.
21 134042600 Knob,timer ,white/gray
23 # 134064700 Harness-cont TRH gas
* # 134006600 Wiring Harness,main
29 131666943 Asmy-cons frame/tape/trim
32 # 134040800 Switch,on/off ,round
35 # 131243200 Switch,xrinse/temp/bzr ,2 position ,(2)
38 # 131959200 Beeper,continuous ,low tone
53 134086812 Panel,dryer top ,white ,stackable
11/02 8
Publication No. GLGQ642AS2
5995380994
MOTOR
# = Fast-moving Parts 9 11/02
* = Non-Illustrated Parts
GLGQ642AS2 Publication No.
5995380994
MOTOR
POS. NO PART NO DESCRIPTION
4 131435200 Lock,blower housing
7 131451600 Tube,exhaust ,rear ,w/mtg bracket
7* 131456800 Tube,exhaust ,side/bottom ,Optional Kit
10 # 131775600 Housing,blower assy ,cover & wheel
11 131749800 Spacer,idler
15 # 134048900 Thermostat,control
20 131017900 Screw,hex head ,1/4-20T x 1.25 ,spacer mtg.,thread cutting
22 131601000 Spring,idler arm
23 # 131863000 Idler Arm
25 # 134163400 Belt
27 131419800 Clamp,motor mtg.
28 # 131560100 Motor,main drive ,w/pulley
34 131243700 Screw,pan head ,8-18AB x 0.375 ,cr/sq drive
46 131601100 Bracket,motor mtg.
47 131633300 Seal,exhaust tube
48 131168200 Screw,pan head ,8-18B x 0.31
52 131303100 Screw,hex washer head ,10-16AB x 0.625
11/02 10
Publication No. GLGQ642AS2
5995380994

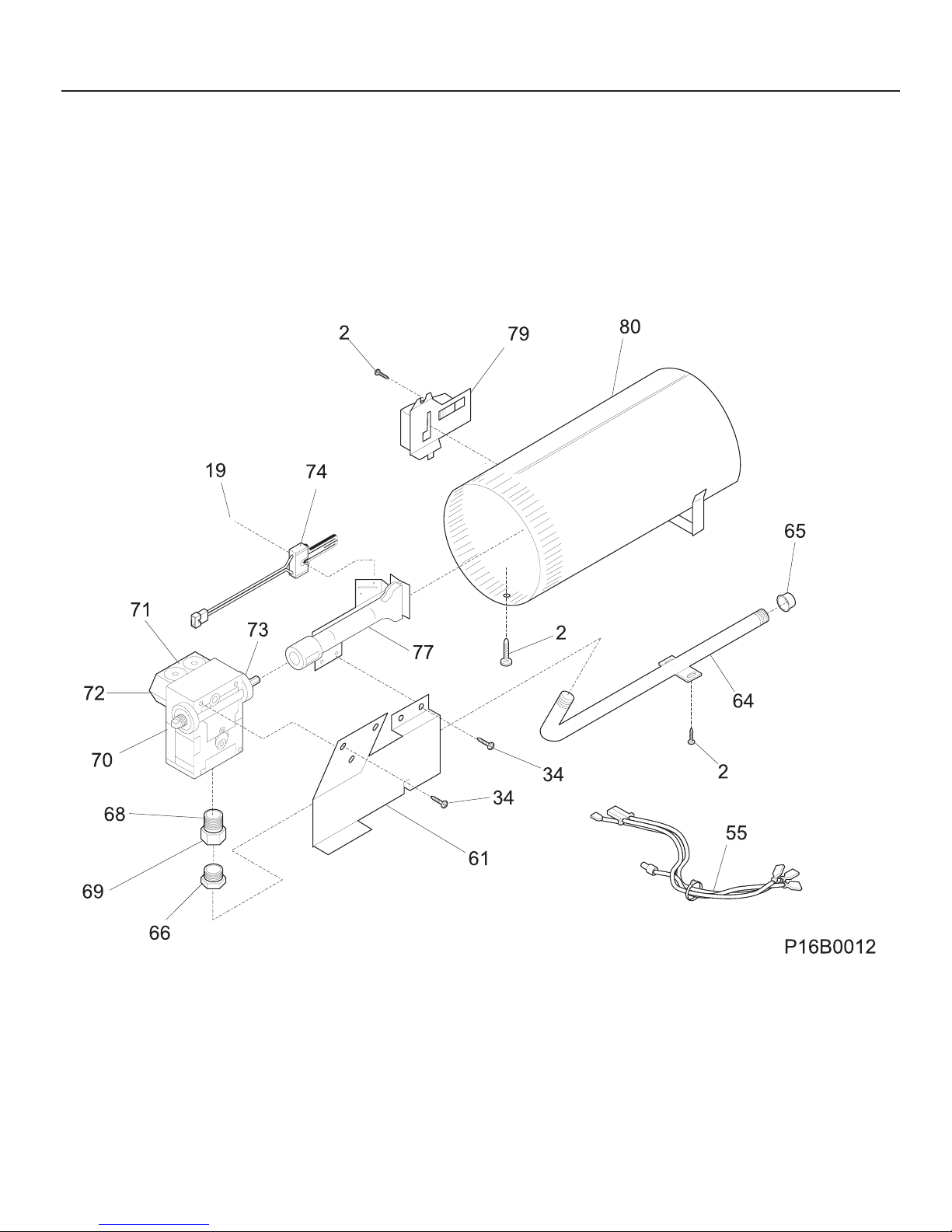

BURNER
