Frigidaire FFU17FC8CW0 Manuale utente

UPRIGHT FREEZER

Model number:

FFU17FC8CW0

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216915000

OWNER’S GUIDE - # 216802800 / ENERGY GUIDE - # 216795406

SERVICE DATA SHEET - # 216915000

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU17FC8CW0 FFU17FC8CW 134A white 115

MARKET

North America

Publication No.

5995391801

030613

-EN/SERVICE /MLR

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

06/03 2

Publication No FFU17FC8CW0

5995391801

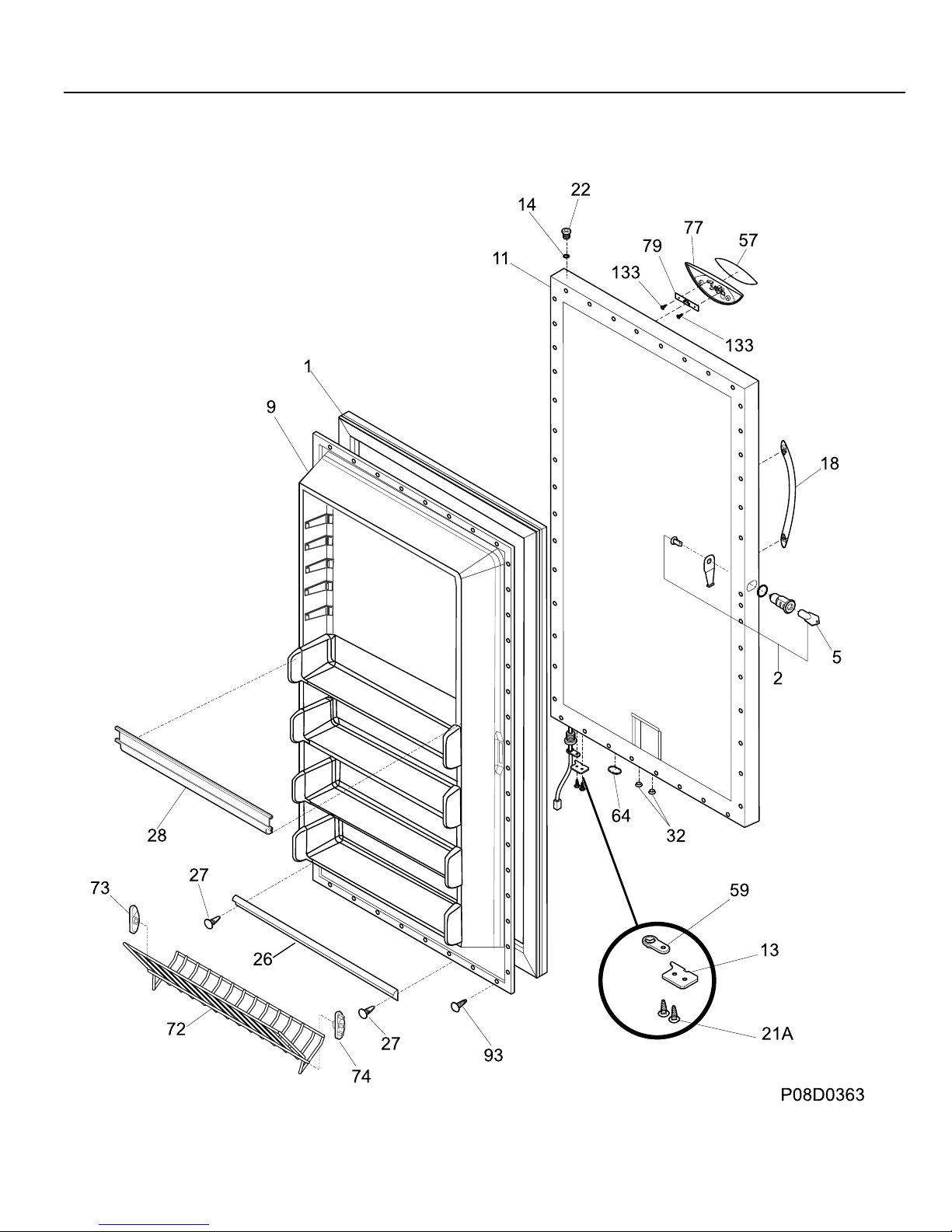

DOOR

# = Fast-moving Parts 3 06/03

* = Non-Illustrated Parts

FFU17FC8CW0 Publication No.

5995391801

DOOR

POS. NO PART NO DESCRIPTION

1 216522309 Gasket-door,white

2 5303925107 Lock Assy

5 # 216702900 Key,lock

9 216527816 Panel-inner door,frzr

11 216526531 Panel-outer door,white

13 5303271076 Door Stop

14 5303313518 Washer,sealing

18 216893400 Handle

* 218755503 Screw-shoulder,#10 AB ,handle mounting

* 5303269745 Nut-anchor,door hdl screw

21A 5303271077 Screw,flat head ,#1/4-20 ,door stop/hng

22 5303925197 Bearing,hinge ,top

26 216524200 Gasket,secondary

27 5303212828 Clip,panel mtg

28 216806100 Rack-door,contour ,(4)

32 5309950074 Valve,breather ,door base

57 216899600 Overlay

59 5303271072 Bearing-door,closer ramp

64 216403700 Plug-button,hole filler ,door base

72 216514100 Shelf,tilt out ,wire

73 216513900 End Cap,shelf ,LH ,tilt-out

74 216514000 End Cap,shelf ,RH ,tilt-out

77 216897700 Bezel

79 # 216898700 Control Board,electronic

93 5303161215 Screw,ph truss head ,8-18AB x 0.500

133 216905300 Screw,control board ,#3-24 x .25

06/03 4

Publication No FFU17FC8CW0

5995391801

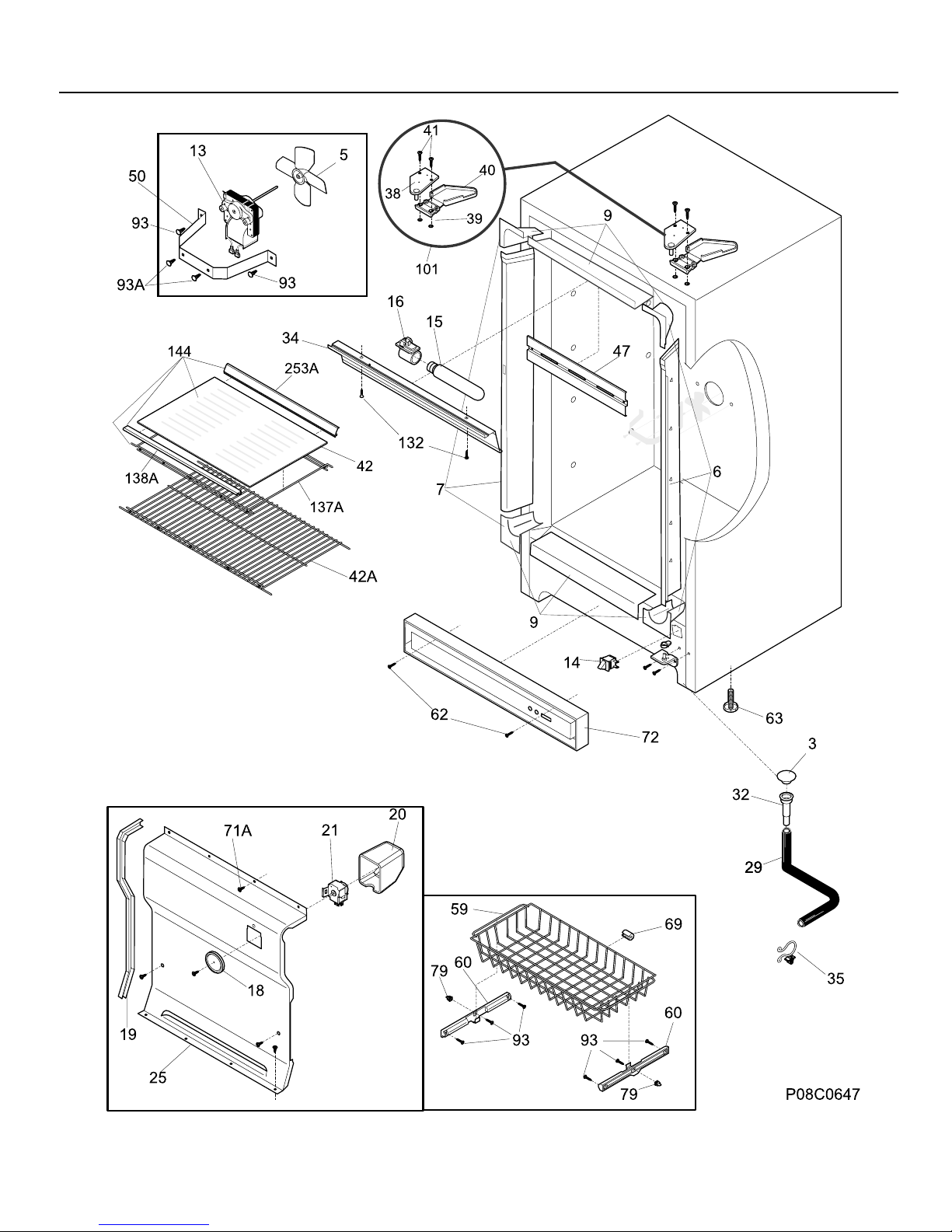

CABINET

# = Fast-moving Parts 5 06/03

* = Non-Illustrated Parts

FFU17FC8CW0 Publication No.

5995391801

POS. NO PART NO DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604200 Breaker Kit w/corners

7 216603700 Breaker Kit w/corners,lock catch

9 216603300 Breaker Kit w/corners,32" ,top or bottom

13 216822500 Motor,evaporator fan ,115 V

14 # 216822900 Switch,light/lamp ,ramp

15 216846400 Light Bulb/Lamp

16 # 216817600 Socket,light/lamp ,25 W

18 216707200 Knob,temp control

19 216204900 Gasket,evap cover

20 216230300 Cover,temp control

21 # 216844500 Control-temperature

25 216820200 Cover-evaporator

29 216313500 Hose-drain

32 5308005500 Drain

34 216816212 Shield-light

35 216629700 Clip

38 216808900 Hinge,plate ,top

39 5303294372 Nut-insert,1/4-20 UNC ,hinge

40 216809000 Cover-hinge

41 216850900 Screw,hex washer hd ,1/4 x 7/8 ,hinge mtg

42 216781700 Glass-,fixed ,full width

42A 216458200 Shelf,12.50x27.88 ,white

47 216661600 Plate,baffle ,snap fit

50 216394000 Bracket,fan motor mount

59 216372800 Basket,(2)

60 5303212693 Slide-basket,(4)

62 131420300 Screw,cr truss head ,8-18AB x 0.750

63 216396900 Screw,leveling foot ,plastic ,adjustable

69 5305878546 Bumper-basket

71A 5304416289 Screw,ph truss head ,8-18AB x 0.47 ,EVAP PANEL

72 216174000 Grille/Kickplate,white

79 3017666 Nut-insert

93 5303161215 Screw,ph truss head ,8-18AB x 0.500

93A 216629600 Screw,hex washer head ,10-16 x 0.500 ,tapping

101 216835200 Top Hinge Kit

132 5303283898 Screw,6-20AB x 3/8

137A 216781600 Frame,fixed ,full width

138A 216492200 Trim-shelf,fixed/cantil ,24.21" ,glass ,front

144 216781500 Shelf-assy,fixed,glass ,complete

253A 216492300 Trim-shelf,fixed/cantil ,24.21" ,rear

* 09948773 Insulation,drain tube

* 216502400 Grommet-shelf mtg

* 5303305324 Paint,touch-up ,white

* 216795406 Energy Guide

CABINET

06/03 6

Publication No FFU17FC8CW0

5995391801

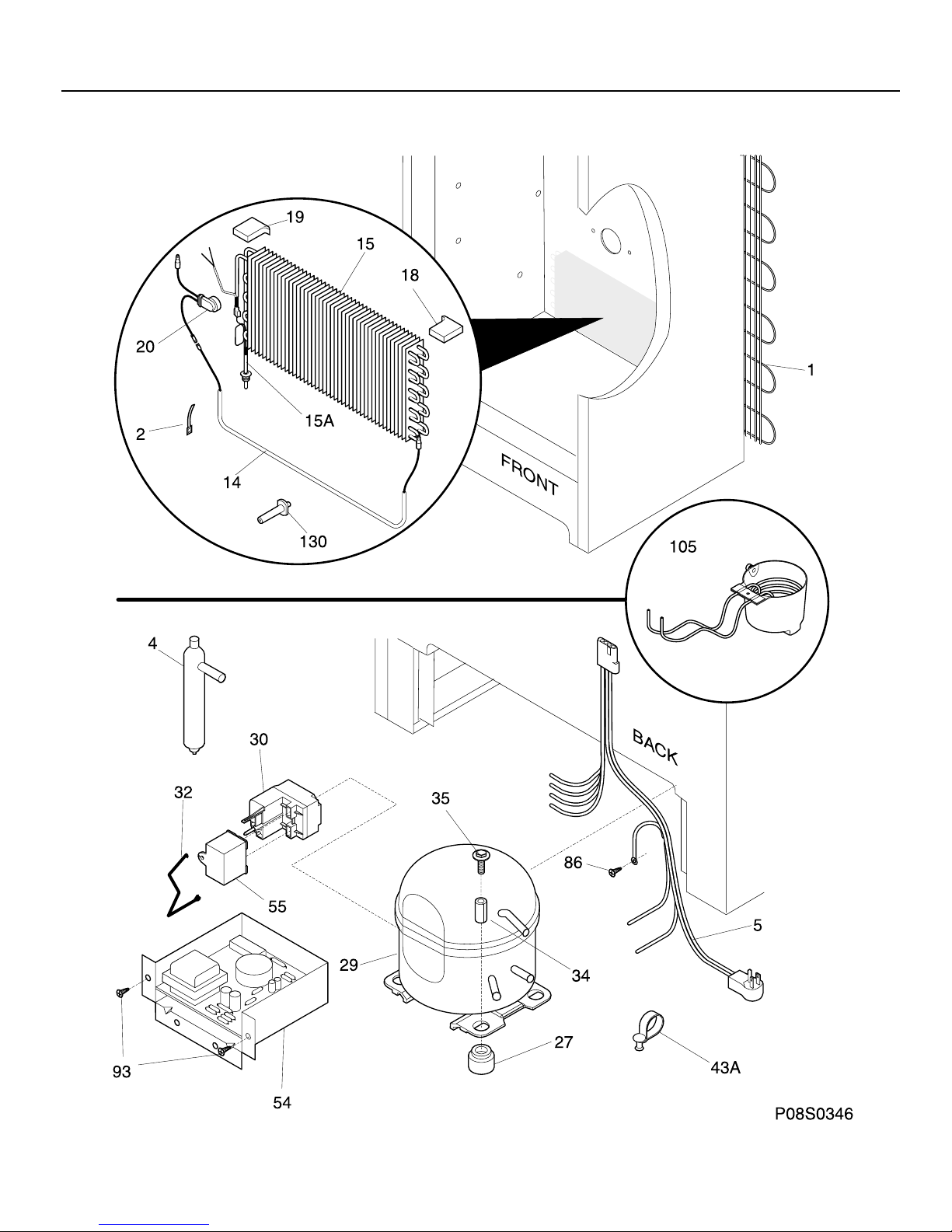

SYSTEM

# = Fast-moving Parts 7 06/03

* = Non-Illustrated Parts

FFU17FC8CW0 Publication No.

5995391801

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater,aluminum ,(2)

4 216634500 Drier-filter

5 # 216899100 Harness-main

14 # 216730700 Heater-defrost

15 # 216737300 Evaporator

15A# 216783200 Heat Exchanger,suct/cap tube

18 216727600 Insulator-evap,styrofoam

19 216727700 Insulator-evap,styrofoam

20 216731000 Thermostat,defrost

27 5308002681 Grommet,compressor

29 216851700 Compressor,w/o electricals

30 216649318 Controller

32 216649100 Clamp,elec cont mtg ,compressor

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx ,compressor

43A 216629700 Clip

54 # 216833800 Electronics,high voltage ,w/o battery

55 # 216787800 Capacitor,run ,50/60 Hz ,220 VAC ,12 microfarad

86 216036600 Screw,ph washer head ,8-32CA x 0.500 ,thread forming

93 5303161215 Screw,ph truss head ,8-18AB x 0.500

105 216854001 Cup-drain

130 216486800 Support,evaporator mtg

* 216502500 Sleeve,suction line

* 5303298960 Spacer-tube,0.237" ID
