Frigidaire FFU17G9H Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU17G9HW1 FFU17G9H 134A white 115

MARKET

North America

Publication No.

5995328266

990927

-EN/SERVICE /GS

365

FREEZER

Model No.

FFU17G9H

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216569300

OWNER’S GUIDE - # 216657700

SERVICE DATA SHEET - #216569300

101 Masters Blvd.

Anderson, SC 29624

09/99 2

Publication No. FFU17G9HW1

5995328266

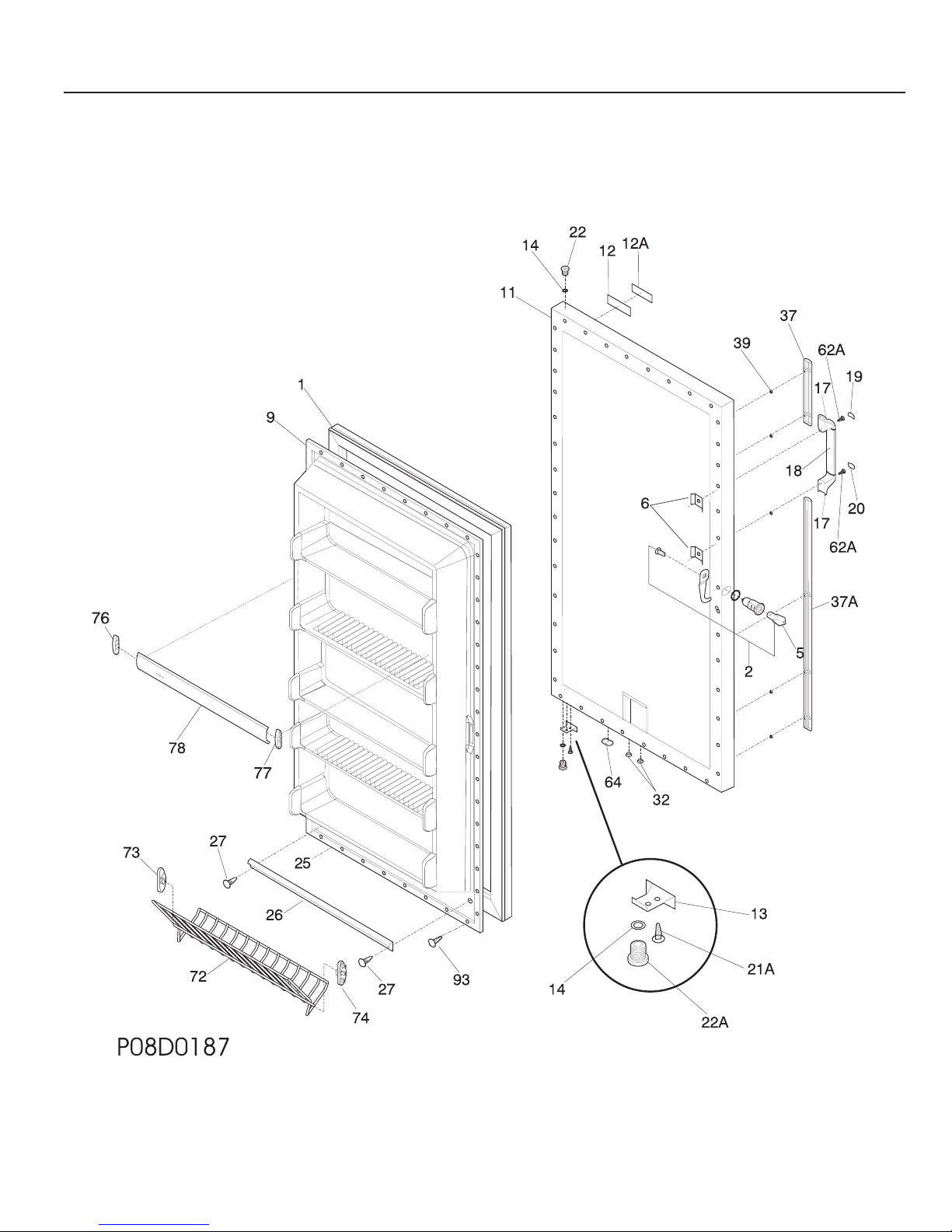

DOOR

# = Fast-moving Parts 3 09/99

* = Non-Illustrated Parts

FFU17G9HW1 Publication No.

5995328266

DOOR

POS. NO PART NO DESCRIPTION

1 216522309 Gasket-door,white

2 # 5303925107 Lock Assy

5 # 216388700 Key,lock

6 5300158222 Screw-anchor,8-18

9 216527806 Panel-inner door,white

11 5303925471 Panel-door,white

12 218364004 Frame-nameplate,white

12A 215008604 Label-nameplate,white

13 08016354 Door Stop

14 5303313518 Washer,sealing

17 216087400 End Cap,white ,(2)

18 216518000 Handle,center

19 216208900 Insert,handle top

20 216209001 Insert,handle bottom

21A 08005520 Screw-door stop mtg,flat hd metric , 4.0 x 0.7-19.7

22 216443600 Bearing

22A 216503200 Bearing-hinge,btm

25 216022800 Screw,washer head ,8-18 X 1/2

26 216524200 Gasket,secondary

27 5303212828 Clip,panel

32 5309950074 Valve-breather

37 216373300 Trim-handle,upper

37A 216087600 Trim-handle,bottom

39 08016809 Fastener,door strip

62A 131420300 Screw,cr truss head ,8-18AB x 0.750

64 216403700 Plug-button,base door

72 216514100 Shelf,tilt out ,wire

73 216513900 End Cap,tiltout ,LH

74 216514000 End Cap,tiltout ,RH

76 216521800 Support psuedo bin,LH

77 216522100 Support psuedo bin,RH

78 216579500 Rack shelf,psuedo ,32

93 5303161215 Screw

* 216485600 Label-frozen food

09/99 4

Publication No. FFU17G9HW1

5995328266

CABINET

# = Fast-moving Parts 5 09/99

* = Non-Illustrated Parts

FFU17G9HW1 Publication No.

5995328266

CABINET

POS. NO PART NO DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604200 Breaker Kit w/corners

7 216603700 Breaker Kit w/corners,lock catch

9 216603300 Breaker Kit w/corners,32" , top or bottom

13 216690400 Motor-fan

14 216472300 Switch-light plunger

15 216222700 Light Bulb/Lamp

16 5300136117 Socket-light/lamp

18 216591700 Knob-control

19 216511300 Gasket-evap cover

20 216230300 Cover,temp control

21 216521100 Control-temperature

22 05878562 Clamp,cap tube ,cold control

22A 5303916855 Tube,plastic ,clear ,sensor sleeve

23 5308002706 Light-signal,amber

24 5300052943 Screw-clamp,truss hd cr ,control

25 216665300 Cover,evaporator

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

32 5308005500 Drain

34 216557606 Shield-light

38 5303925086 Hinge-upper

39 5303294372 Nut-insert,hinge

40 5303212912 Cover-hinge

41 5303212937 Screw-top hinge

42 216458400 Shelf,14.50x27.88 ,WH

42A 216458200 Shelf,12.50x27.88 ,white

44 # 5303017178 Switch-rocker

46 08037851 Screw,PH type AB ,8-32x1/2 , wiring harness

47 216661600 Baffle-plate

50 216394000 Bracket-motor mtg fan

56 09950853 Screw-control knob,phillips ,4-40 x 3/8

59 216372800 Basket,(2)

60 5303212693 Slide-basket

63 216396900 Foot-adjustable

64 08016369 Bracket

66 # 08016367 Buzzer,alarm

69 5305878546 Bumper-basket

71A 216347500 Screw,quadrex

72 216591118 Grille/Kickplate,32"

77 # 5308037992 Sensor Assy

78 3205349 Housing-sensor

79 3017666 Nut-insert

80 06594601 Bracket,control

93 5303161215 Screw

93A 5303302760 Screw

96 08016772 Light-signal,red

108 216388600 Trap-drain

132 5303283898 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 216539100 Wiring Harness,alarm

* 5303305324 Paint,touch-up ,white

* 5303311565 Clip-cable

09/99 6

Publication No. FFU17G9HW1

5995328266

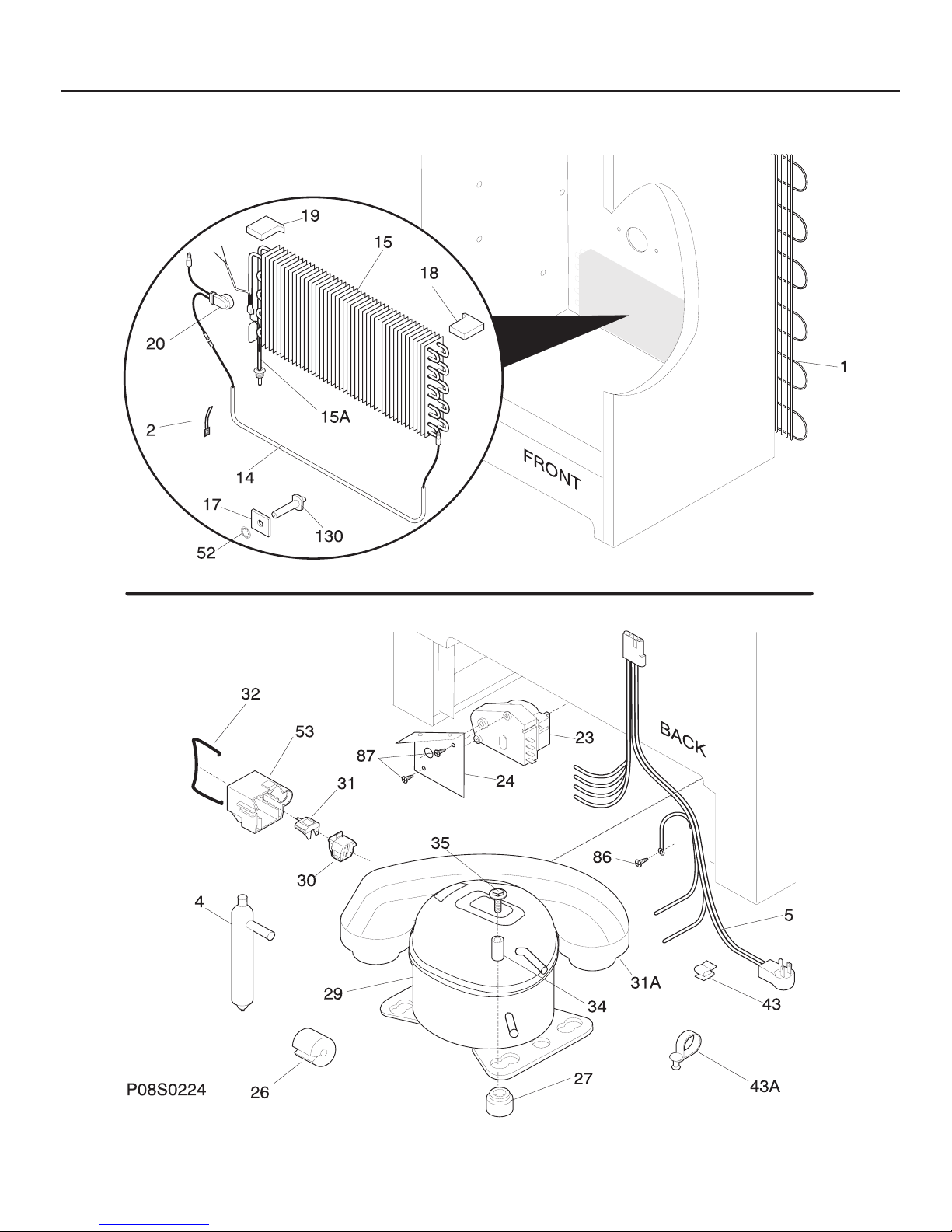

SYSTEM

# = Fast-moving Parts 7 09/99

* = Non-Illustrated Parts

FFU17G9HW1 Publication No.

5995328266

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater,aluminum ,(2)

4 216634500 Drier-filter

5 # 216578300 Wiring-electrical,main

14 216608500 Heater-defrost

15 # 216195900 Evaporator

15A# 216385200 Heat Exchanger

17 06599546 Spacer-support,evaporator ,(2)

18 06599531 Insulation Block,RH

19 3017674 Insulation Block,LH

20 5404404743 Thermostat-defrost

23 # 216517400 Timer

24 08016580 Bracket

26 216511900 Spacer tube,(3)

27 216498900 Grommet,compressor

29 216639700 Compressor,Service

30 # 216594300 Starter

31 # 216100115 Overload Protector

31A 5303925444 Pan-drain

32 5303006412 Strap-cover mtg

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx , compressor

43 09950610 Clip,cord

43A 216629700 Clip-harness

52 08013198 Retainer,spacer evap

53 08006982 Cover-terminal

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 Screw

130 06599544 Support-evaporator

09/99 8

Publication No. FFU17G9HW1

5995328266

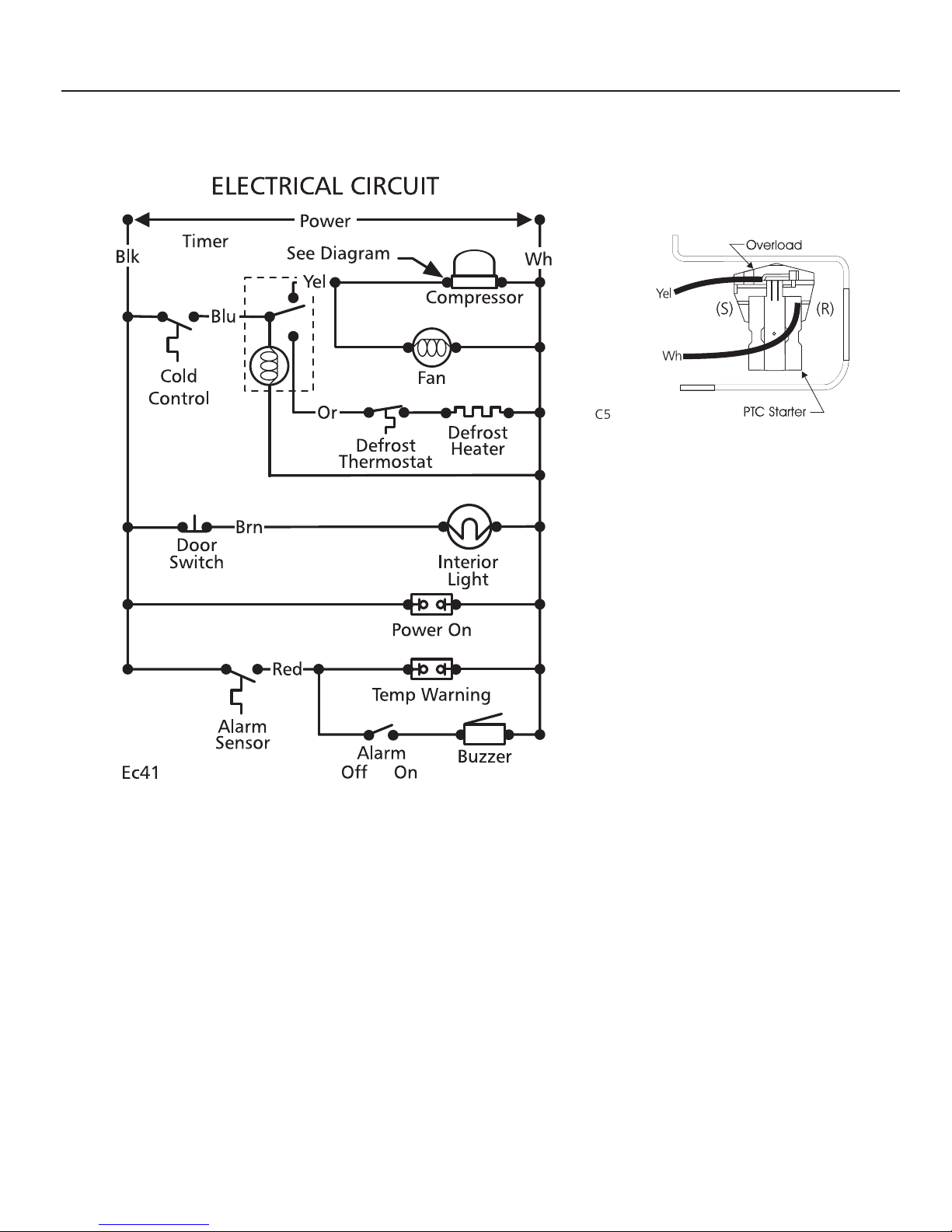

WIRING DIAGRAM
