Frigidaire FFU2067FW Manuale utente

Product No. FFU2067FW0

Series 134A

Color white

Volts 115

Wiring Diagram 297079600

Owner's Guide 297079200

Market North America

Energy Guide 216795511

P08F0078.eps P08D0473.eps P08C0879.eps P08S0397.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995463303

06/03/14

(EN/SERVICE/RLF)

365

UPRIGHT FREEZER

Model No.

FFU2067FW

Publication No: 5995463303 FFU2067FW0

03/06 2

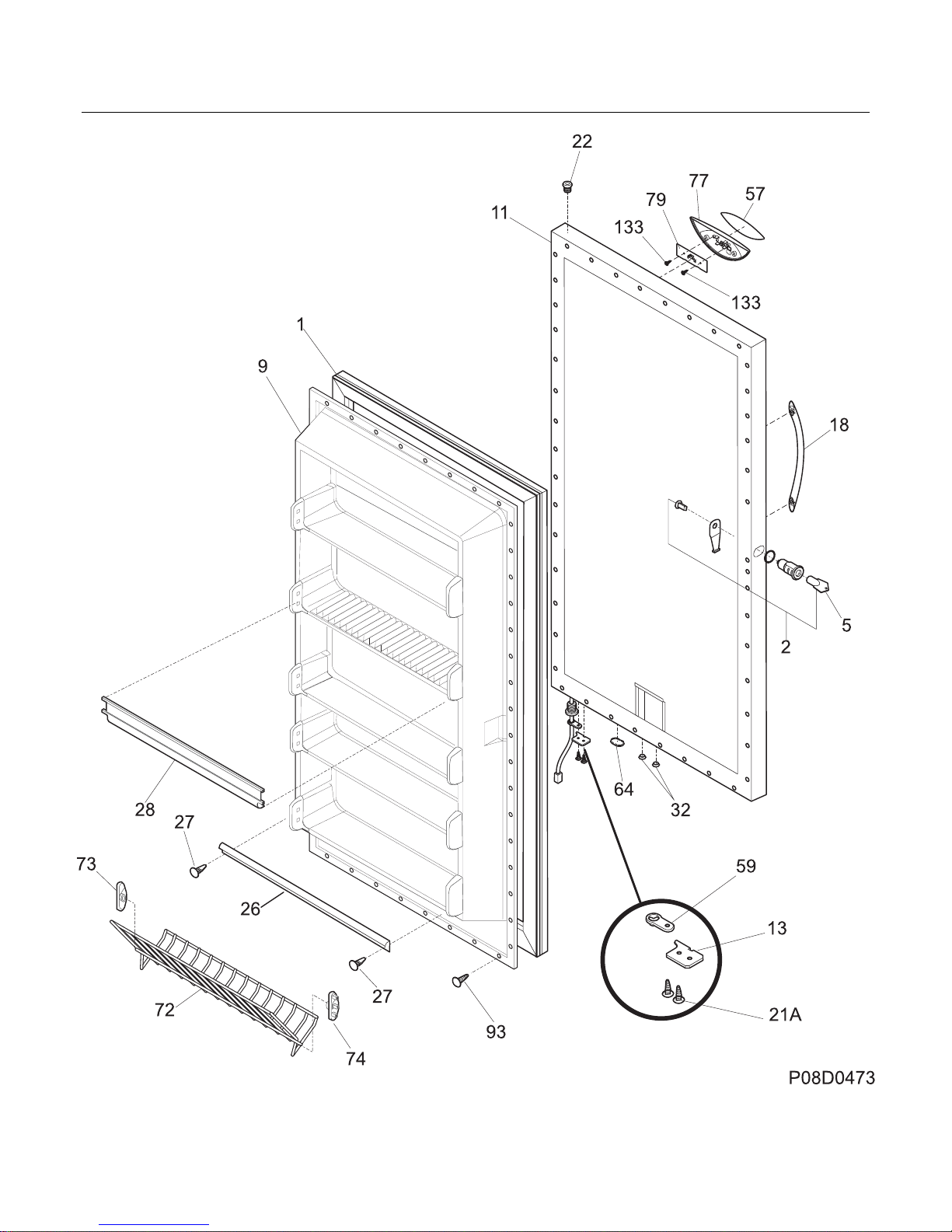

DOOR

FFU2067FW0 Publication No: 5995463303

# Functional Parts 3 03/06

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522312 Gasket-door, white

2 5303925107 Lock Assy

5 # 216702900 Key, lock

9 216528113 Panel-inner door, frzr

11 216531255 Panel-outer door, white

13 5303271076 Door Stop

18 216921200 Handle, white

* 216932500 Nut, flange locking, handle

* 297048000 Screw, anchor, #8, white

21A 5303271077 Screw, flat head, #1/4-20, door stop/hng

22 216970800 Bearing, hinge w/o'ring, top

26 216524200 Gasket, secondary

27 5303212828 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

28 216806100 Rack-door, contour, (4)

32 5309950074 Valve, breather, door base

57 297072600 Overlay

59 216974500 Bearing, door closer

64 216403700 Plug-button, hole filler, door base

72 216514100 Shelf, tilt out, wire, (2)

73 216513900 End Cap, shelf, LH, (2), tilt-out

74 216514000 End Cap, shelf, RH, (2), tilt-out

77 297072500 Bezel

79 # 216944300 Control Board, digital

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

133 216905300 Screw, control board, #3-24 x .25, (3)

Publication No: 5995463303 FFU2067FW0

03/06 4

CABINET

FFU2067FW0 Publication No: 5995463303

# Functional Parts 5 03/06

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604100 Breaker Kit w/corners

7 216603600 Breaker Kit w/corners, lock catch

9 216603300 Breaker Kit w/corners, 32", top or bottom

13 # 216934100 Motor, fan, 115 V

14 216472300 Switch-light plunger

15 216988100 Light Bulb/Lamp, long, blue tint, 40 W, 120V, (2)

16 216817601 Socket, light/lamp, 25 W

19 216204901 Gasket-cover evap

25 216820301 Cover-evaporator

29 216313501 Hose-drain

32 5308005500 Drain

34 216816221 Shield-light

35 216629700 Clip

38 216939100 Hinge-upper

40 216809000 Cover-hinge

41 216936800 Screw-hinge, 12-24x.700 HWH

47 216661600 Plate, baffle, snap fit

50 216394000 Bracket, fan motor mount

59 216880100 Basket

59A 216486500 Stop-basket, (2)

59B 216826500 Basket

60 297013500 Slide, basket, (2)

62 131420300 Screw, cr truss head, 8-18AB x 0.750

63 216396900 Screw, leveling foot, plastic, adjustable

68 08009560 Glide-basket, (4)

69 5305878546 Bumper-basket, (4)

71A 216347500 Screw, quadrex, 8-32 x 0.300, grounding

72 297036900 Grille/Kickplate, 32", white

79 3017666 Nut-insert

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

93A 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

93D 216912400 Screw, hex washer head, #8-32 x .500, bracket fan mtr, (2)

132 5303283898 Screw, 6-20AB x 3/8

143 216922302 Shelf-assy, fixed, glass, (3), complete

144 216922300 Shelf-assy, fixed, glass, complete

* 216502400 Grommet-shelf mtg

156A 297071700 Divider, basket, (2)

157 297071900 Shelf, small items

* 216795511 Energy Guide

* 5303305324 Paint, touch-up, white

* 216893800 Cover, external, ICE MAKER, (2)

* 240479601 Plug, button, cab liner holes, (2)

* 241586701 Plug-foam-wtr-inlet, round

* 297001704 Insulation, 24", drain tube

* 297088700 Guide-Electronic control

Publication No: 5995463303 FFU2067FW0

03/06 6

SYSTEM

FRONT

BACK

43A

130

15A

P08S0397

31A

FFU2067FW0 Publication No: 5995463303

# Functional Parts 7 03/06

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 # 216938600 Drier-filter

5 # 297083200 Harness-main

14 # 216730700 Heater-defrost

15 # 216997300 Evaporator

15A# 216783200 Heat Exchanger, suct/cap tube

18 216727600 Insulator-evap, styrofoam

19 216727700 Insulator-evap, styrofoam

20 216872200 Thermostat, defrost

27 5308002681 Grommet, compressor

29 # 297048100 Compressor, kit w/grommets, & welded clip

30 297051000 Controller, compressor

31A 216994100 Pan-drain

32 297051100 Clamp, elec cont mtg, compressor

34 5306594529 Sleeve-compressor

35 5303272328 Screw, Ind hex sems, 1/4-28 unfx, compressor

43A 216629700 Clip

54 # 216979700 Electronics, high voltage

86 5303161215 Screw, ph truss head, 8-18AB x 0.500

93 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

130 216486800 Support, evaporator mtg

* 216502500 Sleeve, suction line

* 297014500 Plug-suction line

* 5303298960 Spacer-tube, 0.237" ID
