Frigidaire GLEH1642F Manuale utente

Product No. GLEH1642FS0

Market North America

Color white

Volts 240

Wiring Diagram 134833100

Owner's Guide 134838500

Installation Instructions 134837700

Operating Instructions 134396400

Operating Instructions 134578800

Energy Guide 134815100

P17L0011.eps P17U0049.eps P17B0051.eps P17C0080.eps P17R0018.eps P17T0060.eps

134833100-1.eps 134833100-2.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995482162

07/01/11

(EN/SERVICE/WC)

361

FRONT-LOAD

LAUNDRY CENTER

WITH ELECTRIC

DRYER

Model No.

GLEH1642F

Publication No: 5995482162 GLEH1642FS0

01/07 2

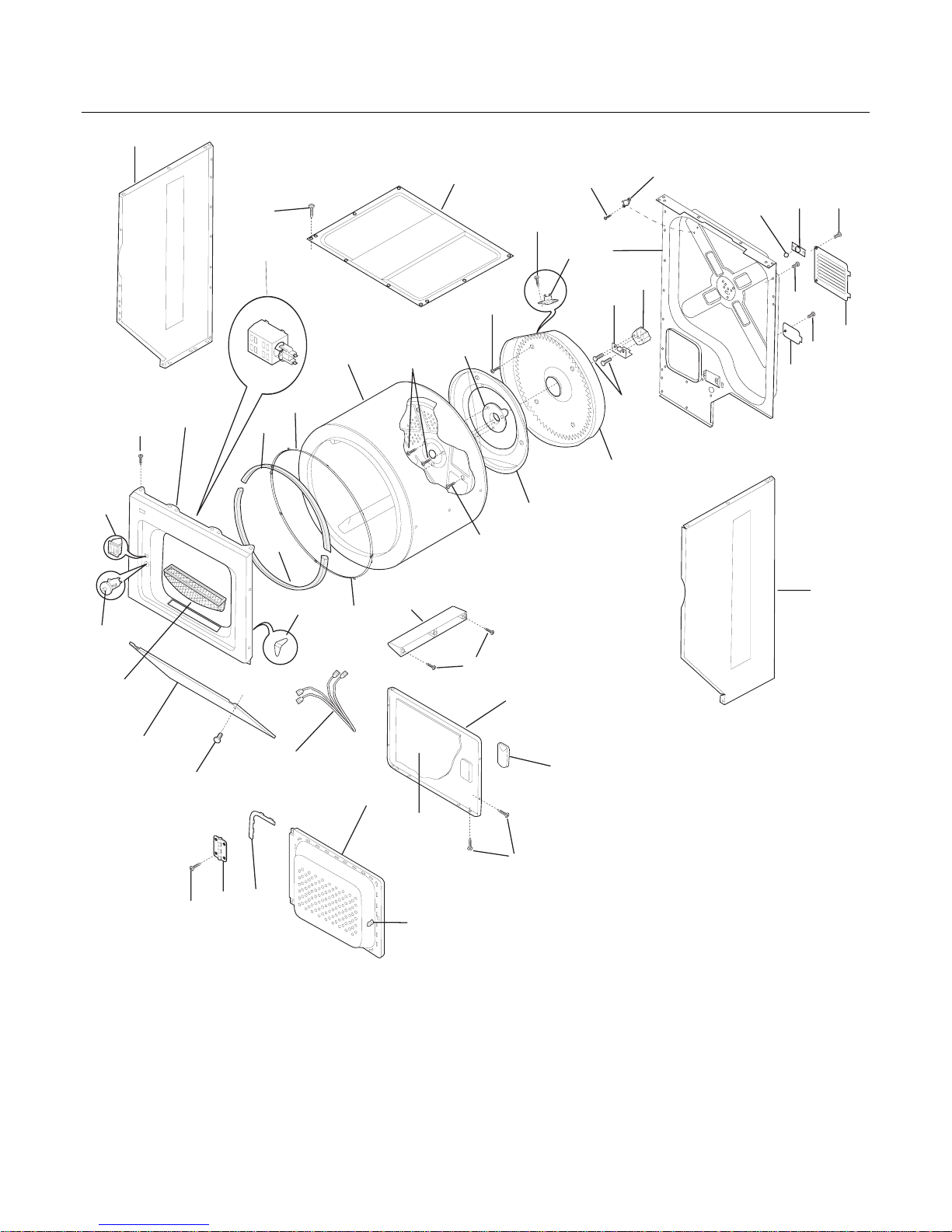

UPPER CABINET/DRUM HEATER

35 36

562

54 46

P17U0049

42 41

GLEH1642FS0 Publication No: 5995482162

# Functional Parts 3 01/07

* Non-Illustrated Parts

UPPER CABINET/DRUM HEATER

POS. NO PART NO. DESCRIPTION

1 131084710 Panel, white, left side

2 131168200 Screw, pan head, 8-18B x 0.31

3 131883301 Panel, top

4 134799902 Panel, rear, steel, galvanized

5 5303281019 Ball, grounding

6 5303281020 Clip, ball, steel, flat nut

9 3204249 Panel, motor access, rear

11 3204250 Cover, terminal block

12 131825900 Bearing, drum support

13 131724300 Bracket, bearing support

14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive

15 # 131475300 Heater Assy, w/housing

17 3204254 Baffle, heater shield

18 131477000 Screw, 10-16AB x 0.375

20 131963900 Glide, drum

21 134122552 Drum, dryer, stainless steel, service kit

22 131636280 Panel, front, white, w/lamp hole

23 134134700 Seal, felt, lower

24 134036400 Seal, felt, upper

25 131658800 Door Catch

26 # 131843101 Switch, door, with drum light

27 131359600 Lint Trap

28 134440000 Clip, guide

29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special

30 5304405283 Vane, straight, gray

31 131202300 Screw, 10-16AB x 0.625

32 131777700 Shaft, drum support, ballhitch

33 # 3204267 Thermostat, safety

34 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

35 131892100 Screw, 6-20B x 0.230

36 # 134120900 Thermal Limiter

38 131084810 Panel, white, right side

39 131084402 Panel, access, white, front

41 134222900 Hinge, dryer door

42 134156200 Screw, flat head, 8-18AB x 0.44, quad drive

44 131129900 Gasket, door seal

46 131789400 Handle, door, white

47 134406203 Panel, inner door, white

48 131789303 Panel, outer door, white

49 5303211430 Door Strike

50 134535300 Insulator, heat shield, outer door

54 # 134403200 Wiring Harness, door switch, with light

59 # 131843500 Lamp Assy, drum light, w/mtg bracket

62 131258400 Screw, 10-16AB x 0.500

Publication No: 5995482162 GLEH1642FS0

01/07 4

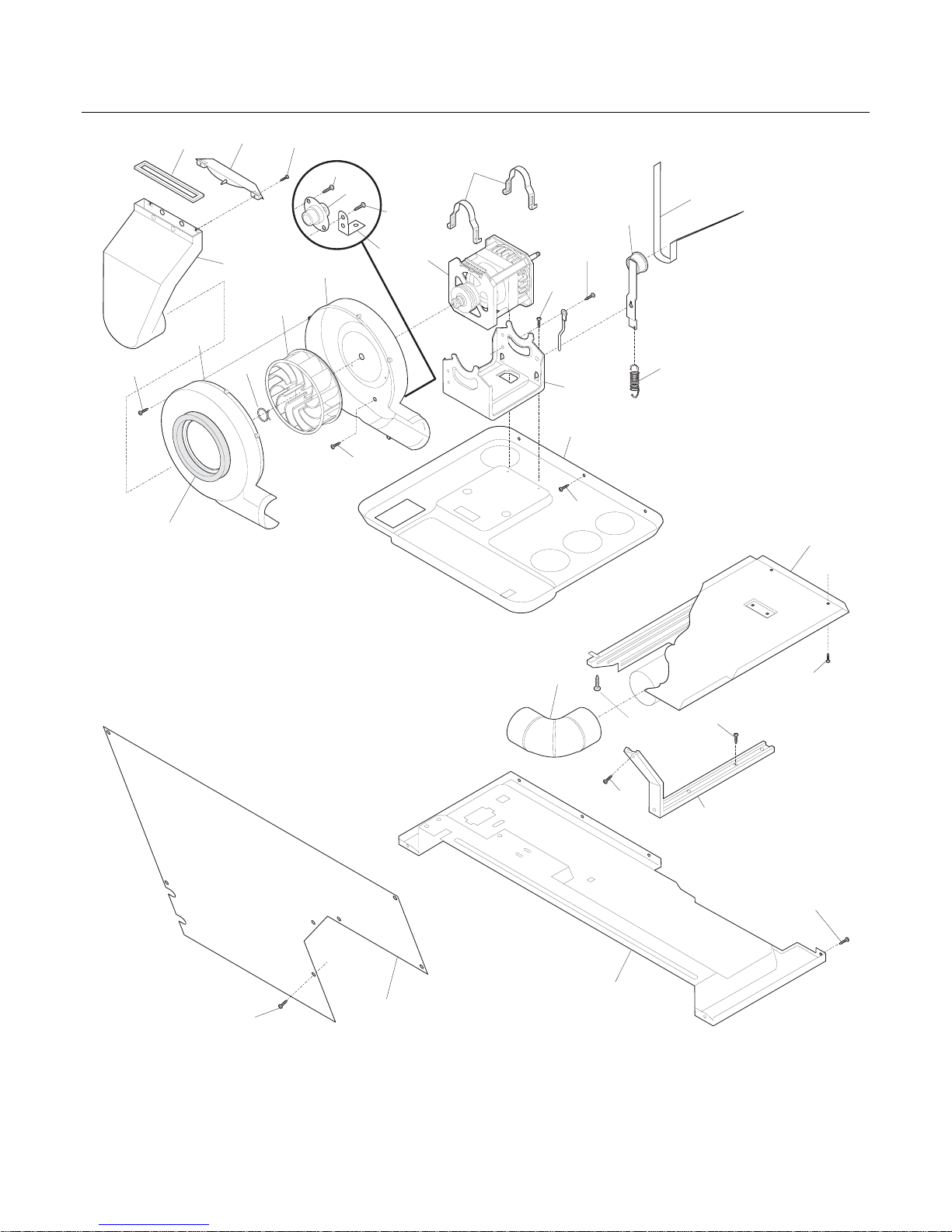

MOTOR/BLOWER/BELT

P17B0051

10A

250

GLEH1642FS0 Publication No: 5995482162

# Functional Parts 5 01/07

* Non-Illustrated Parts

MOTOR/BLOWER/BELT

POS. NO PART NO. DESCRIPTION

1 131295200 Seal, air duct

2 131168200 Screw, pan head, 8-18B x 0.31

4 131477000 Screw, 10-16AB x 0.375

6 134086300 Duct, air

7 3204490 Seal, housing, to air duct

8 3205245 Screw, pan head, 6-18AB x 0.60

9 5303304824 Clamp

10 134611700 Housing, blower, front, with seal

10A 134608200 Housing, blower, rear

12 131476300 Blower Wheel

13 134608400 Ground Strap, thermostat

15 # 134048800 Thermostat, control

16 131243700 Screw, pan head, 8-18AB x 0.375

18 131413600 Cradle, motor mount, with idler stud

19 134613501 Panel, motor cradle mt, upper

22 3205241 Spring, idler

23 131863100 Idler Arm Assy, with pulley

25 # 134503900 Belt, dryer drive

27 134242400 Clamp, motor mtg.

28 # 134196600 Motor, dryer drive, with pulley

33 131731400 Shield, access area, cover

38 3204320 Elbow, exhaust duct

39 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive

42 134154100 Screw, hex washer head, 10-32 x 0.375, ground

42 5304439185 Bracket, marriage, interior

43 134305100 Screw, hex washer head, 1/4-20 x 1.000, special

48 131731310 Panel, dryer, bottom rear

50 3204329 Cover, safety, lower front

57 131729300 Cover, moisture sensor

Publication No: 5995482162 GLEH1642FS0

01/07 6

CONTROL PANEL

MAX

LIQUID

BLEACH

LIQUID

BLEACH

MAX

FABRIC

SOFTEN

FABRIC

SOFTEN

21A 25

21B

20 34

17 19

16A

P17C0080

GLEH1642FS0 Publication No: 5995482162

# Functional Parts 7 01/07

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 # 131960800 Timer, dryer, 4 off

2 131168200 Screw, pan head, 8-18B x 0.31

3 # 134136700 Wiring Harness, dryer control

4 131873401 Knob, rotary, white

5 # 134399900 Switch, dryer temp, LCD

6 # 134392000 Wiring Harness, washer control

7 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

8 # 134803600 Timer, washer

9 # 134400000 Switch, rotary, 2 position

10 # 134399700 Switch, start, LCD

11 5303283289 Screw, cr pan head, 8-32 x 0.250, thread forming

12 # 134040800 Switch, on/off, white, round

13 131311700 Screw, pan head quad, 8-32 x 0.15

14 # 131724500 Buzzer

15 # 134437700 Switch, water temp, 4 position

16 # 131724700 Lamp, status light

16A 131724800 Lens, status light, clear

17 134263400 Bracket, control mount

18 134321500 Panel, trimplate, console front

19 # 5303286537 Buzzer

20 131288101 End Cap, white, LH

21 131873301 Knob, dryer timer, white

21A 131167601 Knob, washer timer, white

21B 5308015493 Spacer, washer, timer shaft

22 3161259 Screw, switch mtg, 6-32 x 0 .19, (2), sems

23 # 134605400 Wiring Harness, main

24 134156200 Screw, flat head, 8-18AB x 0.44, quad drive

25 131167701 Indicator, timer pointer, white/blue, washer

26 131823400 Screw, 8-18 x 2.00

27 131870600 Panel, disp drawer mt.

29 # 134571400 Wiring Harness, main, washer

29* 5303161300 Strap, plastic

31 131288211 End Cap, white, RH

32 3204357 Clip, grounding

33 131306216 Clamp

34 131243700 Screw, pan head, 8-18AB x 0.375

35 5308014350 Clip, end cap mtg, U-type

36 # 131974700 Valve, dispenser, w/seal

37 131271600 Hose, tub

38 # 131803710 Dispenser Assy

39 131863300 Siphon

39* 131307900 Clamp, siphon/bellows

43 131749200 Gasket, seal

44 131786000 Hose, dispenser

45 131786100 Hose, siphon/valve

46 134191412 Panel, control mtg., wing bend

48 # 134818201 Switch, pressure, single level

51 134426400 Bracket, pc board mount, (2)

52 # 134216300 Control Board, moisture sensor

54 131272100 Cover, bleach

55 131272000 Cover, softener

56 131271910 Drawer, dispenser

58 131729500 Handle, dispenser, with trim

59 131714900 Latch, drawer handle, white

60 131427500 Spring

* 131931201 Dampener, vibration, 3.5 x 2 x 2 in., foam

Publication No: 5995482162 GLEH1642FS0

01/07 8

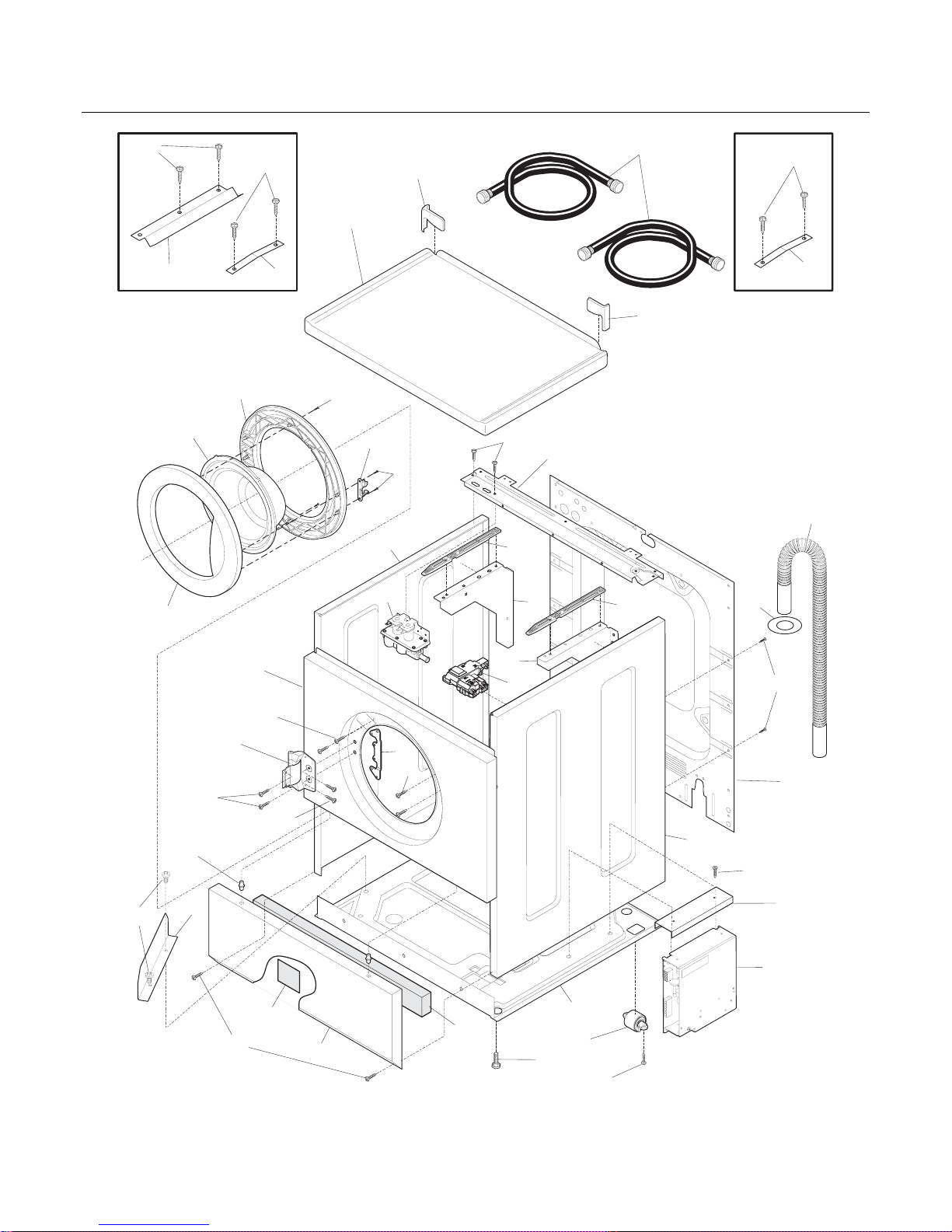

LOWER CABINET/TOP

19 18

58A 58

P17R0018

20 22

GLEH1642FS0 Publication No: 5995482162

# Functional Parts 9 01/07

* Non-Illustrated Parts

LOWER CABINET/TOP

POS. NO PART NO. DESCRIPTION

1 5303271009 Hose, inlet, 48 inch long

* 5303161296 Washer, inlet hose

2 131168200 Screw, pan head, 8-18B x 0.31

4 # 134733600 Controller Assy, speed, w/base & shield

7 131205300 Screw, 10-16 x 0.750

8 # 131763245 Door Lock/Switch Assy

9 131303300 Screw, pan head, 10-16AB x 0.500, locking

10 134224600 Frame, outer door

11 131278800 Panel, door glass

12 134195900 Frame, inner door

13 134227100 Screw, flat head, 10-16 x 0.600, quadrex

14 131763310 Striker, door/lock/sw

15 134202200 Hinge, door

16 131696300 Screw, quad pan head, 10-16 x 0.312

17 131346400 Pin, panel locator

18 131279300 Panel, service, white, front

19 131358400 Screw, hex washer hd, 8-18AB x 1.125

20 131460900 Bracket, top panel mtg., front

21 131243700 Screw, pan head, 8-18AB x 0.375

22 131279500 Retainer, spring steel

24 134086862 Panel, white, top

25 134381900 Trim, filler, white, LS-top panel

25 134381910 Trim, filler, white, RS-top panel

26 131311900 Screw, quadrex ph, 8-18AB x 0.500

27 134193300 Bracket, hinge support

28 131978500 Panel, back

29 131752040 Panel, cabinet front, white

30 131859600 Shield, overflow

33 # 134812800 Valve, water, 115 V

35 131732903 Bracket, reinforcement, top rear

36 131841600 Leveling Leg Assy, bolt, pad & nut

37 131304200 Roller Assy

39 134178901 Screw, 8-18AB x 0.455

44 131707800 Ring, drain hose

45 # 134592700 Hose, drain

58 131800410 Insulation, noise absorber

58A 131744202 Damper, vibration

70 134048600 Shield, drip protector

74 134301300 Spacer, dryer mtg, RS

74 134301310 Spacer, dryer mtg, LS

75 134301400 Brace, side, (2)

76 134390701 Panel, side, white, RS/LS, (2)

77 131458220 Base Plate

80 134547800 Screw, 10-16AB x 0.375

Publication No: 5995482162 GLEH1642FS0

01/07 10

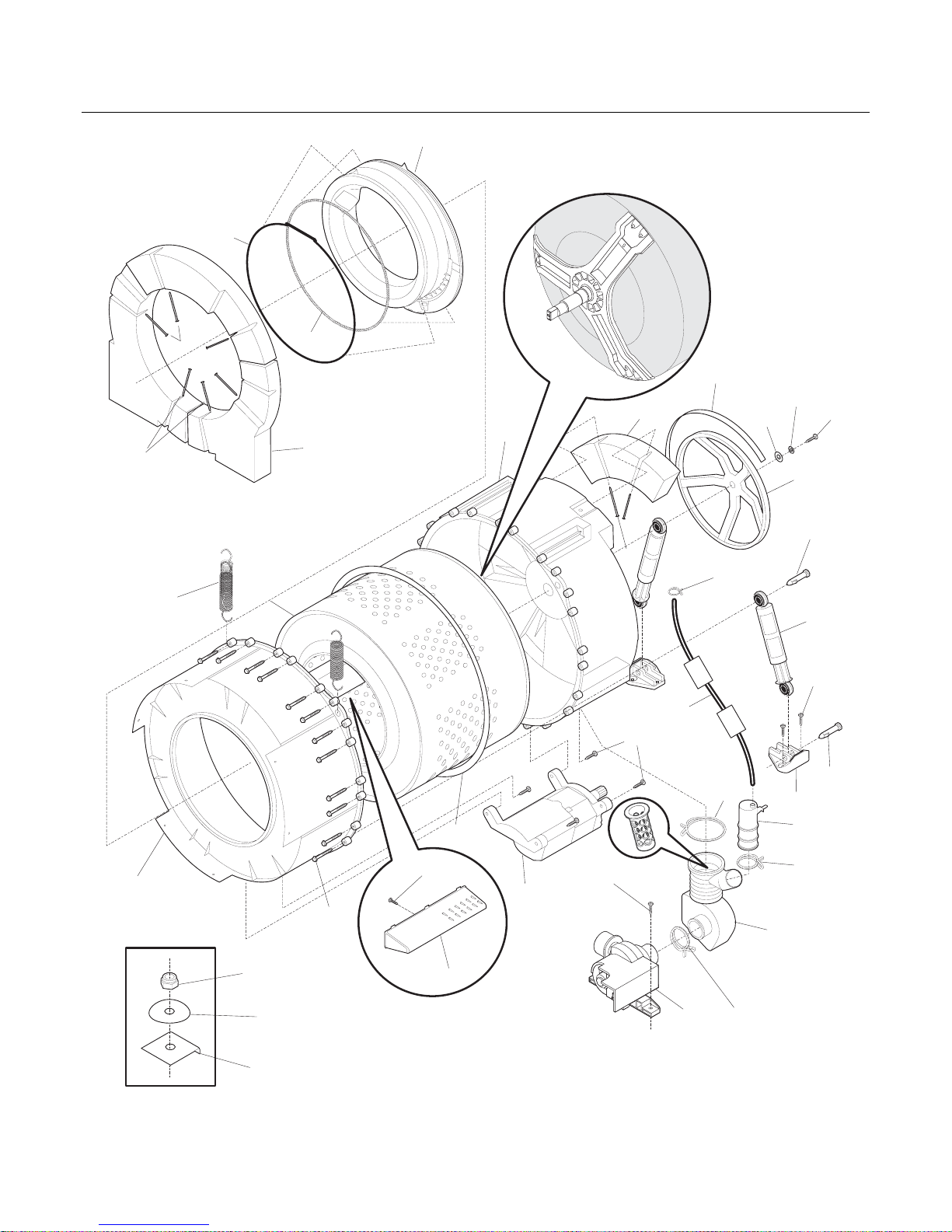

MOTOR/TUB

14 16

13 19

42 32

P17T0060
