Frigidaire GLET1142C Manuale utente

LAUNDRY CENTER

Model number

GLET1142C

FACTORY PARTS CATALOG

LAUNDRY CENTER

WIRING DIAGRAM - 134217700

OWNER’S GUIDE - 131781700

INSTALLATION INSTRUCTIONS - 131661700

WASHER OPERATING INSTRUCTIONS - 134284800

DRYER OPERATING INSTRUCTIONS - 134284900

PRODUCT NO. BASE MODEL NO. SERIES MARKET COLOR

GLET1142CS0 GLET1142C Frig Gallery North America white

Publication No.

5995396552

030925

-EN/SERVICE /KC

361

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

09/03 2

Publication No. GLET1142CS0

5995396552

35 36

562

P17U0041

42 41

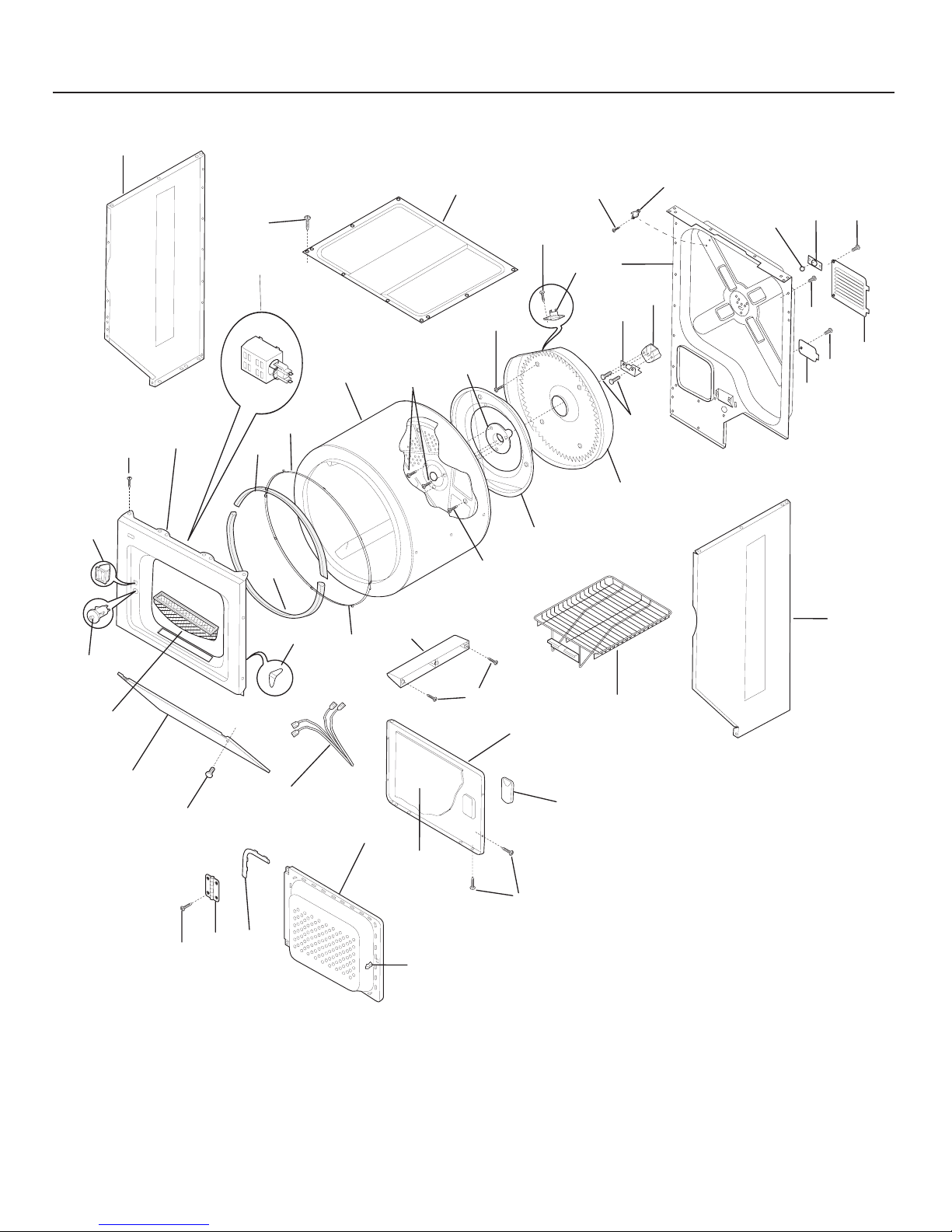

UPPER CABINET / DRUM / HEATER

# = Functional Parts 3 09/03

* = Non-Illustrated Parts

GLET1142CS0 Publication No.

5995396552

POS. NO PART NO DESCRIPTION

1 131084700 Panel,left side ,white

2 131168200 Screw,pan head ,8-18B x 0.31

3 131883301 Panel,top

4 131752302 Panel,rear ,steel ,galvanized

5 5303281019 Ball

6 5303281020 Clip,ball ,steel ,flat nut

9 3204249 Panel,motor access ,rear

11 3204250 Cover,terminal block

12 131825900 Bearing,drum support

13 131724300 Bracket,bearing support

14 131205400 Screw,bracket mtg. ,10-16B x 1.375, cr/sq drive

15 # 131475300 Heater Assy,w/housing

17 3204254 Baffle,heater shield

18 131477000 Screw,10-16AB x 0.375

20 131963900 Glide,drum

21 134122552 Drum,dryer ,stainless steel, service kit

22 131636270 Panel,front ,white ,with lamp hole

23 134134700 Seal,felt ,lower

24 134036400 Seal,felt ,upper

25 131658800 Door Catch

26 # 08006623 Switch,door ,with drum light

27 131359600 Lint Trap

28 5303281074 Clip,guide ,(3)

29 131382300 Screw,quadrex head ,10-14 x 1.00, vane mtg.,special

30 5304405283 Vane,straight ,gray

31 131202300 Screw,pph ,10-16AB x 0.625

32 131777700 Shaft,drum support ,ballhitch

33 # 3204267 Thermostat,safety

34 131243800 Screw,pan hd locking ,8-32CA x 0.375, cup point

35 131892100 Screw,6-20B x 0.230

36 # 134120900 Thermal Limiter

38 131084800 Panel,right side ,white

39 131084402 Panel,access ,white ,front

41 131627500 Hinge,door

42 131209600 Screw,flat head ,8-18AB x 0.44,cr/sq drive

44 131129900 Gasket,door seal

46 131789400 Handle,door ,white

47 131579103 Panel,inner door ,white

48 131789303 Panel,outer door ,white

49 5303211430 Door Strike

50 3204286 Insulator,heat shield ,outer door

54 # 131786400 Wiring Harness,door switch ,with light

* 3281126 Clip,wiring

58 134121600 Rack,drying

59 # 131843500 Lamp Assy,drum light ,w/mtg bracket

UPPER CABINET / DRUM / HEATER

09/03 4

Publication No. GLET1142CS0

5995396552

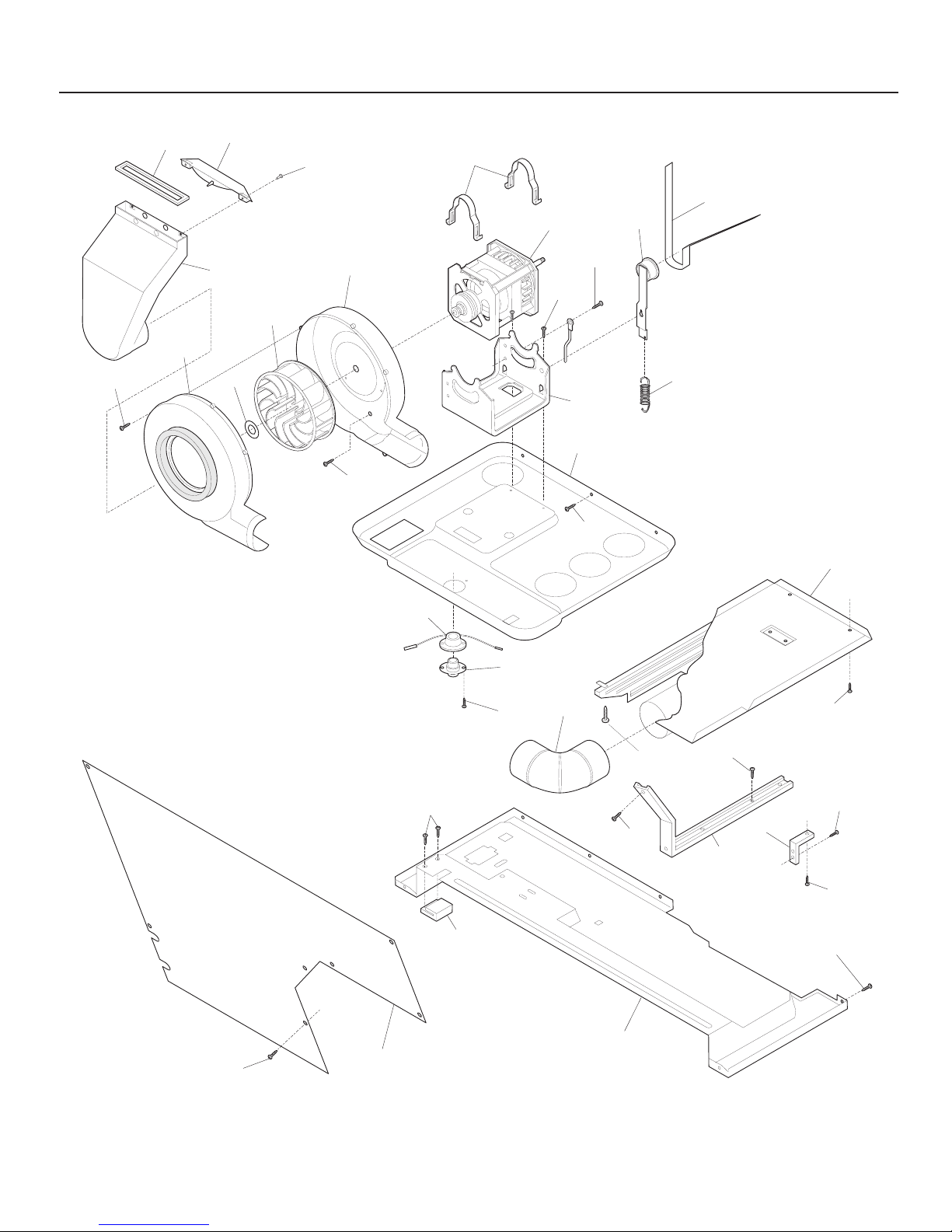

MOTOR / BLOWER / BELT

P17B0039

10A

250

# = Functional Parts 5 09/03

* = Non-Illustrated Parts

GLET1142CS0 Publication No.

5995396552

POS. NO PART NO DESCRIPTION

1 131295200 Seal,air duct

2 131168200 Screw,pan head ,8-18B x 0.31

4 131477000 Screw,10-16AB x 0.375

6 134086300 Duct,air

8 3205245 Screw,pan head ,6-18AB x 0.60

9 5303304824 Clamp

10 131784500 Housing,blower ,front ,with seal

10A 134145100 Housing,blower ,rear

12 131476300 Blower Wheel

14 # 131658102 Thermostat,heater

15 # 3204307 Thermostat,control

16 131311900 Screw,quadrex ph ,8-18AB x 0.500

18 131413600 Cradle,motor mount ,with idler stud

19 131363901 Panel,motor cradle mt

22 3205241 Spring,idler

23 131863100 Idler Arm Assy,with pulley

25 # 134163500 Belt,dryer drive

26 5303212870 Block,support ,bottom panel

27 134242400 Clamp,motor mtg.

28 # 134196600 Motor,dryer drive ,with pulley

33 131731400 Shield,access area ,cover

38 3204320 Elbow,exhaust duct

39 131205100 Screw,#8 pan head ,10-10B x 0.500, cr/sq drive

42 3204324 Bracket,marriage ,interior

43 131751500 Screw,hex head ,12-24T 0.63

44 3204326 Bracket,L mounting ,cabinet rear, external

48 131731300 Panel,dryer ,bottom rear

50 3204329 Cover,safety ,lower front

57 131729300 Cover,moisture sensor

MOTOR / BLOWER / BELT

09/03 6

Publication No. GLET1142CS0

5995396552

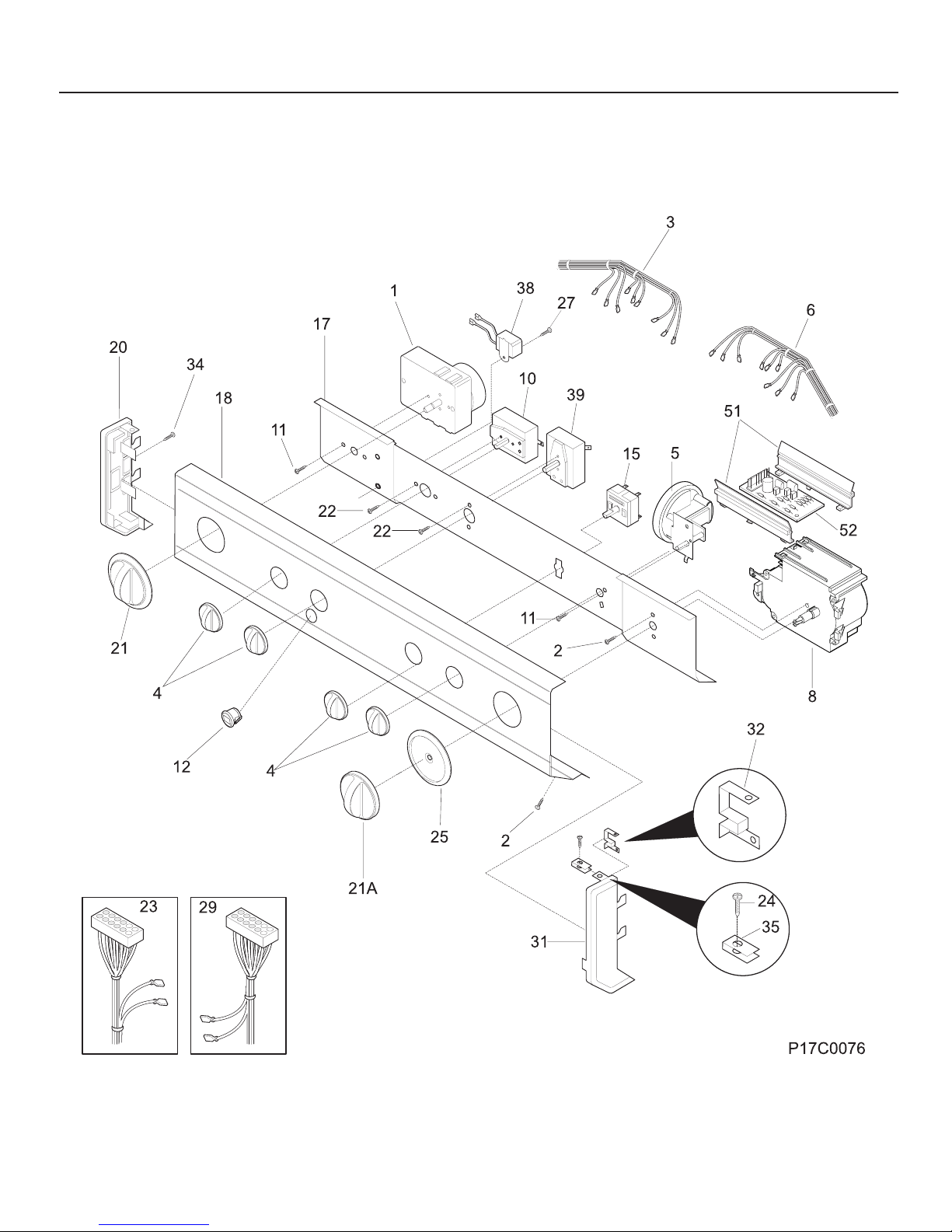

CONTROL PANEL

# = Functional Parts 7 09/03

* = Non-Illustrated Parts

GLET1142CS0 Publication No.

5995396552

CONTROL PANEL

POS. NO PART NO DESCRIPTION

1 # 131960800 Timer,dryer

2 131168200 Screw,pan head ,8-18B x 0.31

3 # 134136700 Wiring Harness,dryer control

4 134034950 Knob,rotary ,white

5 # 134200000 Switch,pressure ,infinite

6 # 134217600 Wiring Harness,washer control, w/temp switch

8 # 134237200 Timer,washer

10 # 131447500 Switch,start ,turn type

11 5303283289 Screw,cr pan head ,8-32 x 0.250, thread forming

12 # 134040800 Switch,on/off ,white ,round

15 # 131621100 Switch,water temp ,4 posn rotary

17 134135100 Bracket,control mtg

18 134284500 Panel,trimplate ,console front

20 131288101 End Cap,white ,LH

21 134043000 Knob,dryer timer ,white/dark gray

21A 134043200 Knob,washer timer ,white

22 3161259 Screw,switch mtg ,6-32 x 0 .19 ,(2), sems

23 # 134119400 Wiring Harness,main

23*# 5303937016 Terminal Block,main

23* 5303208586 Screw,terminal block ,(3)

24 131209600 Screw,flat head ,8-18AB x 0.44, cr/sq drive

25 131976804 Indicator,timer pointer, white/dark gray,washer

27 131892100 Screw,6-20B x 0.230

29 # 134113400 Wiring Harness,washer ,lower

29* 5303161300 Strap,plastic

31 131288211 End Cap,white ,RH

32 3204357 Clip,grounding

34 131243700 Screw,pan head ,8-18AB x 0.375, cr/sq drive

35 5308014350 Clip,end cap mtg ,U-type

38 # 5303286537 Buzzer

39 # 131790900 Switch,dryer temp ,4 position

51 131587400 Bracket,pc board mtg. ,(2)

52 # 134216300 Control Board,moisture sensor

09/03 8

Publication No. GLET1142CS0

5995396552

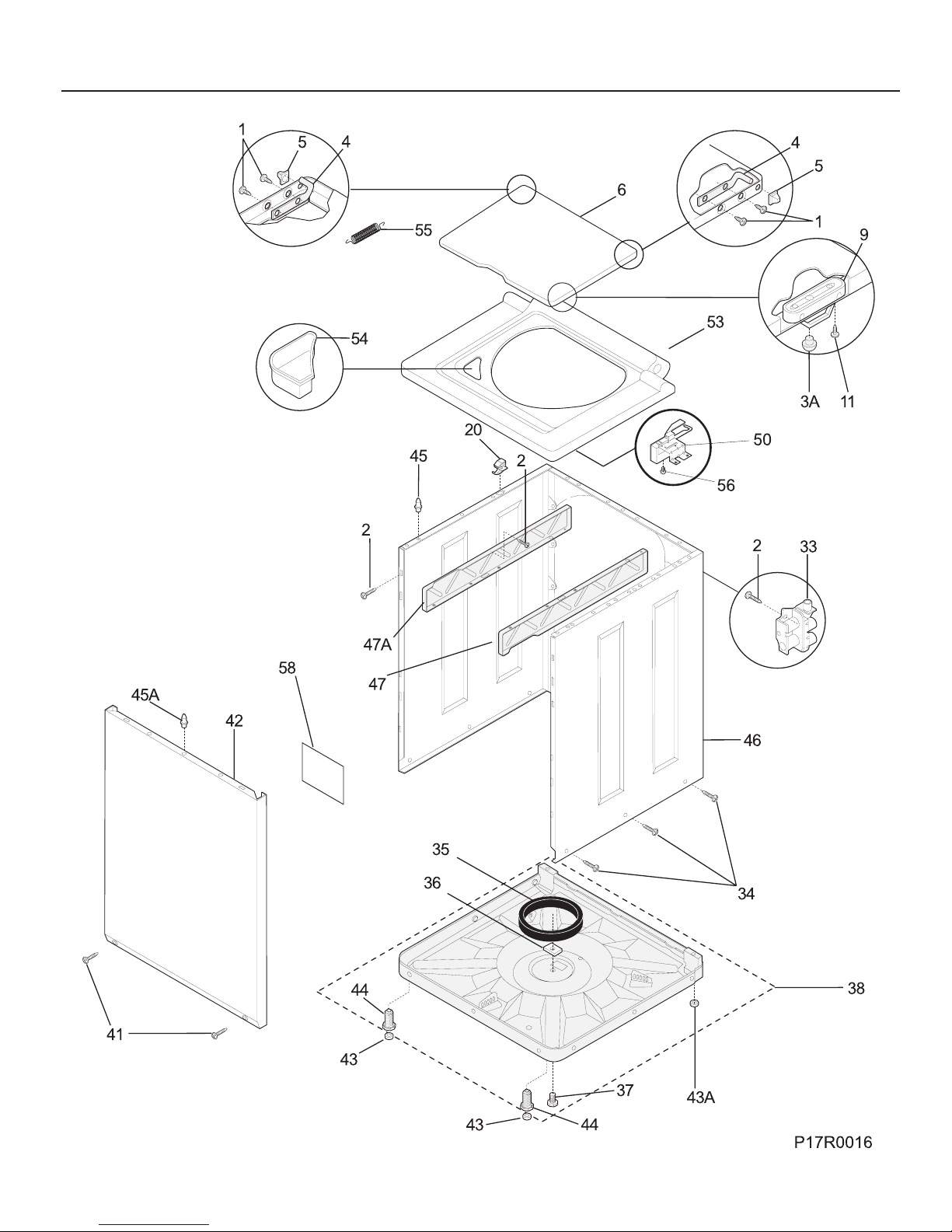

LOWER CABINET / TOP

# = Functional Parts 9 09/03

* = Non-Illustrated Parts

GLET1142CS0 Publication No.

5995396552

POS. NO PART NO DESCRIPTION

1 131587500 Screw,hinge mtg ,6-32 x 0.3125, pph 45deg hdrpt

2 131168200 Screw,pan head ,8-18B x 0.31

3A 134075500 Bumper,lid ,front

4 3205250 Hinge Bar

5 5303208743 Grommet,hinge

6 5303212872 Lid,washer ,white

9 131390000 Lid Strike

11 3204368 Screw,lid strike mtg ,6-20B X 0.375

20 3204374 Pin,slide ,side to top

33 # 134211400 Valve,water ,115 V

34 131205500 Screw,cab body ,1/4-14 x 0.625, side-to-base

35 5308002385 Snubber Ring

36 3204380 Shipping Block

37 131658900 Screw,shipping ,1/4-20 x 1.001,yllw, unit base,thrd fmng

38 5303311213 Base Assembly

41 131258400 Screw,10-16AB x 0.500

42 131104303 Panel,front ,white

43 131422100 Pad,leveling leg ,front

43A 131422200 Pad,self lvlg leg ,rear

44 5303309673 Screw,leveling leg ,with pad

45 131346400 Pin,panel locator ,side

45A 131346401 Pin,panel locator ,front

46 134046600 Cabinet Assy,white ,back and sides

47 131106701 Bracket,marriage ,RH

47A 131091001 Bracket,marriage ,LH

50 # 134101800 Lock,lid ,w/ext switch

53 131452510 Panel,washer top ,white

54 3204394 Dispenser,bleach

55 5303212876 Spring,lid assist

56 131243700 Screw,pan head ,8-18AB x 0.375, cr/sq drive

58 131744202 Damper,vibration

LOWER CABINET / TOP

09/03 10

Publication No. GLET1142CS0

5995396552

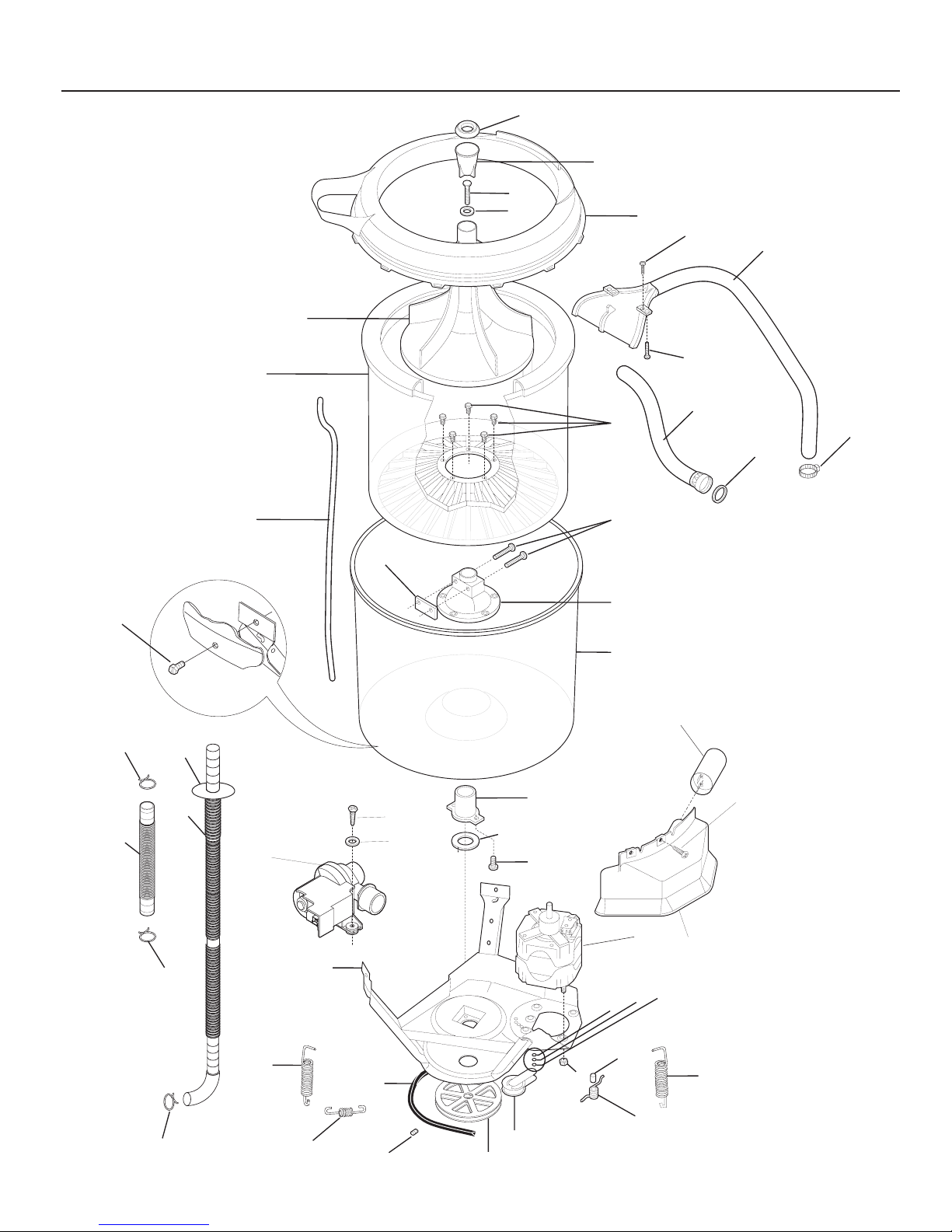

MOTOR / TUB

P17T0053

35 36 37

23A

339
