Frigidaire FMV145K Manuale utente

FMV145K.eps L937D0002.eps L937C0002.eps L937F0002.eps L937B0002.eps

L937I0001.eps FMV145-3s.eps FMV145-3d.eps

Product No. FMV145KB2 FMV145KS2

Color black white

Market North America North America

Owner's Guide 316137205 316137205

Installation Instructions 316137211 316137211

Mini Service Manual 5304409006 5304409006

Wiring Diagram 5304409006 5304409006

Volts 120 120

Watts 950 950

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995416566

04/09/17

(EN/SERVICE/KC)

099

OVER-RANGE

MICROWAVE

Model No.

FMV145K

Publication No: 5995416566 FMV145K

09/04 2

DOOR

FMV145K Publication No: 5995416566

# Functional Parts 3 09/04

* Non-Illustrated Parts

DOOR

Model Index: AFMV145K (FMV145KB2)

BFMV145K (FMV145KS2)

POS. NO PART NO. DESCRIPTION

1 5304424542 A - Door, black, complete assy

1 5304424543 - B Door, white, complete assy

2 5304408529 A B Screen, door, glass, front

3 5304408523 A - Handle, door, black

3 5304408524 - B Handle, door, white

4 5304423509 A - Frame, door, black, outer

4 5304423510 - B Frame, door, white, outer

5 5304423440 A B Spring, door latch

6 5304409137 A - Latch, door

6 5304409138 - B Latch, door

7 5304408579 A B Hinge, door, lower

8 5304408578 A B Hinge, door, upper

9 5304423511 A - Panel, door, black, inner

9 5304409133 - B Panel, door, white, inner

10 5304409136 A B Seal, door, film

11 5304408575 A - Frame, choke cover, black, inner door

11 5304408576 - B Frame, choke cover, white, inner door

72 5304408958 A B Bolt, flange

Publication No: 5995416566 FMV145K

09/04 4

CONTROL PANEL

FMV145K Publication No: 5995416566

# Functional Parts 5 09/04

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFMV145K (FMV145KB2)

BFMV145K (FMV145KS2)

POS. NO PART NO. DESCRIPTION

12 # 5304423362 A B Control Board, printed circuit

13 5304408514 A B Bracket, control mtg

14 5304408512 A B Window, control display

15 # 5304423515 A - Switch, touch control, membrane, black

15 # 5304423516 - B Switch, touch control, membrane, white

16 5304423517 A - Frame, control panel, black

16 5304423518 - B Frame, control panel, white

Publication No: 5995416566 FMV145K

09/04 6

FUNCTIONAL PARTS

FMV145K Publication No: 5995416566

# Functional Parts 7 09/04

* Non-Illustrated Parts

FUNCTIONAL PARTS

Model Index: AFMV145K (FMV145KB2)

BFMV145K (FMV145KS2)

POS. NO PART NO. DESCRIPTION

17 5304408954 A B Bracket, lamp mtg, bottom

18 # 5304408948 A B Receptacle, lamp

19 5304408949 A B Lamp, incandescent

24 # 5304436713 A B Wiring Harness, D

26 # 5304408941 A B Capacitor, motor

27 # 5304417433 A B Thermostat, thermal cutout, hood, 40/70 deg C

28 5304408960 A B Latch Hook

29 # 5304408938 A B Switch, interlock, door/primary

30 # 5304408937 A B Switch, interlock, monitor

31 5304408963 A B Lever, switch, bottom

33 # 5304408952 A B Wiring Harness

39 5304408965 A B Support, rack

43 # 5304408980 A B Motor, turntable

45 5304408961 A B Bracket, air guide

46A# 5304423382 A B Receptacle, fuse

47 # 5304423383 A B Fuse, cartridge, 20 Amp

49 # 5304423521 A B Capacitor, high voltage

50 # 5304417430 A B Diode, high voltage

51 5304408946 A B Bracket, capacitor mtg

57 # 5304408947 A B Power Cord, electric

59 # 5304408943 A B Fan Assy, ventilator, with motor

60 # 5304408944 A B Motor, stirrer fan

61 # 5304423690 A B Thermostat, thermal cutout, oven cavity

69 5304408962 A B Nut, flange

73 # 5304423374 A B Magnetron

74 # 5304408936 A B Thermostat, thermal cutout, magnetron

75 # 5304408933 A B Transformer, high voltage

76 5304423523 A B Plate, xfmr base

77 # 5304408935 A B Thermostat, thermal cutout, bottom, 120/0 deg C

78 5304423384 A B End Cap, xfmr base, bottom

79 # 5304408942 A B Fan Assy, cooling, includes motor

87 # 5304423386 A B Wiring Harness, C

88 # 5304423525 A B Wiring Harness, A

89 5304423527 A B Screw, washer head

90 5304408964 A B Screw, special

Publication No: 5995416566 FMV145K

09/04 8

BODY

FMV145K Publication No: 5995416566

# Functional Parts 9 09/04

* Non-Illustrated Parts

BODY

Model Index: AFMV145K (FMV145KB2)

BFMV145K (FMV145KS2)

POS. NO PART NO. DESCRIPTION

20 5304408972 A - Plate, oven base, black, bottom cover

20 5304417436 - B Plate, oven base, white, bottom cover

21 5304408977 A B Filter, air, (2)

22 5304408988 A B Lens, cooktop lamp, glass, (2)

23 5304408973 A - Cover, lens frame, black, lamp

23 5304408974 - B Cover, lens frame, white, lamp

34 # 5304408950 A B Fan Blade, stirrer/antenna

35 5304423487 A B Collar, motor shaft, stirrer fan

36 5304408992 A B Pivot Tip, shaft collar, stirrer motor

37 5304408986 A B Cover, stirrer/antenna

38 5304408979 A B Rivet, push mount, plastic, stirrer cover

40 5304417415 A B Bushing, motor shaft, turntable

42 5304408990 A B Cover, front

54 5304417437 A B Bracket, motor mtg, turntable/vent, wrpr top plate

55 5304423504 A B Holder Nut, assy

58 5304408975 A - Casing, wrapper, black, outer panel

58 5304423528 - B Casing, wrapper, white, outer panel

68 5304408982 A B Bracket, duct assy, upper

70 5304423529 A - Grille, exhaust, black

70 5304423530 - B Grille, exhaust, white

71 5304408994 A - Screw, grille mtg, black, (2)

71 5304408993 - B Screw, grille mtg, white, (2)

80 5304409641 A B Filter, air, charcoal

82 5304408995 A B Rack, microwave oven, wire

84 5304417414 A B Support, turntable tray, with rollers

85 5304417435 A B Tray, turntable, glass

91 5304423522 A B Bracket, filter

93 5304423531 A B Label, cooking guide

Publication No: 5995416566 FMV145K

09/04 10

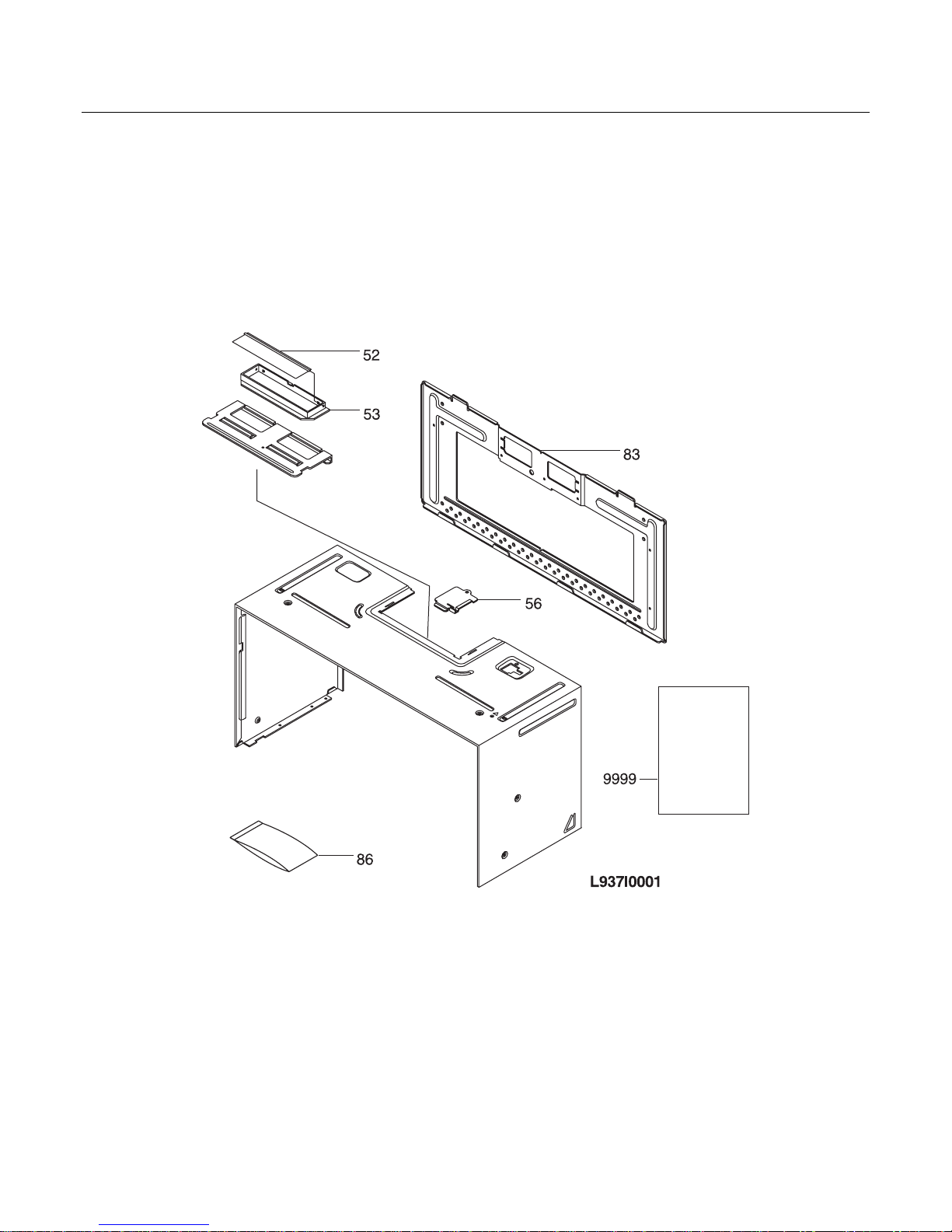

INSTALLATION
