Frigidaire FPMC2785K F Foglio di istruzioni

frigidaire.com

27" Electric

Microwave Combination Oven

FPMC2785K F

Signature Features

PowerPlus® Preheat

Preheat in less than six minutes.1

True Convection

Multi-rack baking is faster and more

even with True Convection.

Eortless™ Reheat

Reheat almost anything with the

touch of a button.

Fits-More™ Microwave Oven

Extra-large microwave provides 2.0

cu. ft. of cooking space.

Product Dimensions

Height 42-3/4"

Width 27"

Depth 24-1/2"

More Easy-To-Use Features

Pro-Select® Controls

Precise control at your fingertips.

One-Touch Keep Warm Setting

Just one touch of a button keeps food

warm until everything — and everyone —

is ready.

One-Touch Options

Our ovens feature easy-to-use one-touch

buttons so you can cook pizza or chicken

nuggets — or even add a minute to the

timer — with the touch of a button.

Real Stainless Steel

Real stainless steel with a protective

coating that reduces fingerprints and

smudges so it’s easy to clean.

SpaceWise® Half Rack

Flexible rack system that adjusts to cook

multiple dishes at once. Remove the half

rack and you’ll have extra height for tall

dishes.

Eortless™ Convection

Takes the guesswork out of convection

cooking — our oven does the converting

for you.

“My Favorite” Setting

Easily program your most used setting

with the touch of a button.

Chicken Nugget Button

Easily bake perfect chicken nuggets with

the touch of a button.

Pizza Button

Easily bake perfect pizza with the touch of

a button.

Sabbath Mode (Star-K® Certiﬁed)

Available in:

Based on single rack cooking performance, not set

temperature, using PowerPlus® Preheat.

Stainless

(F)

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

Product Dimensions

A - Height

B - Width

C - Depth

D - Height (Wrapper)

E - Width (Wrapper)

Depth with Door Open 90˚

42-3/4"

27"

24-1/2"

40-15/16"

24-5/8"

45-1/2"

Cutout Dimensions

Height (Min.) / (Max.)

Width (Min.) / (Max.)

Depth (Min.)

41-1/8" / 41-1/4"

24-7/8" / 25-1/4"

23-1/2"

Microwave Combination Ovens

Frigidaire Baseline

Spacer

NOTE: For planning purposes only. Always consult local and national electric codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Microwave Combination Oven

FPMC2785K F 27" Electric

Features

Control / Timing System

Exterior Door Finish

Handle Design

Microwave Features

Microwave Capacity (Cu. Ft.)

Window

Interior Light

Interior Color

Turntable Diameter

Turntable On / O

Control Lock / Clock

Touch Pad Buttons

Power Levels

Microwave Control Options

Popcorn Button

Chicken Nugget Button

Baked Potato Button

Reheat Button / Snack Button

Auto Melt / Soften Options

Auto Reheat Options

Snack Menu Options

Auto Cook Options

Auto Defrost Options

Keep Warm / Add-30-Seconds

Sensor Cooking Options

Vegetable Cook Sensor

Delay Start / User Preferences

Oven Features

Oven Capacity (Cu. Ft.)

Oven Window

Oven Lights

Hidden Bake Element

Convection System

Baking System

Broiling System

PowerPlus® Preheat

Bake / Broil Element (Watts)

Oven Rack Conﬁguration

Oven Cleaning System

Oven Controls

Convection Conversion

My Favorite

Chicken Nugget Button

Pizza Button

Keep Warm / Add-a-Minute

Certiﬁcations

Sabbath Mode (Star-K® Certiﬁed)

Speciﬁcations

Microwave Oven Interior ( H x W x D )

Oven Interior ( H x W x D )

Power Supply Connection Location

Voltage Rating

Connected Load (kW Rating)

@ 240 / 208 Volts

Amps @ 240 / 208 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

Pro-Select®

Real Stainless Steel

Stainless Steel

2.0

Large

Yes

White

16"

Yes

Yes / Yes

Yes

Yes / Yes

Yes

Yes / Yes

3.5

Extra-Large with

Pro-Tint Finish

Yes

True Convection

Even Baking Technology

PowerPlus® Broil

Yes

1,450 / 3,400

1 Heavy Duty, 1 SpaceWise®

Half Rack, 1 Oset Rack

PowerPlus® Clean

Eortless™

Yes

Yes / Yes

Yes

10-1/2" x 17-3/8" x 18-5/8"

16-1/2" x 20-1/2" x 18-1/32"

Middle Bottom Rear

240V / 208V / 60Hz

6.4 /5.6

26.7/ 26.9

220 Lbs.

Accessories information available

on the web at frigidaire.com

Microwave Combination Oven

FPMC2785K F 27" Electric

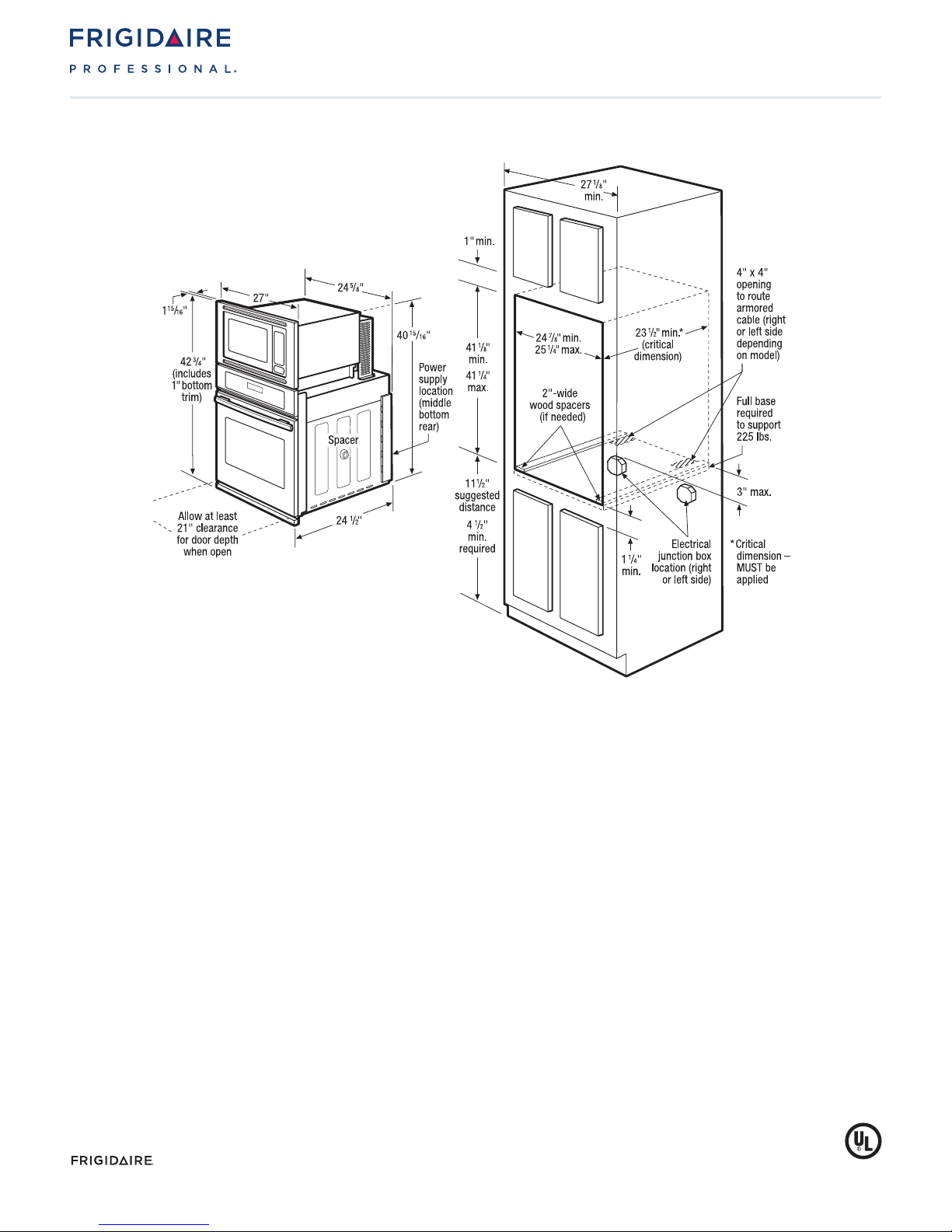

Microwave Combination Oven Specifications

•Product Shipping Weight (approx.) – 220 Lbs.

•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz

AC only electrical supply with ground required on separate circuit

fused on both sides of line.

•Connected Load (kW Rating) @ 240 / 208 Volts = 6.4 / 5.6 kW

•Amps @ 240 / 208 Volts = 26.7 / 26.9 Amps

•Recommended Circuit Breaker – 30 Amps

•Always consult local and national electric codes.

•Minimum 21" clearance for oven door depth when open.

•Suggested distance from floor is 11-1/2". Minimum required distance

is 4-1/2".

•Minimum 23-1/2" deep cutout dimension is critical for proper

installation, to ensure that oven’s faceplate will fit flush against

cabinet front.

•Full oven base of solid plywood or similar material required,

capable of supporting 225 Lbs.

•Base must be level and cabinet front must be square.

•Microwave Combination Oven is NOT approved to be used

in stackable or side-by-side installation.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

27" Microwave / Wall Oven Combination

Professional

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Specifications

subject to change.

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

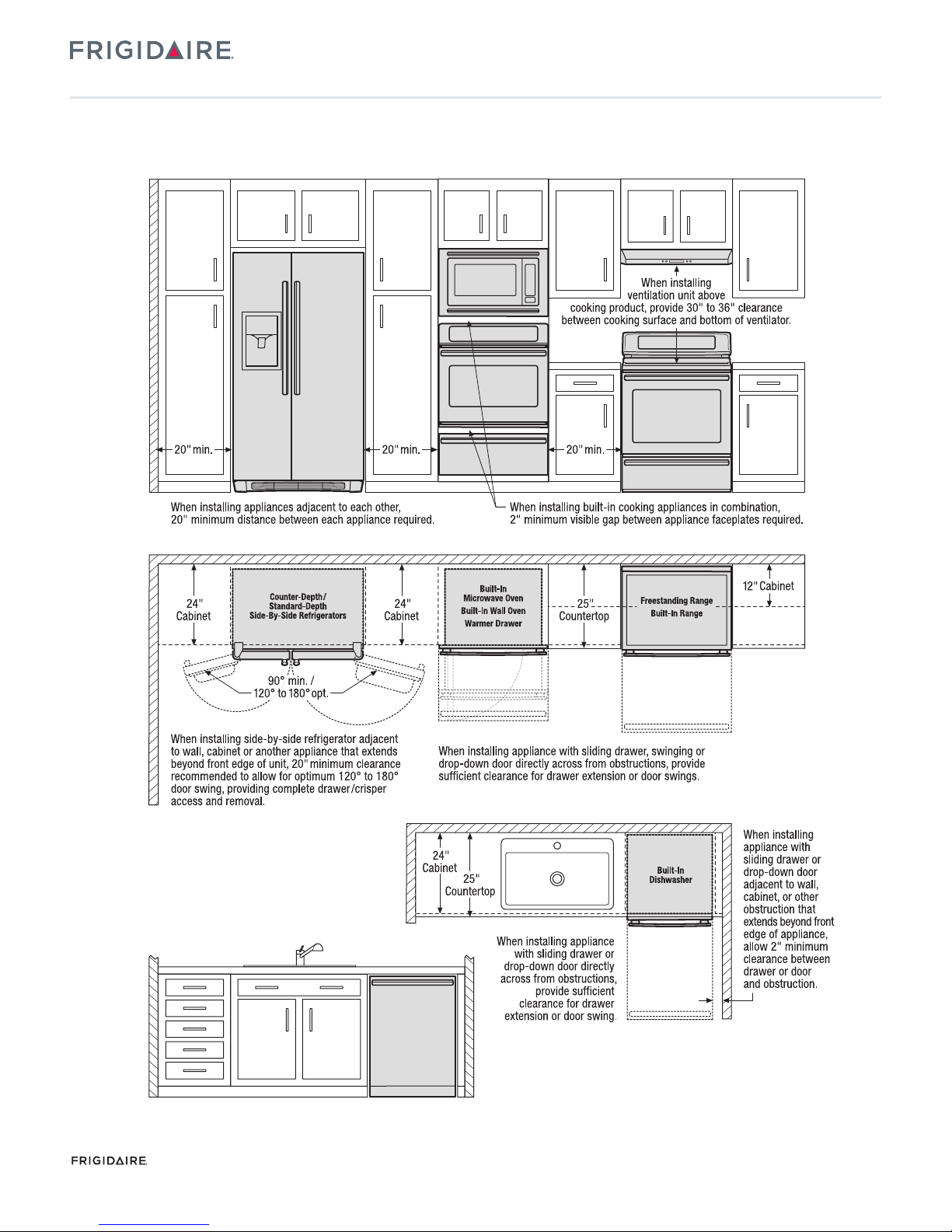

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

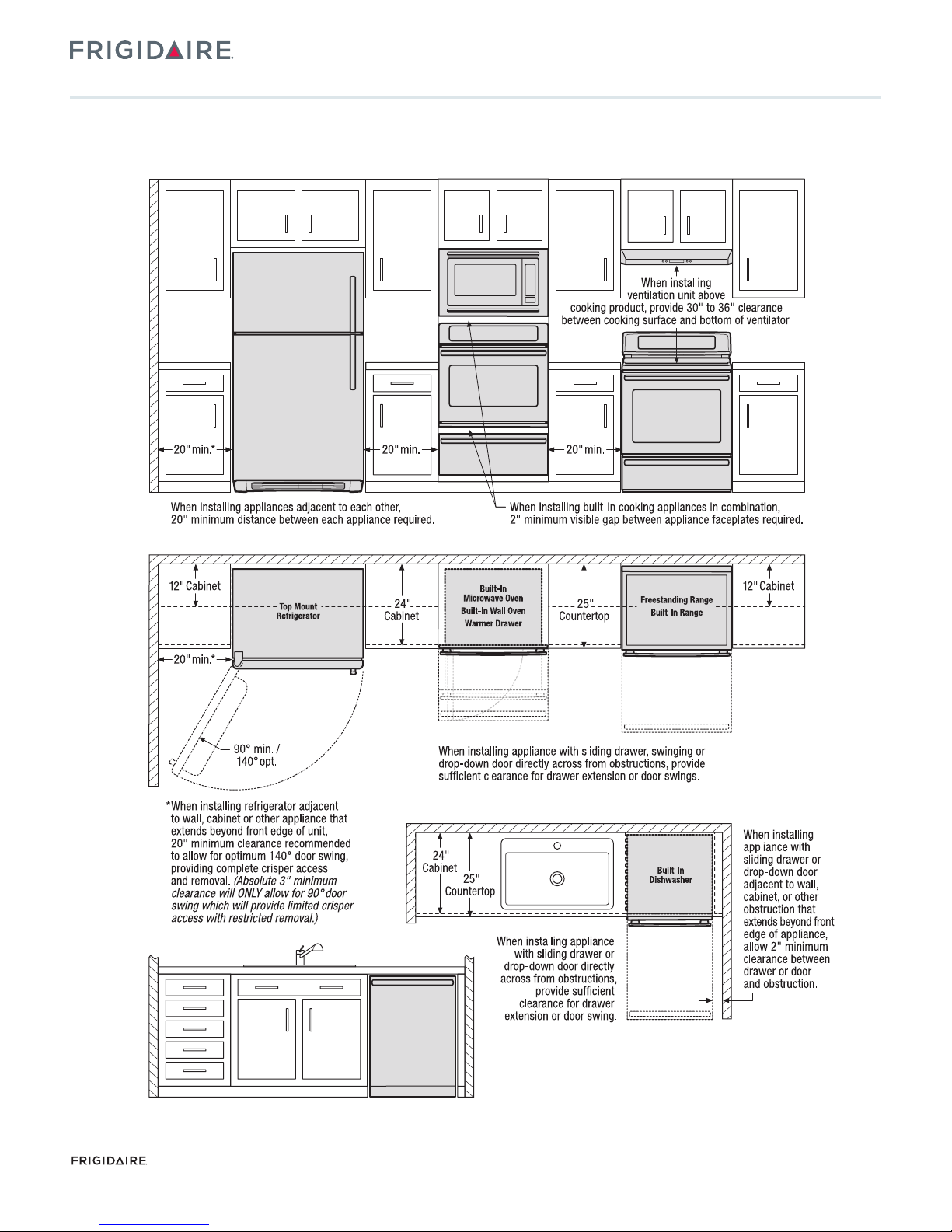

General Installation Guidelines

with Top Mount Refrigerator
