Frigidaire GLEB27M9E Manuale utente

GLEB27M9E.eps CGLEB27M9ESA.eps MGLEB27M9ESA.eps BGLEB27M9ESA.eps

DGLEB27M9ESA.eps 318046238.eps

”

Even-Cook Convection Oven

Timer

On/Off

Oven

light

Controls

Speed

clean

Clean

Maxx

clean

STAR T

Clear

/O ff

Broil

Pre

Heat

Keep

Warm

Bake

Conv

roa st

Start

tim e

Bake

tim e

Clock

Conv

bake

Conv

con vert

789

456

123

Product No. GLEB27M9EBA GLEB27M9EQA GLEB27M9ESA

39256791G5061 39256791G5041 39256791G5011

Series 27" elec 27" elec 27" elec

Color black bisque white

Market North America North America North America

Wiring Diagram 318046238 318046238 318046238

Owner's Guide 318200941 318200941 318200941

Installation Instructions 318201521 318201521 318201521

Service Data Sheet 318047418 318047418 318047418

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995430690

05/10/21

(EN/SERVICE/ECL)

377

WALL OVEN /

MICROWAVE COMBO

Model No.

GLEB27M9E

Publication No: 5995430690 GLEB27M9E

10/05 2

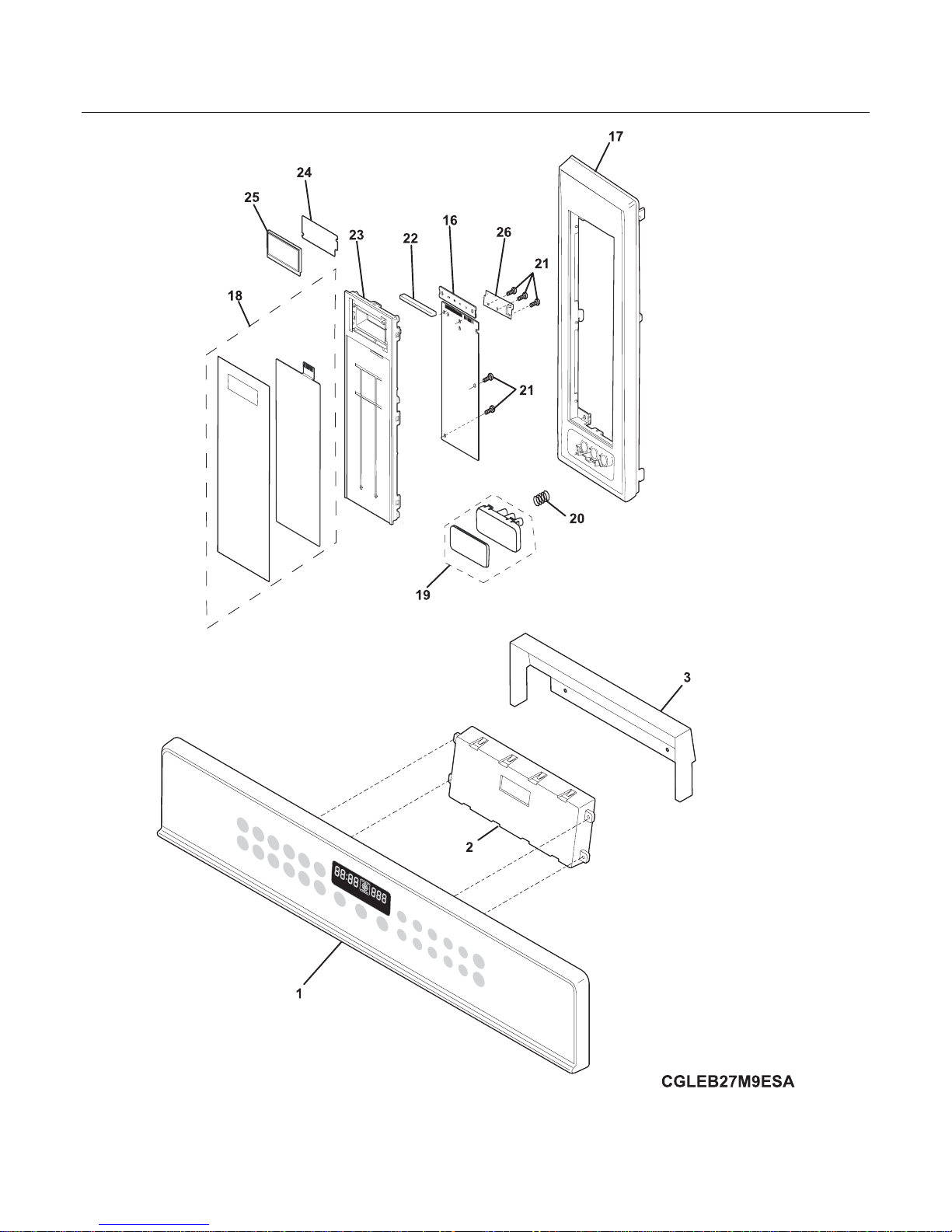

CONTROL PANEL

GLEB27M9E Publication No: 5995430690

# Functional Parts 3 10/05

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AGLEB27M9E (GLEB27M9ESA)

BGLEB27M9E (GLEB27M9EBA)

CGLEB27M9E (GLEB27M9EQA)

POS. NO PART NO. DESCRIPTION

1 318331301 A - - Control Panel Assembly, glass, white, w/touch pad

1 318331300 - B - Control Panel Assembly, glass, black, w/touch pad

1 318331302 - - C Control Panel Assembly, glass, bisque, w/touch pad

2 # 316418721 A B C Clock/Timer, electronic, ES510W1

* 316021107 A B C Screw, hex head, 8-32, silver

3 318295701 A B C Deflector, timer

16 # 5304440820 A B C Control Board, printed circuit

17 5304442127 A - - Frame, control panel, white

17 5304440821 - B - Frame, control panel, black

17 5304440823 - - C Frame, control panel, bisque

18 # 5304452254 A - - Switch Assy, touch control, white, w/touch pad

18 # 5304440824 - B - Switch Assy, touch control, black

18 # 5304440826 - - C Switch Assy, touch control, bisque

19 5304442133 A - - Push Button, door opener, white

19 5304440827 - B - Push Button, door opener, black

19 5304440829 - - C Push Button, door opener, bisque

20 5304442134 A B C Spring, button

21 5304440282 A B C Screw, control board, 3mm x 10mm

22 5304440832 A B C Connector, rubber, control board

23 5304440833 A B C Panel, touch pad mount

24 # 5304440834 A B C LED Sheet, backlight

25 # 5304440835 A B C LCD, display

26 5304440836 A B C Bracket, PCB support

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995430690 GLEB27M9E

10/05 4

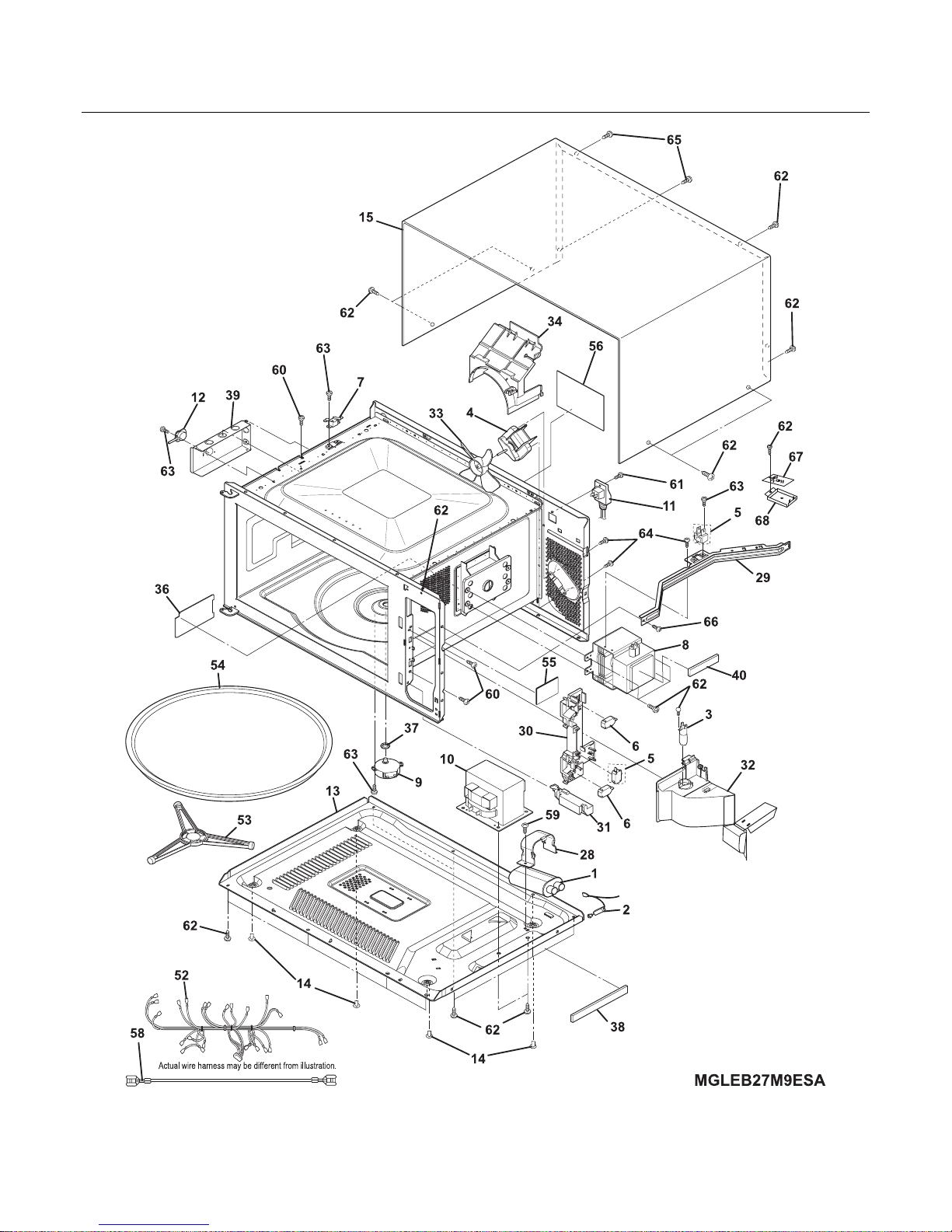

UPPER OVEN

GLEB27M9E Publication No: 5995430690

# Functional Parts 5 10/05

* Non-Illustrated Parts

UPPER OVEN

Model Index: AGLEB27M9E (GLEB27M9ESA)

BGLEB27M9E (GLEB27M9EBA)

CGLEB27M9E (GLEB27M9EQA)

POS. NO PART NO. DESCRIPTION

1 # 5304440777 A B C Capacitor, high voltage

2 # 5304440778 A B C Rectifier, high voltage

3 # 5304440779 A B C Lamp Assy, with socket

4 # 5304448490 A B C Motor, cooling fan

5 # 5303319559 A B C Switch, monitor, with CT fuse

6 # 5304440026 A B C Switch, sec. interlock, door

7 # 5304440780 A B C Fuse, cavity temp, 20 Amp, 250 V

8 # 5304440781 A B C Magnetron

9 # 5304448832 A B C Motor, turntable

10 # 5304440783 A B C Transformer, power

11 # 5304440784 A B C Power Cord, electric

12 # 5304440785 A B C Sensor, abs. humidity, cook control

13 5304440814 A B C Base, unit chassis

14 5304442125 A B C Insert, threaded, (4)

15 5304440817 A - - Cabinet, outer casing, white

15 5304440816 - B - Cabinet, outer casing, black

15 5304440818 - - C Cabinet, outer casing, bisque

28 5304440838 A B C Retainer, capacitor strap

29 5304440839 A B C Bracket, chassis support

30 5304440840 A B C Latch Hook

31 5304440841 A B C Lever, door release

32 5304442135 A B C Duct, magnetron

33 # 5304440843 A B C Fan Blade, cooling fan

34 5304440844 A B C Duct, cooling fan

36 5304440845 A B C Cover, waveguide

37 5304440288 A B C Bushing, motor shaft, turntable

38 5304441909 A B C Cushion, base plate pad

39 5304440847 A B C Duct, AH sensor

40 5304441910 A B C Cushion, magnetron pad

52 5304452260 A B C Harness, wiring

53 5304440284 A B C Support Assy, turntable

54 5304440868 A B C Tray, turntable, glass

55 5304440334 A B C Label, Caution-monitor

56 5304440333 A B C Label, Caution-DHHS

58 # 5304440870 A B C Wire, high voltage-A

59 5303319636 A B C Screw

60 5303319641 A B C Screw

61 5304440871 A B C Screw, 4mm x 12mm, ground

62 5304440340 A B C Screw, 4mm x 12mm

62 5304452261 A B C Screw, outer casing

63 5303319633 A B C Screw, 3mm x 8mm

64 5304440872 A B C Screw, 4mm x 8mm

65 5304440873 A B C Screw, torx head, tamper proof

66 5304440874 A B C Screw

67 # 5304451818 A B C Filter, noise, electronic

68 5303322975 A B C Bracket, noise filter, angle

Publication No: 5995430690 GLEB27M9E

10/05 6

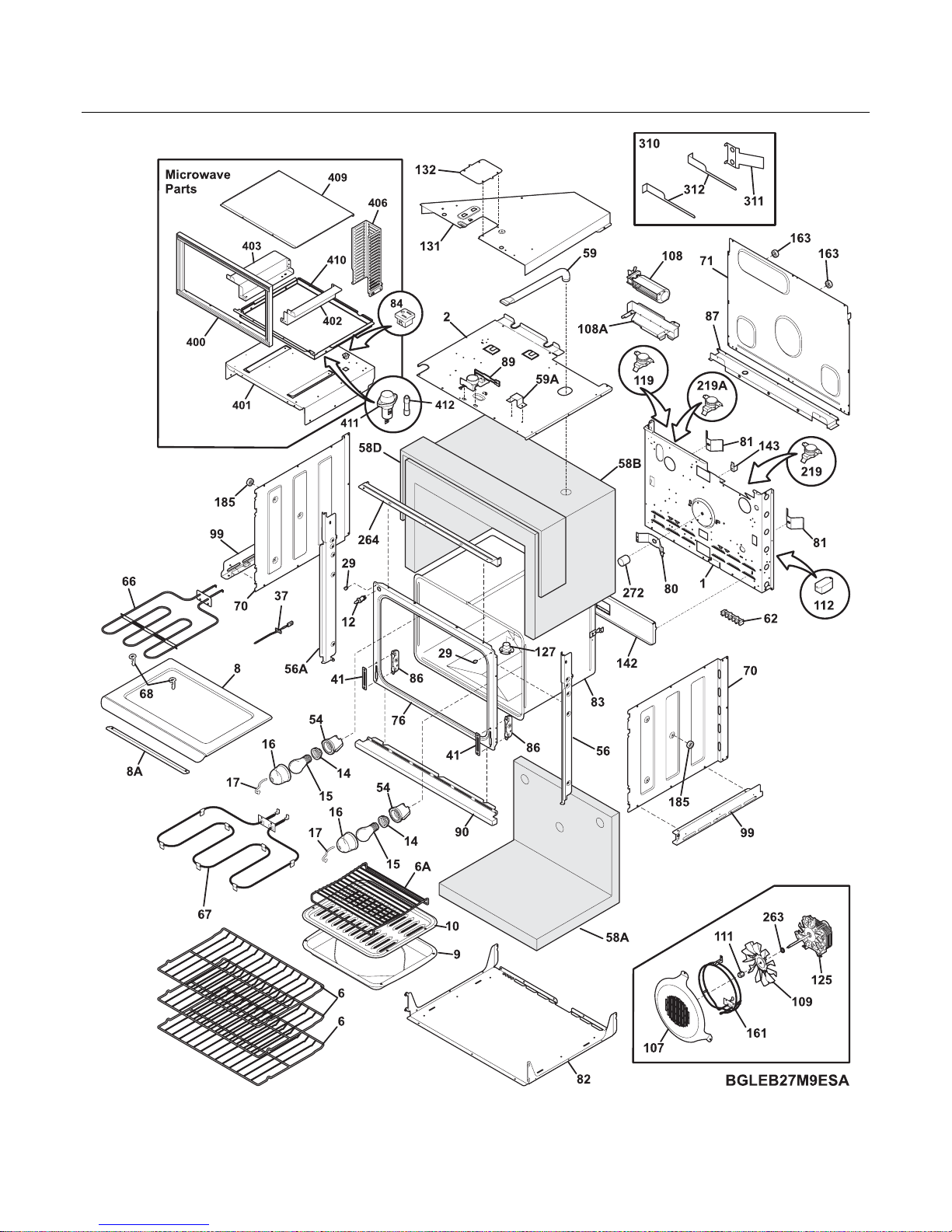

LOWER OVEN

GLEB27M9E Publication No: 5995430690

# Functional Parts 7 10/05

* Non-Illustrated Parts

LOWER OVEN

Model Index: AGLEB27M9E (GLEB27M9ESA)

BGLEB27M9E (GLEB27M9EBA)

CGLEB27M9E (GLEB27M9EQA)

POS. NO PART NO. DESCRIPTION

1 318259210 A B C Back, main

2 318258910 A B C Shield, insulation, upper

6 318262603 A B C Rack, oven, (3)

6A 318219500 A B C Rack, broiler pan

8 318262011 A B C Cover, element

8A 318318600 A B C Bracket, element, hidden bake

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089917 A B C Switch, light

14 318224000 A B C Receptacle, oven light

14* 318268099 A B C Insulation, oven light

15 5303013071 A B C Bulb/Lamp, light

16 3201911 A B C Cover, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

* 5303325980 A B C Screw, 10-32 x 0.437

54 318222400 A B C Housing, oven light

56 318276302 A - - Trim, side filler, white, RH

56 318276304 - B - Trim, side filler, black, RH

56 318276306 - - C Trim, side filler, bisque, RH

56A 318276303 A - - Trim, side filler, white, LH

56A 318276305 - B - Trim, side filler, black, LH

56A 318276307 - - C Trim, side filler, bisque, LH

58A 318285060 A B C Insulation, rear & bottom, oven wrapper

58B 318285059 A B C Insulation, top & sides, oven wrapper

58D 318285058 A B C Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

62 316056000 A B C Terminal Block

62* 5303323139 A B C Screw, 10-24 x 0.906

62* 5303323144 A B C Nut, 10-32

66 # 318255601 A B C Element, broil, 3400W

67 318254902 A B C Element, bake, 2700W, 6 pass

68 5304403015 A B C Support, hanger, (2), broil element

70 318259100 A B C Shield, insulation, sides, (2)

71 318260001 A B C Panel, rear box

76 318056222 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

82 318258710 A B C Shield, insulation, lower

83 318261500 A B C Liner, oven assy

84 # 318146828 A B C Outlet-electrical, miniature, black-glossy

86 5303310524 A B C Receptacle, hinge

87 318260601 A B C Bracket, cable mtg.

89# 318261202 A B C Motor, latchassy

90 318259710 A - - Trim, oven front, white, bottom

Publication No: 5995430690 GLEB27M9E

10/05 8

LOWER OVEN

GLEB27M9E Publication No: 5995430690

# Functional Parts 9 10/05

* Non-Illustrated Parts

LOWER OVEN

Model Index: AGLEB27M9E (GLEB27M9ESA)

BGLEB27M9E (GLEB27M9EBA)

CGLEB27M9E (GLEB27M9EQA)

POS. NO PART NO. DESCRIPTION

90 318259711 - B - Trim, oven front, black, bottom

90 318259712 - - C Trim, oven front, bisque, bottom

99 318256200 A B C Bracket, side, bottom, (2)

107 318219401 A B C Cover, fan

108# 318073018 A B C Motor, blower

* 08016432 A B C Screw, truss head, 8-18 x 0.375

108A 318251300 A B C Bracket, fan support

109 316136400 A B C Blade, fan

111 316136600 A B C Nut, fan retainer

112# 318112701 A B C Relay

119# 318004900 A B C Switch, thermal

125# 316415800 A B C Motor, fan

125* 5303316994 A B C Insulation, 3.81 x 3.13

127 318317100 A B C Adapter Assembly, vent tube, w/converter

131 318272900 A B C Box, vent

132 318003000 A B C Plate, shield

142 318123910 A B C Deflector

143 318172904 A B C Support, wire

161# 318255503 A B C Element, convection, 350 W

163 318014111 A B C Spacer

185 318014700 A B C Spacer, oven shield, (4)

219# 318003614 A B C Thermostat, safety

* 3201861 A B C Screw, 6 x 0.375, (4)

219A 318003613 A B C Thermostat, safety

263 316136500 A B C Washer, flat

264 318257711 A B C Trim, oven, black, front

272 318249401 A B C Tube, protector

310 5304440067 A B C Cabinet Mounting Kit

311 318246010 A B C Bracket, cabinet mtg, (2)

311* 5304438005 A B C Screw, 6 x 1, black

312 318246702 A B C Tool, cabinet bracket, RH

312 318246703 A B C Tool, cabinet bracket, LH

400 318275601 A - - Trim Assembly, microwave, 27", white

400 318275600 - B - Trim Assembly, microwave, 27", black

400 318275602 - - C Trim Assembly, microwave, 27", bisque

401 318297200 A B C Plate, support, microwave, 27"

402 318276202 A B C Bracket, base pad, RH

403 318276203 A B C Bracket, base pad, LH

406 318277200 A B C Shield, microwave rear

409 318295300 A B C Bracket, top trim

410 318297101 A B C Flue, black

411# 5304442354 A B C Holder, fuse

412# 5304442353 A B C Fuse, 20 Amp

* # 318078543 A B C Box & wires assy

* 318231737 A B C Harness, wiring, main

* 5303323136 A B C Screw ground

* 5303211311 A B C Screw, 8 x 0.500

* 5303323277 A B C Screw, 8-18 X 13/32

* 5303324184 A B C Screw, 8-18 x 5/16, black, (4)

* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995430690 GLEB27M9E

10/05 10

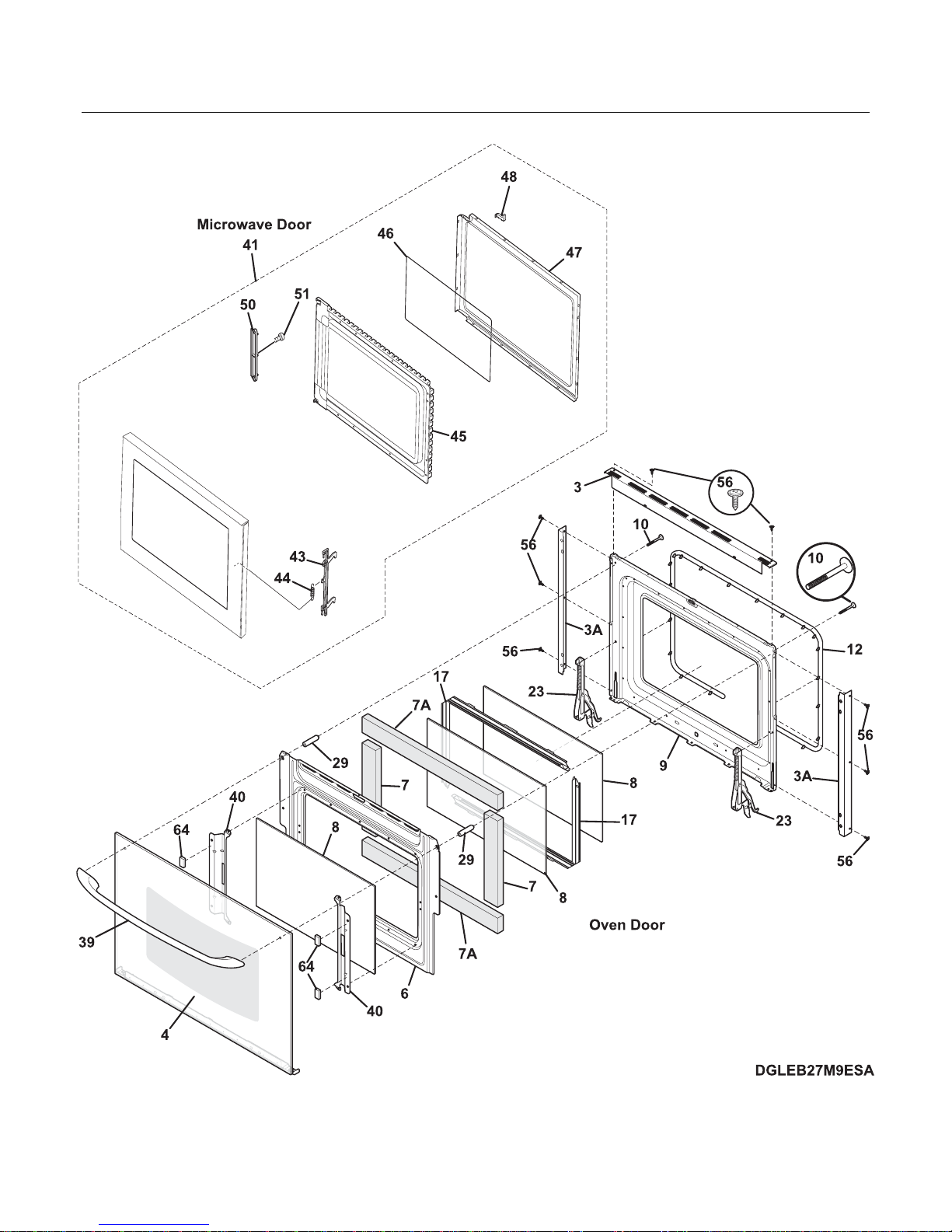

DOORS

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Frigidaire Forno a microonde

Frigidaire

Frigidaire FFMV1846VS Manuale utente

Frigidaire

Frigidaire GLEB27M9FBC Manuale utente

Frigidaire

Frigidaire FFCE2278LS Manuale utente

Frigidaire

Frigidaire FMV156D Manuale utente

Frigidaire

Frigidaire FGBM185KB - Microwave Guida rapida

Frigidaire

Frigidaire FCL-MW10W Manuale di istruzioni

Frigidaire

Frigidaire FGMV185KB - Gallery 1.8 cu. Ft. Microwave Guida rapida

Frigidaire

Frigidaire FFMV152CLB Manuale utente

Frigidaire

Frigidaire FPBM3077R Manuale utente

Frigidaire

Frigidaire FGBM185KB - Microwave Manuale di servizio

Frigidaire

Frigidaire FGMV173KQ - Gallery Series Microwave Manuale utente

Frigidaire

Frigidaire 316495057 Manuale utente

Frigidaire

Frigidaire GMOS1266AF Manuale del proprietario

Frigidaire

Frigidaire 316495054 Manuale utente

Frigidaire

Frigidaire FGMV173KB - Gallery Series Microwave Guida rapida

Frigidaire

Frigidaire CPLMZ169GCC Manuale utente

Frigidaire

Frigidaire FGMO205KB - Gallery 2.0 cu. Ft. Microwave Guida rapida

Frigidaire

Frigidaire 316495003 Manuale utente

Frigidaire

Frigidaire PMBD3080AF Manuale del proprietario

Frigidaire

Frigidaire 16495056 Manuale utente

Frigidaire

Frigidaire FGMO206NTD Manuale del proprietario

Frigidaire

Frigidaire FGMV173KQ - Gallery Series Microwave Guida rapida

Frigidaire

Frigidaire FMOS1846BW Manuale del proprietario

Frigidaire

Frigidaire FGBM185K Manuale utente

Manuali Forno a microonde popolari di altre marche

Daewoo

Daewoo KOG-574R0S Manuale utente

LG MH7040SS Manuale utente

Sharp

Sharp R-895(AL)M Manuale utente

Dometic

Dometic DOTRM13W Manuale utente

Sanyo

Sanyo EM-X680 Manuale utente

Sharp

Sharp R-393M Manuale utente

KitchenAid

KitchenAid KMCX4510 Istruzioni per l'installazione

Smeg

Smeg S45MCX1 Manuale utente

Russell Hobbs

Russell Hobbs RHM2044 Manuale utente

Sunbeam

Sunbeam SMW759 Manuale utente

Gallet

Gallet FMOE230S Manuale utente

Bosch

Bosch CEG732X.1B Manuale utente

Dometic

Dometic Roadmate 230 Manuale utente

Samsung

Samsung SJ0396W Manuale utente

Sanyo

Sanyo EM-P494WS Manuale utente

Sharp

Sharp R-240 Manuale utente

Electrolux

Electrolux EMS2840 Manuale utente

Daewoo

Daewoo KOC-984T2S13 Manuale utente
