Frigidaire GLMV168K Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR MARKET

GLMV168KB1 GLMV168K black North America

GLMV168KQ1 GLMV168K bisque North America

GLMV168KS1 GLMV168K white North America

PLMV168KC1 PLMV168K stainless/black North America

Publication No.

5995356820

010731

-EN/SERVICE /ECL

369

MICROWAVE

OVEN

Model No.

GLMV168K

PLMV168K

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

MINI SERVICE MANUAL - # 5304423402

WIRING DIAGRAM - # 5304423402

OWNER’S GUIDE - # 316137207

INSTALLATION INSTRUCTIONS -# 316137211

08/01 2

Publication No. GLMV168K & PLMV168K

5995356820

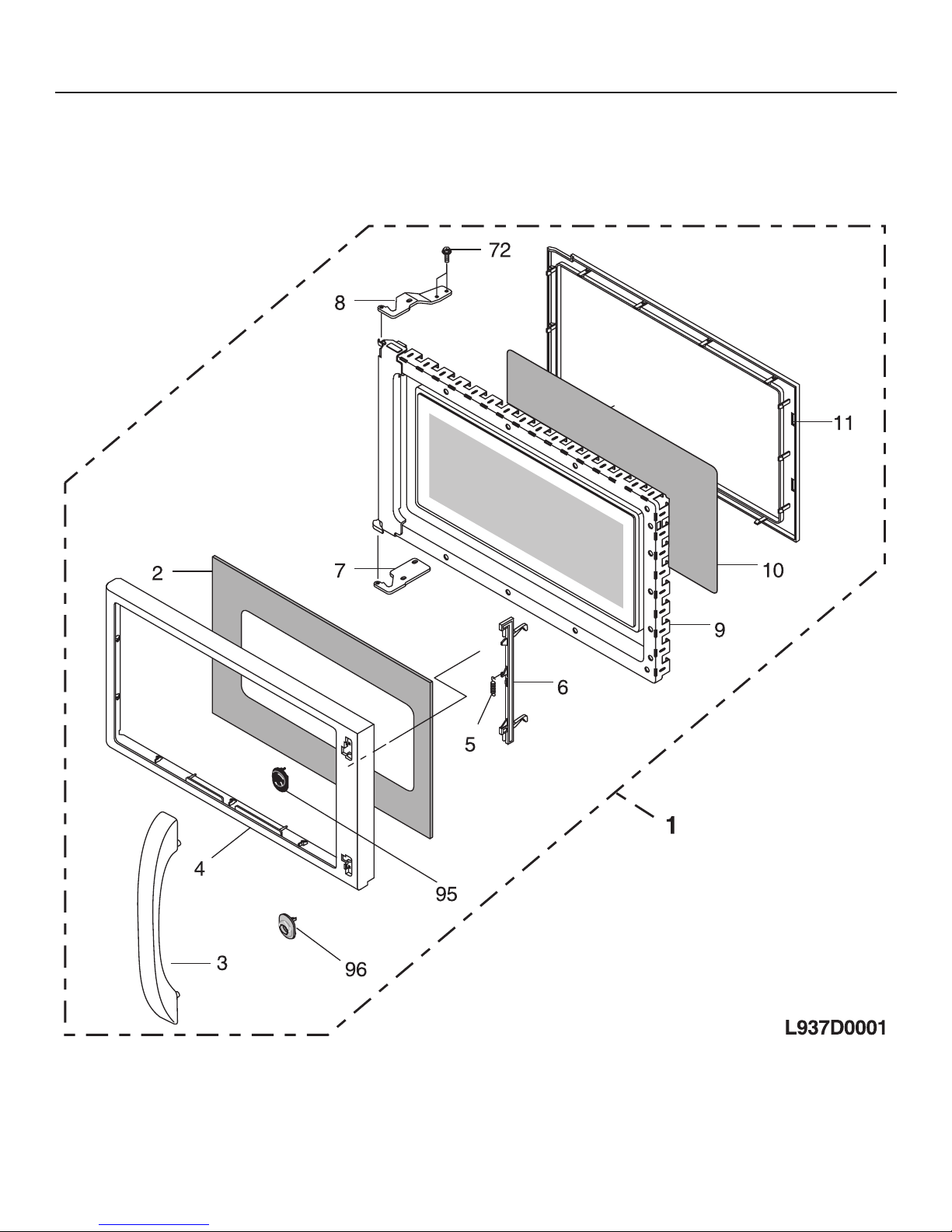

DOOR

# = Fast-moving Parts 3 08/01

* = Non-Illustrated Parts

GLMV168K & PLMV168K Publication No.

5995356820

A = GLMV168K (GLMV168KB1)

B = GLMV168K (GLMV168KS1)

C = GLMV168K (GLMV168KQ1)

D = PLMV168K (PLMV168KC1)

POS. NO PART NO DESCRIPTION

1 5304424538 A - - - Door,black ,complete assy

1 5304424540 - B - - Door,white ,complete assy

1 5304424539 - - C - Door,bisque ,complete assy

1 5304424541 ---D Door,stainless steel ,complete assy

2 5304423433 A - - - Screen,door ,glass ,black

2 5304423434 - B - - Screen,door ,glass ,white

2 5304423435 - - C - Screen,door ,glass ,bisque

2 5304423436 ---D Screen,door ,glass ,clear

3 5304408525 A - - - Handle,door ,black

3 5304408527 - B - - Handle,door ,white

3 5304423437 - - C - Handle,door ,bisque

3 5304423438 ---D Handle,door ,stainless steel

4 5304408536 A - - D Frame,outer door ,black

4 5304408538 - B - - Frame,outer door ,white

4 5304423439 - - C - Frame,outer door ,bisque

5 5304423440 A B C D Spring,door latch

6 5304409137 A - - D Latch,door

6 5304409138 - B C - Latch,door

7 5304408579 A B C D Hinge,door ,lower

8 5304408578 A B C D Hinge,door ,upper

9 5304423441 A - - D Panel,door ,black ,inner

9 5304423457 - B - - Panel,door ,white ,inner

9 5304423458 - - C - Panel,door ,bisque ,inner

10 5304409136 A B C D Seal,door ,film

11 5304408575 A - - D Frame,choke cover ,black ,inner door

11 5304408576 - B - - Frame,choke cover ,white ,inner door

11 5304423459 - - C - Frame,choke cover ,bisque ,inner door

72 5304408958 A B C D Bolt,flange

95 5304423460 ---D EndCap,handle mt “U”

96 5304423461 ---D EndCap,handle mt “L”

DOOR

08/01 4

Publication No. GLMV168K & PLMV168K

5995356820

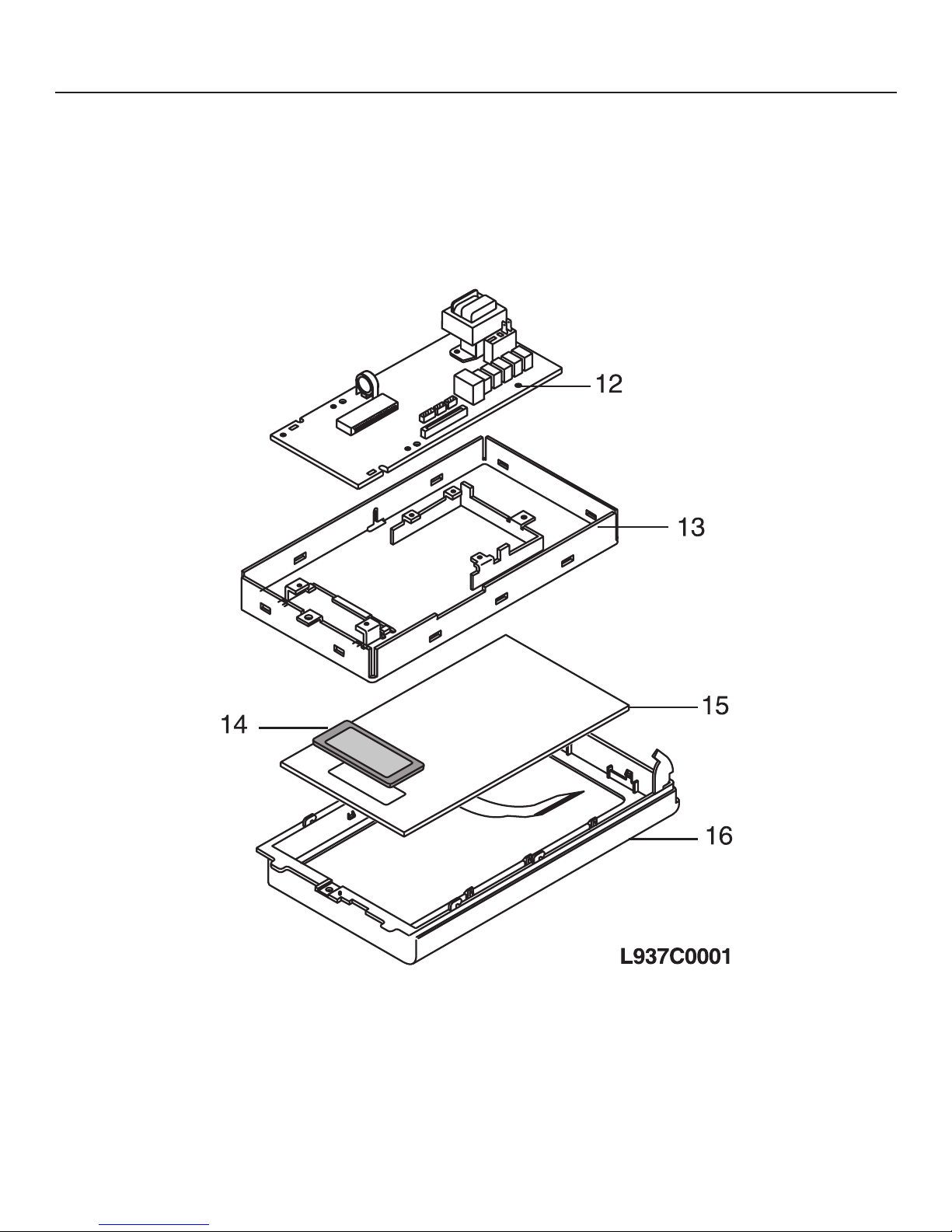

CONTROL PANEL

# = Fast-moving Parts 5 08/01

* = Non-Illustrated Parts

GLMV168K & PLMV168K Publication No.

5995356820

A = GLMV168K (GLMV168KB1)

B = GLMV168K (GLMV168KS1)

C = GLMV168K (GLMV168KQ1)

D = PLMV168K (PLMV168KC1)

POS. NO PART NO DESCRIPTION

12 # 5304424537 A B C D Control Board,printed circuit

13 5304423465 A B C - Bracket,control mtg

13 5304423466 ---D Bracket,control mtg

14 5304423467 A B C D Window,control display

15 # 5304423468 A - - - Switch,touch control ,membrane ,black

15 # 5304423469 - B - - Switch,touch control ,membrane ,white

15 # 5304423470 - - C - Switch,touch control ,membrane ,bisque

15 # 5304423471 ---D Switch,touch control ,membrane ,black/stnls stl

16 5304423472 A - - D Frame,control panel ,black

16 5304423473 - B - - Frame,control panel ,white

16 5304423474 - - C - Frame,control panel ,bisque

CONTROL PANEL

08/01 6

Publication No. GLMV168K & PLMV168K

5995356820

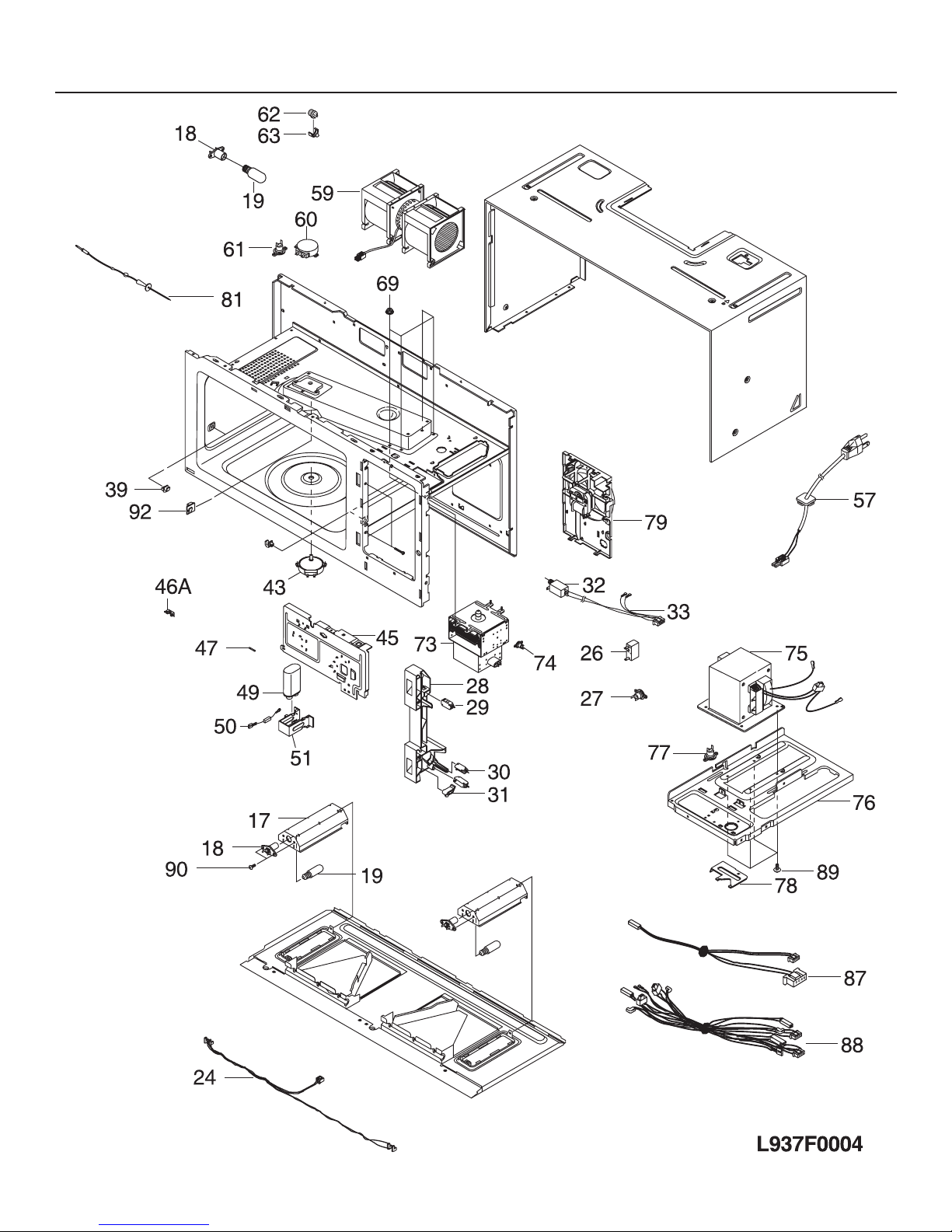

FUNCTIONAL PARTS

# = Fast-moving Parts 7 08/01

* = Non-Illustrated Parts

GLMV168K & PLMV168K Publication No.

5995356820

A = GLMV168K (GLMV168KB1)

B = GLMV168K (GLMV168KS1)

C = GLMV168K (GLMV168KQ1)

D = PLMV168K (PLMV168KC1)

POS. NO PART NO DESCRIPTION

17 5304408954 A B C D Bracket,lamp mtg ,bottom

18 # 5304424251 A B C D Receptacle,lamp

19 5304408949 A B C D Lamp,incandescent

24 # 5304424252 A B C D Wiring Harness,D

26 # 5304408941 A B C D Capacitor,motor

27 # 5304417433 A B C D Thermostat,thermal cutout ,hood ,40/70 deg C

28 5304408960 A B C D Latch Hook

29 # 5304408938 A B C D Switch,interlock ,door/primary

30 # 5304408937 A B C D Switch,interlock ,monitor

31 5304408963 A B C D Lever,switch ,bottom

32 5304408959 A B C D Receptacle,cook temp probe

33 # 5304423379 A B C D Wiring Harness

39 5304423381 A B C D Support,rack-A

43 # 5304408980 A B C D Motor,turntable

45 5304408961 A B C D Bracket,air guide

46A# 5304423382 A B C D Receptacle,fuse

47 # 5304423383 A B C D Fuse,cartridge ,20 Amp

49 # 5304423378 A B C D Capacitor,high voltage

50 # 5304417430 A B C D Diode,high voltage

51 5304408946 A B C D Bracket,capacitor mtg

57 # 5304408947 A B C D Power Cord,electric

59 # 5304408943 A B C D Fan Assy,ventilator ,with motor

60 # 5304408944 A B C D Motor,stirrer fan

61 # 5304423690 A B C D Thermostat,thermal cutout ,oven cavity

62 # 5304408945 A B C D Sensor,cooking gas

63 5304408957 A B C D Receptacle,gas sensor

69 5304408962 A B C D Nut,flange

73 # 5304423374 A B C D Magnetron

74 # 5304408936 A B C D Thermostat,thermal cutout ,magnetron

75 # 5304423375 A B C D Transformer,high voltage

76 5304423377 A B C D Plate,xfmr base

77 # 5304408935 A B C D Thermostat,thermal cutout ,bottom ,120/0 deg C

78 5304423384 A B C D End Cap,xfmr base ,bottom

79 # 5304423385 A B C D Fan Assy,cooling ,with motor

81 # 5304408955 A B C D Probe,temp sensor

87 # 5304423386 A B C D Wiring Harness,C

88 # 5304423387 A B C D Wiring Harness,A

89 5304423389 A B C D Screw,washer head

90 5304408964 A B C D Screw,special

92 5304423390 A B C D Holder,rack-B

FUNCTIONAL PARTS

08/01 8

Publication No. GLMV168K & PLMV168K

5995356820

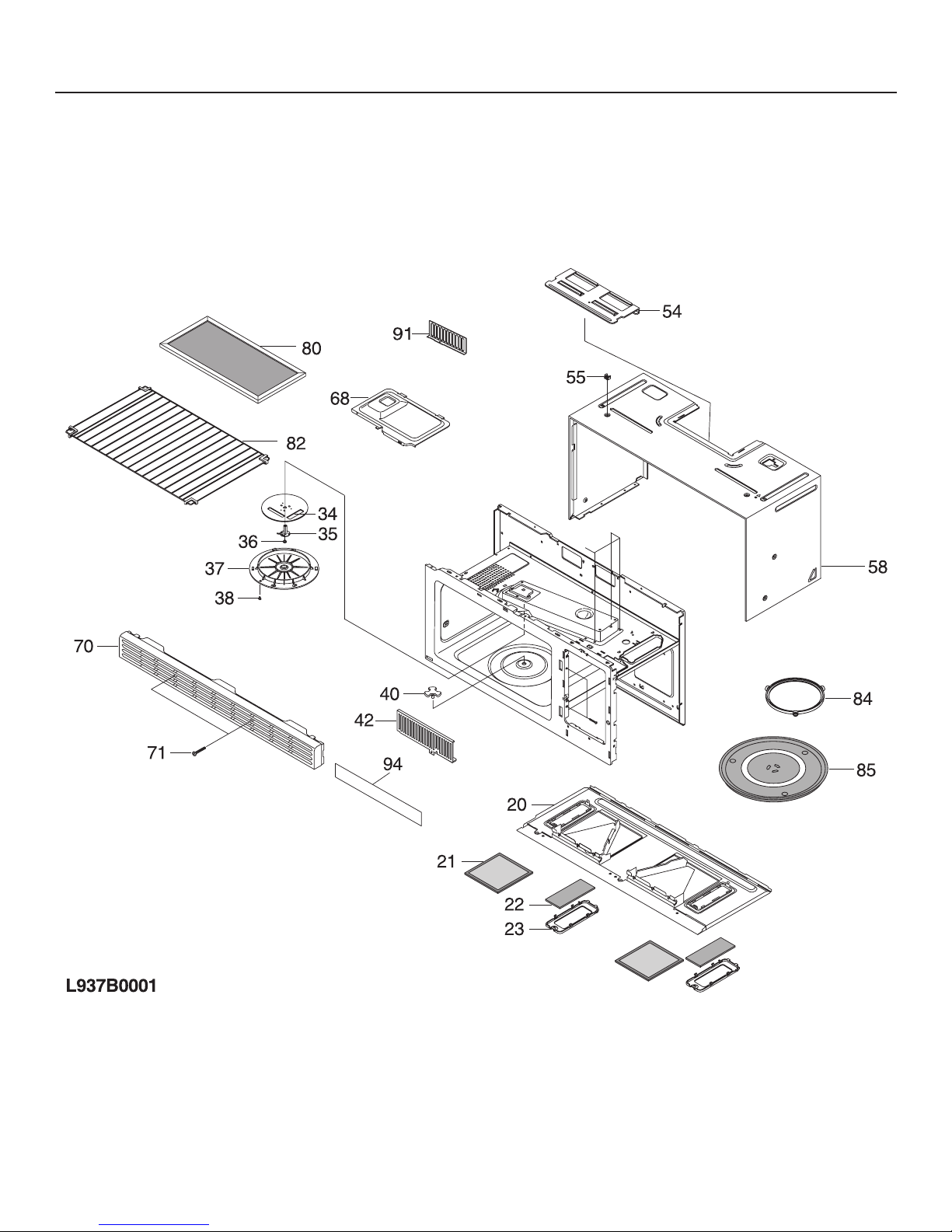

BODY

# = Fast-moving Parts 9 08/01

* = Non-Illustrated Parts

GLMV168K & PLMV168K Publication No.

5995356820

BODY

A = GLMV168K (GLMV168KB1)

B = GLMV168K (GLMV168KS1)

C = GLMV168K (GLMV168KQ1)

D = PLMV168K (PLMV168KC1)

POS. NO PART NO DESCRIPTION

20 5304423414 A - - D Plate,oven base ,black ,bottom cover

20 5304423416 - B C - Plate,oven base ,white ,bottom cover

21 5304408977 A B C D Filter,air ,(2)

22 5304408988 A B C D Lens,cooktop lamp ,glass ,(2)

23 5304408973 A - - D Cover,lens frame ,black ,lamp

23 5304408974 - B C - Cover,lens frame ,white ,lamp

34 # 5304423478 A B C D Fan Blade,stirrer/antenna

35 5304423487 A B C D Collar,motor shaft ,stirrer fan

36 5304423501 A B C D Pivot Tip,shaft collar ,stirrer motor

37 5304408986 A B C D Cover,stirrer/antenna

38 5304408979 A B C D Rivet,push mount ,plastic ,stirrer cover

40 5304417415 A B C D Bushing,motor shaft ,turntable

42 5304408990 A B C D Cover,front

54 5304417437 A B C D Bracket,motor mtg ,turntable/vent ,wrpr top plate

55 5304423504 A B C D Holder Nut,assy

58 5304423506 A - - D Casing,wrapper ,black ,outer panel

58 5304423507 - B C - Casing,wrapper ,white ,outer panel

68 5304408982 A B C D Bracket,duct assy ,upper

70 5304423512 A - - D Grille,exhaust ,black

70 5304423513 - B - - Grille,exhaust ,white

70 5304423514 - - C - Grille,exhaust ,bisque

71 5304408994 A - - D Screw,grille mtg ,black ,(2)

71 5304408993 - B - - Screw,grille mtg ,white ,(2)

71 5304417413 - - C - Screw,grille mtg ,bisque ,(2)

80 5304409641 A B C D Filter,air ,charcoal

82 5304423519 A B C D Rack,microwave oven ,wire

84 5304417414 A B C D Support,turntable tray ,with rollers

85 5304423399 A B C D Tray,turntable ,glass

91 5304423522 A B C D Bracket,filter

94 5304423524 A B C D Label,cooking guide

08/01 10

Publication No. GLMV168K & PLMV168K

5995356820

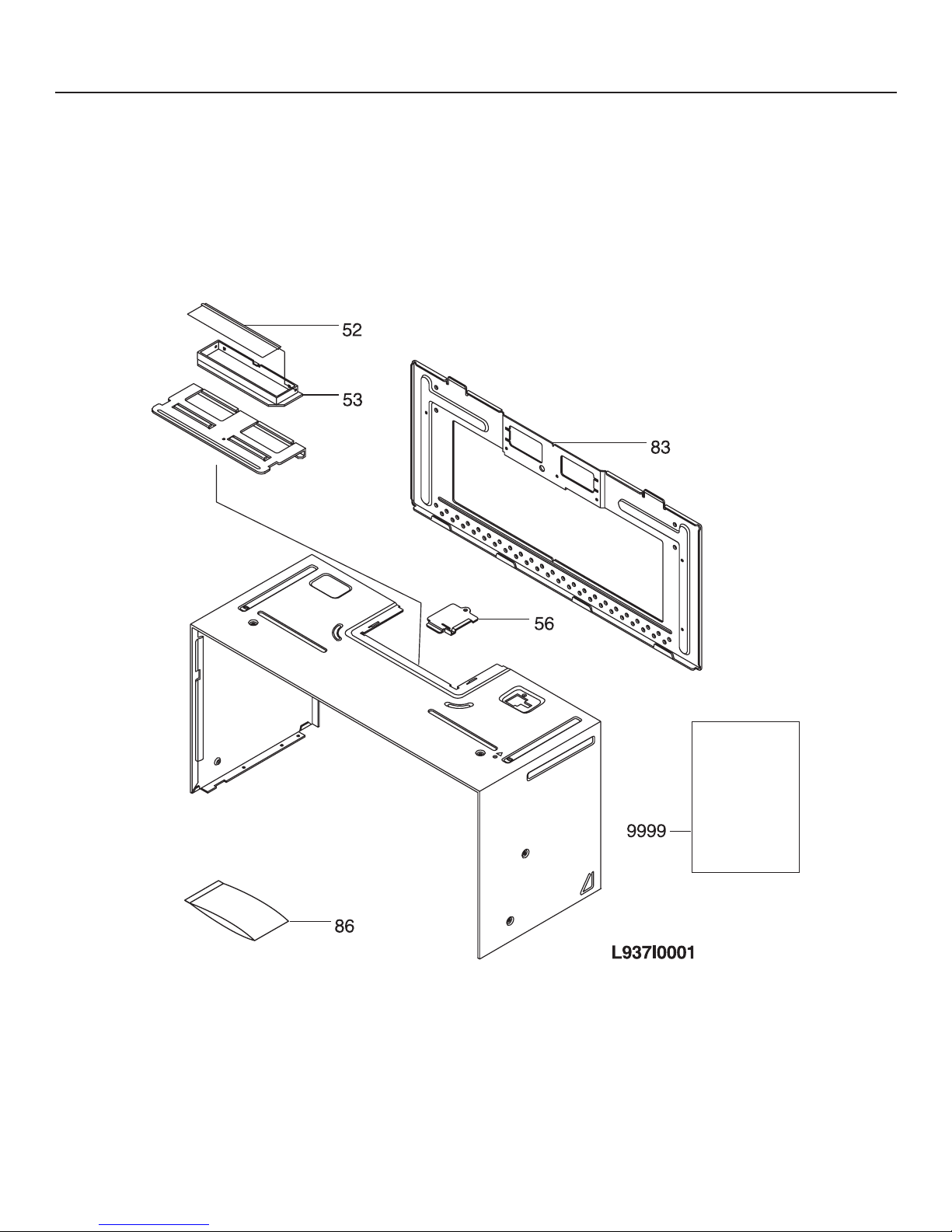

INSTALLATION
