Frigidaire FEB398WECD Control Manuale di istruzioni

PRODUCT NO. FACTORY NO. COLOR MARKET

FEB398WECD 37057391H6064 STAINLESS U.S.A.

ELECTRIC WALL OVEN

Model No.

FEB398WE

FACTORY PARTS CATALOG

ELECTRIC WALL OVEN

WIRING DIAGRAM #- 318046110

OWNER’S GUIDE #- 318200914

INSTALLATION INSTR. # - 318201506

TIMER INSTR. GUIDE #- 318200130

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200

Publication No.

5995334116

000228

-EN/SERVICE

377

CLOCK

LOWER OVEN

BAKE

CLEAN CANCEL

SELF-CLEANING CONVECTION OVENS

BROI L

UPPEROVEN LOWER OVE N

DUALRADIANT BAKING AND ROASTING

CLEAN CANCEL

BAKE BROIL

CONV

Bake/Roas

BAKE

TIME

STOP

TIME TIMER

ON/OFF

CONV

Bake/Roas

BAKE

TIME

OVEN

LIGHT

UPPER OVEN

Galler y

PROFESSIONAL SERIES

Publication No. FEB398WE

5995334116

02/00 2

CONTROL PANEL

82A

20 19

19A 19B

LA00CP70391-2

FEB398WE Publication No.

5995334116

# = Functional Part 302/00

* = Non-Illustrated Part

CONTROL PANEL

POS. NO PART NO DESCRIPTION

19 318030207 APanel-control

19A 318041901 ADecorative panel (included on 19B)

19B 318041705 APanel & name plate

20 # 318010501 AClock/Timer

21 318029700 ATrim-top stainless

23 318015110 ABracket timer

42 318027410 ATrim-vent black

51 316082300 ANameplate black (included on 19B)

80# 318022001 ABoard relay

81# 318022002 ABoard relay

82A 5303317199 ASupport, snap in

99 5303300265 AScrew, 8-18 X ½ chrome

*3201861 AScrew, 6 X 3/8

*5303211311 AScrew, #8 X ½

*5303320848 AScrew, 6-20 X ¼

A = FEB398WE (FEB398WECD)

FEB398WE Publication No.

5995334116

02/00 4

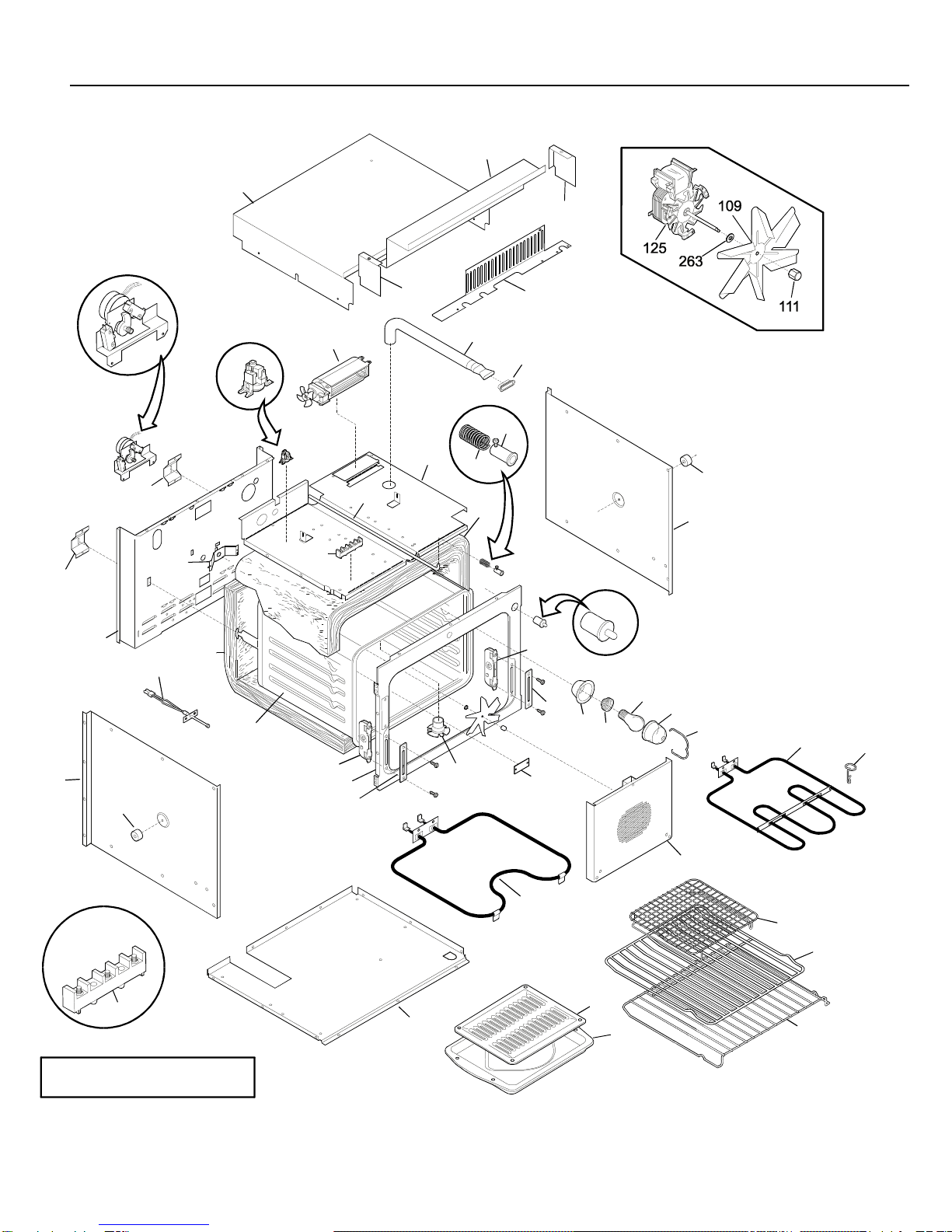

CAVITY / ELEMENTS UPPER OVEN

108

131

132

132A 264

LA00B70391-1

66 68

58B

58A

89 119

127

129

128

185

54 15 16 17

107

222

177

UPPER BODY PARTS ONLY

FEB398WE Publication No.

5995334116

# = Functional Part 502/00

* = Non-Illustrated Part

CAVITY / ELEMENTS UPPER OVEN

POS. NO PART NO DESCRIPTION

1318066402 ABack-main

2 318102101 AShield oven top

2A 318071705 AShield oven top

6 318025301 ARack-oven

6A 5303311206 ARack-broiler pan

6B 318025401 AShelf-oven

95303317977 APan-broiler

10 5303317976 AInsert broiler pan

12 318089910 ASwitch-light

14 5308011085 ASocket-light/lamp

15 3201908 ALamp-oven light

16 3201911 AGlass-oven light lens

17 5304400195 ARetainer-lens

37# 316111203 AProbe-oven temp

41 5303310526 ACover-hinge cutout

54 5303310514 AHousing-oven light

58A 5303310539 AInsulation wrapper

58B 318132600 AInsulation oven back

59 318072506 ATube-oven vent

62# 5303310518 ATerminal block

66# 5303310513 AElement-broil

67# 5303310512 AElement-bake

68 5304403015 ASupport-element

70 5303300142 AShield insulation

76 318056202 AFront-oven

80 5303301261 ASpring-oven

81 5303320846 APlate oven mtg

82 318072301 AShield oven bottom

83 318089609 ALiner-oven assy

86 5303310524 AChannel-hinge

88 5303311222 ARod-latch

89# 318095921 AMotor-latch lock

89* 318120710 ASwitch latch/ Interrupteur

107 318119600 ACover fan

108 318073001 AMotor-fan

109 5303311203 AFan blade

111 5303311205 ANut-fan retainer

119 318004900 ASwitch thermal

125# 5303311202 AMotor-convection

127 5303310542 AAdapter assy

128 5303311163 ABushing

129 5303311164 ASpring

131 318102301 ACover control housing

132 318101700 AEnd-cover control housing RH

132A 318101701 AEnd-cover control housing LH

177 318053800 AGasket-vent

185 318014700 ASpacer-oven shield

222 318080000 APlate, oven temp probe

263 5303322885 ASpacer

264 318143815 AHidden wires shield

*08002868 AScrew, 10-24 X ½

*5303211311 AScrew, #8 X ½

*5303323139 AScrew, 10-24 X 29/32

*5303323144 ANut, #10-32

*5303311528 AScrew, 6-20 X 5/8

*5303304015 AWasher

*5303311528 AScrew, 6-20 X 5/8

*5303302745 AScrew, 10-16 X 1 1/8

*318078507 ABx & wires ay/ Ass. Cable armé

A = FEB398WE (FEB398WECD)

Publication No. FEB398WE

5995334116 CAVITY/ELEMENTS LOWER OVEN

02/00 6

102

124

59A

103 103A

LA00B70391-3

66 68

58B

58A

58C

58D

119

127

37 12

129

128

209

185

56A

209

185

54 15 16 17

188

150A

150

107

222

177

156

96A

LOWER BODY PARTS ONLY

FEB398WE Publication No.

CAVITY/ELEMENTS LOWER OVEN 5995334116

# = Functional Part 702/00

* = Non-Illustrated Part

POS. NO PART NO DESCRIPTION

1318066402 ABack main

2A 318071704 AShield-oven top

6318025301 ARack-oven

6B 318025401 AShelf oven

12# 318089910 ASwitch-light

14 5308011085 ASocket-light/lamp

15 3201908 ALamp-oven light

16 3201911 AGlass-oven light lens

17 5304400195 ARetainer-lens

37 316111203 AProbe-oven temp

41 5303310526 ACover-hinge cutout

54 5303310514 AHousing-oven light

56 318029111 ATrim bodyside

56A 318029110 ATrim bodyside

58A 5303310539 AInsulation wrapper

58B 318132600 AInsulation oven back

58C 318106002 AInsulation

58D 318132500 AInsulation

59 318072504 ATube-oven vent

59A 5303320844 ATube-oven vent

66# 5303310513 AElement-broil

67# 5303310512 AElement-bake

68 5304403015 ASupport-element

70 5303300142 AShield insulation

71 318071211 AShield wire

76 318056202 AFront-oven

80 5303301261 ASpring-oven

81 5303320846 ABracket-oven

82 318072302 AShield insulation

83 318089607 ALiner-oven assy

86 5303310524 AChannel-hinge

88 5303311222 ARod-latch

89# 318095921 AMotor-latch lock

89* 318120710 ASwitch latch

96 5303317197 ADuct-oven vent

96A 3016325 ADuct-oven vent

99 318055410 ASupport-adjustable

102 318090900 ASupport-oven front

103 318028500 ATrim-base black

103A 318027700 ATrim-base stainless

107 318119600 ACover fan

109 5303311203 AFan blade

111 5303311205 ANut-fan retainer

119# 318004900 ASwitch-thermal

124 318076903 ABox vent

125# 5303311202 AMotor convection

127 5303310542 AAdapter assy

128 5303311163 ABushing

129 5303311164 ASpring

150 318072205 ABracket-support RH

150A 318072204 ABracket-support LH

156 5303317198 ABracket-oven vent

177 318053800 AGasket-vent

185 318014700 ASpacer-oven shield

188 08007817 ASpacer

209 318086200 ARetainer plate

222 318080000 APlate, oven temp probe

263 5303322885 ASpacer

*08002868 AScrew, 10-24 X ½

*5303211311 AScrew, #8 X ½

*3016303 AClip-insulator

A = FEB398WE (FEB398WECD)

FEB398WE Publication No.

5995334116

02/00 8

UPPER/ LOWER DOORS

15A

LA00D70391-2

32A

FEB398WE Publication No.

5995334116

# = Functional Part 902/00

* = Non-Illustrated Part

UPPER/ LOWER DOORS

POS. NO PART NO DESCRIPTION

4 318041210 AGlass-oven door black

6 318056811 AShield-air wash

7 318106001 AInsulation oven door

9318048607 ALiner-door baffle

10 5303316953 AScrew, 10-32 X 2 1/4-handle door

12# 318053103 ASeal-oven door upper

13 318009210 APanel-oven door stainless

15 318091101 ABracket-glass (3)

16 318041603 AGlass-oven door inner

17 318042102 ASpacer-glass

18 318053001 ASeal-rope window

20 318086020 ASpacer-handle black

23 5303320452 AHinge

29 318014400 ASpacer

31 318065102 ALatch-door

32 318056701 ADeflector

32A 318056700 ADeflector

39 318039801 AHandle-door stainles

54 5303300265 AScrew, 8-18 X 17/32

*5303316982 AFoam seal

*5303211311 AScrew, #8 X ½

*5303323277 AScrew, 8-18 X 13/32

A = FEB398WE (FEB398WECD)

Publication No. FEB398WE

5995334116

02/00 10

WIRING DIAGRAM
