Frigidaire FGB24S5A Manuale utente

FGB24S5A.eps LA00CP74431-2.eps LA00BR74431-1.eps LA00B74431-1.eps

LA00D74431-2.eps 318046316-1.eps 318046316-2.eps

Product No. FGB24S5ABC FGB24S5ASC

37454432F1063 37454432F1013

Series 24" gas 24" gas

Color black white

Market North America North America

Wiring Diagram 318046316 318046316

Owner's Guide 318200957 318200957

Installation Instructions 318201554 318201554

Service Data Sheet 318047410 318047410

Timer Guide 318200191 318200191

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995491304

07/05/22

(EN/SERVICE/BJH)

377

SINGLE GAS WALL

OVEN

Model No.

FGB24S5A

Publication No: 5995491304 FGB24S5A

05/07 2

CONTROL PANEL

FGB24S5A Publication No: 5995491304

# Functional Parts 3 05/07

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFGB24S5A (FGB24S5ABC)

BFGB24S5A (FGB24S5ASC)

POS. NO PART NO. DESCRIPTION

18 5303280338 A - End Cap, black, RH

18 5303310391 - B End Cap, white, RH

18A 5303280339 A - End Cap, black, LH

18A 5303310389 - B End Cap, white, LH

19 318234108 A - Panel, control, black

19 318234107 - B Panel, control, white

20 # 318185431 A - Clock/Timer, electronic, black

20 # 318185430 - B Clock/Timer, electronic, white

20* 316220805 A - Overlay, clock, black, ES300

20* 316220804 - B Overlay, clock, white, ES300

21 5303308451 A - Trim, splasher, black

21 5303308462 - B Trim, splasher, satin

23 318015034 A B Bracket, clock/timer

24 # 316005602 A - Switch, rocker, black

24 # 316005607 - B Switch, rocker, white

42 318027101 A - Trim, center vent, black

42 5303271089 - B Trim, center vent, white

53 318056901 A - Deflector trim, black

53 318056902 - B Deflector trim, black

99 5303311528 A B Screw, oval hd sq dr, 6-20AB x 0.625, black

100 318112200 A B Plate, mounting, rocker switch

* 08002868 A B Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 5303323130 A B Screw, 8 x 1/4, (4)

Publication No: 5995491304 FGB24S5A

05/07 4

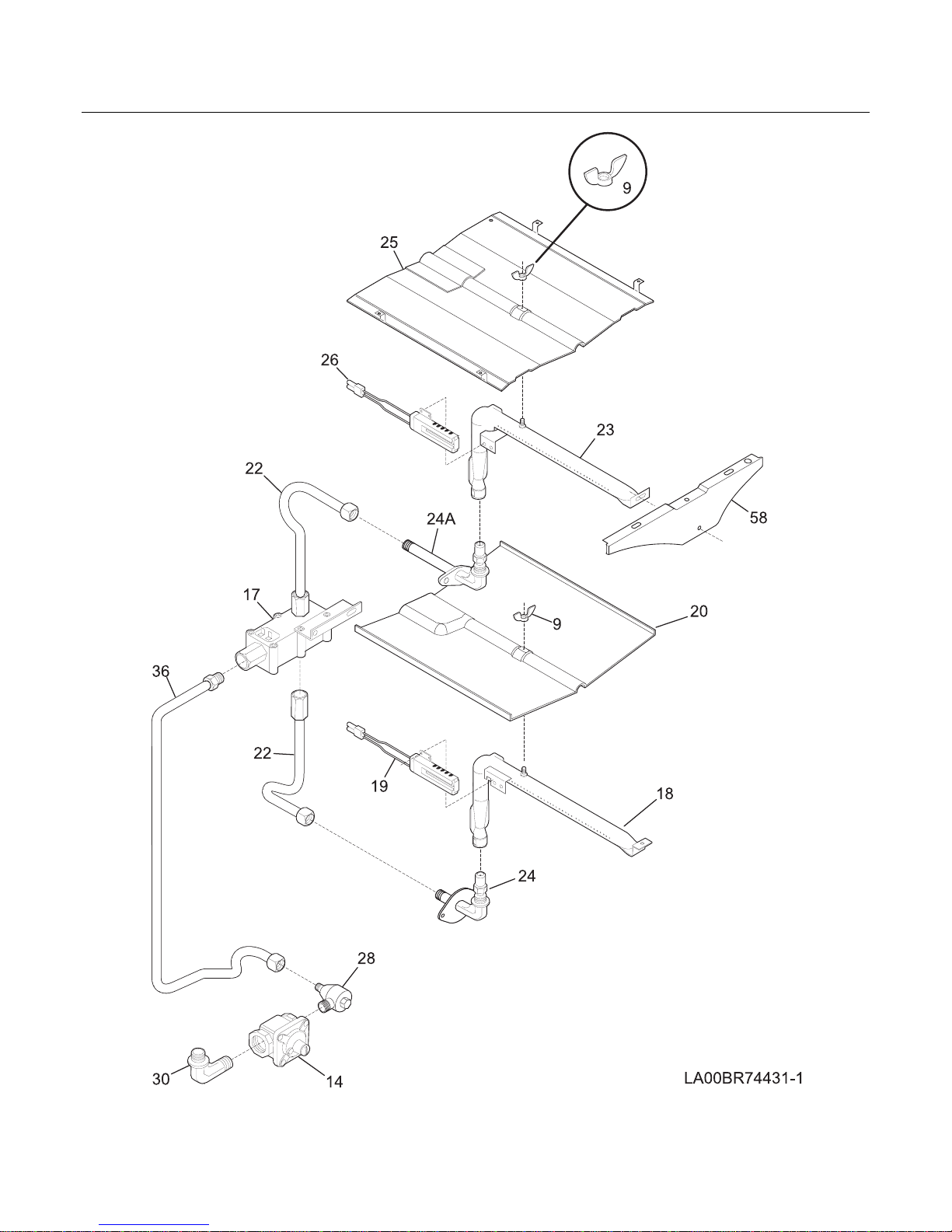

BURNER

FGB24S5A Publication No: 5995491304

# Functional Parts 5 05/07

* Non-Illustrated Parts

BURNER

Model Index: AFGB24S5A (FGB24S5ABC)

BFGB24S5A (FGB24S5ASC)

POS. NO PART NO. DESCRIPTION

9 3201885 A B Nut, Keps, 10-24

14 # 5303210167 A B Regulator, pressure

17 # 5303210798 A B Valve, safety

18 # 5303210787 A B Burner, oven

19 # 318177710 A B Ignitor, oven burner

20 3203676 A B Baffle, oven burner

22 5303271092 A B Tubing, valve

23 # 5303283132 A B Burner, broiler

24 # 5303210786 A B Mixer Elbow, bake

24A# 5303210807 A B Mixer Elbow, broiler

25 5303326220 A B Baffle, broil burner

26 # 316119302 A B Ignitor, broiler

28 # 5303295305 A B Valve, shut off

30 5303305657 A B Elbow, fitting

36 318177801 A B Tubing, safety valve, upper

58 318123600 A B Shield, broiler

* 5303311549 A B Screw, burner mtg

* 3051070 A B Screw, hex washer head, 10-24 x 0.438, special

* 08002868 A B Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 5303311306 A B Screw, 8-18 x 0.375, (8)

Publication No: 5995491304 FGB24S5A

05/07 6

BODY

FGB24S5A Publication No: 5995491304

# Functional Parts 7 05/07

* Non-Illustrated Parts

BODY

Model Index: AFGB24S5A (FGB24S5ABC)

BFGB24S5A (FGB24S5ASC)

POS. NO PART NO. DESCRIPTION

2 318145003 A B Wrapper, base

2A 318102402 A B Cover, mid top

4 318161500 A B Box, oven burner

6 318345204 A B Rack, oven, (2)

8 318121400 A B Panel, oven bottom

9 5303317977 A B Pan, broilerOPTIONAL ACCESS0RY

10 5303317976 A B Insert, broiler panOPTIONAL ACCESS0RY

12 # 318089913 A B Switch, light

12* 5303271097 A B Bracket, light switch

14 318224000 A B Receptacle, oven light

15 5303013071 A B Bulb/Lamp, light

16 08011086 A B Lens, oven light, glass

17 5304400195 A B Retainer, light cover

25 318179000 A B Shield, insulation, base

33 318187301 A B Shield, housing

36 3203725 A B Flue

37 # 316217002 A B Probe, oven temp

39 318144007 A B Cord, service

41 5303310526 A B Cover, hinge cutout

54 318222400 A B Housing, oven light

55 5303326219 A B Shield, flue

56 318145508 A - Trim, bodyside

56 5303308459 - B Trim, bodyside

57 318071130 A B Shield, rear wall

58 318285010 A B Insulation, oven bottom

58A 318285011 A B Insulation, oven back

58B 318285015 A B Insulation, top & sides, oven wrapper

58C 318285090 A B Insulation, flue

58D 318285033 A B Insulation, 3"x4"x17", (2)

58E 318285034 A B Insulation, 1"x1.75"x18"

58F 318285067 A B Insulation, deflector

58G 318285035 A B Insulation, flue

70A 5303210843 A B Shield, insulation

72 318327900 A B Wrapper, shield

76 318056139 A B Front, oven

80 318192400 A B Spring, oven

81 5303323710 A B Bracket, oven

83 318089411 A B Liner, oven assy

86 5303310524 A B Receptacle, hinge

87 5303308443 A B Bracket, safety valve

88 5303311222 A B Rod, latch

* 5303311528 A B Screw, oval hd sq dr, 6-20AB x 0.625, black

89 # 318095953 A B Motor, latch assy, w/brkt & switch

89* 318120711 A B Switch

97 318066804 A B Wrapper, back & sides

98 318029400 A B Trim, side, inner, RH

98A 318029401 A B Trim, side, inner, LH

99 318284201 A B Panel, adjustable, side, (2)

100 5303302715 A B Shield, flue, bottom

Publication No: 5995491304 FGB24S5A

05/07 8

BODY

FGB24S5A Publication No: 5995491304

# Functional Parts 9 05/07

* Non-Illustrated Parts

BODY

Model Index: AFGB24S5A (FGB24S5ABC)

BFGB24S5A (FGB24S5ASC)

POS. NO PART NO. DESCRIPTION

102 3203688 A B Support, oven front

103 5303316735 A - Trim, base, black, lower

103 5303316734 - B Trim, base, white, lower

104 318170210 A B Flue

108# 318073025 A B Motor, blower

* 08016432 A B Screw, truss head, 8-18 x 0.375

117 5303302718 A B Bracket, thermo protect

119# 5303326252 A B Switch, thermal

121 318145005 A B Wrapper, base

122 5303210844 A B Shield, heat, lower

123 318071422 A B Shield, insulation, top & sides

128 5303311163 A B Bushing

129 5303311164 A B Spring

132 3201437 A B Strain relief

187 318013501 A B Tube, latch rod

227 5303323958 A B Retainer, oven bottom

234 5303210851 A B Shield, burner box

235 5303326207 A B Bracket

236 318108900 A B Shield, insulation, 1.25x1.0x12.9

239 5303326183 A B Angle, burner box

240 318119301 A B Shield, bodyside

* 318232523 A B Wiring Harness, main

* 318147411 A B Bumper, (2)

* # 318003606 A B Thermostat, safety, .945" mtg., 140/170

* # 318003613 A B Thermostat, safety, 1.375" mtg, 105/120

* 08002868 A B Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 08011955 A B Screw, 10-24 x 0.375, square drive

* 5303211311 A B Screw, 8 x 0.500

* 5303300195 A B Screw, 10-32 x 0.375, terminal block, (2)

* 5303302745 A B Screw, 10-16x1-1/8, square drive

* 5303320422 A B Screw, 6-20 x 5/16, black, (6)

* 5303323130 A B Screw, 8 x 1/4, (4)

* 5303323277 A B Screw, 8-18 X 13/32

Publication No: 5995491304 FGB24S5A

05/07 10

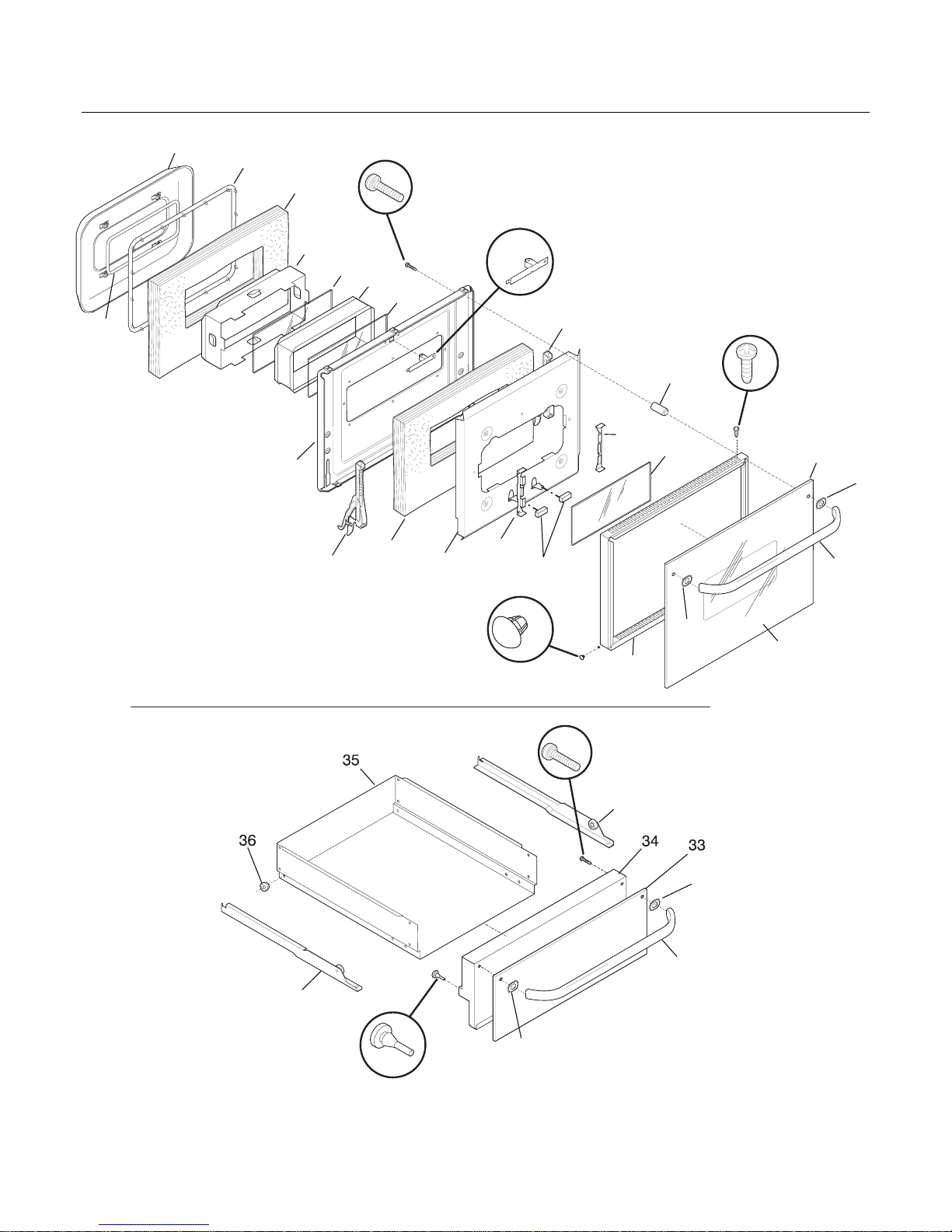

DOOR/DRAWER

134

135

37A

LA00D74431-2
