Product No. FGB24S5DCA
37454432E40S1
Series 24" single
Color stainless
Market North America
Wiring Diagram 318046312
Owner's Guide 318200953
Installation Instructions 318201551
Service Data Sheet 318047410
Timer Guide 318200191
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995420576
04/11/01
(EN/SERVICE/ECL)
377
SINGLE GAS WALL
OVEN
Model No.
FGB24S5D
Copyright ©2004 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995420576 FGB24S5DCA
11/04 2

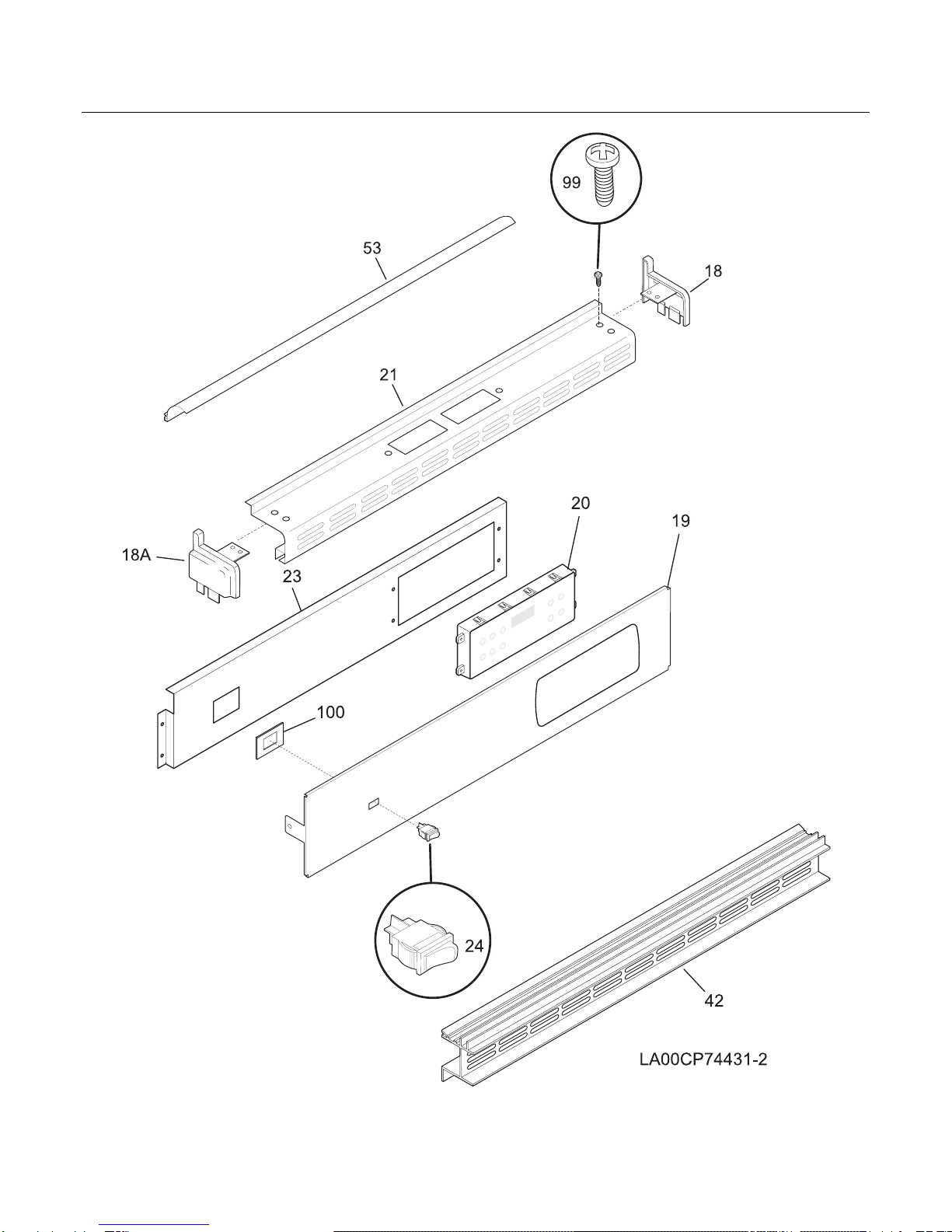

CONTROL PANEL
FGB24S5DCA Publication No: 5995420576
# Functional Parts 3 11/04
* Non-Illustrated Parts
CONTROL PANEL
POS. NO PART NO. DESCRIPTION
18 5303280338 End Cap, black, RH
18A 5303280339 End Cap, black, LH
19 318234108 Panel, control, black
20 # 318185431 Clock/Timer, electronic, black
20* 316220805 Overlay, clock, black, ES300
21 5303308451 Trim, splasher, black
23 318015034 Bracket, clock/timer
24 # 316005602 Switch, rocker, black
42 318027101 Trim, center vent, black
53 318056901 Deflector trim, black
99 5303311528 Screw, oval hd sq dr, 6-20AB x 0.625, black
100 318112200 Plate, mounting, rocker switch
* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box
* 5303323130 Screw, 8 x 1/4
Publication No: 5995420576 FGB24S5DCA
11/04 4

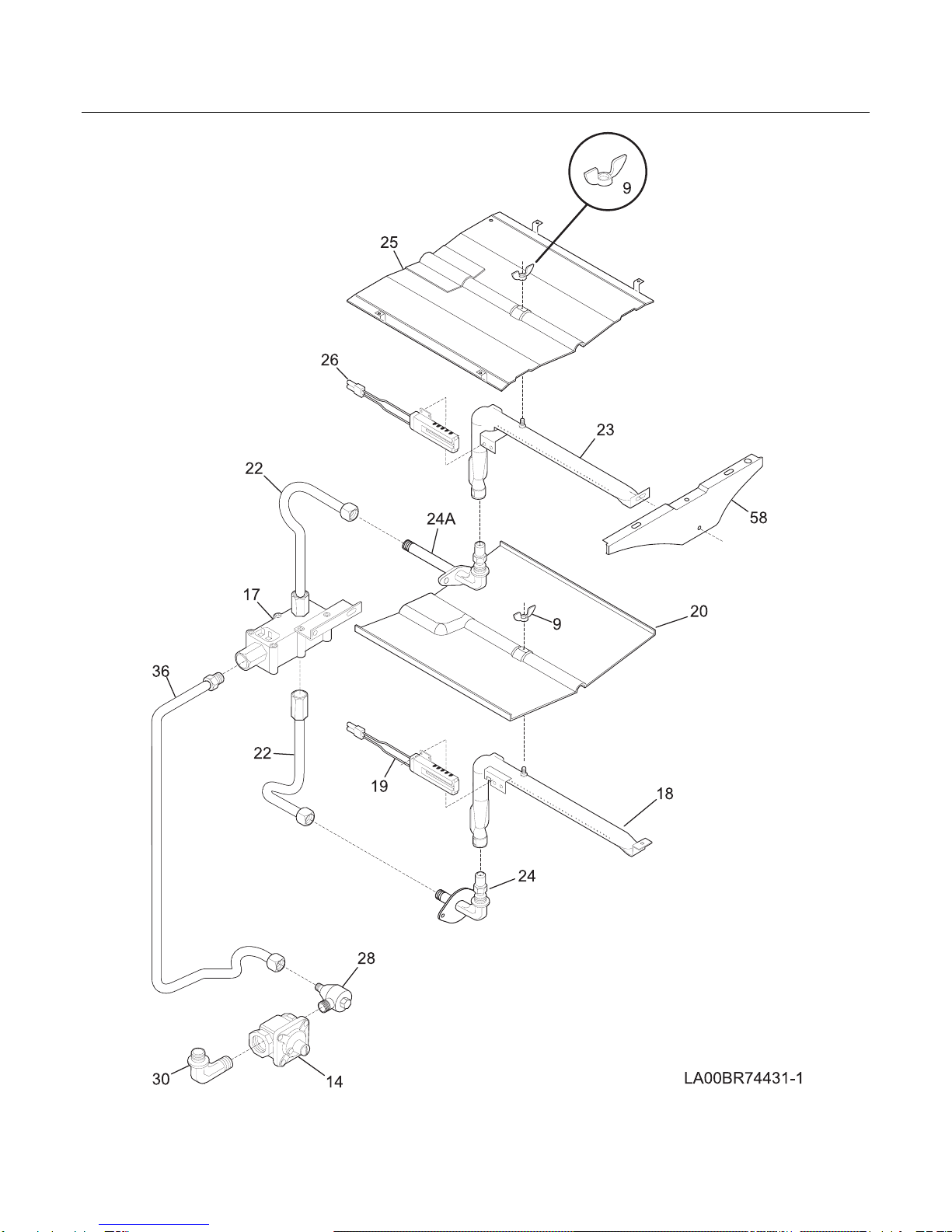

BURNER
FGB24S5DCA Publication No: 5995420576
# Functional Parts 5 11/04
* Non-Illustrated Parts
BURNER
POS. NO PART NO. DESCRIPTION
9 3201885 Nut, Keps, 10-24
14 # 5303210167 Regulator, pressure
17 # 5303210798 Valve, safety
18 # 5303210787 Burner, oven
19 # 318177710 Ignitor, oven burner
20 3203676 Baffle, oven burner
22 5303271092 Tubing, valve
23 # 5303283132 Burner, broiler
24 # 5303210786 Mixer Elbow, bake
24A# 5303210807 Mixer Elbow, broiler
25 5303326220 Baffle, broil burner
26 # 316119302 Ignitor, broiler
28 # 5303295305 Valve, shut off
30 5303305657 Elbow, fitting
36 318177801 Tubing, safety valve, upper
58 318123600 Shield, broiler
* 3051070 Screw, hex washer head, 10-24 x 0.438, special
* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box
* 5303311306 Screw, 8-18 x 0.375
* 5303311549 Screw, burner mtg
Publication No: 5995420576 FGB24S5DCA
11/04 6

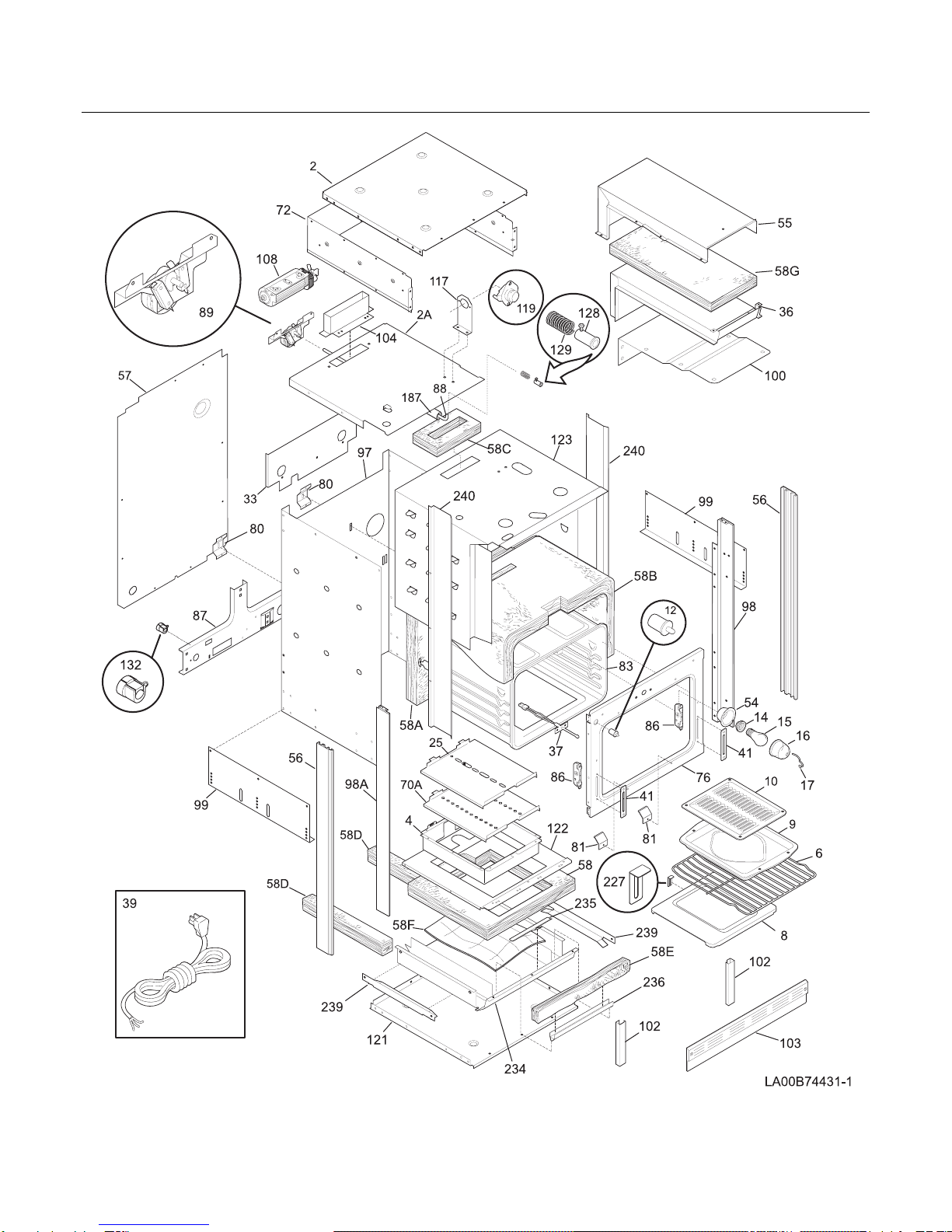

BODY
FGB24S5DCA Publication No: 5995420576
# Functional Parts 7 11/04
* Non-Illustrated Parts
BODY
POS. NO PART NO. DESCRIPTION
2 318145003 Wrapper, base
2A 318102401 Cover, mid top
4 318161500 Box, oven burner
6 5303299366 Rack, oven
8 318121400 Panel, oven bottom
9 5303317977 Pan, broiler
10 5303317976 Insert, broiler pan
12 # 318089913 Switch, light
12* 5303271097 Bracket, light switch
14 318224000 Receptacle, oven light
15 5303013071 Bulb/Lamp, oven light
16 3201911 Cover, oven light, glass
17 5304400195 Retainer, light cover
25 318179000 Shield, insulation, base
33 318187301 Shield, housing
36 3203725 Flue
37 # 316217002 Probe, oven temp
39 318144003 Cord, Service
41 5303310526 Cover, hinge cutout
54 318222400 Housing, oven light
55 5303326219 Shield, flue
56 318145508 Trim, bodyside
* 5303320422 Screw, 6-20 x 5/16, black, (6)
57 318071130 Shield, rear wall
58 318133735 Insulation, oven bottom
58A 318133736 Insulation, oven back
58B 318133760 Insulation, top & sides
58C 318133739 Insulation
58D 318133732 Insulation
58E 318133733 Insulation
58F 318133734 Insulation, flue
58G 5303326119 Insulation, flue
70A 5303210843 Shield, insulation
72 5303210685 Wrapper, shield
76 318056139 Front, oven
80 318192400 Spring, oven
81 5303323710 Bracket, oven
83 318089411 Liner, oven assy
86 5303310524 Receptacle, hinge
87 5303308443 Bracket, safety valve
88 5303311222 Rod, latch
* 5303311528 Screw, oval hd sq dr, 6-20AB x 0.625, black
89 # 318095937 Motor, latch assy, w/brkt & switch
89* 318120711 Switch
* 3201861 Screw, 6 x 0.375, (4)
97 318066803 Wrapper, back & sides
98 318029400 Trim, side, inner, RH
98A 318029401 Trim, side, inner, LH
99 5303299686 Support, adjustable
100 5303302715 Shield, flue, bottom
102 3203688 Support, oven front
Publication No: 5995420576 FGB24S5DCA
11/04 8
BODY
FGB24S5DCA Publication No: 5995420576
# Functional Parts 9 11/04
* Non-Illustrated Parts
BODY
POS. NO PART NO. DESCRIPTION
103 5303316735 Trim, base, black, lower
104 318170210 Flue
108# 318073001 Motor, fan
* 08016432 Screw, truss head, 8-18 x 0.375
117 5303302718 Bracket, thermo protect
119# 5303326252 Switch, thermal
121 318145001 Wrapper, base
122 5303210844 Shield, heat, lower
123 318071421 Shield, insulation, top & sides
128 5303311163 Bushing
129 5303311164 Spring
132 3201437 Strain relief
187 318013501 Tube, latch rod
227 5303323958 Retainer, oven bottom
234 5303210851 Shield, burner box
235 5303326207 Bracket
236 318108900 Shield, insulation, 1.25x1.0x12.9
239 5303326183 Angle, burner box
240 318119301 Shield, bodyside
* 318232518 Wiring Harness, main
* # 318003606 Thermostat, safety
* 318147411 Bumper, door, (2)
* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box
* 08011955 Screw, 10-24 x 0.375, square drive
* 5303211311 Screw, 8 x 0.500
* 5303300195 Screw, 10-32 x 0.375, terminal block, (2)
* 5303302745 Screw, 10-16x1-1/8, square drive
* 5303323130 Screw, 8 x 1/4
* 5303323277 Screw, 8-18 X 13/32
Publication No: 5995420576 FGB24S5DCA
11/04 10

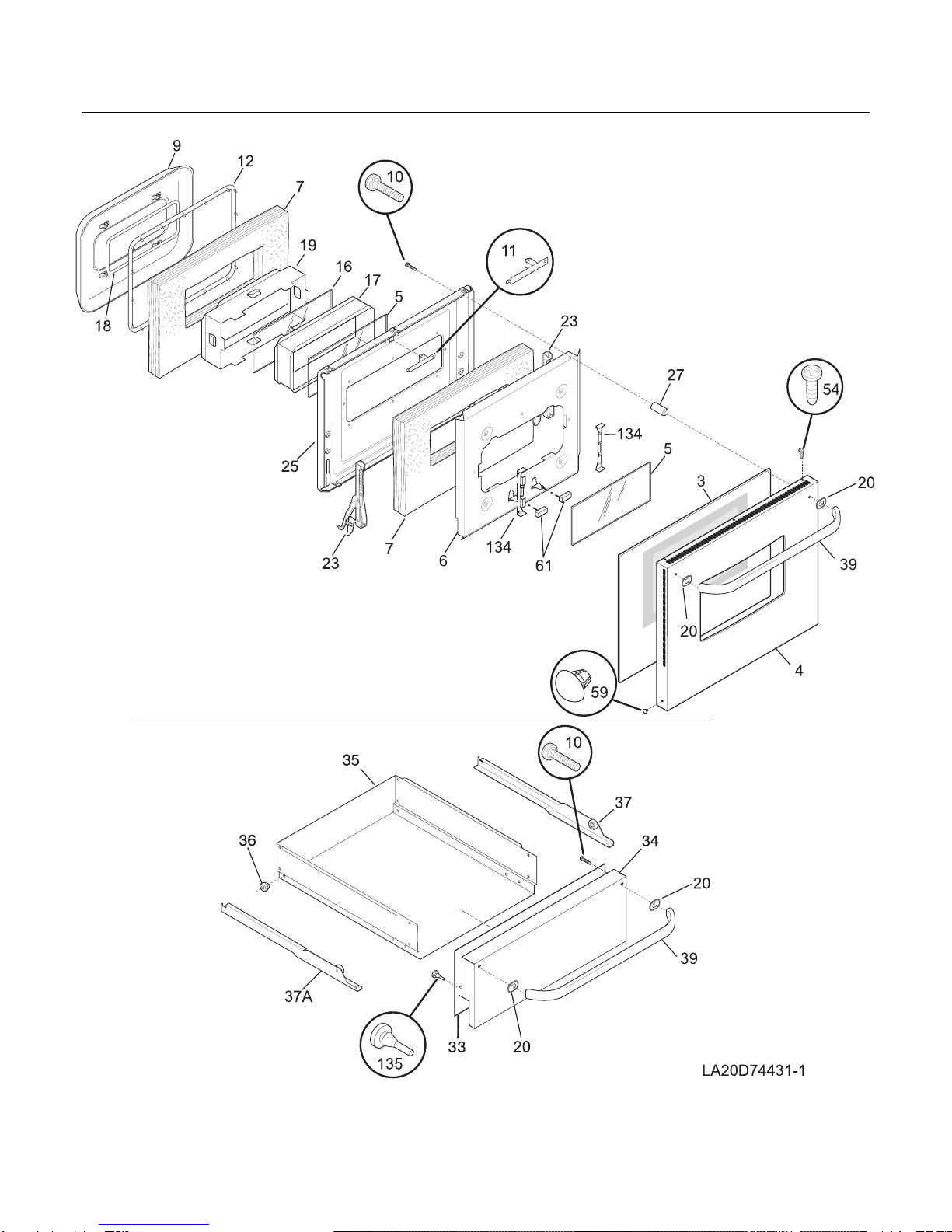

DOOR/DRAWER
