Frigidaire FGB500CE Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FGB500CESH 37454412E6018 WHITE U.S.A.

FGB500CEBH 37454412E6068 BLACK U.S.A.

GAS WALL OVEN

Model No.

FGB500CE

FACTORY PARTS CATALOG

GAS WALL OVEN

WIRING DIAGRAM MODELS #-318046303

OWNER’S GUIDE MODELS #-318200900

INSTALLATION INSTR. # - 318064002

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200

Publication No.

5995316014

981214

-EN/SERVICE

377

Publication No. FGB500CE

5995316014

12/98 2

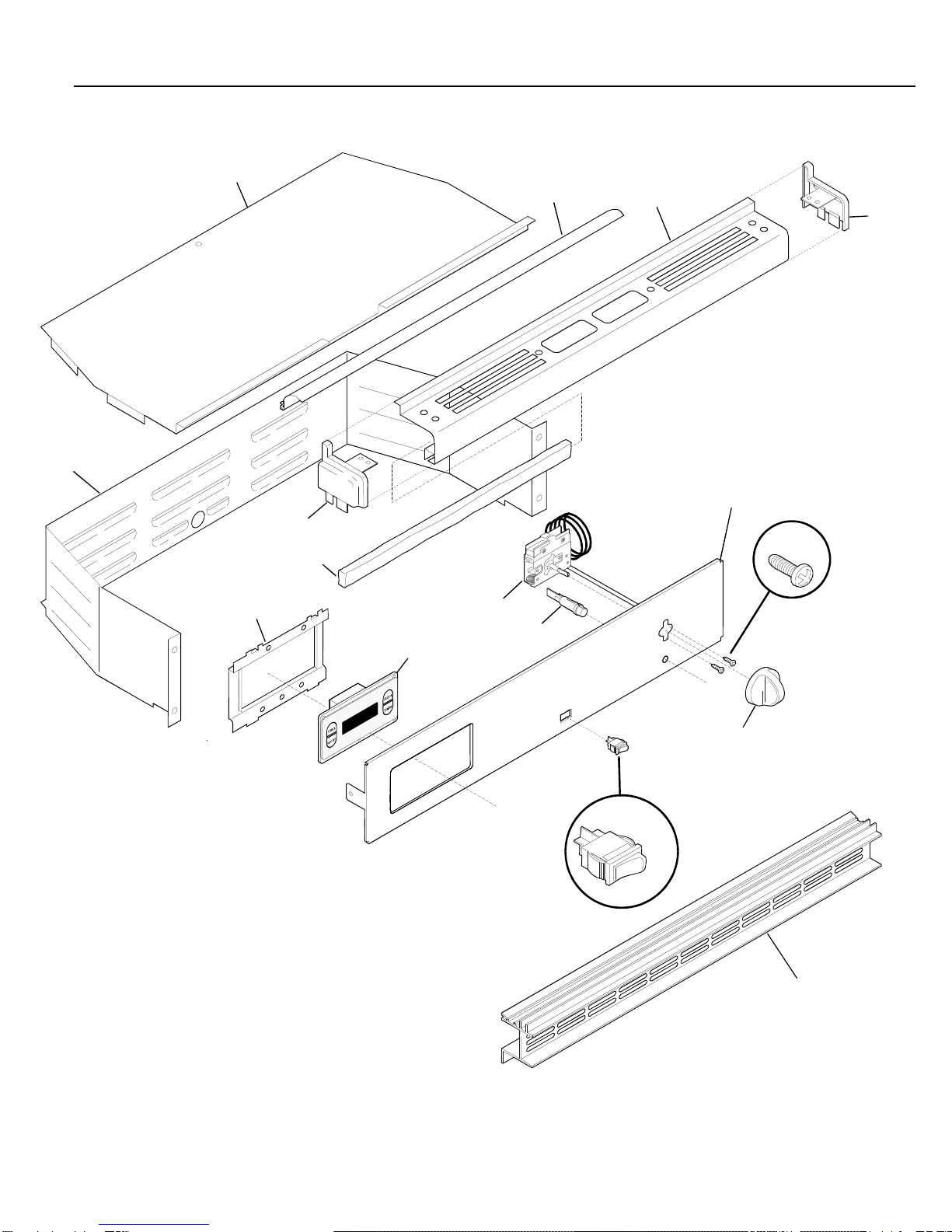

CONTROL PANEL

12 14

103

LAP22G0019

18A

FGB500CE Publication No.

5995316014

# = Functional Part 312/98

* = Non-Illustrated Part

CONTROL PANEL

A=FGB500CE (FGB500CESH)

B=FGB500CE (FGB500CEBH)

POS. NO PART NO DESCRIPTION

12 # 318058911 A B Thermostat

14 318044602 A B Light/Lamp

18 5303310391 AEnd Cap RH (white)

18 5303280338 BEnd Cap RH (black)

18 A 5303310389 AEnd Cap LH (white)

18 A 5303280339 BEnd Cap LH (black)

19 318129504 APanel-control white

19 318129505 BPanel-control black

20 # 318013907 AClock/Timer

20 # 318013908 BClock/Timer

21 318028021 ATrim-splasher white

21 318028020 BTrim-splasher black

23 318015711 A B Bracket clock mtg

24 # 316005607 ASwitch-rocker white

24 # 316005602 BSwitch-rocker black

32 318016327 AKnob black

32 318016326 BKnob thermostat black

42 318027300 ATrim-vent anodized

42 318027301 BTrim-vent black

53 5303271091 ATrim-canopy shield white

53 318056901 BTrim-canopy shield black

65 5303308466 A B Cover-control housing

68 5303302397 A B Housing control

69 5303323134 A B Screw 8-32 X 3/16

103 5303280380 A B Seal sponge

* 5303311528 A B Screw 6-20 X 5/8 black

* 5303308458 A B Screw 10-24 X ¼

*5303211311 A B Screw, #8 X ½

FGB500CE Publication No.

5995316014

12/98 6

CAVITY / ELEMENTS

1516 17

102

121 227

132

103

LAP22V0014

58B

231

100

58C

83 76

98A

101 41

41 81

104

FGB500CE Publication No.

5995316014

# = Functional Part 712/98

* = Non-Illustrated Part

CAVITY / ELEMENTS

A=FGB500CE (FGB500CESH)

B=FGB500CE (FGB500CEBH)

POS. NO PART NO DESCRIPTION

2 318101900 A B Wrapper

2 A 5303305035 A B Shield

4 318161500 A B Box-oven burner

6 5303296873 A B Rack-oven

8 318121400 A B Panel-oven bottom

12 # 5301314211 A B Switch-light

14 5308011085 A B Socket-light/lamp

15 3201908 A B Lamp-oven light

16 3201911 A B Glass-oven light lens

17 5304400195 A B Retainer-lens

25 318179000 A B Shield-insulation

27 5303284616 A B Clip thermo-bulb

36 3203725 A B Flue

39 # 5303308453 A B Cord-electric power

41 3019063 A B Retainer-door

54 5303310514 A B Housing-oven light

55 3204210 A B Shield-flue cover

56 5303308459 ATrim-bodyside white

56 318145508 BTrim-bodyside black

57 5303308476 A B Shield-rear wall

58 5303280377 A B Insulation oven bottom

58B 5303304703 A B Insulation oven back

58C 318132600 A B Insulation oven wrapper

76 318056120 A B Front-oven

80 5303301261 A B Spring-oven

81 5303323710 A B Bracket-oven

83 318089400 A B Liner-oven assy

86 3201631 A B Channel-hinge

87 5303308475 A B Bracket-safety valve

97 318066801 A B Wrapper-back side

98 318029400 A B Trim-side black

98A 318029401 A B Trim-side black

99 5303299686 A B Support-adjustable

100 5303302715 A B Shield-flue

101 5303308474 A B Shield-vent

102 3203688 A B Support-oven front black

103 5303316734 ATrim-base white

103 5303316735 BTrim-base black

104 3203730 A B Adapter-flue

121 318145001 A B Wrapper-base

132 3201437 A B Bushing-snap

227 5303323958 A B Retainer oven bottom

231 5303300421 A B Cover-capillary

* 08011955 A B Screw 10-24 X 3/8

*08002868 A B Screw, 10-24 X ½

*5303211311 A B Screw, #8 X 1/2

Publication No. FGB500CE

5995316014 BURNER

# = Functional Part 412/98

* = Non-Illustrated Part

P22B0008

FGB500CE Publication No.

BURNER 5995316014

# = Functional Part 512/98

* = Non-Illustrated Part

A=FGB500CE (FGB500CESH)

B=FGB500CE (FGB500CEBH)

POS. NO PART NO DESCRIPTION

14# 5303210167 A B Regulator-pressure

17# 3203702 A B Valve-safety

18# 5303210787 A B Burner-oven

19# 5303308452 A B Ignitor-oven

20 3203676 A B Baffle-oven burner

21 3201885 A B Nut lock base

28 5303295305 A B Valve-shut off

49 5303308469 A B Bracket-safety valve

*08002868 A B Screw, 10-24 X ½

*3051070 A B Screw, 10-24 X 7/16

*5303311549 A B Screw burner mtg

FGB500CE Publication No.

5995316014

12/98 8

DOOR / DRAWER

45A

37A

133 47

46 45

LAP22D0013

FGB500CE Publication No.

5995316014

# = Functional Part 912/98

* = Non-Illustrated Part

DOOR / DRAWER

A=FGB500CE (FGB500CESH)

B=FGB500CE (FGB500CEBH)

POS. NO PART NO DESCRIPTION

3 318026510 A B Trim-oven door

4 5303302707 AGlass-oven door white

4 3202420 BGlass-oven door black

6 318073600 A B Shield-air wash

7 5303308470 A B Insulation

85303323828 A B Glass oven door

9 318048400 A B Liner-oven door

10 5303311217 A B Screw-handle 10-24 X 2 3/16

12 5303316768 A B Seal-oven door

17 318162601 A B Spacer-glass

18 5303299723 A B Seal-rope

20 318014301 ASpacer-handle white

20 318014300 BSpacer-handle black

23 318074103 A B Hinge-oven door

29 66520020004 A B Spacer-handle

33 5303308464 AGlass-drawer white

33 3203715 BGlass-drawer black

34 318116000 A B Frame front drawer

35 318107000 A B Drawer-broiler

36 5303935079 A B Roller

37 3203722 A B Rail-drawer RH

37A 3203723 A B Rail-drawer LH

39 316091104 AHandle-door white

39 316091103 BHandle-door black

43 318107800 A B Liner-broiler door

44 318088300 A B Spring-broiler

45 318024400 A B Hinge-broiler

45A 318024401 A B Hinge-broiler

46 318126200 A B Pan-broiler

47 318126300 A B Insert-broiler pan

54 5303308456 A B Screw, 8-18 X 0.531

133 318136000 A B Panel, broiler drawer

* 5303308458 A B Screw 10-24 X ¼

*3202113 A B Button plug

Publication No. FGB500CE

5995316014

12/98 10

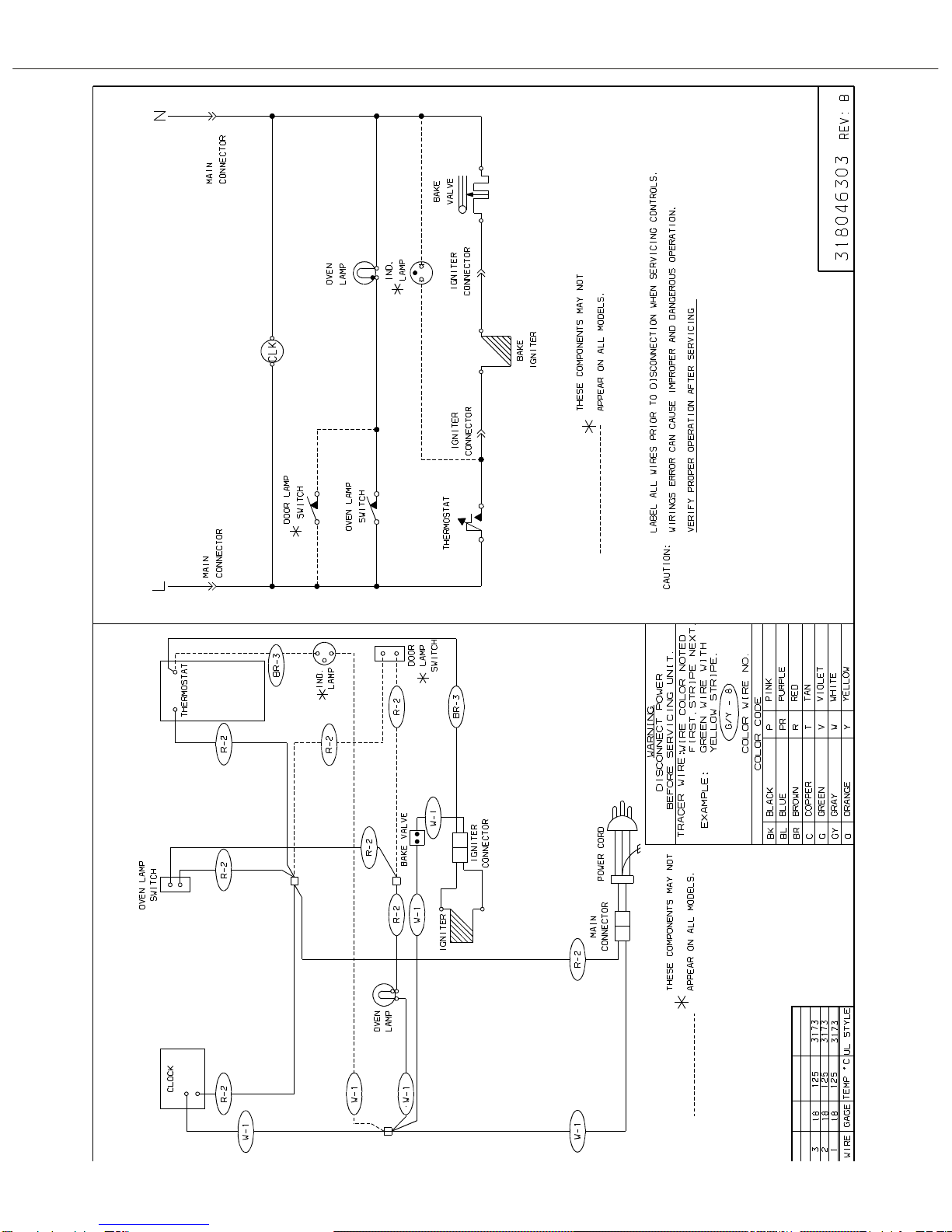

WIRING DIAGRAM
