Frigidaire GLEB30M9F Manuale utente

”

Even-Cook Convection Oven

Timer

On/Off

Oven

light

Controls

Speed

clean

Clean

Maxx

clean

STAR T

Clear

/O ff

Broil

Pre

Heat

Keep

Warm

Bake

Conv

roa st

Start

tim e

Bake

tim e

Clock

Conv

bake

Conv

con vert

789

456

123

Product No. GLEB30M9FBA GLEB30M9FQA GLEB30M9FSA

39256361G6061 39256361G6041 39256361G6011

Series 30" elec 30" elec 30" elec

Color black bisque white

Market North America North America North America

Wiring Diagram 318046238 318046238 318046238

Owner's Guide 318200941 318200941 318200941

Installation Instructions 318201521 318201521 318201521

Service Data Sheet 318047418 318047418 318047418

GLEB30M9E.eps CGLEB27M9ESA.eps MGLEB27M9ESA.eps BGLEB30M9ESB.eps

DGLEB27M9ESB.eps 318046238.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995470878

06/07/26

(EN/SERVICE/BJH)

377

WALL OVEN/

MICROWAVE COMBO

Model No.

GLEB30M9F

Publication No: 5995470878 GLEB30M9F

07/06 2

CONTROL PANEL

GLEB30M9F Publication No: 5995470878

# Functional Parts 3 07/06

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AGLEB30M9F (GLEB30M9FBA)

BGLEB30M9F (GLEB30M9FQA)

CGLEB30M9F (GLEB30M9FSA)

POS. NO PART NO. DESCRIPTION

1 318331310 A - - Control Panel Assembly, glass, black, w/touch pad

1 318331312 - B - Control Panel Assembly, glass, bisque, w/touch pad

1 318331311 - - C Control Panel Assembly, glass, white, w/touch pad

2 # 316418720 A B C Clock/Timer, electronic, ES510W1

3 318295703 A B C Deflector, timer

16 # 5304440820 A B C Control Board, printed circuit

17 5304440821 A - - Frame, control panel, black

17 5304440823 - B - Frame, control panel, bisque

17 5304442127 - - C Frame, control panel, white

18 # 5304440824 A - - Switch Assy, touch control, black

18 # 5304440826 - B - Switch Assy, touch control, bisque

18 # 5304452254 - - C Switch Assy, touch control, white, w/touch pad

19 5304440827 A - - Push Button, door opener, black

19 5304440829 - B - Push Button, door opener, bisque

19 5304442133 - - C Push Button, door opener, white

20 5304442134 A B C Spring, button

21 5304440282 A B C Screw, control board, 3mm x 10mm

22 5304440832 A B C Connector, rubber, control board

23 5304440833 A B C Panel, touch pad mount

24 # 5304440834 A B C LED Sheet, backlight

25 # 5304440835 A B C LCD, display

26 5304440836 A B C Bracket, PCB support

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995470878 GLEB30M9F

07/06 4

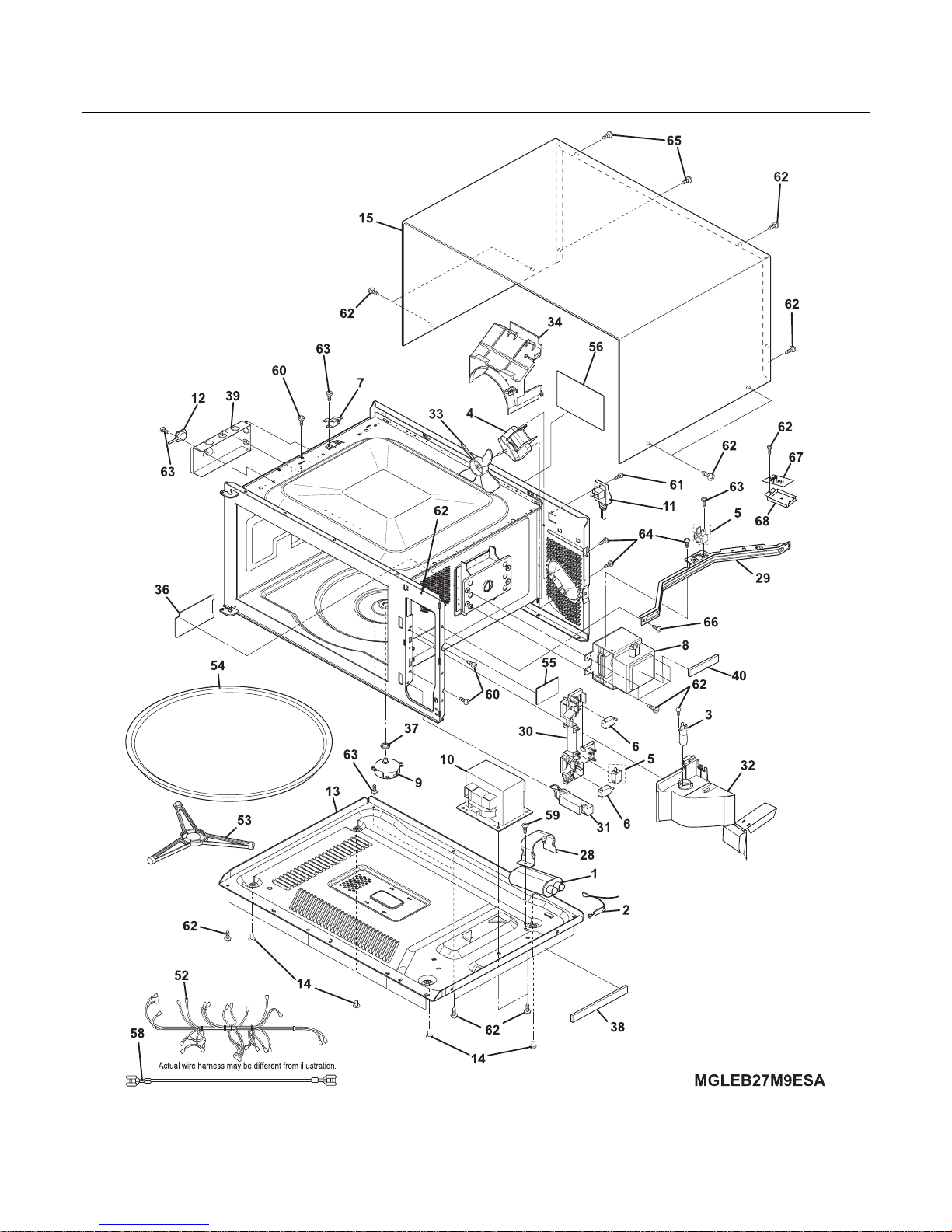

UPPER OVEN

GLEB30M9F Publication No: 5995470878

# Functional Parts 5 07/06

* Non-Illustrated Parts

UPPER OVEN

Model Index: AGLEB30M9F (GLEB30M9FBA)

BGLEB30M9F (GLEB30M9FQA)

CGLEB30M9F (GLEB30M9FSA)

POS. NO PART NO. DESCRIPTION

1 # 5304440777 A B C Capacitor, high voltage

2 # 5304440778 A B C Rectifier, high voltage

3 # 5304440779 A B C Lamp Assy, with socket

4 # 5304448490 A B C Motor, cooling fan

5 # 5303319559 A B C Switch, monitor, w/ceramic fuse

6 # 5304440026 A B C Switch, interlock, door sensor

7 # 5304440780 A B C Fuse, cavity temp, 20 Amp, 250 V

8 # 5304440781 A B C Magnetron

9 # 5304448832 A B C Motor, turntable

10 # 5304440783 A B C Transformer, power

11 # 5304440784 A B C Power Cord, electric

12 # 5304440785 A B C Sensor, humidity, cook control

13 5304440814 A B C Base, unit chassis

14 5304442125 A B C Insert, threaded, (4)

15 5304440816 A - - Cabinet, outer casing, black

15 5304440818 - B - Cabinet, outer casing, bisque

15 5304440817 - - C Cabinet, outer casing, white

28 5304440838 A B C Retainer, capacitor strap

29 5304440839 A B C Bracket, chassis support

30 5304440840 A B C Latch Hook

31 5304440841 A B C Lever, door release

32 5304442135 A B C Duct, magnetron

33 # 5304440843 A B C Fan Blade, cooling fan

34 5304440844 A B C Duct, cooling fan

36 5304440845 A B C Cover, waveguide

37 5304440288 A B C Bushing, motor shaft, turntable

38 5304441909 A B C Cushion, base plate pad

39 5304440847 A B C Duct, AH sensor

40 5304441910 A B C Cushion, magnetron pad

52 5304452260 A B C Wiring Harness, main

53 5304440284 A B C Support Assy, turntable

54 5304440868 A B C Tray, turntable, glass

55 5304440334 A B C Label, Caution-monitor

56 5304440333 A B C Label, Caution-DHHS

58 # 5304440870 A B C Wire, highvoltage-A

59 5303319636 A B C Screw

60 5303319641 A B C Screw

61 5304440871 A B C Screw, 4mm x 12mm, ground

62 5304440340 A B C Screw, 4mm x 12mm

62 5304452261 A B C Screw, outer casing

63 5303319633 A B C Screw, 3mm x 8mm

64 5304440872 A B C Screw, 4mm x 8mm

65 5304440873 A B C Screw, torx head, tamper proof

66 5304440874 A B C Screw

67 # 5304451818 A B C Filter, noise, electronic

68 5303322975 A B C Bracket, noise filter, angle

Publication No: 5995470878 GLEB30M9F

07/06 6

LOWER OVEN

185

310

311

143

219

119

312

108

112

108A

163

142

58B

264

29 127

58A

82 BGLEB30M9ESB

185

412

411

59A

56A

131

400

402

410

401

403

409

Microwave

Parts

406

132

219A

107

161

111

109

263

125

272

GLEB30M9F Publication No: 5995470878

# Functional Parts 7 07/06

* Non-Illustrated Parts

LOWER OVEN

Model Index: AGLEB30M9F (GLEB30M9FBA)

BGLEB30M9F (GLEB30M9FQA)

CGLEB30M9F (GLEB30M9FSA)

POS. NO PART NO. DESCRIPTION

1 318259204 A B C Back, main

2 318258902 A B C Shield, insulation, upper

6 318345208 A B C Rack, oven

6A 318219500 A B C Rack, broiler pan

8 318262001 A B C Cover, element

8A 318318600 A B C Bracket, element, hidden bake

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089917 A B C Switch, light

14 318224000 A B C Receptacle, oven light

14* 318268099 A B C Insulation, oven light

15 5303013071 A B C Bulb/Lamp, light

16 08011086 A B C Lens, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

54 318222400 A B C Housing, oven light

56 318276304 A - - Trim, side filler, black, RH

56 318276306 - B - Trim, side filler, bisque, RH

56 318276302 - - C Trim, side filler, white, RH

56A 318276305 A - - Trim, side filler, black, LH

56A 318276307 - B - Trim, side filler, bisque, LH

56A 318276303 - - C Trim, side filler, white, LH

58A 318285055 A B C Insulation, oven wrapper

58B 318285056 A B C Insulation, oven back

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

62 316056000 A B C Terminal Block

62* 5303323139 A B C Screw, 10-24 x 0.906

62* 5303323144 A B C Nut, 10-32

66 # 318255600 A B C Element, broil, 2750W

67 318254901 A B C Element, bake, 3400W, 8 pass

68 5304403015 A B C Support, hanger, (2), broil element

70 318259100 A B C Shield, insulation, sides, (2)

71 318260007 A B C Panel, rear box

76 318056217 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

82 318258707 A B C Shield, insulation, lower

83 318261400 A B C Liner, oven assy

84 # 318146833 A B C Outlet-electrical, miniature, black-glossy

86 5303310524 A B C Receptacle, hinge

87 318260600 A B C Bracket, cable mtg.

89 # 318261209 A B C Motor, latch assy

90 318259701 A - - Trim, oven front, black, bottom

90 318259702 - B - Trim, oven front, bisque, bottom

90 318259700 - - C Trim, oven front, white, bottom

Publication No: 5995470878 GLEB30M9F

07/06 8

LOWER OVEN

185

310

311

143

219

119

312

108

112

108A

163

142

58B

264

29 127

58A

82 BGLEB30M9ESB

185

412

411

59A

56A

131

400

402

410

401

403

409

Microwave

Parts

406

132

219A

107

161

111

109

263

125

272

GLEB30M9F Publication No: 5995470878

# Functional Parts 9 07/06

* Non-Illustrated Parts

LOWER OVEN

Model Index: AGLEB30M9F (GLEB30M9FBA)

BGLEB30M9F (GLEB30M9FQA)

CGLEB30M9F (GLEB30M9FSA)

POS. NO PART NO. DESCRIPTION

99 318256200 A B C Bracket, side, bottom, (2)

107 318219401 A B C Cover, fan

108# 318073018 A B C Motor, blower

108A 318251300 A B C Bracket, fan support

109 316136400 A B C Blade, fan

111 316136600 A B C Nut, fan retainer

112# 318112701 A B C Relay

119# 318004900 A B C Switch, thermal

125* 5303316994 A B C Insulation, 3.81 x 3.13

125# 316415800 A B C Motor, fan

127 318317100 A B C Adapter Assembly, vent tube, w/converter

131 318272900 A B C Box, vent

132 318003000 A B C Plate, shield

142 318123910 A B C Deflector

143 318172904 A B C Support, wire

161# 318255503 A B C Element, convection, 350 W

163 318014111 A B C Spacer

185 318014700 A B C Spacer, oven shield, (4)

219# 318003614 A B C Thermostat, safety

219A 318003613 A B C Thermostat, safety, 1.375" mtg, 105/120

263 316136500 A B C Washer, flat

264 318257701 A B C Trim, oven, black, front

272 318249401 A B C Tube, protector

310 5304440067 A B C Cabinet Mounting Kit

311 318246010 A B C Bracket, cabinet mtg, (2)

311* 5304438005 A B C Screw, 6 x 1, black

312 318246702 A B C Tool, cabinet bracket, RH

312 318246703 A B C Tool, cabinet bracket, LH

400 318275700 A - - Trim Assembly, microwave, 30", black

400 318275702 - B - Trim Assembly, microwave, 30", bisque

400 318275701 - - C Trim Assembly, microwave, 30", white

401 318297203 A B C Plate, support, microwave, 30"

402 318276202 A B C Bracket, base pad, RH

403 318276203 A B C Bracket, base pad, LH

406 318277200 A B C Shield, microwave rear

409 318295300 A B C Bracket, top trim

410 318297101 A B C Flue, black

411# 5304442354 A B C Holder, fuse

412# 5304442353 A B C Fuse, 20 Amp

* # 318078543 A B C Box & wires assy

* 318231737 A B C Harness, wiring, main

* 5303323136 A B C Screw ground

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303211311 A B C Screw, 8 x 0.500

* 5303323277 A B C Screw, 8-18 X 13/32

* 5303324184 A B C Screw, 8-18 x 5/16, black, (4)

* 5303325980 A B C Screw, 10-32 x 0.437

* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995470878 GLEB30M9F

07/06 10

DOORS

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Frigidaire Forno

Frigidaire

Frigidaire FGB24T3E C Manuale del proprietario

Frigidaire

Frigidaire FFEW3025L S Manuale utente

Frigidaire

Frigidaire FEB798CCS Manuale utente

Frigidaire

Frigidaire FEB27T6CSA Guide Manuale d'uso e manutenzione

Frigidaire

Frigidaire GLEB27S7C Manuale utente

Frigidaire

Frigidaire PLEB30T9D Manuale utente

Frigidaire

Frigidaire Wall oven Manuale del proprietario

Frigidaire

Frigidaire PLEB27S8CCC Manuale utente

Frigidaire

Frigidaire LOWER OVEN Manuale di istruzioni e di sicurezza

Frigidaire

Frigidaire GLEB30S8A Manuale utente

Frigidaire

Frigidaire PLEB30S8C Manuale utente

Frigidaire

Frigidaire FEB556CE Manuale di istruzioni

Frigidaire

Frigidaire FGB500CGS1 Manuale utente

Frigidaire

Frigidaire FFEF3011LW Manuale utente

Frigidaire

Frigidaire FEB30S7FCF Manuale utente

Frigidaire

Frigidaire CGLES389FB5 Manuale d'uso e manutenzione

Frigidaire

Frigidaire FEB30T5DBG Manuale di istruzioni

Frigidaire

Frigidaire FGES3045KW - 30' Electric Slide-In Range Gallery Mono... Guida rapida

Frigidaire

Frigidaire CPMC3085KF1 Manuale del proprietario

Frigidaire

Frigidaire FES355ABA Control Manuale utente

Frigidaire

Frigidaire FEB27T6F Manuale utente

Frigidaire

Frigidaire FPET3085KF - 30" Double Electric Wall Oven Guida rapida

Frigidaire

Frigidaire Gallery FGEW3069UF Manuale utente

Frigidaire

Frigidaire FEB30T6DBC Manuale di istruzioni

Manuali Forno popolari di altre marche

Bosch

Bosch HVA531NS0 Manuale utente

Electrolux

Electrolux EOF6P46X Manuale utente

NEFF

NEFF B44S32 5GB Series Manuale utente

Combi

Combi BLODGETT BC142GDS Manuale utente

AEG

AEG COMPETENCE 311704300 Manuale utente

Falcon

Falcon DOMINATOR PLUS G3106 Series Guida utente

Rational

Rational SCC WE 61G Manuale utente

Smeg

Smeg DOSPA38X Manuale di installazione e funzionamento

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuale utente

Miele

Miele HR 1954-2 Manuale utente

KHIND

KHIND OT50 Manuale utente

Henny Penny

Henny Penny Smoker Box Manuale utente

Lang

Lang ECOD-AP Manuale utente

AEG

AEG BEK455310M Manuale utente

Hotpoint

Hotpoint FE9 S831 JSH IX Manuale utente

GE Advantium SCB2000 Manuale utente

AEG

AEG DE401301DM Manuale utente

DeLonghi

DeLonghi XA660 Manuale
