Frigidaire GLEB30S9D Manuale utente

GLEB30S9D.eps CGLEB30S9DSA.eps BGLEB30S9DSA.eps DFEB30S5DSA.eps

318046224.eps

Even-Cook Convection O ven

Timer

On/Off

Oven

light

Controls

Speed

clean

Clean

Maxx

clean

STAR T

Clear

/O ff

Broil

Pre

Heat

Keep

Warm

Bake

Conv

roa st

Start

time

Bake

time

Clock

Conv

bake

Conv

con vert

789

456

123

Product No. GLEB30S9DBA GLEB30S9DQA GLEB30S9DSA

38256391G4061 38256391G4041 38256391G4011

Series 30" single 30" single 30" single

Color black bisque white

Market North America North America North America

Wiring Diagram 318046224 318046224 318046224

Owner's Guide 318200924 318200924 318200924

Installation Instructions 318201514 318201514 318201514

Service Data Sheet 318047414 318047414 318047414

Timer Guide 318200197 318200197 318200197

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995418190

04/10/07

(EN/SERVICE/ECL)

377

SINGLE ELECTRIC

WALL OVEN

Model No.

GLEB30S9D

Publication No: 5995418190 GLEB30S9D

10/04 2

CONTROL PANEL

GLEB30S9D Publication No: 5995418190

# Functional Parts 3 10/04

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AGLEB30S9D (GLEB30S9DSA)

BGLEB30S9D (GLEB30S9DBA)

CGLEB30S9D (GLEB30S9DQA)

POS. NO PART NO. DESCRIPTION

2A 318257300 A B C Shield, oven top

2B 318260100 A B C Cover, box

19 318274608 A - - Control Panel Assembly, glass, white, w/ touch pad

19 318274610 - B - Control Panel Assembly, glass, black, w/ touch pad

19 318274609 - - C Control Panel Assembly, glass, bisque, w/ touch pad

20 # 316418720 A B C Clock/Timer, electronic, ES510W1

* 316021107 A B C Screw, hex head, 8-32, silver

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995418190 GLEB30S9D

10/04 4

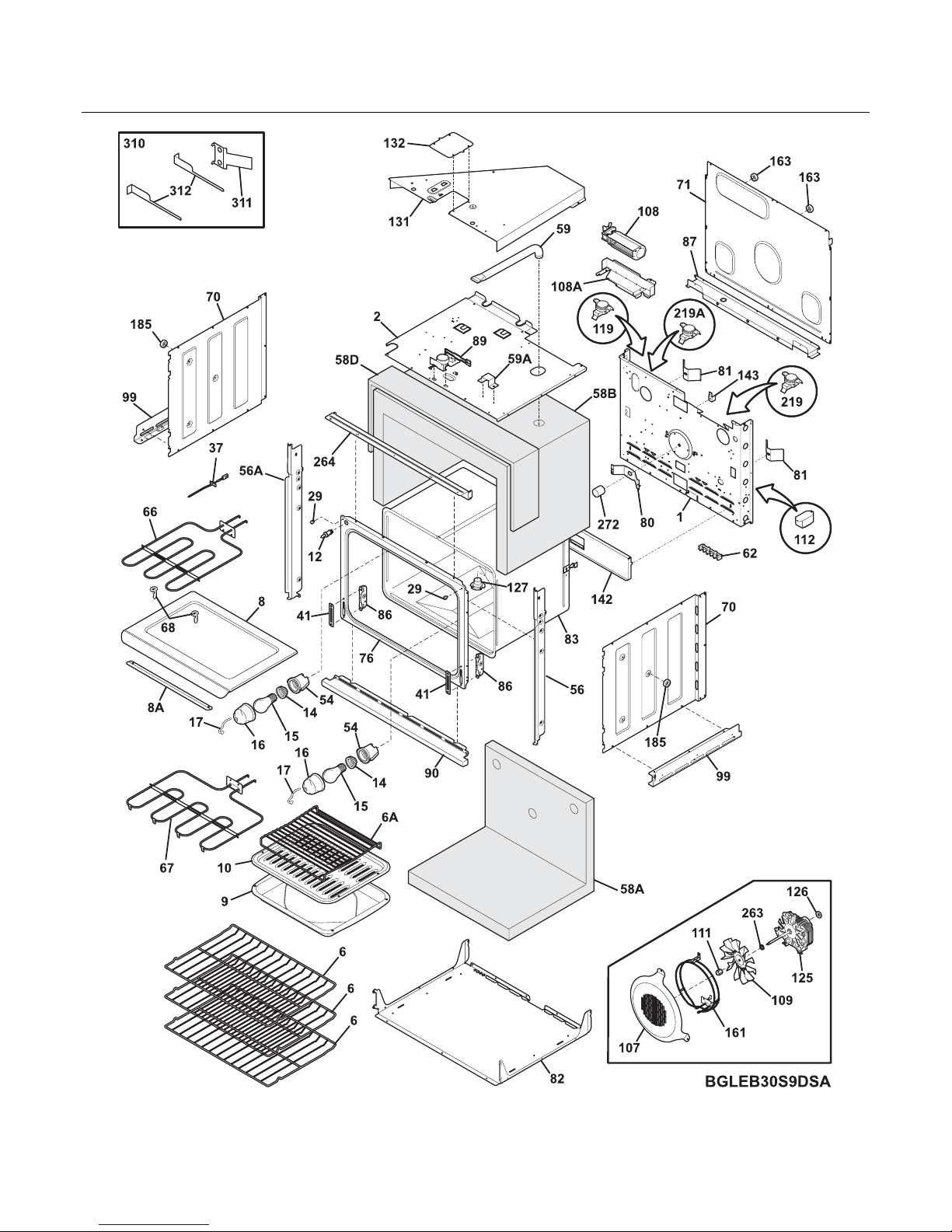

BODY

GLEB30S9D Publication No: 5995418190

# Functional Parts 5 10/04

* Non-Illustrated Parts

BODY

Model Index: AGLEB30S9D (GLEB30S9DSA)

BGLEB30S9D (GLEB30S9DBA)

CGLEB30S9D (GLEB30S9DQA)

POS. NO PART NO. DESCRIPTION

1 318259200 A B C Back, main

2 318258900 A B C Shield, insulation, upper

6 318262503 A B C Rack, oven

6A 318219500 A B C Rack, broiler pan

8 318262001 A B C Cover, element

8A 318285300 A B C Bracket, element cover

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089917 A B C Switch, light

* 3015722 A B C Clip, wire retainer

14 318224000 A B C Receptacle, oven light

14* 318268099 A B C Insulation, oven light

15 5303013071 A B C Bulb/Lamp, oven light

16 3201911 A B C Cover, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, door, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

54 318222400 A B C Housing, oven light

56 318259902 A - - Trim, side filler, white, RH

56 318259904 - B - Trim, side filler, black, RH

56 318259906 - - C Trim, side filler, bisque, RH

56A 318259903 A - - Trim, side filler, white, LH

56A 318259905 - B - Trim, side filler, black, LH

56A 318259907 - - C Trim, side filler, bisque, LH

58A 318133791 A B C Insulation, oven wrapper, back/bottom

58B 318133790 A B C Insulation, oven wrapper, top/sides

58D 318133793 A B C Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

62 316056000 A B C Terminal Block

62* 5303323144 A B C Nut, 10-32

66 # 318255600 A B C Element, broil, 2750W

67 318254901 A B C Element, bake, 3400W, 8 pass

68 5304403015 A B C Support, element hanger

70 318259100 A B C Shield, insulation, sides, (2)

71 318260004 A B C Panel, rear box

76 318056217 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

82 318258700 A B C Shield, insulation, lower

83 318261400 A B C Liner, oven assy

86 5303310524 A B C Receptacle, hinge

87 318260602 A B C Bracket, cable mtg.

89# 318261200 A B C Motor, latch assy

90 318259700 A - - Trim, oven front, white, bottom

90 318259701 - B - Trim, oven front, black, bottom

90 318259702 - - C Trim, oven front, bisque, bottom

Publication No: 5995418190 GLEB30S9D

10/04 6

BODY

GLEB30S9D Publication No: 5995418190

# Functional Parts 7 10/04

* Non-Illustrated Parts

BODY

Model Index: AGLEB30S9D (GLEB30S9DSA)

BGLEB30S9D (GLEB30S9DBA)

CGLEB30S9D (GLEB30S9DQA)

POS. NO PART NO. DESCRIPTION

99 318256200 A B C Bracket, side, bottom, (2)

107 318219401 A B C Cover, fan

108# 318073018 A B C Motor, blower

* 08016432 A B C Screw, truss head, 8-18 x 0.375

108A 318251300 A B C Bracket, fan support

109 316136400 A B C Blade, fan

111 316136600 A B C Nut, fan retainer

112# 318112701 A B C Relay

119# 318004900 A B C Switch, thermal

125# 316415800 A B C Motor, fan

126 318142100 A B C Washer, motor, RH, convection

127 5303310542 A B C Adapter, vent tube, with converter

131 318272900 A B C Box, vent

132 318003000 A B C Plate, shield

142 318123910 A B C Deflector

* 5303324184 A B C Screw, 8-18 x 5/16, black, (4)

143 318172904 A B C Support, wire/glass

161# 318255503 A B C Element, convection, 350 W

163 318014111 A B C Spacer

185 318014700 A B C Spacer, oven shield, (4)

219# 318003606 A B C Thermostat, safety

219A 318003613 A B C Thermostat, safety

263 316136500 A B C Washer, fan motor

264 318257701 A B C Trim, oven, black, front

272 318249401 A B C Tube, protector

310 5304440067 A B C Cabinet Mounting Kit

311 318246010 A B C Bracket, cabinet mtg, (2)

311* 5304438005 A B C Screw, 6 x 1, black

312 318246702 A B C Tool, cabinet bracket, RH

312 318246703 A B C Tool, cabinet bracket, LH

* # 318078542 A B C Box & wires assy

* 318231701 A B C Harness, wiring, main

* 3201861 A B C Screw, 6 x 0.375, (4)

* 5303211311 A B C Screw, 8 x 0.500

* 5303323136 A B C Screw ground

* 5303323139 A B C Screw, 10-24 x 0.906

* 5303323277 A B C Screw (8-18X13/32)

* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995418190 GLEB30S9D

10/04 8

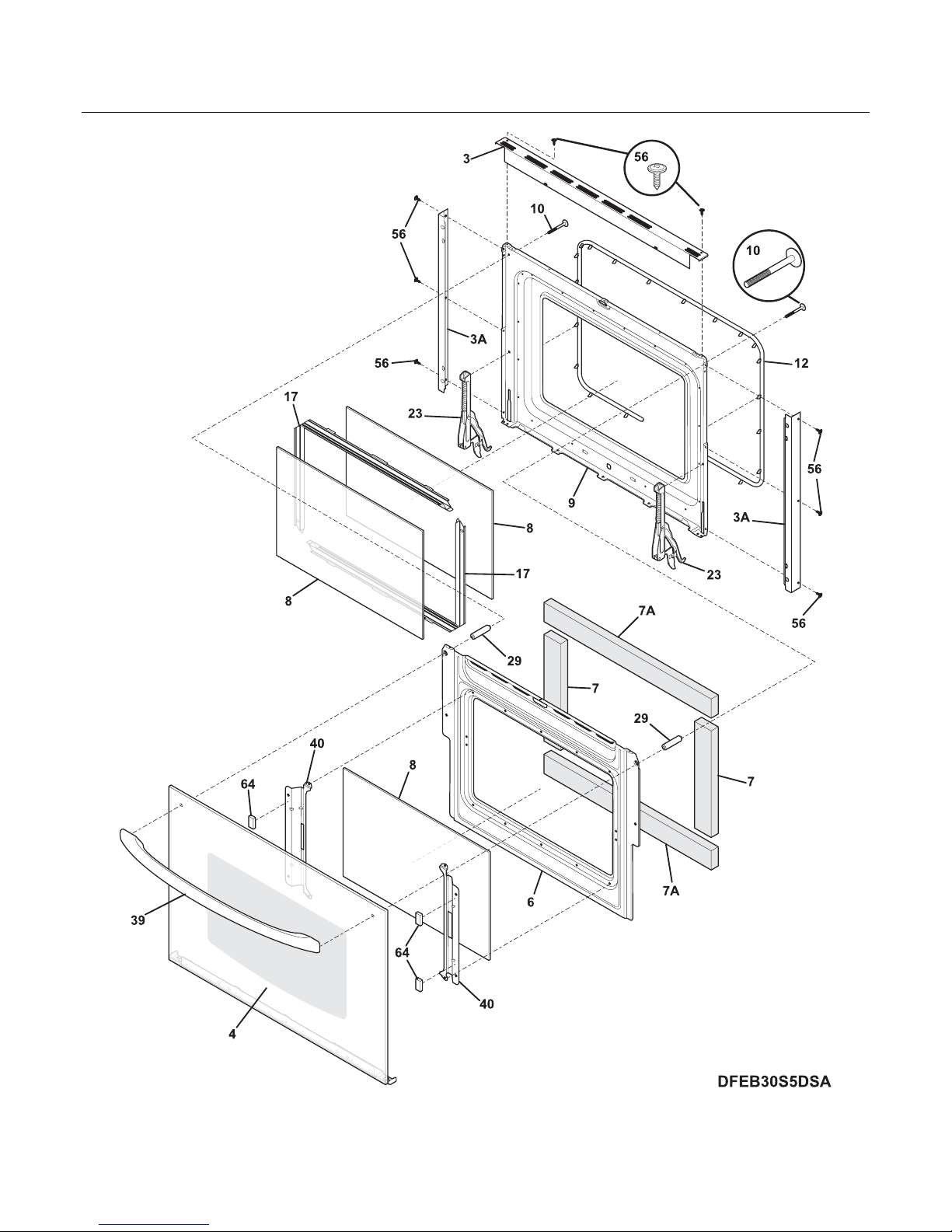

DOOR

GLEB30S9D Publication No: 5995418190

# Functional Parts 9 10/04

* Non-Illustrated Parts

DOOR

Model Index: AGLEB30S9D (GLEB30S9DSA)

BGLEB30S9D (GLEB30S9DBA)

CGLEB30S9D (GLEB30S9DQA)

POS. NO PART NO. DESCRIPTION

3 318260201 A B C Trim, oven door, black, upper

3A 318260401 A B C Trim, oven door, side, (2)

4 318261301 A - - Glass Assy., oven door, white, outer, w/ trim

4 318261300 - B - Glass Assy., oven door, black, outer, w/ trim

4 318261302 - - C Glass Assy., oven door, bisque, outer, w/ trim

6 318260500 A B C Baffle, door

7 318133792 A B C Insulation, oven door

7A 318133797 A B C Insulation, oven door, cavity

8 316117500 A B C Glass, oven door, heat barrier

9 318259601 A B C Liner, oven door

10 5304416408 A B C Screw, 10-24 x 1.750, handle mtg

12 318053120 A B C Seal, oven door

17 316402403 A B C Spacer, door glass, (2)

23 5303310828 A B C Hinge, oven door, (2)

29 318014402 A B C Spacer, door

39 316203001 A - - Handle, door, white

39 318231200 - B - Handle, black

39 316203003 - - C Handle, door, bisque

40 318242700 A B C Bracket, glass holder, (2)

56 5304436875 A B C Screw, 8-18 X 1/2, black

64 318165800 A B C Spacer, (4)

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303211311 A B C Screw, 8 x 0.500

* 5303300265 A B C Screw, 8-18 x 0.500, chrome, (3)

* 5303323277 A B C Screw (8-18X13/32)

Publication No: 5995418190 GLEB30S9D

10/04 10

WIRING DIAGRAM
