Product No. PLEB27T9DCA

37057791G40S1

Series 27" double

Color stainless

Market North America

Wiring Diagram 318046116

Owner's Guide 318200924

Installation Instructions 318201514

Timer Guide 318200133

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995424941

04/12/21

(EN/SERVICE/ECL)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

PLEB27T9D

Publication No: 5995424941 PLEB27T9DCA

12/04 2

CONTROL PANEL

PLEB27T9DCA Publication No: 5995424941

# Functional Parts 3 12/04

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257301 Shield, oven top

2B 318260102 Cover, box

19 318271502 Control Panel Assembly, steel/glass, stainless/black, w/touch pad

20 # 316429705 Control, electronic, 5800W3, dual oven

* 316021107 Screw, hex head, 8-32, silver

23 318262900 Bracket, control mtg., (2)

97 316429800 Board, relay, dual oven

* 318231704 Harness, wiring, control-relay

* 5303211311 Screw, 8 x 0.500

Publication No: 5995424941 PLEB27T9DCA

12/04 4

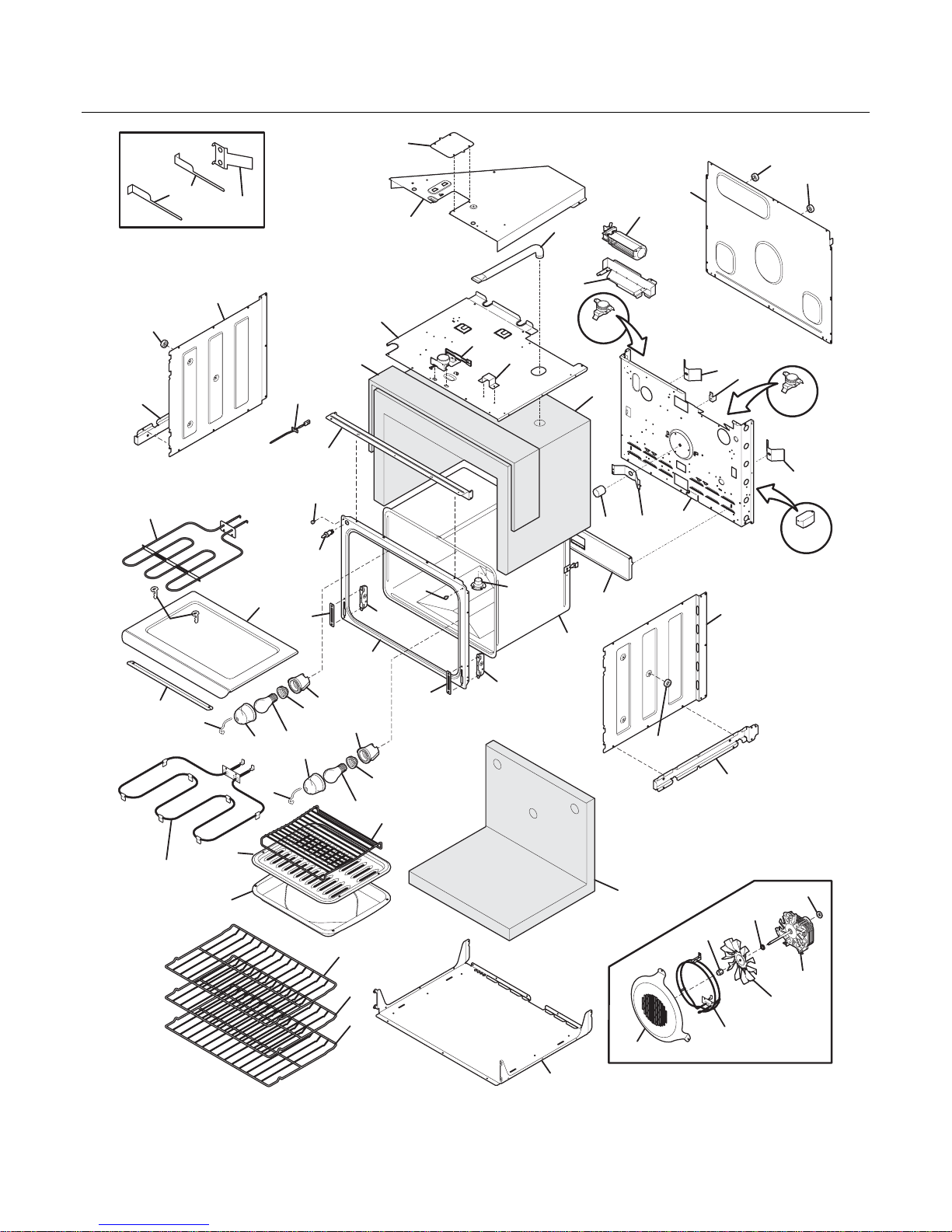

UPPER OVEN

119

108

108A

185

163

58B

264

99 37

29 127

58A

82 BUGLEB27T9DSA

185

59A

131

132

58D

143

219

112

142

310

311

312

272

107

161

111

109

263

125

126

PLEB27T9DCA Publication No: 5995424941

# Functional Parts 5 12/04

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

1 318259210 Back, main

2 318258910 Shield, insulation, upper

6 318262603 Rack, oven, (3)

6A 318219500 Rack, broiler pan

8 318262011 Cover, element

8A 318285300 Bracket, element cover

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

12 # 318089917 Switch, light

* 3015722 Clip, wire retainer

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, oven light

16 3201911 Cover, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, door, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

58A 318133795 Insulation, oven wrapper, back/bottom

58B 318133794 Insulation, oven wrapper, top/sides

58D 318133793 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

66 # 318255601 Element, broil, 3400W

67 318254902 Element, bake, 2700W, 6 pass

68 5304403015 Support, element hanger

70 318259100 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

76 318056222 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258710 Shield, insulation, lower

83 318261500 Liner, oven assy

86 5303310524 Receptacle, hinge

89# 318261201 Motor, latch assy

* 318231705 Harness, latch

99 318252800 Support, side

* 5303300265 Screw, 8-18 x 0.500, chrome, (3)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

112# 318112701 Relay

119# 318004900 Switch, thermal

125# 316415800 Motor, fan

126 318142100 Washer, motor, RH, convection

127 5303310542 Adapter, vent tube, with converter

131 318272900 Box, vent

Publication No: 5995424941 PLEB27T9DCA

12/04 6

UPPER OVEN

119

108

108A

185

163

58B

264

99 37

29 127

58A

82 BUGLEB27T9DSA

185

59A

131

132

58D

143

219

112

142

310

311

312

272

107

161

111

109

263

125

126

PLEB27T9DCA Publication No: 5995424941

# Functional Parts 7 12/04

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

132 318003000 Plate, shield

142 318123910 Deflector

143 318172904 Support, wire/glass

161# 318255503 Element, convection, 350 W

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

219# 318003606 Thermostat, safety

263 316136500 Washer, fan motor

264 318257711 Trim, oven, black, front

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

* 3201861 Screw, 6 x 0.375, (4)

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995424941 PLEB27T9DCA

12/04 8

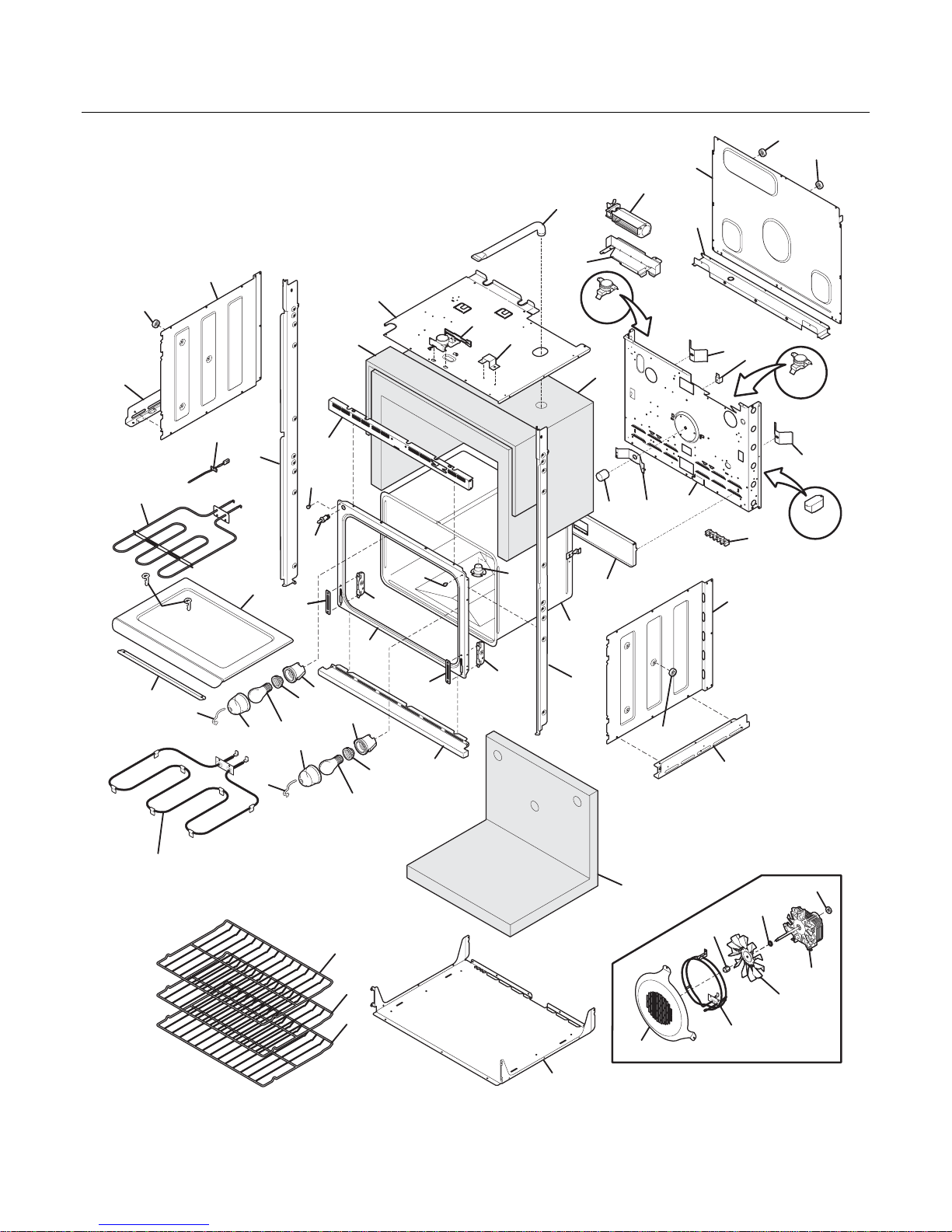

LOWER OVEN

143

219

119

108

112

108A

185

163

142

58B

264

56A

29 127

86 56

58A

82 BLGLEB27T9DSA

185

59A

58D

272

107

111

109

263

125

126

161

PLEB27T9DCA Publication No: 5995424941

# Functional Parts 9 12/04

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

1 318259210 Back, main

2 318258910 Shield, insulation, upper

6 318262603 Rack, oven, (3)

6A 318219500 Rack, broiler pan

8 318262011 Cover, element

8A 318285300 Bracket, element cover

12 # 318089917 Switch, light

* 3015722 Clip, wire retainer

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, oven light

16 3201911 Cover, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, door, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

56 318259914 Trim, side filler, black, RH

56A 318259915 Trim, side filler, black, LH

58A 318133795 Insulation, oven wrapper, back/bottom

58B 318133794 Insulation, oven wrapper, top/sides

58D 318133793 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255601 Element, broil, 3400W

67 318254902 Element, bake, 2700W, 6 pass

68 5304403015 Support, element hanger

70 318259100 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

76 318056222 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258710 Shield, insulation, lower

83 318261500 Liner, oven assy

86 5303310524 Receptacle, hinge

87 318260601 Bracket, cable mtg.

89# 318261201 Motor, latch assy

* 318231705 Harness, latch

90 318259810 Trim, base, stainless

99 318256200 Bracket, side, bottom, (2)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

112# 318112701 Relay

119# 318004900 Switch, thermal

Publication No: 5995424941 PLEB27T9DCA

12/04 10

LOWER OVEN

143

219

119

108

112

108A

185

163

142

58B

264

56A

29 127

86 56

58A

82 BLGLEB27T9DSA

185

59A

58D

272

107

111

109

263

125

126

161
