Frigidaire CPES3085KF1 Service Manuale di istruzioni

FPES3085KF.jpg CFPES3085KFA.eps BCPES3085KF1.eps TFPES3085KFA.eps

DFPGS3085KFA.eps 318550103-1.eps 318550103-2.eps

Product No. CPES3085KF1

37652376L95S1

Series 30" slide-in

Color stainless

Market Canada

Wiring Diagram 318550103

Owner's Guide 318205804

Installation Instructions 318201616

Service Data Sheet 318127057

Electrolux Major Appliances

North & Latin America

5855 TERRY FOX WAY

MISSISSAUGA, ONTARIO, CANADA L5V

3E4 Publication No.

5995544078

09/06/29

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN

ELECTRIC RANGE

Model No.

CPES3085K

Publication No: 5995544078 CPES3085KF1

06/09 2

BACKGUARD

55A

141

CFPES3085KFA

97A

CPES3085KF1 Publication No: 5995544078

# Functional Parts 3 06/09

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

19 # 318922145 Panel Assembly, control, stainless, w/overlay-trim

20 # 316560144 Controller, electronic, ES530W3

23 318921300 Bracket, control mtg, (2)

24 318913101 Trim, vent, black, upper

30 318928500 Bracket, control panel, rear, (2)

31 316564406 Knob, control, stainless

40 318912907 Panel, service, silver

50 318917700 Chassis, UIB mounting

55 316247700 Nut, mounting

55A 316247800 Washer, lock, mtg

96 # 318411401 Control Assembly, complete, rotary, w/4 controls

97A# 316442062 Board, power, UIB

141# 318005228 Switch, thermal cutout

* # 318224861 Harness, wiring, timer

* # 318402353 Harness, wiring, communication

* 08016432 Screw, truss head, 8-18 x 0.375

* 5304436875 Screw, 8-18 X 1/2, black

* 5304453707 Screw, 8-18 X 1/2

* 5304454881 Screw, #8-18 x 3/8

Publication No: 5995544078 CPES3085KF1

06/09 4

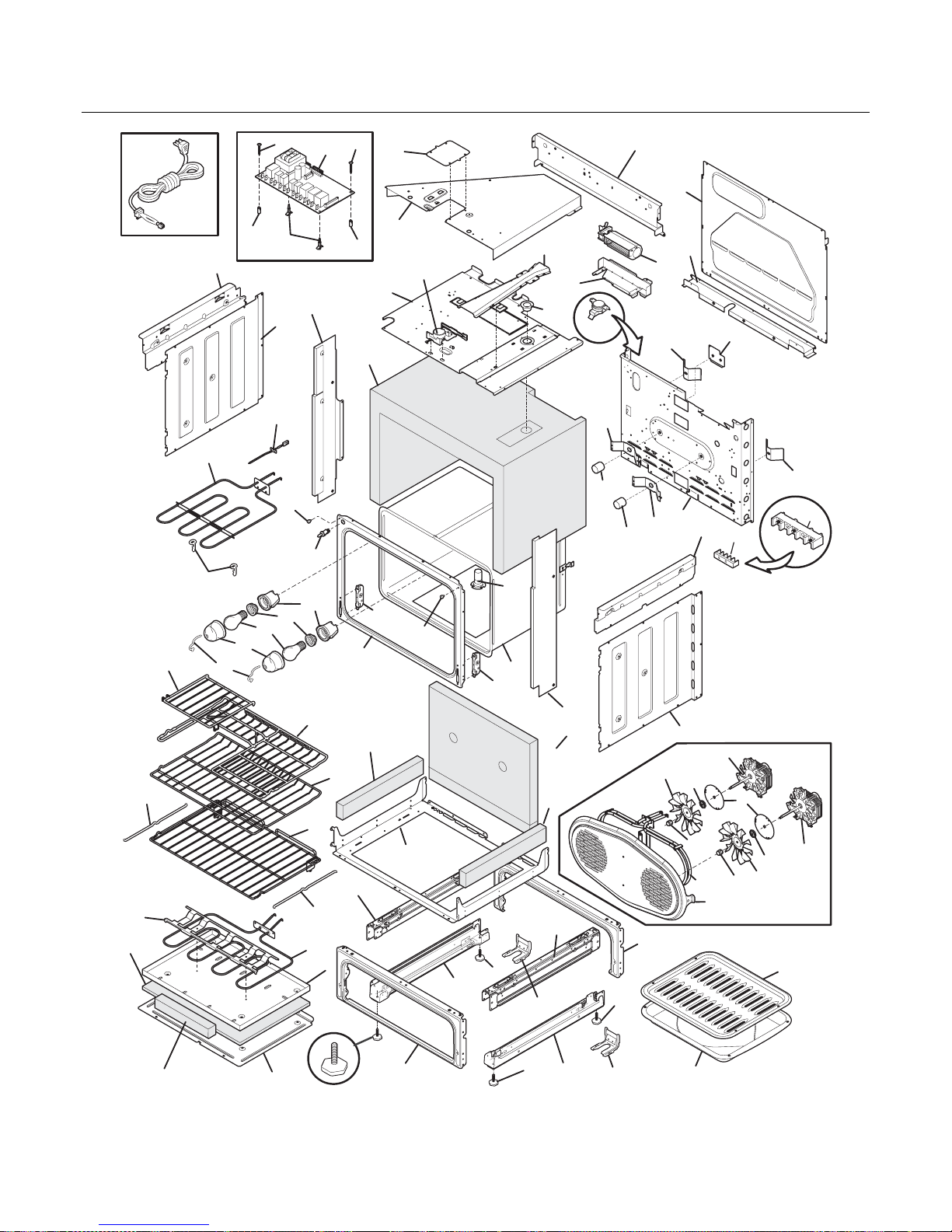

BODY

81 57

200

201

170

166A

166

166A

166

133

97A

77 77A

272

161 111

111

109

125

107

119

108

108A

58A

127

58B

58D

58C

Part of 58B

BCPES3085KF1

90A

131

132

CPES3085KF1 Publication No: 5995544078

# Functional Parts 5 06/09

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259224 Back, main

1A 318225110 Panel, main back, upper

* 5303324184 Screw, 8-18 x 5/16, black, (4)

2 318258957 Shield, insulation, upper

3 318225210 Panel, bodyside, upper RH

3A 318225211 Panel, bodyside, upper LH

4 318927600 Support, auto rack, (2)

5 318175508 Screw, leveling

6 318922301 Rack, oven

6A 318926803 Rack, half, oven

6B 318921600 Rack, oven, auto

6C 318929702 Insert, half rack

7 318297303 Box, bake element

8 318359500 Panel, service

8A 318313601 Bracket, bake element

9 316081900 Pan, broiler, OPTIONAL ACCESS0RY

10 316082000 Insert, broiler pan, OPTIONAL ACCESS0RY

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

18 318222400 Housing, oven light

20 318389400 Plate, retainer

21 318389000 Seal, ring

29 316517600 Spacer, oven door

37 # 316217002 Probe, oven temp

39 # 318113111 Cord, electric

58A 318536600 Insulation, wrapper, top and sides

58B 318405900 Insulation, oven, back

58C 318294912 Insullation, bake element

58D 318372001 Insulation, door, 20.5 x 2.375, (2)

59 318072577 Duct, oven vent

62 5303935061 Terminal Block Kit

62* 5303323139 Screw, 10-24 x 0.906

66 # 318255801 Element, broil, 3400W

67 # 318254911 Element, bake, 2500W, 8 pass

68 5304403015 Support, hanger, (4), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

76 318056292 Front, oven

77 316247900 Spacer, power board

77A 316114100 Spacer

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

* 5303323129 Screw, 8 X 0.750

82 318258715 Shield, insulation, lower

83 318261438 Liner, oven assy

86 318561100 Receptacle, hinge, (2)

86* 5304461333 Screw, 10-32 x 17/32

87 318260605 Bracket, cable mtg.

Publication No: 5995544078 CPES3085KF1

06/09 6

BODY

81 57

200

201

170

166A

166

166A

166

133

97A

77 77A

272

161 111

111

109

125

107

119

108

108A

58A

127

58B

58D

58C

Part of 58B

BCPES3085KF1

90A

131

132

CPES3085KF1 Publication No: 5995544078

# Functional Parts 7 06/09

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

89 # 318261215 Motor, latch assy

90 318296904 Panel, filler, black, RH

90A 318296905 Panel, filler, black, LH

97A# 316442119 Board, power, 7 relay

98 5304401490 Screw, 6-18 x 1, (2)

107 318550200 Cover, fan, dual

108# 318073028 Motor, blower

108A 318251300 Bracket, fan support

109 318398300 Fan Blade

111 318399800 Nut, fan retainer

119# 318004902 Switch, thermal

125# 318398201 Motor, fan

125* 318142100 Washer, motor, convection

127 318357001 Adapter Assembly, w/vent tube, and catalyst

131 318272901 Box, vent

132 318003000 Plate, shield

133 318347800 Chimney

161# 318535300 Element, convection, duo

166 318298410 Bracket, base support, (2)

166A 318298403 Bracket, base support, lower, (2)

170 318335500 Anti-tip & accessories

200 318298226 Frame, drawer, front

201 318298230 Frame, drawer, black

* 318531701 Spacer, (2)

272 318249409 Tube, protector

* # 318384470 Wiring Harness, main

* 5304400192 retainer wire

* 318165800 Spacer

* 3051050 Screw, shoulder

* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5304415832 Screw, 8-18 x 0.406

* 5304436875 Screw, 8-18 X 1/2, black

* 5304440988 Screw, 10-16 x 3/4

Publication No: 5995544078 CPES3085KF1

06/09 8

TOP/DRAWER

124

13A

124

60 29

TFPES3085KFA

165

52A

52B

15A

15C

15B

CPES3085KF1 Publication No: 5995544078

# Functional Parts 9 06/09

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 318304401 Drawer, body assembly

1A 318300003 Panel, warmer drawer, side, (2)

1C 318300301 Panel, warmer drawer, rear

2 318303901 Panel, drawer, black, inner

4 318298825 Panel, drawer, stainless, front

13 318259507 Glide, warmer, inner RH

13A 318259506 Glide, warmer, inner LH

15 # 318198936 Element, surface, 750/1800W, dual radiant

15A# 318258203 Element, bridge, 1800/2600

15B# 316530000 Element, surface, 9", Turbo, 3200W, radiant

15C# 318198843 Element, surface, warm zone, 100W, radiant

16 318916901 Smooth Top, assembly, glass/steel, black

29 318147430 Bumper, (2)

39 316551500 Handle, door/drawer, stainless

46 318921402 Box, burner

52 318122006 Spring, element mtg, small

52A 318122010 Spring, element mtg, 3000W

52B 318122008 Spring, element mtg, 1800W/3000W

60 5304472906 Screw, handle mtg, #10-24 x 1.5, (2)

* 3201909 Washer, flat, (2)

81 # 318255301 Element, warmer drawer

84 # 318005108 Thermostat

85 318345601 Rack, warmer drawer

86 316095800 Clip, hold down, warmer element

87 318300102 Panel, warmer drawer, lower

90 318368001 Channel, glass protector, (2)

95 318303800 Shield, wire

124 316105501 Glide, outer/RH & LH, (2)

165 318913300 Deflector, box, front

* # 318228950 Harness, wiring, cooktop

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, silver, (4)

* 5303307980 Screw, 8-32 x 0.437, (8)

* 5304454881 Screw, #8-18 x 3/8

Publication No: 5995544078 CPES3085KF1

06/09 10

DOOR

4142

DFPGS3085KFA
