Frigidaire FCS367CH Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FCS367CHSA 37954333H9011 WHITE U.S.A.

FCS367CHBA 37954333H9061 BLACK U.S.A.

ELECTRIC - RANGE

Model No.

FCS367CH

Inc.

FACTORY PARTS CATALOG

DUAL FUEL SLIDE-IN RANGE

WIRING DIAGRAM # - 318045035

OWNER’S GUIDE # - 318200852

TIMER INSTRUCTION GUIDE # - 318130805

INSTALLATION INSTRUCTION # - 318104600

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995324281

990604

-EN/SERVICE

377

Publication No. FCS367CHS/B

5995324281

06/99 2

BACKGUARD

LA9922G07

18A

2424

FCS367CHS/B Publication No.

5995324281

# = Functional Part 306/99

* = Non-Illustrated Part

BACKGUARD

POS. NO PART NO DESCRIPTION

18 5303304668 AEnd Cap white RH

18 5303300160 B End Cap black RH

18A 5303304671 AEnd Cap white LH

18A 5303300161 B End Cap black LH

19 318005582 APanel-control

19 318005583 B Panel-control

20 # 318012915 AClock, Timer

20# 318012917 B Clock, Timer

21 318027804 ATrim-backguard

21 318027803 B Trim-backguard

23 318015508 A B Braket-clock mtg.

24 # 316005607 ASwitch-rocker white

24# 316005602 B Switch-rocker black

42 318106904 ATrim-vent white

42 318106903 B Trim-vent black

64 318112200 AB Plate

*08016432 AB Screw, 8-18 X 3/8

*5303323145 AB Nut

*# 318083167 A B Wiring harness

A= FCS367CH (FCS367CHSA)

B= FCS367CH (FCS367CHBA)

Publication No. FCS367CHS/B

5995324281

06/99 4

BURNER

10B

10A

222A

75 76

76A

77A

333

LAP22B0030

FCS367CHS/B Publication No.

5995324281

# = Functional Part 506/99

* = Non-Illustrated Part

BURNER

POS. NO PART NO DESCRIPTION

1318177301 AB Manifold pipe

2# 5303935042 AB Valve-top burner

2A# 318087001 AB Valve-top burner

3# 316032002 AB Switch-ignitor (4)

4# 318167703 AB Tube-burner

5# 318167700 AB Tube-burner

6# 318167702 AB Tube burner

7318167701 A B Tube burner

85303280394 A B Spark module

10# 318148001 AB Burner top mid

10A# 318148002 AB Burner top large

10B# 318148000 A B Burner top small

13 318054503 AB Connector, manifold tube

14# 318122700 AB Regulator, pressure

15 318122900 AB Bracket

33 318171500 AB Bracket burner

35 318146300 AB Bushing insulation

72 5303323141 AB Screw 1/4-20 X 5/16

73 318080100 AB Plate

74# 318148700 A B Ignitor assy

75 318148800 A B Clip electrode

76# 318167801 A B Mid & large mixing tube

76A 318167800 A B Small mixing tube

77 318112010 A B Bracket-burner mtg

77A 318112000 A B Bracket-burner mtg

*318127412 AB Lp conversion kit

*08002868 AB Screw, 10-24 X ½

A= FCS367CH (FCS367CHSA)

B= FCS367CH (FCS367CHBA)

FCS367CHS/B Publication No.

5995324281

06/99 6

BODY

264

170

170A

102

191

LA9922V06

58B

142

58A

89 108

141

127

129

128

114

54 15 16

125

76 41

217

102

177

4223

59A

FCS367CHS/B Publication No.

5995324281

# = Functional Part 706/99

* = Non-Illustrated Part

BODY

POS. NO PART NO DESCRIPTION

1 5303310527 AB Back-main

1A 318070901 AB Panel-back

2A 318108600 AB Shield-oven top

3 5303300143 AB Panel-bodyside

3A 318160004 AB Panel-bodyside RH

3B 318160005 AB Panel-bodyside LH

4318073900 AB Panel-subtop

5 318175503 AB Screw-leveling

6 5303310522 AB Rack-oven

9 5303317977 AB Pan-broiler

10 5303317976 AB Insert-broiler pan

12 # 318089910 AB Switch-light

14 5308011085 AB Socket-light/lamp

15 3201908 AB Lamp-oven light

16 3201911 AB Glass-oven light lens

17 5304400195 AB Retainer-lens

25 318179102 AB Shield-heat

37 # 316111203 AB Probe-oven temp

41 5303310526 AB Cover-hinge cutout

54 5303310514 AB Housing-oven light

56 318002602 ATrim-oven front white

56 318002601 B Trim-oven front black

58A 5303310539 AB Insulation

58B 5303310538 AB Insulation oven back

59 318072519 AB Tube-oven vent

59A 318072520 AB Tube-oven vent

62 # 5303310518 AB Terminal Block

63 5303310517 AB Plate-ground strap

66 # 5303310513 AB Element-broil

67 # 5303310512 AB Element-bake

68 5304403015 AB Support-element

70 5303300142 AB Shield-insulation

71 5303310515 AB Cover-wiring

76 318124100 AB Front-oven

80 5303324473 AB Bracket oven

81 5303301261 AB Spring-oven

83 318089608 AB Liner-oven

86 5303310524 AB Channel-hinge

87 318111800 AB Plate-mounting

88 5303311160 AB Rod-latch

89 # 5304404899 AB Motor-latch

89 * 318120702 AB Switch latch

102 5303311142 AB Support-oven front

108# 318073001 AB Motor-fan

114 3051827 AB Plate-filler

127 5303310542 AB Adapter assy

128 5303311163 AB Bushing

129 5303311164 AB Spring

141 # 5303284446 AB Switch thermal

142 318123901 AB Air Deflector

170 318175700 AB Anti-tip bracket right

170A 318175701 AB Anti-tip bracket left

177 318053800 AB Gasket-vent

191 5303304030 AB Bracket

217 316042300 AB Warning plate

223 318038400 AB Cover tube

264 318077601 A B Cover

* 5303211311 AB Screw #8 X ½

*5303307980 AB Screw, 8-32 X 7/16

*5303300265 A B Screw, 8-18 X ½ chrome

A= FCS367CH (FCS367CHSA)

B= FCS367CH (FCS367CHBA)

FCS367CHS/B Publication No.

5995324281

06/99 8

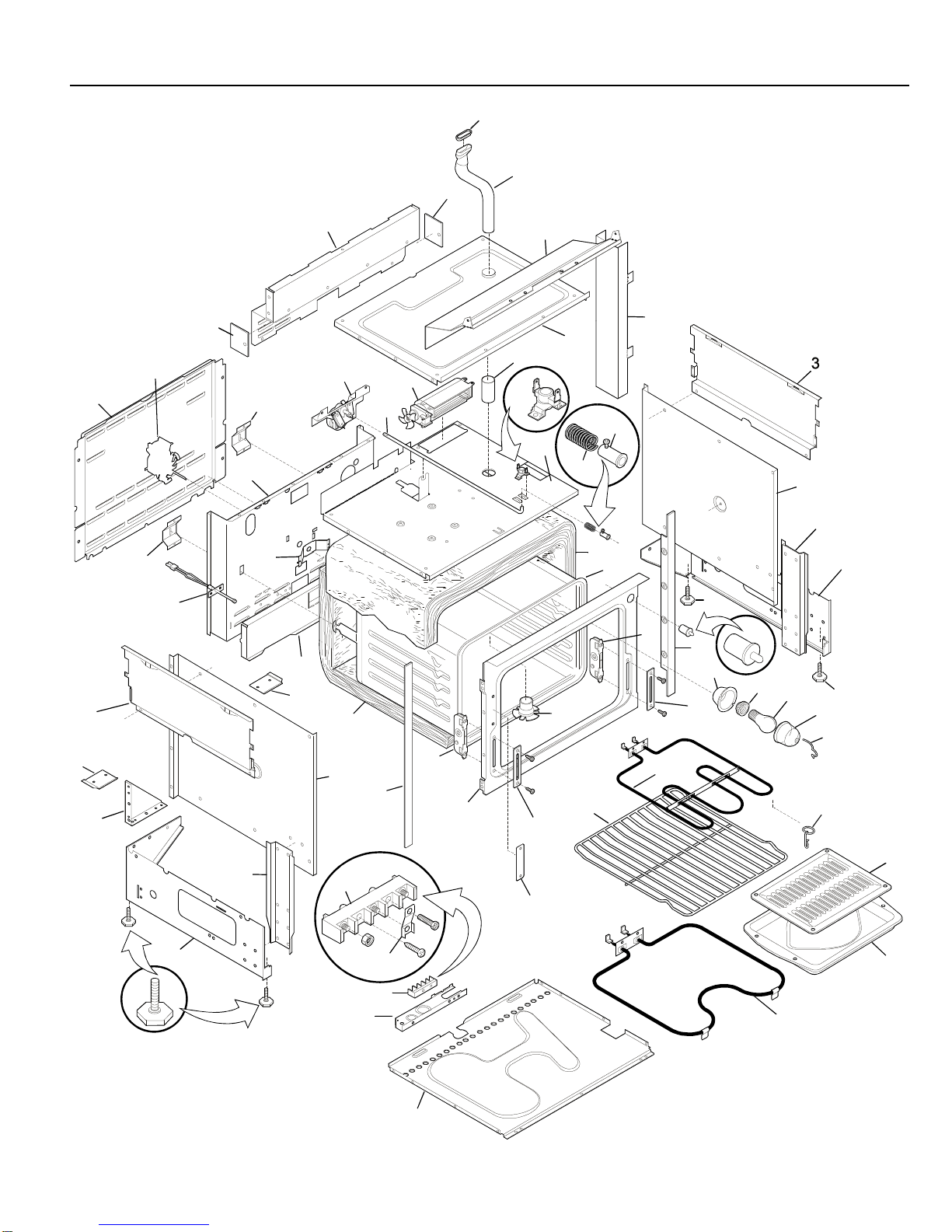

TOP/DRAWER

43 43 43 43

22B

22A

19A

19B

31A

31A 31A

LA9922T13

13A

FCS367CHS/B Publication No.

5995324281

# = Functional Part 906/99

* = Non-Illustrated Part

TOP/DRAWER

POS.NO PART NO DESCRIPTION

1 5303310500 AB Drawer-utility & roller

2318108000 AB Panel-drawer

4 5303311126 APanel-drawer white

45303311178 B Panel-drawer black

11 5303311125 A B Bracket-drawer

13 5303311129 AB Rail-drawer RH

13A 5303311130 AB Rail-drawer LH

16 318079200 AMain Top glass white

16 318079201 B Main Top glass black

19 318168116 APan, burner white

19 318168114 B Pan, burner black

19A 318168126 APan, burner large white

19A 318168124 B Pan. Burner large black

19B 318168106 APan-burner small white

19B 318168104 BPan-burner small black

20 318120106 AGrate (4) grey

20 318120105 B Grate (4) black

22 318076411 ACap-burner white mid

22 318076410 BCap-burner black mid

22A 318076421 ACap-burner white large

22A 318076420 B Cap-burner black large

22B 318076401 ACap-burner white, small

22B 318076400 BCap-burner black, small

31A 318053900 AB Gasket pan

43 318016500 AKnob, top valve (4)

43 318016501 B Knob, top valve (4)

45 318146200 AB Bushing, top burner

70 5303311143 A B Bracket slide

71 5303311144 A B Magnet & spring assy

72 5303311145 A B Support & roller

*5303211311 AB Screw, #8 X ½

A= FCS367CH (FCS367CHSA)

B= FCS367CH (FCS367CHBA)
