Frigidaire FCS367F Manuale utente

FCS367FC.tif LA20BG0055.eps LA20BR0027.eps BFES366ECB.eps LA20CT0094.eps

DPLES389ECB.eps 318271911.eps

Product No. FCS367FCA

37954381H60S1

Series 30" slide-in

Color stainless

Market North America

Wiring Diagram 318271911

Owner's Guide 318203862

Installation Instructions 318201671

Service Data Sheet 318127022

Timer Guide 318200185

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995470936

06/07/27

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN

DUAL FUEL RANGE

Model No.

FCS367F

Publication No: 5995470936 FCS367FCA

07/06 2

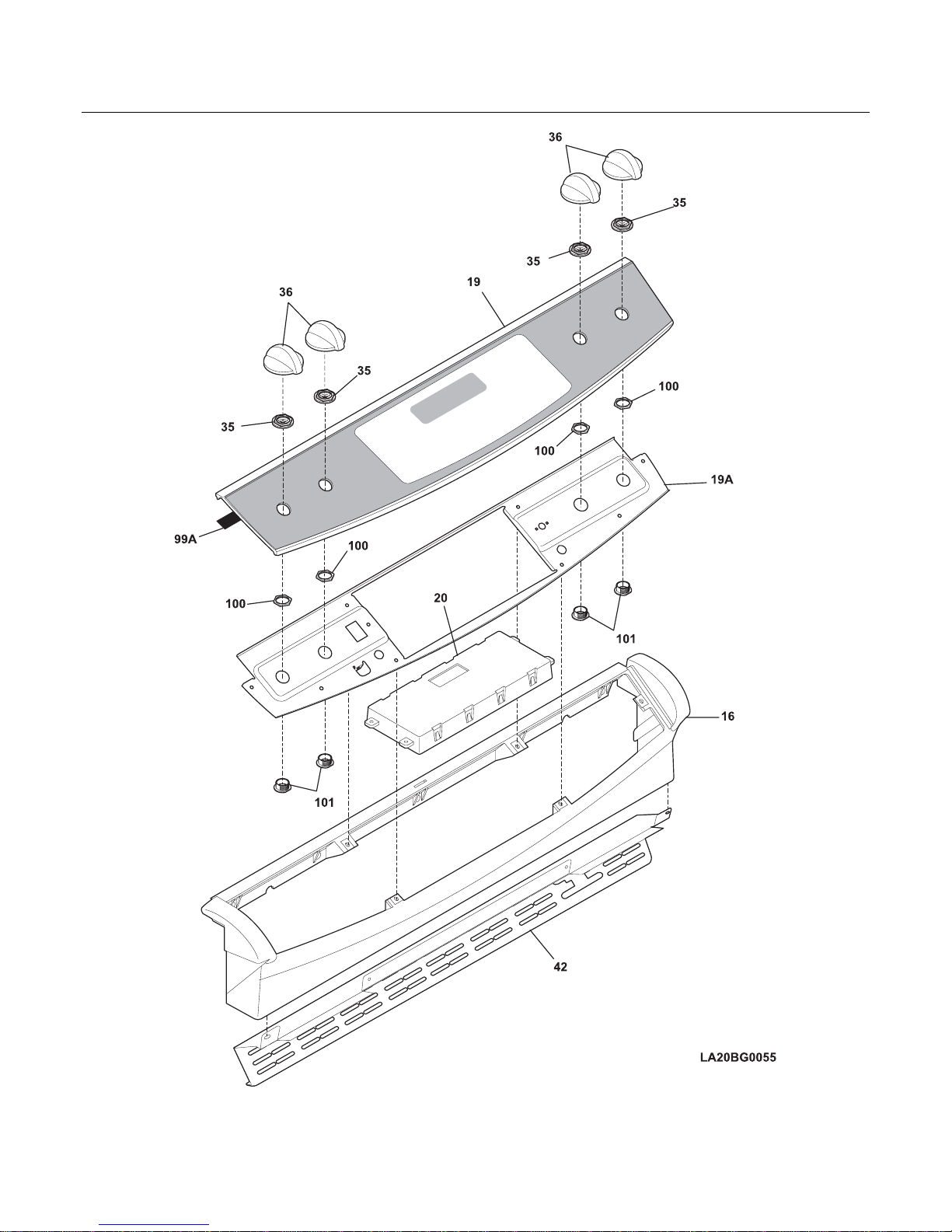

BACKGUARD

FCS367FCA Publication No: 5995470936

# Functional Parts 3 07/06

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

16 318299102 Console, assy., black

19 318312241 Control Panel Assembly, w/membrane, stainless

19A 318224404 Panel, control mtg.

20 # 316418532 Clock/Timer, electronic, ES350

20* 5304453707 Screw, control mtg.

35 318233720 Retainer, control panel, black

36 316223024 Knob, control, black

42 318298001 Trim, vent, black, upper

99A 318223900 Gasket, dark grey

100 318233800 Nut, hex

101 318233400 Bushing, retainer

* # 318224811 Harness, wiring, timer

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303300265 Screw, 8-18 X 1/2, (2)

* 5303311333 Screw, 8-32 x 3/8

Publication No: 5995470936 FCS367FCA

07/06 4

BURNER

FCS367FCA Publication No: 5995470936

# Functional Parts 5 07/06

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 318305600 Manifold, right side

1A 318305601 Manifold, left side

1B 318305410 Tube, manifold, 3/8, interconnect

2 # 318233920 Valve, top burner, 12000 BTU

2A # 318233940 Valve, top burner, 16/17K

2B # 318233900 Valve, top burner, 5000 BTU

2C # 318233910 Valve, top burner, 9500 BTU

3 # 318232600 Wiring Harness, w/igntr switch

10 # 316212300 Burner, sealed, 12K

10A# 316223300 Burner, sealed, 16/17K

10B# 316206400 Burner, sealed, 5K

10C# 316212400 Burner, sealed, 9.5K

11 318306105 Ignitor Assembly, 12K, left rear, w/tube & holder

11A 318306107 Ignitor Assembly, 16K, right front, w/tube & holder

11B 318306108 Ignitor Assembly, 5K, right rear, w/tube & holder

11C 318306104 Ignitor Assembly, 9.5K, left front, w/tube & holder

12 318369902 Bracket, support, (2)

13 318305110 Tube, regulator, to manifold

14 # 318122700 Regulator, pressure

14* 5303311306 Screw, 8-18 x 0.375, (3)

16 318590002 Panel, regulator mtg.

37 5303307980 Screw, 8-32 x 0.437, (4)

44 316237901 Orifice, top burner, 12K

44A 316237912 Orifice, top burner, 16K

44B 316237903 Orifice, top burner, 5K

44C 316237902 Orifice, top burner, 9.5K

72 316215600 Screw, valve mtg., 1/4 - 20

77 318192606 Bracket, burner mtg, (4)

* 318186911 LP Conversion Kit

* 318199725 Wiring Harness, ignitor

* 08011955 Screw, 10-24 x 0.375, square drive

* 5303211311 Screw, 8 x 0.500

Publication No: 5995470936 FCS367FCA

07/06 6

BODY

170

200

201

166A

166

124

166A

166

119

108

108A

185

58A

29 127

58B

BFES366ECB

185

90A

59A

131

132

142

219

219A

112

300

163

87A

107

111

109

263

125

FCS367FCA Publication No: 5995470936

# Functional Parts 7 07/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259204 Back, main

1A 318225110 Panel, main back, upper

2 318258902 Shield, insulation, upper

3 318225210 Panel, bodyside, upper RH

3A 318225211 Panel, bodyside, upper LH

5 318175503 Screw, leveling

6 318345207 Rack, oven

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

12 # 318089917 Switch, light

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

58A 318285055 Insulation, oven wrapper

58B 318285056 Insulation, oven back

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 5303935061 Terminal Block Kit

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

63 318264200 Plate, grounding strap

66 # 318255600 Element, broil, 2750W

67 # 318255401 Element, bake, 3400W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

76 318056217 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258707 Shield, insulation, lower

83 318261404 Liner, oven assy

86 5303310524 Receptacle, hinge

87 318260609 Bracket, cable mtg.

87A 318111804 Plate, cord set mtg

89 # 318261209 Motor, latch assy

90 318296904 Panel, filler, black, RH

90A 318296905 Panel, filler, black, LH

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 318249401 Tube, protector

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

112# 318112703 Relay

119# 318005202 Switch, thermal cutout

124 318300800 Backet, glide, (2)

Publication No: 5995470936 FCS367FCA

07/06 8

BODY

170

200

201

166A

166

124

166A

166

119

108

108A

185

58A

29 127

58B

BFES366ECB

185

90A

59A

131

132

142

219

219A

112

300

163

87A

107

111

109

263

125

FCS367FCA Publication No: 5995470936

# Functional Parts 9 07/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

125# 316415800 Motor, fan

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272900 Box, vent

132 318003000 Plate, shield

142 318123910 Deflector

163 318014110 Spacer, (6)

166 318298410 Bracket, base support, (2)

166A 318298403 Bracket, base support, lower, (2)

170 318335500 Anti-tip & accessories

185 318165800 Spacer

200 318298201 Frame, drawer, black, front

201 318298210 Frame, drawer

219# 318003614 Thermostat, safety

219A 318003613 Thermostat, safety, 1.375" mtg, 105/120

263 316136500 Washer, flat

300 318326500 Shield, heat

* # 318224935 Harness, wiring, main

* 318235300 Connector assy., w/3 lugs, & instructions

* 3051050 Screw, shoulder

* 3201861 Screw, 6 x 0.375, (4)

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303307980 Screw, 8-32 x 0.437, (4)

* 5303323129 Screw, 8 X 0.750

* 5304415832 Screw, 8-18 x 0.406

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995470936 FCS367FCA

07/06 10

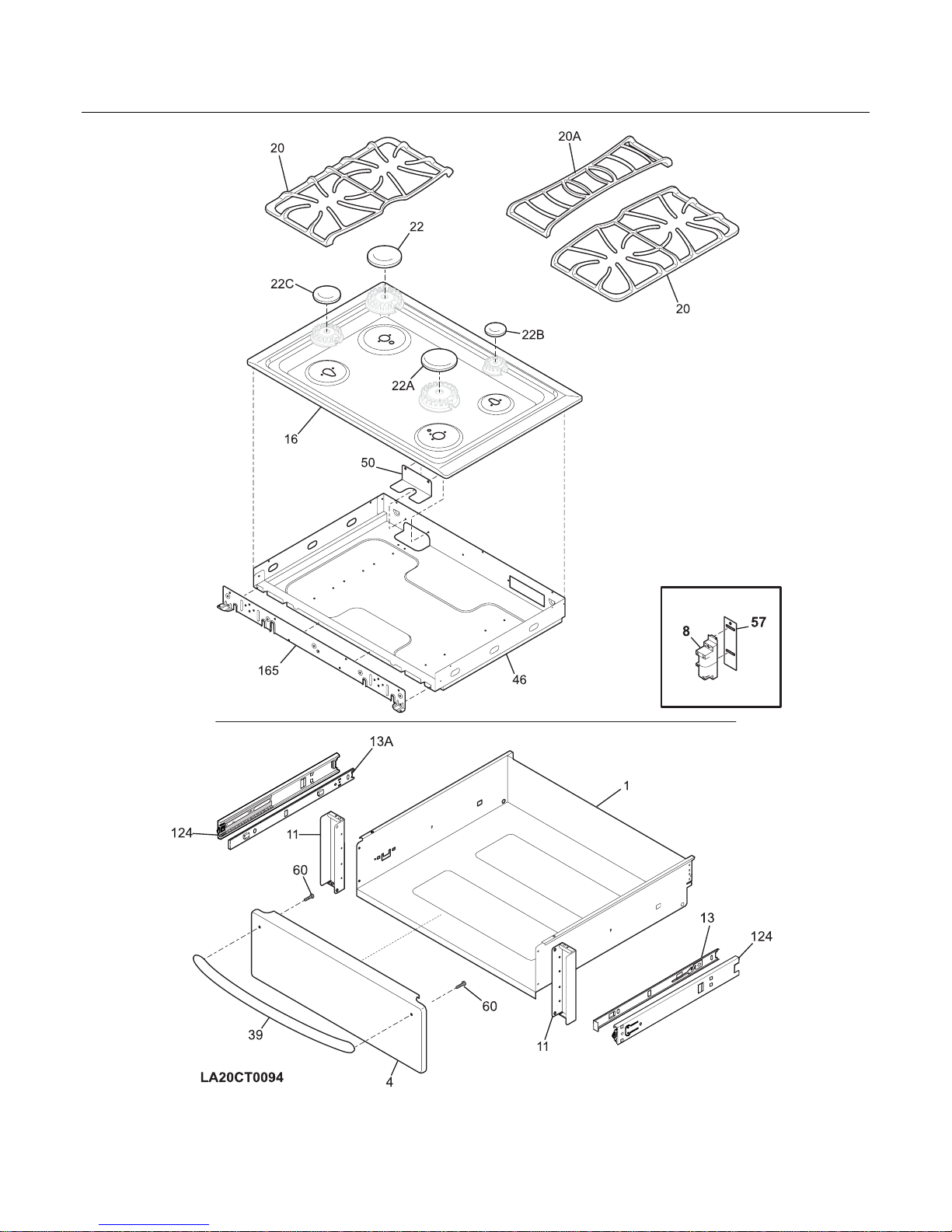

TOP
